ns3::Ipv6ExtensionFragment::Fragments Class Reference

A Set of Fragment. More...

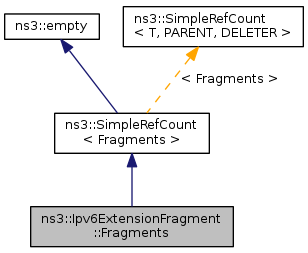

Inheritance diagram for ns3::Ipv6ExtensionFragment::Fragments:

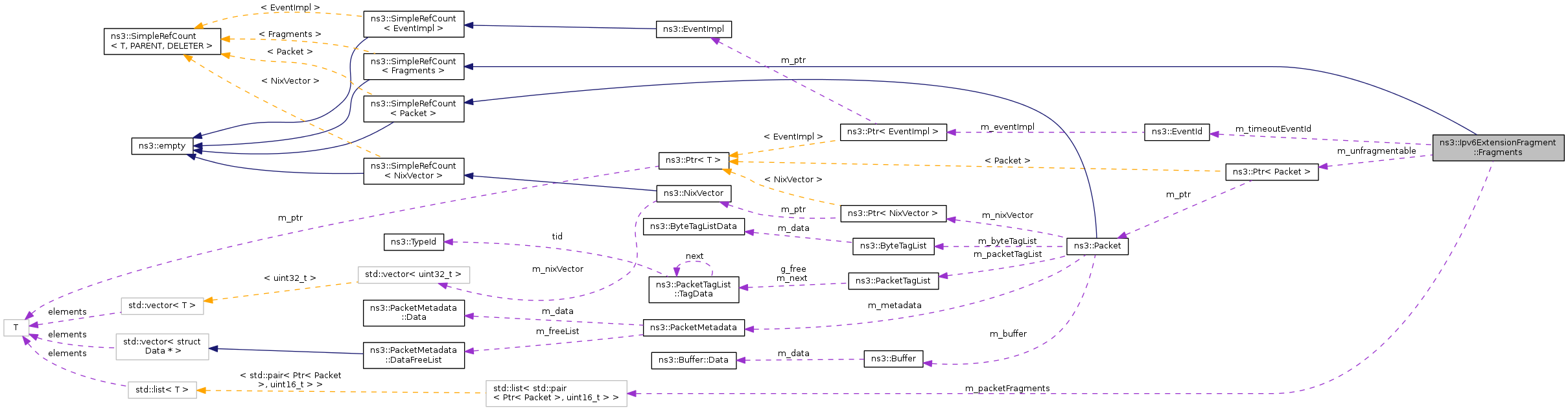

Collaboration diagram for ns3::Ipv6ExtensionFragment::Fragments:

Public Member Functions
	Fragments ()
	Constructor.
	~Fragments ()
	Destructor.
void	AddFragment (Ptr< Packet > fragment, uint16_t fragmentOffset, bool moreFragment)
	Add a fragment.
void	CancelTimeout ()
	Cancel the timeout event.
Ptr< Packet >	GetPacket () const
	Get the entire packet.
Ptr< Packet >	GetPartialPacket () const
	Get the packet parts so far received.
bool	IsEntire () const
	If all fragments have been added.
void	SetTimeoutEventId (EventId event)
	Set the Timeout EventId.
void	SetUnfragmentablePart (Ptr< Packet > unfragmentablePart)
	Set the unfragmentable part of the packet.
Public Member Functions inherited from ns3::SimpleRefCount< Fragments >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const

Private Attributes
bool	m_moreFragment
	If other fragments will be sent.
std::list< std::pair< Ptr < Packet >, uint16_t > >	m_packetFragments
	The current fragments.
EventId	m_timeoutEventId
	Timeout handler event.
Ptr< Packet >	m_unfragmentable
	The unfragmentable part.

Additional Inherited Members
Static Public Member Functions inherited from ns3::SimpleRefCount< Fragments >
static void	Cleanup (void)

Detailed Description

A Set of Fragment.

Definition at line 303 of file ipv6-extension.h.

Constructor & Destructor Documentation

ns3::Ipv6ExtensionFragment::Fragments::Fragments

(

)

Constructor.

Definition at line 588 of file ipv6-extension.cc.

ns3::Ipv6ExtensionFragment::Fragments::~Fragments

(

)

Destructor.

Definition at line 593 of file ipv6-extension.cc.

Member Function Documentation

void ns3::Ipv6ExtensionFragment::Fragments::AddFragment	(	Ptr< Packet >	fragment,
		uint16_t	fragmentOffset,
		bool	moreFragment
	)

Add a fragment.

Parameters

fragment	the fragment
fragmentOffset	the offset of the fragment
moreFragment	the bit "More Fragment"

Definition at line 597 of file ipv6-extension.cc.

void ns3::Ipv6ExtensionFragment::Fragments::CancelTimeout

(

)

Cancel the timeout event.

Definition at line 691 of file ipv6-extension.cc.

Ptr< Packet > ns3::Ipv6ExtensionFragment::Fragments::GetPacket

(

)

const

Get the entire packet.

Returns

the entire packet

Definition at line 645 of file ipv6-extension.cc.

References ns3::Packet::AddAtEnd(), ns3::Packet::Copy(), and list.

Here is the call graph for this function:

Ptr< Packet > ns3::Ipv6ExtensionFragment::Fragments::GetPartialPacket

(

)

const

Get the packet parts so far received.

Returns

the partial packet

Definition at line 657 of file ipv6-extension.cc.

References ns3::Packet::AddAtEnd(), ns3::Packet::Copy(), and list.

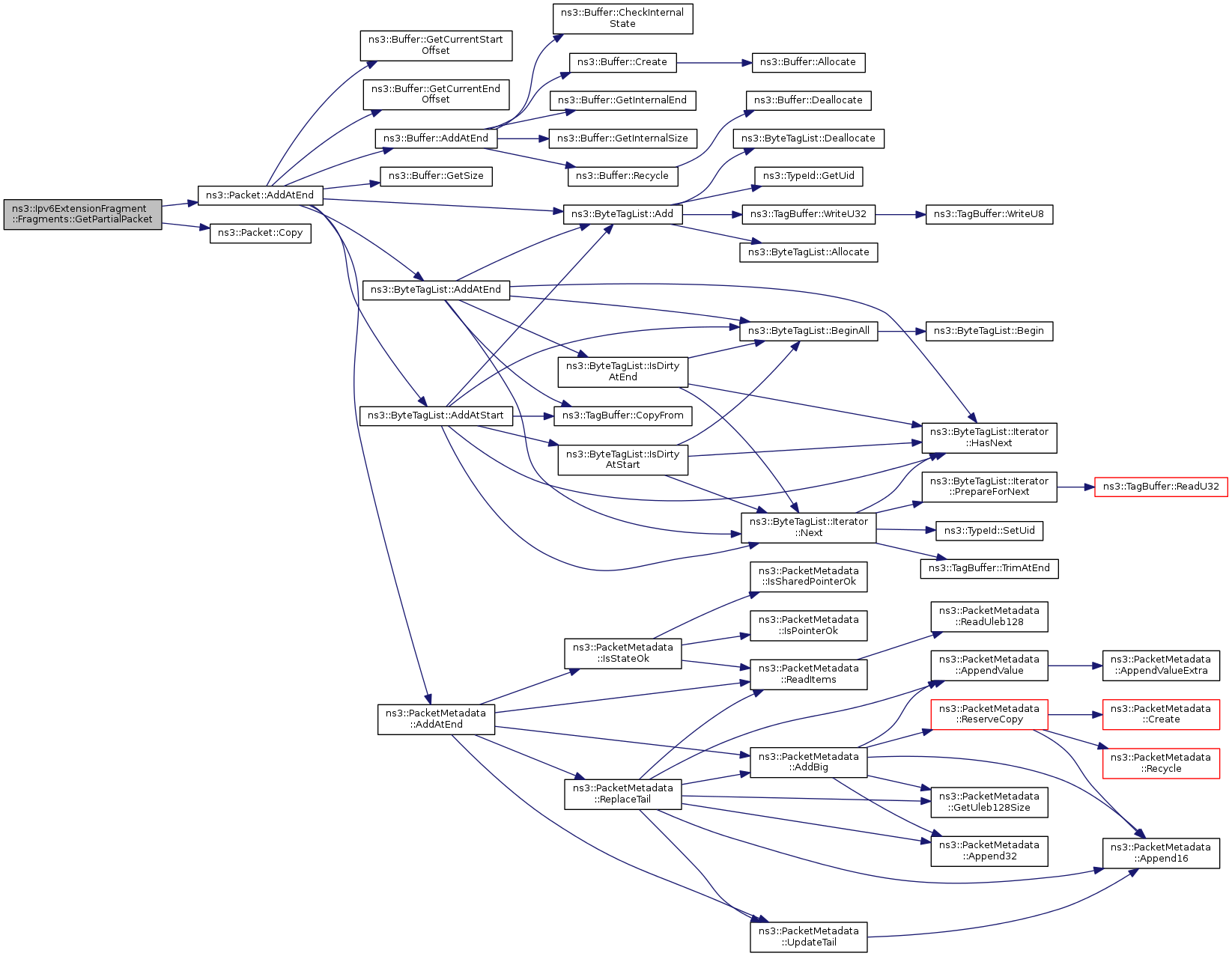

Here is the call graph for this function:

bool ns3::Ipv6ExtensionFragment::Fragments::IsEntire

(

)

const

If all fragments have been added.

Returns

true if the packet is entire

Definition at line 622 of file ipv6-extension.cc.

References list.

void ns3::Ipv6ExtensionFragment::Fragments::SetTimeoutEventId

(

EventId

event

)

Set the Timeout EventId.

Definition at line 685 of file ipv6-extension.cc.

void ns3::Ipv6ExtensionFragment::Fragments::SetUnfragmentablePart

(

Ptr< Packet >

unfragmentablePart

)

Set the unfragmentable part of the packet.

Parameters

unfragmentablePart

the unfragmentable part

Definition at line 617 of file ipv6-extension.cc.

Member Data Documentation

bool ns3::Ipv6ExtensionFragment::Fragments::m_moreFragment

private

If other fragments will be sent.

Definition at line 362 of file ipv6-extension.h.

std::list<std::pair<Ptr<Packet>, uint16_t> > ns3::Ipv6ExtensionFragment::Fragments::m_packetFragments

private

The current fragments.

Definition at line 367 of file ipv6-extension.h.

EventId ns3::Ipv6ExtensionFragment::Fragments::m_timeoutEventId

private

Timeout handler event.

Definition at line 377 of file ipv6-extension.h.

Ptr<Packet> ns3::Ipv6ExtensionFragment::Fragments::m_unfragmentable

private

The unfragmentable part.

Definition at line 372 of file ipv6-extension.h.

---

The documentation for this class was generated from the following files:

• src/internet/model/ipv6-extension.h
• src/internet/model/ipv6-extension.cc
