Keep track of a set of IPv6 interfaces. More...

#include <ipv6-interface-container.h>

Collaboration diagram for ns3::Ipv6InterfaceContainer:

Public Types
typedef std::vector< std::pair < Ptr< Ipv6 >, uint32_t > >::const_iterator	Iterator

Public Member Functions
	Ipv6InterfaceContainer ()
	Constructor.
void	Add (Ptr< Ipv6 > ipv6, uint32_t interface)
	Add a couple IPv6/interface.
void	Add (Ipv6InterfaceContainer &c)
	Fusion with another Ipv6InterfaceContainer.
void	Add (std::string ipv6Name, uint32_t interface)
	Add a couple of name/interface.
Iterator	Begin (void) const
	Get an iterator which refers to the first pair in the container.
Iterator	End (void) const
	Get an iterator which indicates past-the-last Node in the container.
Ipv6Address	GetAddress (uint32_t i, uint32_t j) const
	Get the address for the specified index.
uint32_t	GetInterfaceIndex (uint32_t i) const
	Get the interface index for the specified node index.
uint32_t	GetN (void) const
void	SetDefaultRoute (uint32_t i, uint32_t router)
	Set the default route for the specified index.
void	SetRouter (uint32_t i, bool router)
	Set the state of the stack (act as a router or not) for the specified index.

Private Types
typedef std::vector< std::pair < Ptr< Ipv6 >, uint32_t > >	InterfaceVector

Private Attributes
InterfaceVector	m_interfaces
	List of IPv6 stack and interfaces index.

Detailed Description

Keep track of a set of IPv6 interfaces.

Definition at line 38 of file ipv6-interface-container.h.

Member Typedef Documentation

typedef std::vector<std::pair<Ptr<Ipv6>, uint32_t> > ns3::Ipv6InterfaceContainer::InterfaceVector

private

Definition at line 162 of file ipv6-interface-container.h.

typedef std::vector<std::pair<Ptr<Ipv6>, uint32_t> >::const_iterator ns3::Ipv6InterfaceContainer::Iterator

Definition at line 41 of file ipv6-interface-container.h.

Constructor & Destructor Documentation

ns3::Ipv6InterfaceContainer::Ipv6InterfaceContainer ( )

Constructor.

Definition at line 30 of file ipv6-interface-container.cc.

Member Function Documentation

void ns3::Ipv6InterfaceContainer::Add	(	Ptr< Ipv6 >	ipv6,
		uint32_t	interface
	)

Add a couple IPv6/interface.

Parameters

ipv6	IPv6 address
interface	interface index

Definition at line 63 of file ipv6-interface-container.cc.

References m_interfaces.

Referenced by ns3::Ipv6AddressHelper::Assign(), ns3::PointToPointStarHelper::AssignIpv6Addresses(), ns3::PointToPointGridHelper::AssignIpv6Addresses(), ns3::CsmaStarHelper::AssignIpv6Addresses(), and ns3::PointToPointDumbbellHelper::AssignIpv6Addresses().

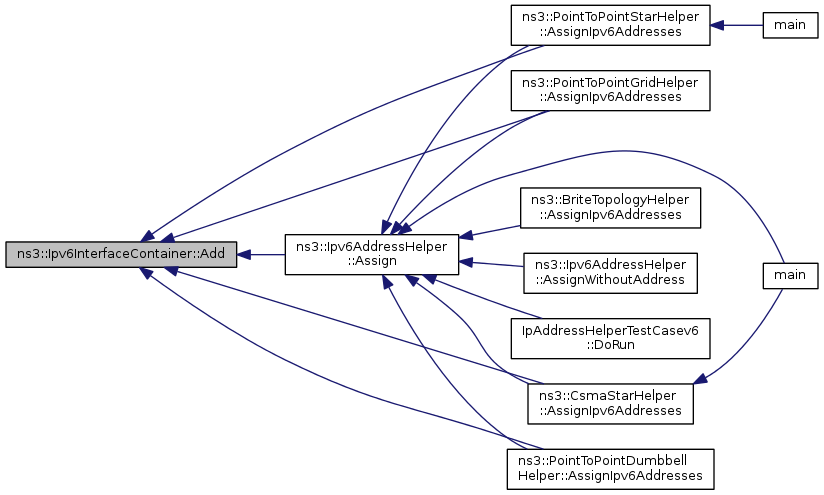

Here is the caller graph for this function:

void ns3::Ipv6InterfaceContainer::Add ( Ipv6InterfaceContainer & c )

Fusion with another Ipv6InterfaceContainer.

Parameters

c container

Definition at line 74 of file ipv6-interface-container.cc.

References m_interfaces.

void ns3::Ipv6InterfaceContainer::Add	(	std::string	ipv6Name,
		uint32_t	interface
	)

Add a couple of name/interface.

Parameters

ipv6Name	name of a node
interface	interface index to add

Definition at line 68 of file ipv6-interface-container.cc.

References m_interfaces.

Ipv6InterfaceContainer::Iterator ns3::Ipv6InterfaceContainer::Begin ( void ) const

Get an iterator which refers to the first pair in the container.

Pairs can be retrieved from the container in two ways. First, directly by an index into the container, and second, using an iterator. This method is used in the iterator method and is typically used in a for-loop to run through the pairs

Ipv4InterfaceContainer::Iterator i;
for (i = container.Begin (); i != container.End (); ++i)
  {
    std::pair<Ptr<Ipv6>, uint32_t> pair = *i;
    method (pair.first, pair.second);  // use the pair
  }

Returns: an iterator which refers to the first pair in the container.

Definition at line 35 of file ipv6-interface-container.cc.

References m_interfaces.

Referenced by ns3::PointToPointDumbbellHelper::AssignIpv6Addresses(), ns3::AsciiTraceHelperForIpv6::EnableAsciiIpv6Impl(), and ns3::PcapHelperForIpv6::EnablePcapIpv6().

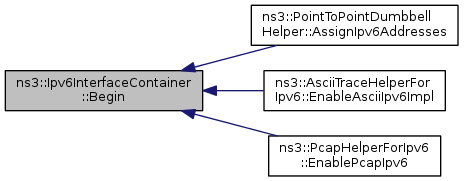

Here is the caller graph for this function:

Ipv6InterfaceContainer::Iterator ns3::Ipv6InterfaceContainer::End ( void ) const

Get an iterator which indicates past-the-last Node in the container.

Nodes can be retrieved from the container in two ways. First, directly by an index into the container, and second, using an iterator. This method is used in the iterator method and is typically used in a for-loop to run through the Nodes

NodeContainer::Iterator i;
for (i = container.Begin (); i != container.End (); ++i)
  {
    std::pair<Ptr<Ipv6>, uint32_t> pair = *i;
    method (pair.first, pair.second);  // use the pair
  }

Returns: an iterator which indicates an ending condition for a loop.

Definition at line 41 of file ipv6-interface-container.cc.

References m_interfaces.

Referenced by ns3::AsciiTraceHelperForIpv6::EnableAsciiIpv6Impl(), and ns3::PcapHelperForIpv6::EnablePcapIpv6().

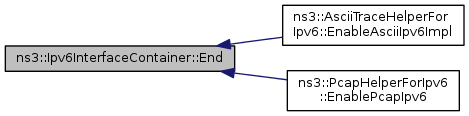

Here is the caller graph for this function:

Ipv6Address ns3::Ipv6InterfaceContainer::GetAddress	(	uint32_t	i,
		uint32_t	j
	)		const

Get the address for the specified index.

Parameters

i	interface index
j	address index, generally index 0 is the link-local address

Returns: IPv6 address

Definition at line 56 of file ipv6-interface-container.cc.

References ns3::Ipv6InterfaceAddress::GetAddress(), ns3::Ipv6::GetAddress(), and m_interfaces.

Referenced by IpAddressHelperTestCasev6::DoRun(), ns3::PointToPointStarHelper::GetHubIpv6Address(), ns3::CsmaStarHelper::GetHubIpv6Address(), ns3::PointToPointDumbbellHelper::GetLeftIpv6Address(), ns3::PointToPointDumbbellHelper::GetRightIpv6Address(), ns3::PointToPointStarHelper::GetSpokeIpv6Address(), and ns3::CsmaStarHelper::GetSpokeIpv6Address().

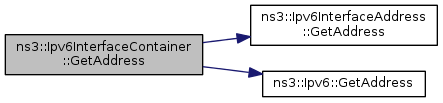

Here is the call graph for this function:

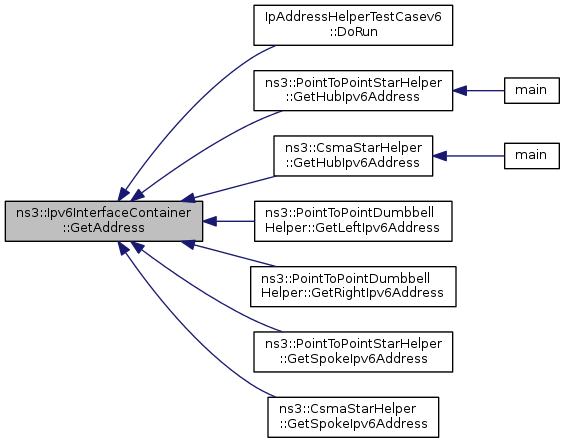

Here is the caller graph for this function:

uint32_t ns3::Ipv6InterfaceContainer::GetInterfaceIndex ( uint32_t i ) const

Get the interface index for the specified node index.

Parameters

i	index of the node

Returns: interface index

Definition at line 51 of file ipv6-interface-container.cc.

References m_interfaces.

uint32_t ns3::Ipv6InterfaceContainer::GetN ( void ) const

Returns: the number of Ptr<Ipv6> and interface pairs stored in this Ipv4InterfaceContainer.

Pairs can be retrieved from the container in two ways. First, directly by an index into the container, and second, using an iterator. This method is used in the direct method and is typically used to define an ending condition in a for-loop that runs through the stored Nodes

uint32_t nNodes = container.GetN ();
for (uint32_t i = 0 i < nNodes; ++i)
  {
    std::pair<Ptr<Ipv6>, uint32_t> pair = container.Get (i);
    method (pair.first, pair.second);  // use the pair
  }

Definition at line 46 of file ipv6-interface-container.cc.

References m_interfaces.
