ns3::Ipv6OptionRouterAlert Class Reference

IPv6 Option Router Alert. More...

#include <ipv6-option.h>

Inheritance diagram for ns3::Ipv6OptionRouterAlert:

Collaboration diagram for ns3::Ipv6OptionRouterAlert:

Public Member Functions
	Ipv6OptionRouterAlert ()
	Constructor.
	~Ipv6OptionRouterAlert ()
	Destructor.
virtual uint8_t	GetOptionNumber () const
	Get the option number.
virtual uint8_t	Process (Ptr< Packet > packet, uint8_t offset, Ipv6Header const &ipv6Header, bool &isDropped)
	Process method.
Public Member Functions inherited from ns3::Ipv6Option
virtual	~Ipv6Option ()
	Destructor.
void	SetNode (Ptr< Node > node)
	Set the node.
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Initialize (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type identificator.

Static Public Attributes
static const uint8_t	OPT_NUMBER = 43
	Router alert option number.

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoDispose (void)
virtual void	DoInitialize (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

IPv6 Option Router Alert.

Doxygen introspection did not find any typical Config paths.
No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 240 of file ipv6-option.h.

Constructor & Destructor Documentation

ns3::Ipv6OptionRouterAlert::Ipv6OptionRouterAlert

(

)

Constructor.

Definition at line 201 of file ipv6-option.cc.

References NS_LOG_FUNCTION_NOARGS.

ns3::Ipv6OptionRouterAlert::~Ipv6OptionRouterAlert

(

)

Destructor.

Definition at line 206 of file ipv6-option.cc.

References NS_LOG_FUNCTION_NOARGS.

Member Function Documentation

uint8_t ns3::Ipv6OptionRouterAlert::GetOptionNumber ( ) const

virtual

Get the option number.

Returns

option number

Implements ns3::Ipv6Option.

Definition at line 211 of file ipv6-option.cc.

References NS_LOG_FUNCTION_NOARGS, and OPT_NUMBER.

TypeId ns3::Ipv6OptionRouterAlert::GetTypeId ( void  )

static

Get the type identificator.

Returns

type identificator

Reimplemented from ns3::Ipv6Option.

Definition at line 192 of file ipv6-option.cc.

References ns3::TypeId::SetParent().

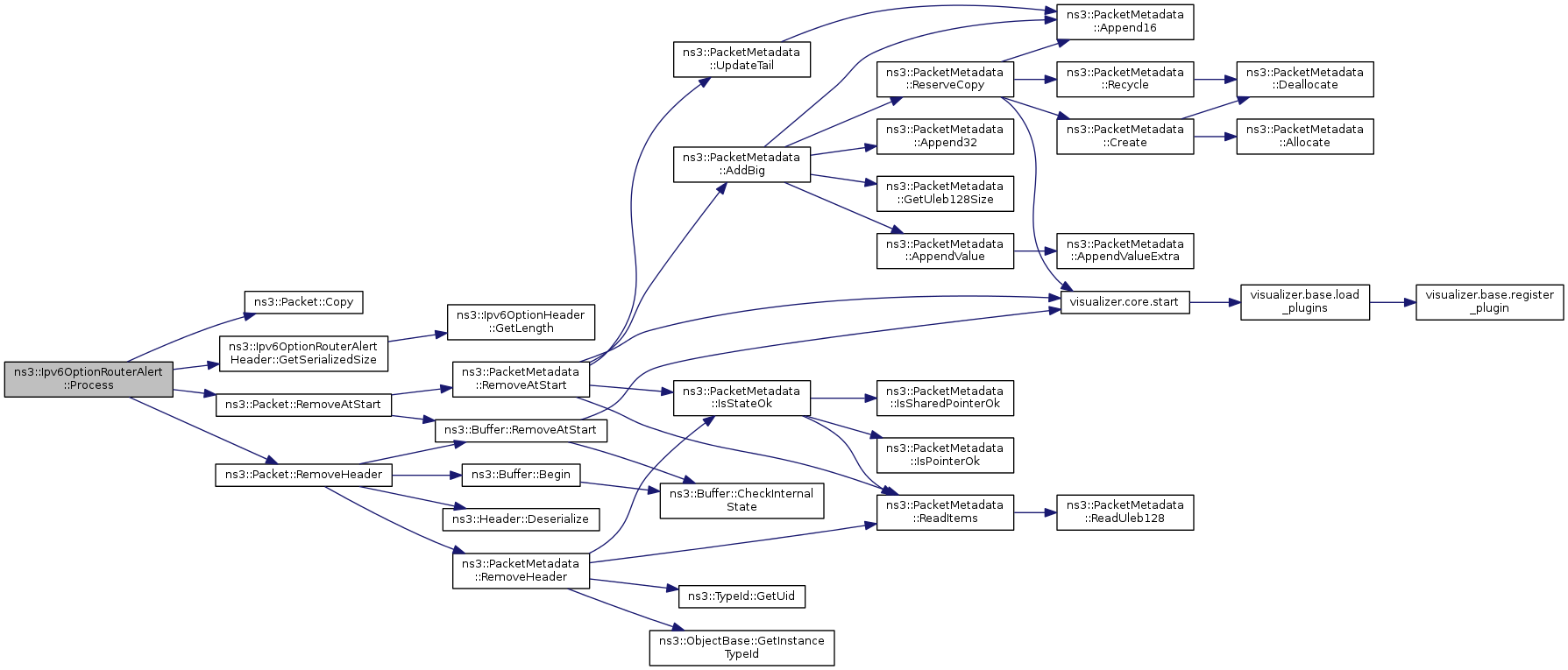

Here is the call graph for this function:

uint8_t ns3::Ipv6OptionRouterAlert::Process ( Ptr< Packet >  packet, uint8_t  offset, Ipv6Header const &  ipv6Header, bool &  isDropped  )

virtual

Process method.

Called from Ipv6L3Protocol::Receive.

Parameters

packet	the packet
offset	the offset of the extension to process
ipv6Header	the IPv6 header of packet received
isDropped	if the packet must be dropped

Returns

the processed size

Implements ns3::Ipv6Option.

Definition at line 218 of file ipv6-option.cc.

References ns3::Packet::Copy(), ns3::Ipv6OptionRouterAlertHeader::GetSerializedSize(), NS_LOG_FUNCTION, ns3::Packet::RemoveAtStart(), and ns3::Packet::RemoveHeader().

Here is the call graph for this function:

Member Data Documentation

const uint8_t ns3::Ipv6OptionRouterAlert::OPT_NUMBER = 43

static

Router alert option number.

Definition at line 246 of file ipv6-option.h.

Referenced by GetOptionNumber().

---

The documentation for this class was generated from the following files:

• src/internet/model/ipv6-option.h
• src/internet/model/ipv6-option.cc
