ns3::Ipv6OptionRouterAlertHeader Class Reference

Header of IPv6 Option Router Alert. More...

#include <ipv6-option-header.h>

Inheritance diagram for ns3::Ipv6OptionRouterAlertHeader:

Collaboration diagram for ns3::Ipv6OptionRouterAlertHeader:

Public Member Functions
	Ipv6OptionRouterAlertHeader ()
	Constructor.
virtual	~Ipv6OptionRouterAlertHeader ()
	Destructor.
virtual uint32_t	Deserialize (Buffer::Iterator start)
	Deserialize the packet.
virtual Alignment	GetAlignment () const
	Get the Alignment requirement of this option header.
virtual TypeId	GetInstanceTypeId () const
	Get the instance type ID.
virtual uint32_t	GetSerializedSize () const
	Get the serialized size of the packet.
uint16_t	GetValue () const
	Get the field "value".
virtual void	Print (std::ostream &os) const
	Print some informations about the packet.
virtual void	Serialize (Buffer::Iterator start) const
	Serialize the packet.
void	SetValue (uint16_t value)
	Set the field "value".
Public Member Functions inherited from ns3::Ipv6OptionHeader
	Ipv6OptionHeader ()
	Constructor.
virtual	~Ipv6OptionHeader ()
	Destructor.
uint8_t	GetLength () const
	Get the option length.
uint8_t	GetType () const
	Get the type of the option.
void	SetLength (uint8_t length)
	Set the option length.
void	SetType (uint8_t type)
	Set the type of the option.
Public Member Functions inherited from ns3::Header
virtual	~Header ()

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type identificator.

Private Attributes
uint16_t	m_value
	The value.

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
virtual void	NotifyConstructionCompleted (void)

Detailed Description

Header of IPv6 Option Router Alert.

Doxygen introspection did not find any typical Config paths.
No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 347 of file ipv6-option-header.h.

Constructor & Destructor Documentation

ns3::Ipv6OptionRouterAlertHeader::Ipv6OptionRouterAlertHeader

(

)

Constructor.

Definition at line 317 of file ipv6-option-header.cc.

References ns3::Ipv6OptionHeader::SetLength().

Here is the call graph for this function:

ns3::Ipv6OptionRouterAlertHeader::~Ipv6OptionRouterAlertHeader ( )

virtual

Destructor.

Definition at line 323 of file ipv6-option-header.cc.

Member Function Documentation

uint32_t ns3::Ipv6OptionRouterAlertHeader::Deserialize ( Buffer::Iterator  start )

virtual

Deserialize the packet.

Parameters

start

Buffer iterator

Returns

size of the packet

Reimplemented from ns3::Ipv6OptionHeader.

Definition at line 356 of file ipv6-option-header.cc.

References GetSerializedSize(), m_value, ns3::Buffer::Iterator::ReadNtohU16(), ns3::Buffer::Iterator::ReadU8(), ns3::Ipv6OptionHeader::SetLength(), ns3::Ipv6OptionHeader::SetType(), and visualizer.core::start().

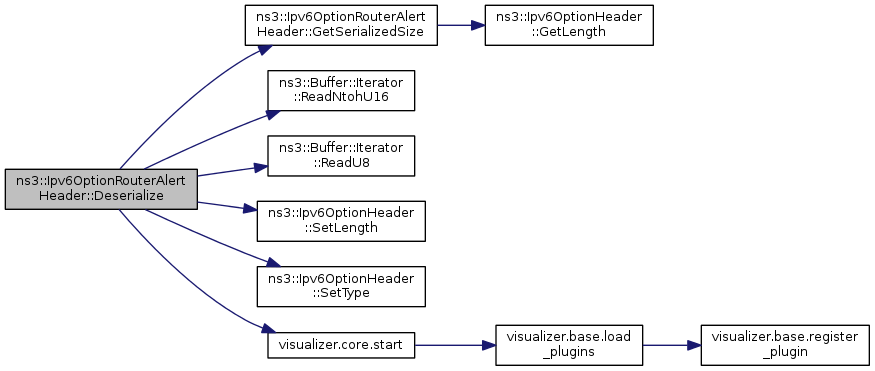

Here is the call graph for this function:

Ipv6OptionHeader::Alignment ns3::Ipv6OptionRouterAlertHeader::GetAlignment ( ) const

virtual

Get the Alignment requirement of this option header.

Returns

The required alignment

Reimplemented from ns3::Ipv6OptionHeader.

Definition at line 367 of file ipv6-option-header.cc.

TypeId ns3::Ipv6OptionRouterAlertHeader::GetInstanceTypeId ( void  ) const

virtual

Get the instance type ID.

Returns

instance type ID

Reimplemented from ns3::Ipv6OptionHeader.

Definition at line 312 of file ipv6-option-header.cc.

References GetTypeId().

Here is the call graph for this function:

uint32_t ns3::Ipv6OptionRouterAlertHeader::GetSerializedSize ( void  ) const

virtual

Get the serialized size of the packet.

Returns

size

Reimplemented from ns3::Ipv6OptionHeader.

Definition at line 342 of file ipv6-option-header.cc.

References ns3::Ipv6OptionHeader::GetLength().

Referenced by Deserialize(), and ns3::Ipv6OptionRouterAlert::Process().

Here is the call graph for this function:

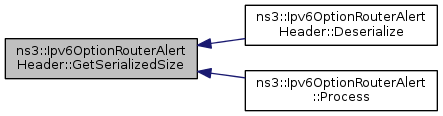

Here is the caller graph for this function:

TypeId ns3::Ipv6OptionRouterAlertHeader::GetTypeId ( void  )

static

Get the type identificator.

Returns

type identificator

Reimplemented from ns3::Ipv6OptionHeader.

Definition at line 303 of file ipv6-option-header.cc.

References ns3::TypeId::AddConstructor().

Referenced by GetInstanceTypeId().

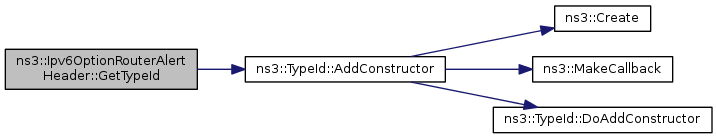

Here is the call graph for this function:

Here is the caller graph for this function:

uint16_t ns3::Ipv6OptionRouterAlertHeader::GetValue

(

void

)

const

Get the field "value".

Returns

the field "value"

Definition at line 332 of file ipv6-option-header.cc.

References m_value.

void ns3::Ipv6OptionRouterAlertHeader::Print ( std::ostream &  os ) const

virtual

Print some informations about the packet.

Parameters

os	output stream

Returns

info about this packet

Reimplemented from ns3::Ipv6OptionHeader.

Definition at line 337 of file ipv6-option-header.cc.

References ns3::Ipv6OptionHeader::GetLength(), ns3::Ipv6OptionHeader::GetType(), and m_value.

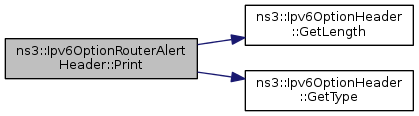

Here is the call graph for this function:

void ns3::Ipv6OptionRouterAlertHeader::Serialize ( Buffer::Iterator  start ) const

virtual

Serialize the packet.

Parameters

start

Buffer iterator

Reimplemented from ns3::Ipv6OptionHeader.

Definition at line 347 of file ipv6-option-header.cc.

References ns3::Ipv6OptionHeader::GetLength(), ns3::Ipv6OptionHeader::GetType(), m_value, visualizer.core::start(), ns3::Buffer::Iterator::WriteHtonU16(), and ns3::Buffer::Iterator::WriteU8().

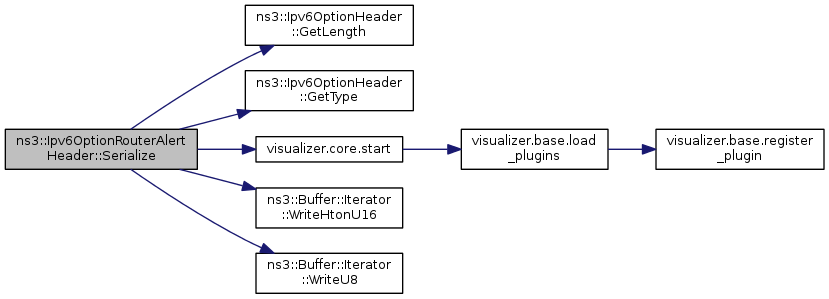

Here is the call graph for this function:

void ns3::Ipv6OptionRouterAlertHeader::SetValue

(

uint16_t

value

)

Set the field "value".

Definition at line 327 of file ipv6-option-header.cc.

References m_value.

Member Data Documentation

uint16_t ns3::Ipv6OptionRouterAlertHeader::m_value

private

The value.

Definition at line 419 of file ipv6-option-header.h.

Referenced by Deserialize(), GetValue(), Print(), Serialize(), and SetValue().

---

The documentation for this class was generated from the following files:

• src/internet/model/ipv6-option-header.h
• src/internet/model/ipv6-option-header.cc
