ns3::LteEnbRrcSapUser Class Reference

#include <lte-rrc-sap.h>

Inheritance diagram for ns3::LteEnbRrcSapUser:

Collaboration diagram for ns3::LteEnbRrcSapUser:

Classes
struct	SetupUeParameters

Public Member Functions
virtual RrcConnectionReconfiguration	DecodeHandoverCommand (Ptr< Packet > p)=0
virtual HandoverPreparationInfo	DecodeHandoverPreparationInformation (Ptr< Packet > p)=0
virtual Ptr< Packet >	EncodeHandoverCommand (RrcConnectionReconfiguration msg)=0
virtual Ptr< Packet >	EncodeHandoverPreparationInformation (HandoverPreparationInfo msg)=0
virtual void	RemoveUe (uint16_t rnti)=0
virtual void	SendRrcConnectionReconfiguration (uint16_t rnti, RrcConnectionReconfiguration msg)=0
virtual void	SendRrcConnectionReestablishment (uint16_t rnti, RrcConnectionReestablishment msg)=0
virtual void	SendRrcConnectionReestablishmentReject (uint16_t rnti, RrcConnectionReestablishmentReject msg)=0
virtual void	SendRrcConnectionReject (uint16_t rnti, RrcConnectionReject msg)=0
virtual void	SendRrcConnectionRelease (uint16_t rnti, RrcConnectionRelease msg)=0
virtual void	SendRrcConnectionSetup (uint16_t rnti, RrcConnectionSetup msg)=0
virtual void	SendSystemInformation (SystemInformation msg)=0
virtual void	SendSystemInformationBlockType1 (SystemInformationBlockType1 msg)=0
virtual void	SetupUe (uint16_t rnti, SetupUeParameters params)=0
Public Member Functions inherited from ns3::LteRrcSap
virtual	~LteRrcSap ()

Additional Inherited Members
Public Types inherited from ns3::LteRrcSap
enum	ReestablishmentCause { RECONFIGURATION_FAILURE, HANDOVER_FAILURE, OTHER_FAILURE }

Detailed Description

Service Access Point (SAP) used by the eNB RRC to send messages to the UE RC. Each method defined in this class correspond to the transmission of a message that is defined in section 6.2.2 of TS 36.331.

Definition at line 557 of file lte-rrc-sap.h.

Member Function Documentation

virtual RrcConnectionReconfiguration ns3::LteEnbRrcSapUser::DecodeHandoverCommand ( Ptr< Packet >  p )

pure virtual

Implemented in ns3::MemberLteEnbRrcSapUser< C >.

Referenced by ns3::UeManager::RecvHandoverRequestAck().

Here is the caller graph for this function:

virtual HandoverPreparationInfo ns3::LteEnbRrcSapUser::DecodeHandoverPreparationInformation ( Ptr< Packet >  p )

pure virtual

Implemented in ns3::MemberLteEnbRrcSapUser< C >.

virtual Ptr<Packet> ns3::LteEnbRrcSapUser::EncodeHandoverCommand ( RrcConnectionReconfiguration  msg )

pure virtual

Implemented in ns3::MemberLteEnbRrcSapUser< C >.

Referenced by ns3::LteEnbRrc::DoRecvHandoverRequest().

Here is the caller graph for this function:

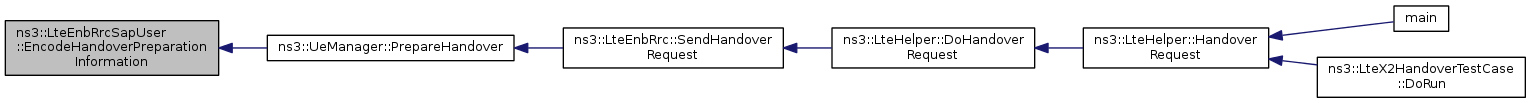

virtual Ptr<Packet> ns3::LteEnbRrcSapUser::EncodeHandoverPreparationInformation ( HandoverPreparationInfo  msg )

pure virtual

Implemented in ns3::MemberLteEnbRrcSapUser< C >.

Referenced by ns3::UeManager::PrepareHandover().

Here is the caller graph for this function:

virtual void ns3::LteEnbRrcSapUser::RemoveUe ( uint16_t  rnti )

pure virtual

Implemented in ns3::MemberLteEnbRrcSapUser< C >.

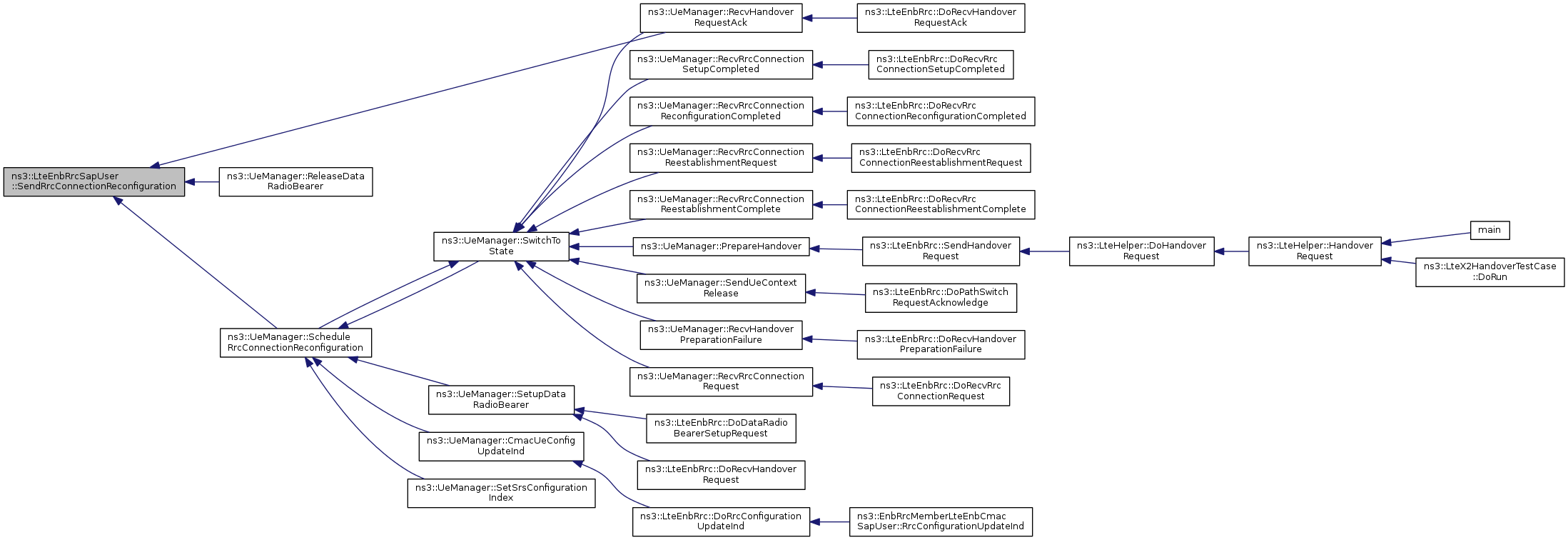

virtual void ns3::LteEnbRrcSapUser::SendRrcConnectionReconfiguration ( uint16_t  rnti, RrcConnectionReconfiguration  msg  )

pure virtual

Implemented in ns3::MemberLteEnbRrcSapUser< C >.

Referenced by ns3::UeManager::RecvHandoverRequestAck(), ns3::UeManager::ReleaseDataRadioBearer(), and ns3::UeManager::ScheduleRrcConnectionReconfiguration().

Here is the caller graph for this function:

virtual void ns3::LteEnbRrcSapUser::SendRrcConnectionReestablishment ( uint16_t  rnti, RrcConnectionReestablishment  msg  )

pure virtual

Implemented in ns3::MemberLteEnbRrcSapUser< C >.

Referenced by ns3::UeManager::RecvRrcConnectionReestablishmentRequest().

Here is the caller graph for this function:

virtual void ns3::LteEnbRrcSapUser::SendRrcConnectionReestablishmentReject ( uint16_t  rnti, RrcConnectionReestablishmentReject  msg  )

pure virtual

Implemented in ns3::MemberLteEnbRrcSapUser< C >.

virtual void ns3::LteEnbRrcSapUser::SendRrcConnectionReject ( uint16_t  rnti, RrcConnectionReject  msg  )

pure virtual

Implemented in ns3::MemberLteEnbRrcSapUser< C >.

Referenced by ns3::UeManager::RecvRrcConnectionRequest().

Here is the caller graph for this function:

virtual void ns3::LteEnbRrcSapUser::SendRrcConnectionRelease ( uint16_t  rnti, RrcConnectionRelease  msg  )

pure virtual

Implemented in ns3::MemberLteEnbRrcSapUser< C >.

virtual void ns3::LteEnbRrcSapUser::SendRrcConnectionSetup ( uint16_t  rnti, RrcConnectionSetup  msg  )

pure virtual

Implemented in ns3::MemberLteEnbRrcSapUser< C >.

Referenced by ns3::UeManager::RecvRrcConnectionRequest().

Here is the caller graph for this function:

virtual void ns3::LteEnbRrcSapUser::SendSystemInformation ( SystemInformation  msg )

pure virtual

Implemented in ns3::MemberLteEnbRrcSapUser< C >.

Referenced by ns3::LteEnbRrc::SendSystemInformation().

Here is the caller graph for this function:

virtual void ns3::LteEnbRrcSapUser::SendSystemInformationBlockType1 ( SystemInformationBlockType1  msg )

pure virtual

Implemented in ns3::MemberLteEnbRrcSapUser< C >.

virtual void ns3::LteEnbRrcSapUser::SetupUe ( uint16_t  rnti, SetupUeParameters  params  )

pure virtual

Implemented in ns3::MemberLteEnbRrcSapUser< C >.

Referenced by ns3::UeManager::DoInitialize().

Here is the caller graph for this function:

---

The documentation for this class was generated from the following file:

• src/lte/model/lte-rrc-sap.h
