ns3::LteInterference Class Reference

#include <lte-interference.h>

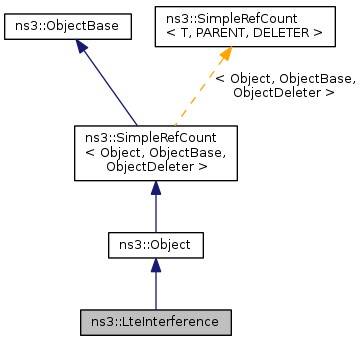

+ Inheritance diagram for ns3::LteInterference:

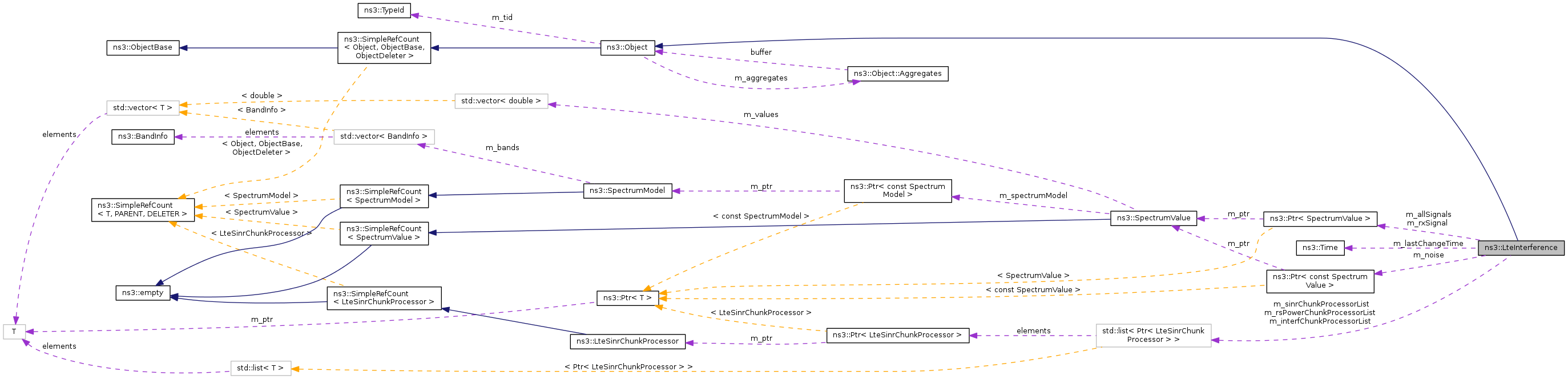

+ Collaboration diagram for ns3::LteInterference:

Public Member Functions

 LteInterference ()
virtual ~LteInterference ()
void AddInterferenceChunkProcessor (Ptr< LteSinrChunkProcessor > p)
void AddRsPowerChunkProcessor (Ptr< LteSinrChunkProcessor > p)
void AddSignal (Ptr< const SpectrumValue > spd, const Time duration)
void AddSinrChunkProcessor (Ptr< LteSinrChunkProcessor > p)
virtual void DoDispose ()
void EndRx ()
void SetNoisePowerSpectralDensity (Ptr< const SpectrumValue > noisePsd)
void StartRx (Ptr< const SpectrumValue > rxPsd)
- Public Member Functions inherited from ns3::Object
 Object ()
virtual ~Object ()
void AggregateObject (Ptr< Object > other)
void Dispose (void)
AggregateIterator GetAggregateIterator (void) const
virtual TypeId GetInstanceTypeId (void) const
template<typename T >
Ptr< T > GetObject (void) const
template<typename T >
Ptr< T > GetObject (TypeId tid) const
void Initialize (void)
- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 SimpleRefCount (const SimpleRefCount &o)
uint32_t GetReferenceCount (void) const
SimpleRefCount & operator= (const SimpleRefCount &o)
void Ref (void) const
void Unref (void) const
- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
void GetAttribute (std::string name, AttributeValue &value) const
bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void SetAttribute (std::string name, const AttributeValue &value)
bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions

static TypeId GetTypeId (void)

Private Member Functions

void ConditionallyEvaluateChunk ()
void DoAddSignal (Ptr< const SpectrumValue > spd)
void DoSubtractSignal (Ptr< const SpectrumValue > spd, uint32_t signalId)

Private Attributes

Ptr< SpectrumValue > m_allSignals
std::list< Ptr
< LteSinrChunkProcessor > > 		m_interfChunkProcessorList
Time m_lastChangeTime
uint32_t m_lastSignalId
uint32_t m_lastSignalIdBeforeReset
Ptr< const SpectrumValue > m_noise
bool m_receiving
std::list< Ptr
< LteSinrChunkProcessor > > 		m_rsPowerChunkProcessorList
Ptr< SpectrumValue > m_rxSignal
std::list< Ptr
< LteSinrChunkProcessor > > 		m_sinrChunkProcessorList

Additional Inherited Members

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
virtual void DoInitialize (void)
virtual void NotifyNewAggregate (void)

Detailed Description

This class implements a gaussian interference model, i.e., all incoming signals are added to the total interference.

Definition at line 46 of file lte-interference.h.

Constructor & Destructor Documentation

ns3::LteInterference::LteInterference ( )

Definition at line 34 of file lte-interference.cc.

References NS_LOG_FUNCTION.

ns3::LteInterference::~LteInterference ( )
virtual

Definition at line 42 of file lte-interference.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::LteInterference::AddInterferenceChunkProcessor ( Ptr< LteSinrChunkProcessor >  p)

Add a LteSinrChunkProcessor that will use the time-vs-frequency interference calculated by this LteInterference instance. Note that all the added LteSinrChunkProcessors will work in parallel.

Parameters
p

Definition at line 250 of file lte-interference.cc.

References m_interfChunkProcessorList, and NS_LOG_FUNCTION.

Referenced by ns3::LteSpectrumPhy::AddInterferenceChunkProcessor().

+ Here is the caller graph for this function:

void ns3::LteInterference::AddRsPowerChunkProcessor ( Ptr< LteSinrChunkProcessor >  p)

Add a LteSinrChunkProcessor that will use the time-vs-frequency power calculated by this LteInterference instance. Note that all the added LteSinrChunkProcessors will work in parallel.

Parameters
p

Definition at line 236 of file lte-interference.cc.

References m_rsPowerChunkProcessorList, and NS_LOG_FUNCTION.

Referenced by ns3::LteSpectrumPhy::AddRsPowerChunkProcessor().

+ Here is the caller graph for this function:

void ns3::LteInterference::AddSignal ( Ptr< const SpectrumValue >  spd,
const Time  duration
)

notify that a new signal is being perceived in the medium. This method is to be called for all incoming signal, regardless of wether they're useful signals or interferers.

Parameters
spdthe power spectral density of the new signal
durationthe duration of the new signal

Definition at line 135 of file lte-interference.cc.

References DoAddSignal(), DoSubtractSignal(), m_lastSignalId, m_lastSignalIdBeforeReset, NS_LOG_FUNCTION, and ns3::Simulator::Schedule().

Referenced by ns3::LteSpectrumPhy::StartRx().

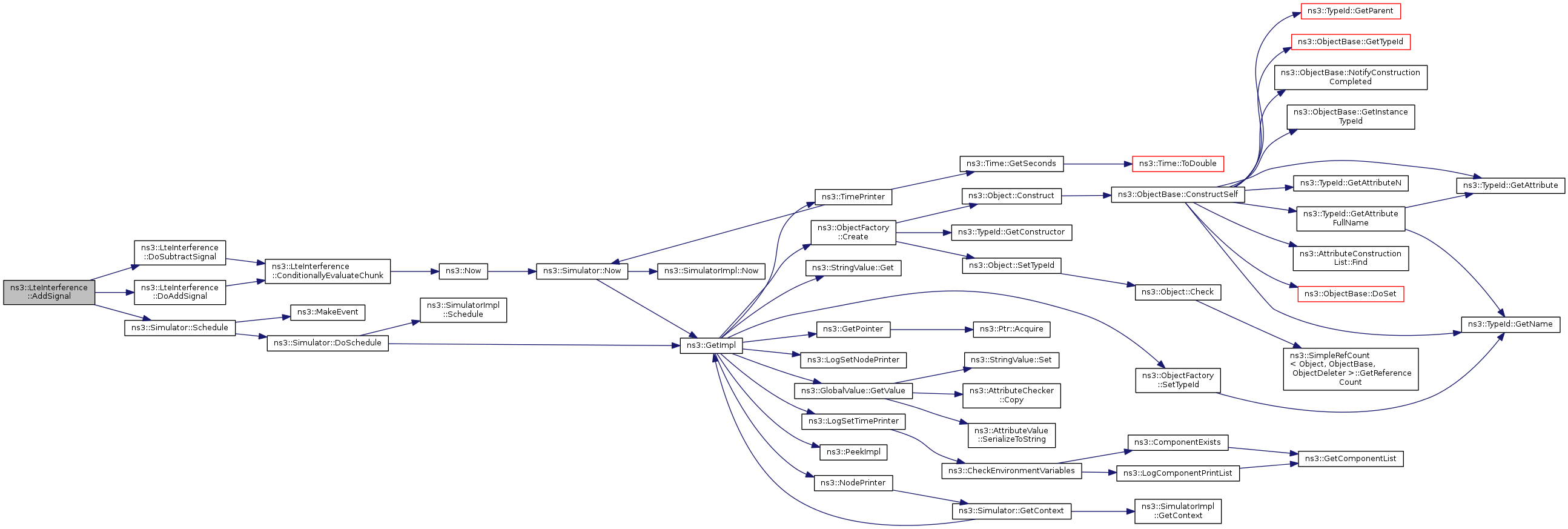

+ Here is the call graph for this function:

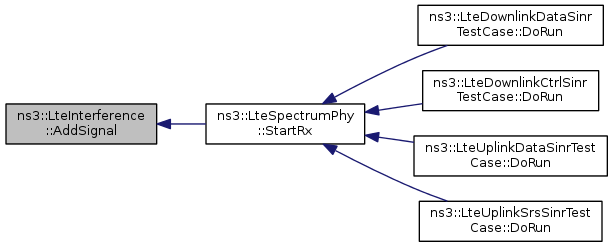

+ Here is the caller graph for this function:

void ns3::LteInterference::AddSinrChunkProcessor ( Ptr< LteSinrChunkProcessor >  p)

Add a LteSinrChunkProcessor that will use the time-vs-frequency SINR calculated by this LteInterference instance. Note that all the added LteSinrChunkProcessors will work in parallel.

Parameters
p

Definition at line 243 of file lte-interference.cc.

References m_sinrChunkProcessorList, and NS_LOG_FUNCTION.

Referenced by ns3::LteSpectrumPhy::AddCtrlSinrChunkProcessor(), and ns3::LteSpectrumPhy::AddDataSinrChunkProcessor().

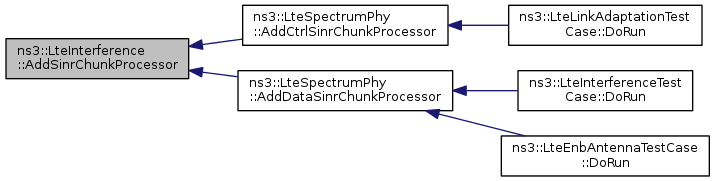

+ Here is the caller graph for this function:

void ns3::LteInterference::ConditionallyEvaluateChunk ( )
private

Definition at line 179 of file lte-interference.cc.

References list, m_allSignals, m_interfChunkProcessorList, m_lastChangeTime, m_noise, m_receiving, m_rsPowerChunkProcessorList, m_rxSignal, m_sinrChunkProcessorList, ns3::Now(), NS_LOG_DEBUG, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Referenced by DoAddSignal(), DoSubtractSignal(), EndRx(), and SetNoisePowerSpectralDensity().

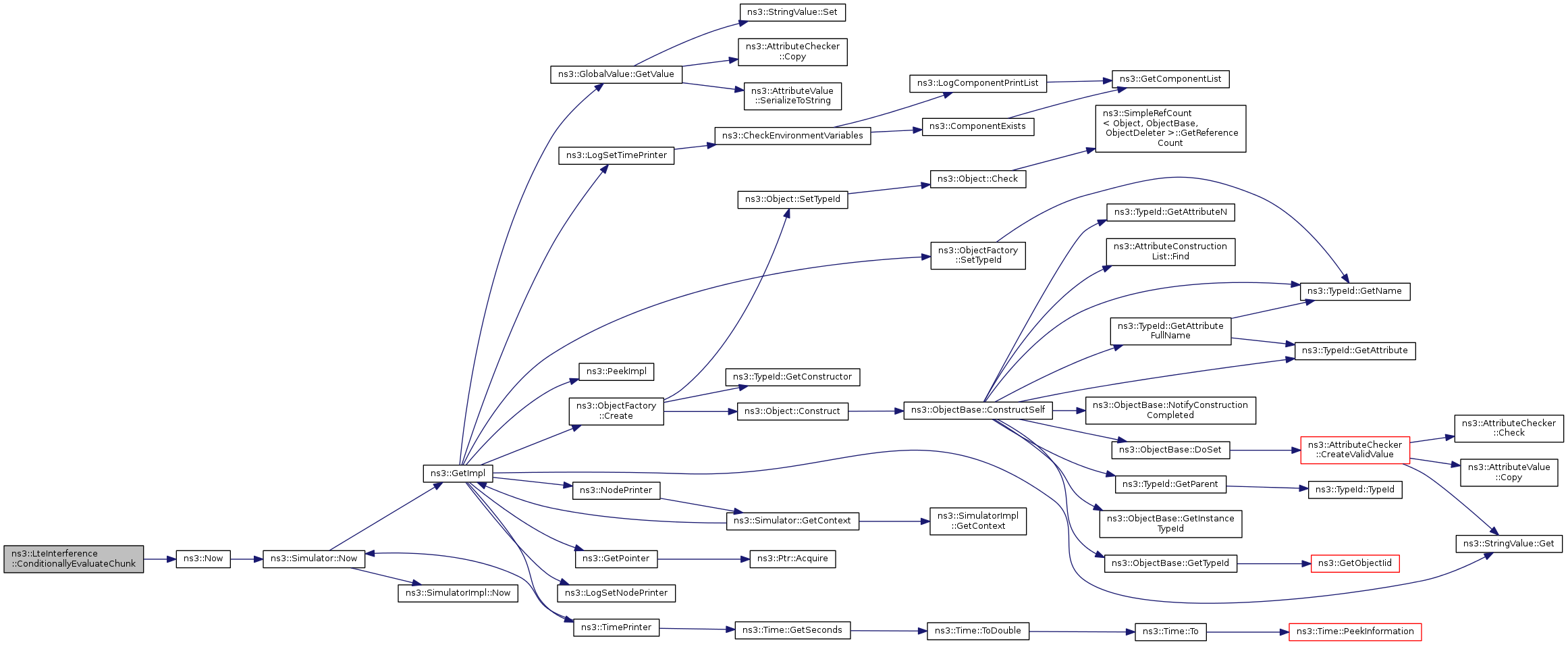

+ Here is the call graph for this function:

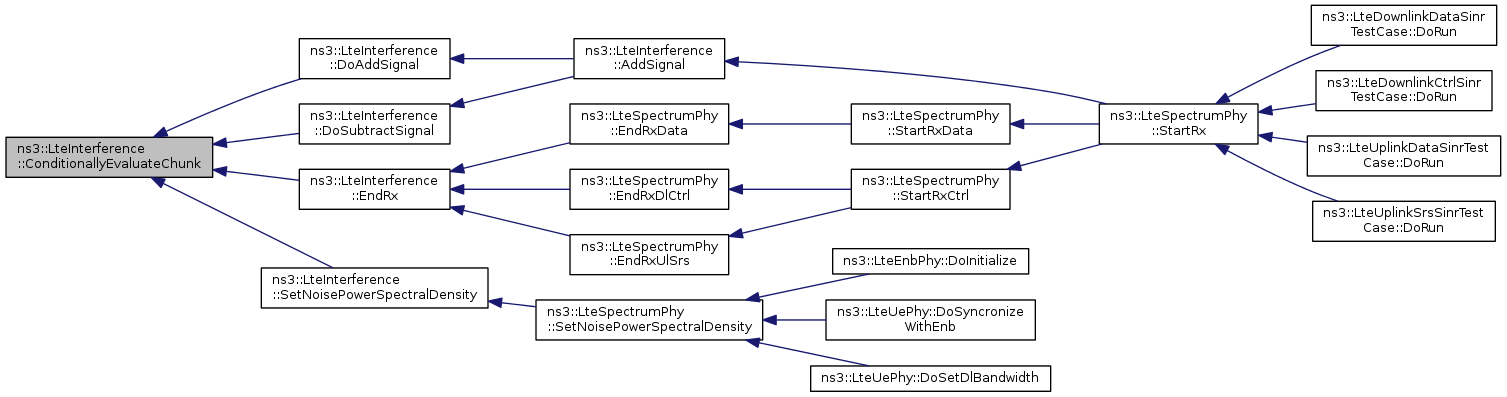

+ Here is the caller graph for this function:

void ns3::LteInterference::DoAddSignal ( Ptr< const SpectrumValue >  spd)
private

Definition at line 154 of file lte-interference.cc.

References ConditionallyEvaluateChunk(), and NS_LOG_FUNCTION.

Referenced by AddSignal().

+ Here is the call graph for this function:

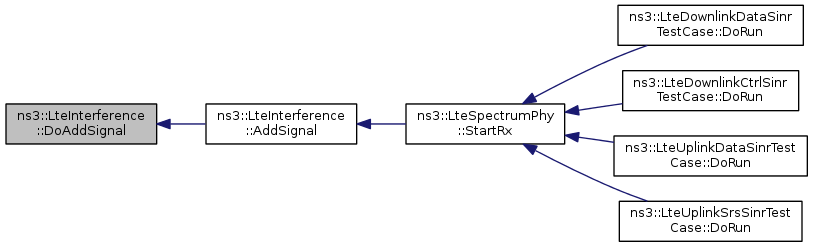

+ Here is the caller graph for this function:

void ns3::LteInterference::DoDispose ( void  )
virtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 48 of file lte-interference.cc.

References m_allSignals, m_interfChunkProcessorList, m_noise, m_rsPowerChunkProcessorList, m_rxSignal, m_sinrChunkProcessorList, and NS_LOG_FUNCTION.

void ns3::LteInterference::DoSubtractSignal ( Ptr< const SpectrumValue >  spd,
uint32_t  signalId
)
private

Definition at line 162 of file lte-interference.cc.

References ConditionallyEvaluateChunk(), m_lastSignalIdBeforeReset, NS_LOG_FUNCTION, and NS_LOG_INFO.

Referenced by AddSignal().

+ Here is the call graph for this function:

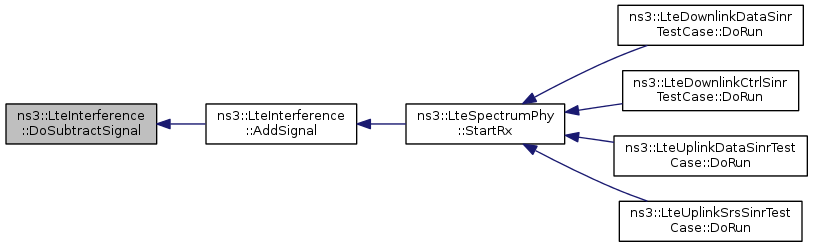

+ Here is the caller graph for this function:

void ns3::LteInterference::EndRx ( )

notify that the RX attempt has ended. The receiving PHY must call this method when RX ends or RX is aborted.

Definition at line 107 of file lte-interference.cc.

References ConditionallyEvaluateChunk(), list, m_interfChunkProcessorList, m_receiving, m_rsPowerChunkProcessorList, m_sinrChunkProcessorList, NS_LOG_FUNCTION, and NS_LOG_INFO.

Referenced by ns3::LteSpectrumPhy::EndRxData(), ns3::LteSpectrumPhy::EndRxDlCtrl(), and ns3::LteSpectrumPhy::EndRxUlSrs().

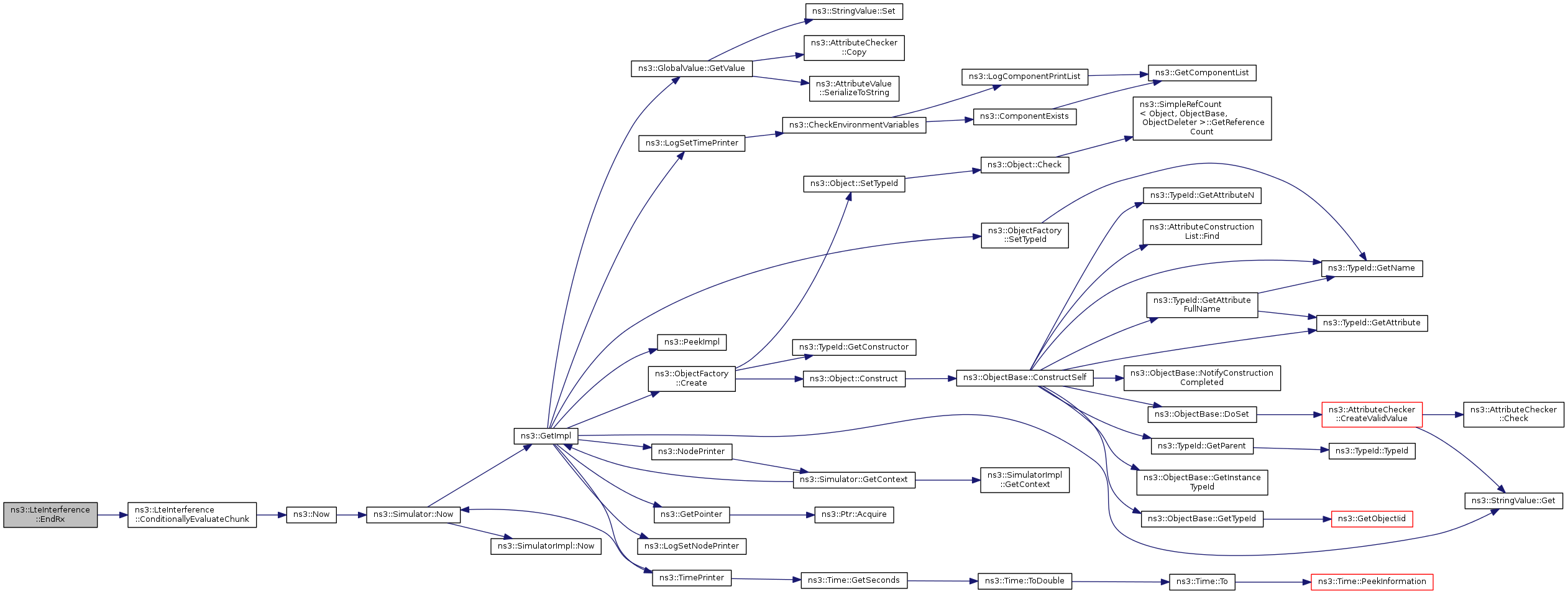

+ Here is the call graph for this function:

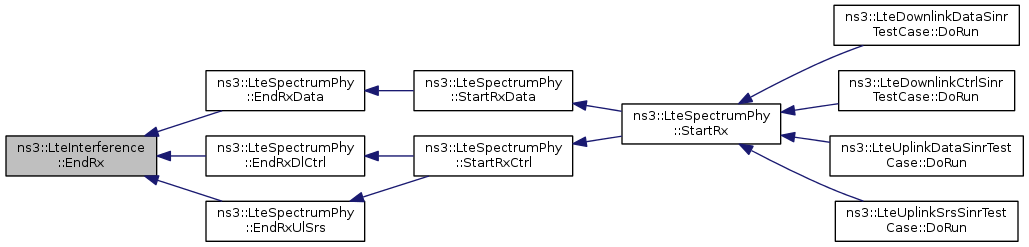

+ Here is the caller graph for this function:

TypeId ns3::LteInterference::GetTypeId ( void  )
static

Reimplemented from ns3::Object.

Definition at line 62 of file lte-interference.cc.

References ns3::TypeId::SetParent().

+ Here is the call graph for this function:

void ns3::LteInterference::SetNoisePowerSpectralDensity ( Ptr< const SpectrumValue >  noisePsd)
Parameters
noisePsdthe Noise Power Spectral Density in power units (Watt, Pascal...) per Hz.

Definition at line 217 of file lte-interference.cc.

References ConditionallyEvaluateChunk(), ns3::SpectrumValue::GetSpectrumModel(), m_allSignals, m_lastSignalId, m_lastSignalIdBeforeReset, m_noise, m_receiving, and NS_LOG_FUNCTION.

Referenced by ns3::LteSpectrumPhy::SetNoisePowerSpectralDensity().

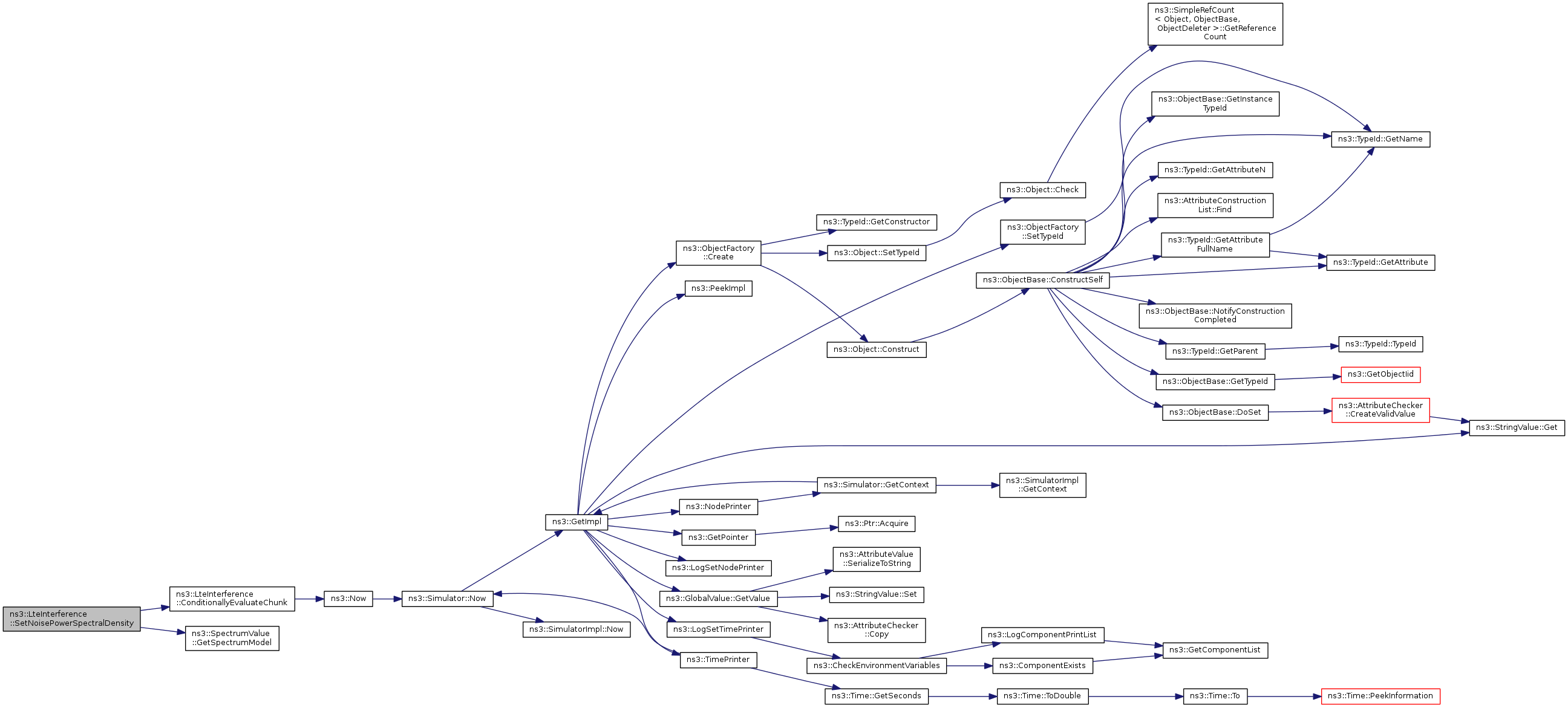

+ Here is the call graph for this function:

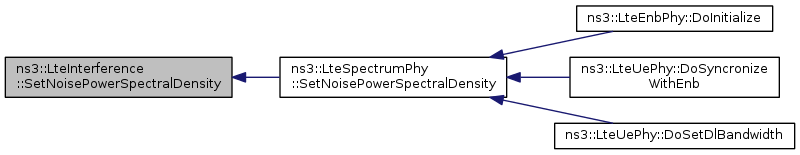

+ Here is the caller graph for this function:

void ns3::LteInterference::StartRx ( Ptr< const SpectrumValue >  rxPsd)

notify that the PHY is starting a RX attempt

Parameters
rxPsdthe power spectral density of the signal being RX

Definition at line 72 of file lte-interference.cc.

References ns3::SpectrumValue::Copy(), list, m_interfChunkProcessorList, m_lastChangeTime, m_receiving, m_rsPowerChunkProcessorList, m_rxSignal, m_sinrChunkProcessorList, ns3::Now(), NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_LOGIC, and ns3::Sum().

Referenced by ns3::LteSpectrumPhy::StartRxCtrl(), and ns3::LteSpectrumPhy::StartRxData().

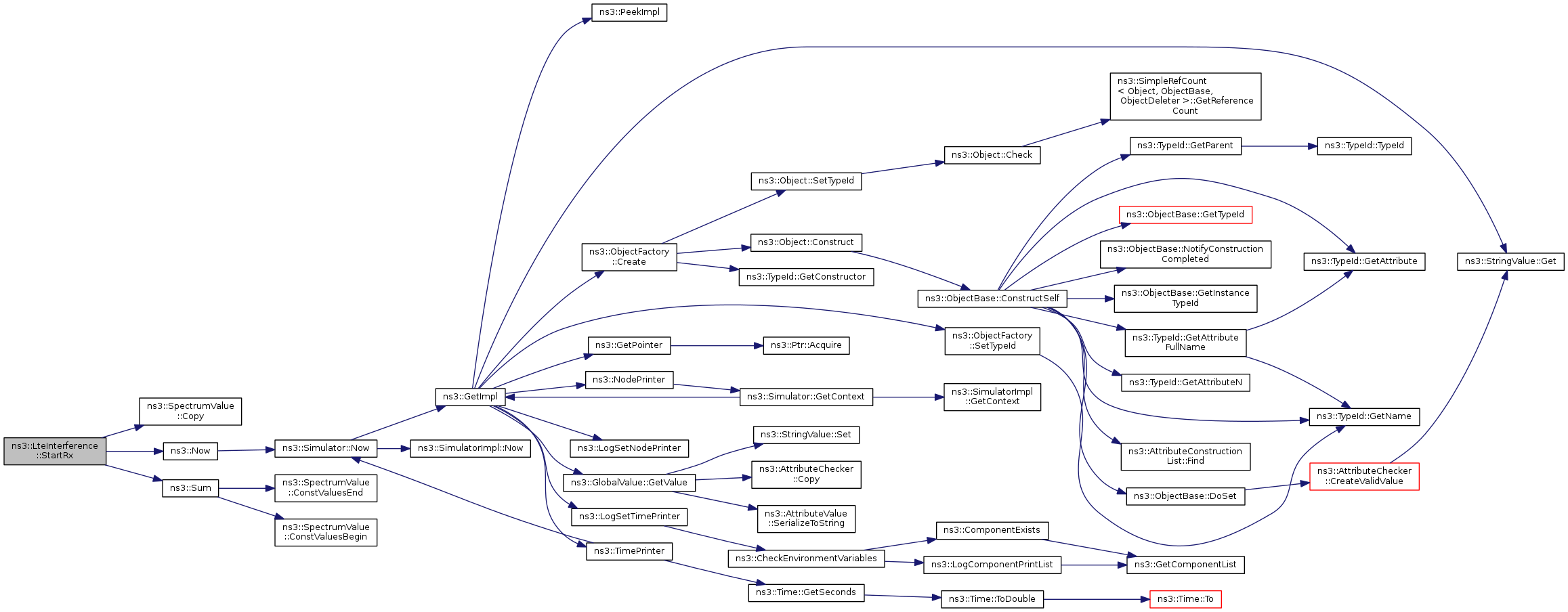

+ Here is the call graph for this function:

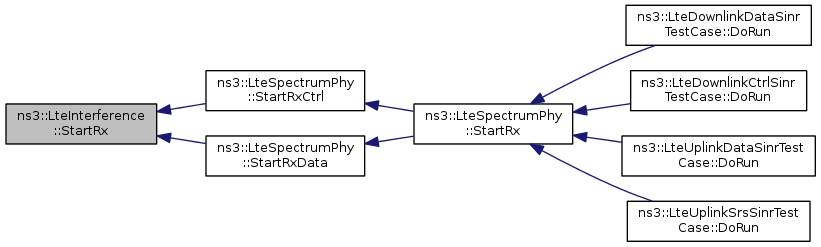

+ Here is the caller graph for this function:

Member Data Documentation

Ptr<SpectrumValue> ns3::LteInterference::m_allSignals
private

stores the spectral power density of the sum of incoming signals; does not include noise, includes the SPD of the signal being RX

Definition at line 131 of file lte-interference.h.

Referenced by ConditionallyEvaluateChunk(), DoDispose(), and SetNoisePowerSpectralDensity().

std::list<Ptr<LteSinrChunkProcessor> > ns3::LteInterference::m_interfChunkProcessorList
private

all the processor instances that need to be notified whenever a new interference chunk is calculated

Definition at line 154 of file lte-interference.h.

Referenced by AddInterferenceChunkProcessor(), ConditionallyEvaluateChunk(), DoDispose(), EndRx(), and StartRx().

Time ns3::LteInterference::m_lastChangeTime
private

the time of the last change in m_TotalPower

Definition at line 138 of file lte-interference.h.

Referenced by ConditionallyEvaluateChunk(), and StartRx().

uint32_t ns3::LteInterference::m_lastSignalId
private

Definition at line 141 of file lte-interference.h.

Referenced by AddSignal(), and SetNoisePowerSpectralDensity().

uint32_t ns3::LteInterference::m_lastSignalIdBeforeReset
private

Definition at line 142 of file lte-interference.h.

Referenced by AddSignal(), DoSubtractSignal(), and SetNoisePowerSpectralDensity().

Ptr<const SpectrumValue> ns3::LteInterference::m_noise
private

Definition at line 136 of file lte-interference.h.

Referenced by ConditionallyEvaluateChunk(), DoDispose(), and SetNoisePowerSpectralDensity().

bool ns3::LteInterference::m_receiving
private

Definition at line 124 of file lte-interference.h.

Referenced by ConditionallyEvaluateChunk(), EndRx(), SetNoisePowerSpectralDensity(), and StartRx().

std::list<Ptr<LteSinrChunkProcessor> > ns3::LteInterference::m_rsPowerChunkProcessorList
private
all the processor instances that need to be notified whenever

a new interference chunk is calculated

Definition at line 146 of file lte-interference.h.

Referenced by AddRsPowerChunkProcessor(), ConditionallyEvaluateChunk(), DoDispose(), EndRx(), and StartRx().

Ptr<SpectrumValue> ns3::LteInterference::m_rxSignal
private

stores the power spectral density of the signal whose RX is being attempted

Definition at line 126 of file lte-interference.h.

Referenced by ConditionallyEvaluateChunk(), DoDispose(), and StartRx().

std::list<Ptr<LteSinrChunkProcessor> > ns3::LteInterference::m_sinrChunkProcessorList
private

all the processor instances that need to be notified whenever a new SINR chunk is calculated

Definition at line 150 of file lte-interference.h.

Referenced by AddSinrChunkProcessor(), ConditionallyEvaluateChunk(), DoDispose(), EndRx(), and StartRx().

The documentation for this class was generated from the following files:
