ns3::LteRadioBearerInfo Class Reference

#include <lte-radio-bearer-info.h>

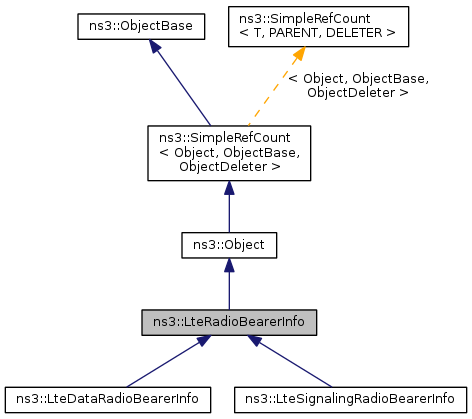

Inheritance diagram for ns3::LteRadioBearerInfo:

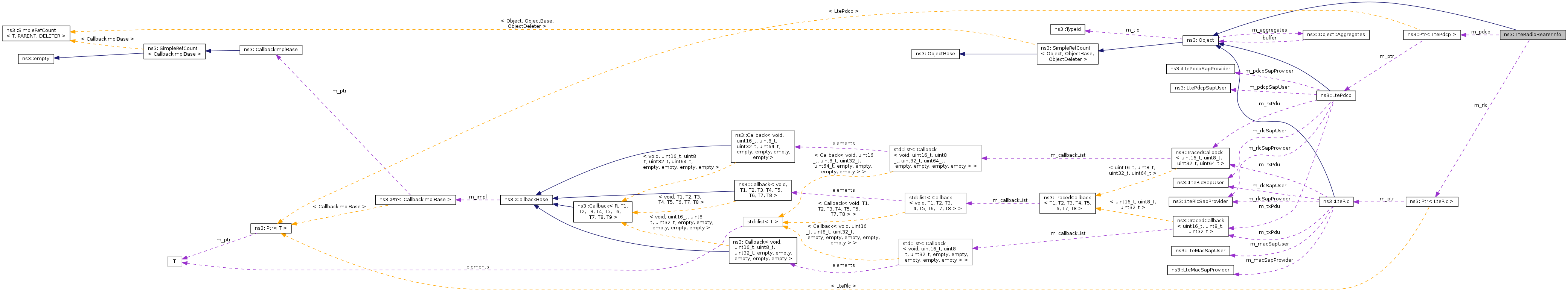

Collaboration diagram for ns3::LteRadioBearerInfo:

Public Member Functions
	LteRadioBearerInfo (void)
virtual	~LteRadioBearerInfo (void)
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Initialize (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Public Attributes
Ptr< LtePdcp >	m_pdcp
Ptr< LteRlc >	m_rlc

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoDispose (void)
virtual void	DoInitialize (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

store information on active radio bearer instance

Doxygen introspection did not find any typical Config paths.
No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 39 of file lte-radio-bearer-info.h.

Constructor & Destructor Documentation

ns3::LteRadioBearerInfo::LteRadioBearerInfo

(

void

)

Definition at line 34 of file lte-radio-bearer-info.cc.

ns3::LteRadioBearerInfo::~LteRadioBearerInfo ( void  )

virtual

Definition at line 38 of file lte-radio-bearer-info.cc.

Member Function Documentation

TypeId ns3::LteRadioBearerInfo::GetTypeId ( void  )

static

Reimplemented from ns3::Object.

Reimplemented in ns3::LteDataRadioBearerInfo, and ns3::LteSignalingRadioBearerInfo.

Definition at line 43 of file lte-radio-bearer-info.cc.

References ns3::TypeId::SetParent().

Here is the call graph for this function:

Member Data Documentation

Ptr<LtePdcp> ns3::LteRadioBearerInfo::m_pdcp

Definition at line 48 of file lte-radio-bearer-info.h.

Referenced by ns3::LteUeRrc::ApplyRadioResourceConfigDedicated(), ns3::UeManager::CompleteSetupUe(), ns3::LteUeRrc::DoCompleteSetup(), ns3::UeManager::DoInitialize(), ns3::LteSignalingRadioBearerInfo::GetTypeId(), ns3::LteDataRadioBearerInfo::GetTypeId(), ns3::UeManager::SendData(), and ns3::UeManager::SetupDataRadioBearer().

Ptr<LteRlc> ns3::LteRadioBearerInfo::m_rlc

Definition at line 47 of file lte-radio-bearer-info.h.

Referenced by ns3::LteUeRrc::ApplyRadioResourceConfigDedicated(), ns3::UeManager::CompleteSetupUe(), ns3::LteUeRrc::DoCompleteSetup(), ns3::LteUeRrc::DoInitialize(), ns3::UeManager::DoInitialize(), ns3::LteUeRrc::DoRecvRrcConnectionReconfiguration(), ns3::LteUeRrc::DoSetTemporaryCellRnti(), ns3::LteSignalingRadioBearerInfo::GetTypeId(), ns3::LteDataRadioBearerInfo::GetTypeId(), and ns3::UeManager::SetupDataRadioBearer().

---

The documentation for this class was generated from the following files:

• src/lte/model/lte-radio-bearer-info.h
• src/lte/model/lte-radio-bearer-info.cc
