ns3::LteRlcAm Class Reference

#include <lte-rlc-am.h>

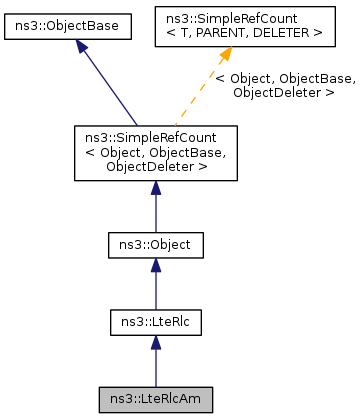

+ Inheritance diagram for ns3::LteRlcAm:

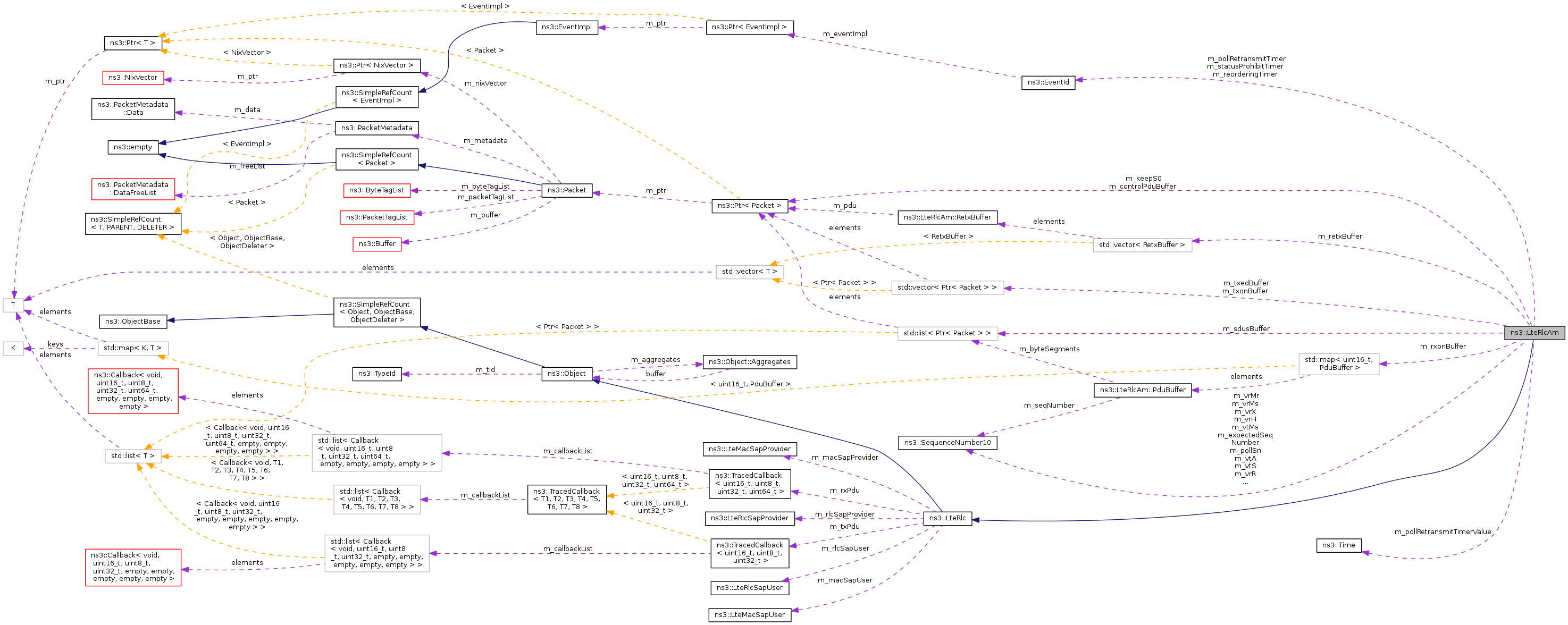

+ Collaboration diagram for ns3::LteRlcAm:

Classes

struct  PduBuffer
struct  RetxBuffer

Public Member Functions

 LteRlcAm ()
virtual ~LteRlcAm ()
virtual void DoDispose ()
virtual void DoNotifyHarqDeliveryFailure ()
virtual void DoNotifyTxOpportunity (uint32_t bytes, uint8_t layer, uint8_t harqId)
virtual void DoReceivePdu (Ptr< Packet > p)
virtual void DoTransmitPdcpPdu (Ptr< Packet > p)
- Public Member Functions inherited from ns3::LteRlc
 LteRlc ()
virtual ~LteRlc ()
LteMacSapUser * GetLteMacSapUser ()
LteRlcSapProvider * GetLteRlcSapProvider ()
void SetLcId (uint8_t lcId)
void SetLteMacSapProvider (LteMacSapProvider *s)
void SetLteRlcSapUser (LteRlcSapUser *s)
void SetRnti (uint16_t rnti)
- Public Member Functions inherited from ns3::Object
 Object ()
virtual ~Object ()
void AggregateObject (Ptr< Object > other)
void Dispose (void)
AggregateIterator GetAggregateIterator (void) const
virtual TypeId GetInstanceTypeId (void) const
template<typename T >
Ptr< T > GetObject (void) const
template<typename T >
Ptr< T > GetObject (TypeId tid) const
void Initialize (void)
- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 SimpleRefCount (const SimpleRefCount &o)
uint32_t GetReferenceCount (void) const
SimpleRefCount & operator= (const SimpleRefCount &o)
void Ref (void) const
void Unref (void) const
- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
void GetAttribute (std::string name, AttributeValue &value) const
bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void SetAttribute (std::string name, const AttributeValue &value)
bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions

static TypeId GetTypeId (void)

Private Types

enum  ReassemblingState_t { NONE = 0, WAITING_S0_FULL = 1, WAITING_SI_SF = 2 }

Private Member Functions

void DoReportBufferStatus ()
void ExpirePollRetransmitTimer (void)
void ExpireReorderingTimer (void)
bool IsInsideReceivingWindow (SequenceNumber10 seqNumber)
void ReassembleAndDeliver (Ptr< Packet > packet)

Private Attributes

uint32_t m_byteWithoutPoll
Ptr< Packet > m_controlPduBuffer
SequenceNumber10 m_expectedSeqNumber
Ptr< Packet > m_keepS0
uint16_t m_maxRetxThreshold
uint32_t m_pduWithoutPoll
uint16_t m_pollByte
uint16_t m_pollPdu
EventId m_pollRetransmitTimer
Time m_pollRetransmitTimerValue
SequenceNumber10 m_pollSn
ReassemblingState_t m_reassemblingState
EventId m_reorderingTimer
std::vector< RetxBuffer > m_retxBuffer
uint32_t m_retxBufferSize
std::map< uint16_t, PduBuffer > m_rxonBuffer
std::list< Ptr< Packet > > m_sdusBuffer
uint32_t m_statusPduBufferSize
bool m_statusPduRequested
EventId m_statusProhibitTimer
std::vector< Ptr< Packet > > m_txedBuffer
uint32_t m_txedBufferSize
std::vector< Ptr< Packet > > m_txonBuffer
uint32_t m_txonBufferSize
SequenceNumber10 m_vrH
SequenceNumber10 m_vrMr
SequenceNumber10 m_vrMs
SequenceNumber10 m_vrR
SequenceNumber10 m_vrX
SequenceNumber10 m_vtA
SequenceNumber10 m_vtMs
SequenceNumber10 m_vtS
uint16_t m_windowSize

Additional Inherited Members

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
virtual void DoInitialize (void)
virtual void NotifyNewAggregate (void)
- Protected Attributes inherited from ns3::LteRlc
uint8_t m_lcid
LteMacSapProvider * m_macSapProvider
LteMacSapUser * m_macSapUser
LteRlcSapProvider * m_rlcSapProvider
LteRlcSapUser * m_rlcSapUser
uint16_t m_rnti
TracedCallback< uint16_t,
uint8_t, uint32_t, uint64_t > 		m_rxPdu
TracedCallback< uint16_t,
uint8_t, uint32_t > 		m_txPdu

Detailed Description

LTE RLC Acknowledged Mode (AM), see 3GPP TS 36.322

Config Paths

ns3::LteRlcAm is accessible through the following paths with Config::Set and Config::Connect:

  • /NodeList/[i]/DeviceList/[i]/$ns3::LteEnbNetDevice/LteEnbRrc/UeMap/[i]/DataRadioBearerMap/[i]/LteRlc/$ns3::LteRlcAm
  • /NodeList/[i]/DeviceList/[i]/$ns3::LteEnbNetDevice/LteEnbRrc/UeMap/[i]/Srb0/LteRlc/$ns3::LteRlcAm
  • /NodeList/[i]/DeviceList/[i]/$ns3::LteEnbNetDevice/LteEnbRrc/UeMap/[i]/Srb1/LteRlc/$ns3::LteRlcAm
  • /NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteEnbNetDevice/LteEnbRrc/UeMap/[i]/DataRadioBearerMap/[i]/LteRlc/$ns3::LteRlcAm
  • /NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteEnbNetDevice/LteEnbRrc/UeMap/[i]/Srb0/LteRlc/$ns3::LteRlcAm
  • /NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteEnbNetDevice/LteEnbRrc/UeMap/[i]/Srb1/LteRlc/$ns3::LteRlcAm
  • /NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteUeNetDevice/LteUeRrc/DataRadioBearerMap/[i]/LteRlc/$ns3::LteRlcAm
  • /NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteUeNetDevice/LteUeRrc/Srb0/LteRlc/$ns3::LteRlcAm
  • /NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteUeNetDevice/LteUeRrc/Srb1/LteRlc/$ns3::LteRlcAm
  • /NodeList/[i]/DeviceList/[i]/$ns3::LteUeNetDevice/LteUeRrc/DataRadioBearerMap/[i]/LteRlc/$ns3::LteRlcAm
  • /NodeList/[i]/DeviceList/[i]/$ns3::LteUeNetDevice/LteUeRrc/Srb0/LteRlc/$ns3::LteRlcAm
  • /NodeList/[i]/DeviceList/[i]/$ns3::LteUeNetDevice/LteUeRrc/Srb1/LteRlc/$ns3::LteRlcAm

Attributes

  • PollRetransmitTimer: Value of the t-PollRetransmit (See section 7.3 of 3GPP TS 36.322)
    • Set with class: TimeValue
    • Underlying type: Time
    • Initial value: +100000000.0ns
    • Flags: construct write read

No TraceSources are defined for this type.

TraceSources defined in parent class ns3::LteRlc

  • TxPDU: PDU transmission notified to the MAC.
  • RxPDU: PDU received.

Definition at line 36 of file lte-rlc-am.h.

Member Enumeration Documentation

enum ns3::LteRlcAm::ReassemblingState_t
private

SDU Reassembling state

Enumerator:
NONE
WAITING_S0_FULL
WAITING_SI_SF

Definition at line 157 of file lte-rlc-am.h.

Constructor & Destructor Documentation

ns3::LteRlcAm::LteRlcAm ( )

Definition at line 35 of file lte-rlc-am.cc.

References m_byteWithoutPoll, m_expectedSeqNumber, m_maxRetxThreshold, m_pduWithoutPoll, m_pollByte, m_pollPdu, m_pollRetransmitTimerValue, m_pollSn, m_reassemblingState, m_retxBuffer, m_retxBufferSize, m_statusPduBufferSize, m_statusPduRequested, m_txedBuffer, m_txedBufferSize, m_txonBufferSize, m_vrH, m_vrMr, m_vrMs, m_vrR, m_vrX, m_vtA, m_vtMs, m_vtS, m_windowSize, ns3::MilliSeconds(), NS_LOG_FUNCTION, and WAITING_S0_FULL.

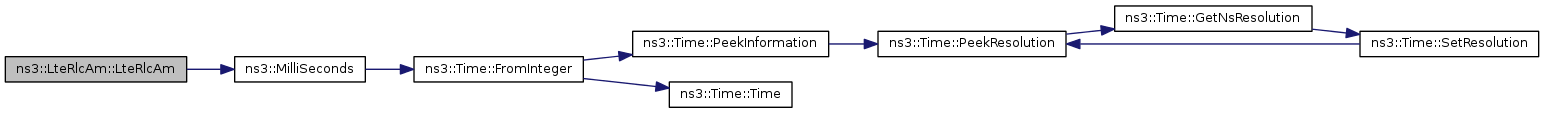

+ Here is the call graph for this function:

ns3::LteRlcAm::~LteRlcAm ( )
virtual

Definition at line 80 of file lte-rlc-am.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::LteRlcAm::DoDispose ( void  )
virtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::LteRlc.

Definition at line 101 of file lte-rlc-am.cc.

References ns3::EventId::Cancel(), m_controlPduBuffer, m_keepS0, m_pollRetransmitTimer, m_reorderingTimer, m_retxBuffer, m_retxBufferSize, m_rxonBuffer, m_sdusBuffer, m_statusProhibitTimer, m_txedBuffer, m_txedBufferSize, m_txonBuffer, m_txonBufferSize, and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

void ns3::LteRlcAm::DoNotifyHarqDeliveryFailure ( )
virtual

Implements ns3::LteRlc.

Definition at line 612 of file lte-rlc-am.cc.

References NS_LOG_FUNCTION.

void ns3::LteRlcAm::DoNotifyTxOpportunity ( uint32_t  bytes,
uint8_t  layer,
uint8_t  harqId
)
virtual

MAC SAP

Implements ns3::LteRlc.

Definition at line 159 of file lte-rlc-am.cc.

References ns3::Packet::AddAtEnd(), ns3::Packet::AddByteTag(), ns3::Packet::AddHeader(), ns3::Packet::AddPacketTag(), ns3::EventId::Cancel(), ns3::Packet::Copy(), ns3::Packet::CreateFragment(), ns3::LteRlcAmHeader::DATA_FIELD_FOLLOWS, ns3::LteRlcAmHeader::E_LI_FIELDS_FOLLOWS, ExpirePollRetransmitTimer(), ns3::LteRlcAmHeader::FIRST_BYTE, ns3::LteRlcSduStatusTag::FIRST_SEGMENT, ns3::LteRlcSduStatusTag::FULL_SDU, ns3::Packet::GetSize(), ns3::LteRlcSduStatusTag::GetStatus(), ns3::SequenceNumber10::GetValue(), ns3::LteMacSapProvider::TransmitPduParameters::harqProcessId, ns3::EventId::IsRunning(), ns3::LteRlcAmHeader::LAST_BYTE, ns3::LteRlcAmHeader::LAST_PDU_SEGMENT, ns3::LteRlcSduStatusTag::LAST_SEGMENT, ns3::LteMacSapProvider::TransmitPduParameters::layer, ns3::LteMacSapProvider::TransmitPduParameters::lcid, m_byteWithoutPoll, ns3::LteRlc::m_lcid, ns3::LteRlc::m_macSapProvider, m_pduWithoutPoll, m_pollByte, m_pollPdu, m_pollRetransmitTimer, m_pollRetransmitTimerValue, m_pollSn, m_retxBuffer, m_retxBufferSize, ns3::LteRlc::m_rnti, m_statusPduBufferSize, m_statusPduRequested, m_statusProhibitTimer, m_txedBuffer, m_txedBufferSize, m_txonBuffer, m_txonBufferSize, ns3::LteRlc::m_txPdu, m_vrR, m_vtA, m_vtMs, m_vtS, ns3::LteRlcSduStatusTag::MIDDLE_SEGMENT, ns3::LteRlcAmHeader::NO_FIRST_BYTE, ns3::LteRlcAmHeader::NO_LAST_BYTE, ns3::Simulator::Now(), NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_LOGIC, ns3::LteMacSapProvider::TransmitPduParameters::pdu, ns3::LteRlcAmHeader::PDU, ns3::Packet::PeekHeader(), ns3::Packet::RemoveAtStart(), ns3::Packet::RemovePacketTag(), ns3::LteMacSapProvider::TransmitPduParameters::rnti, ns3::Simulator::Schedule(), ns3::LteRlcAmHeader::SetControlPdu(), ns3::LteRlcAmHeader::SetDataPdu(), ns3::LteRlcAmHeader::STATUS_PDU, ns3::LteRlcAmHeader::STATUS_REPORT_IS_REQUESTED, ns3::LteRlcAmHeader::STATUS_REPORT_NOT_REQUESTED, and ns3::LteMacSapProvider::TransmitPdu().

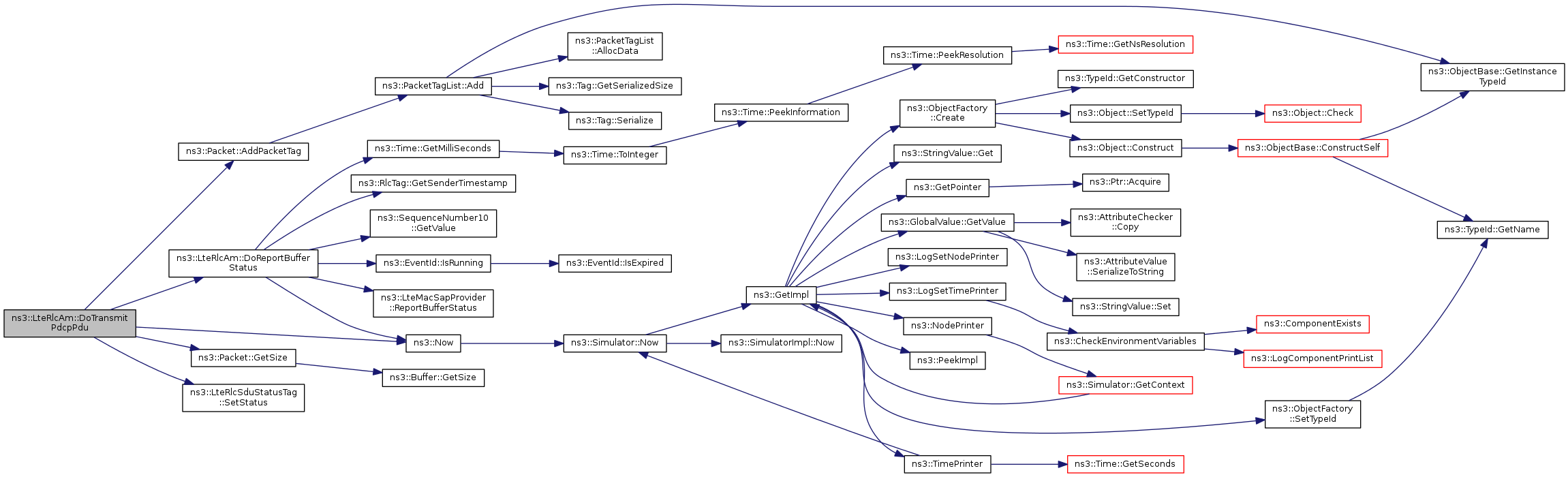

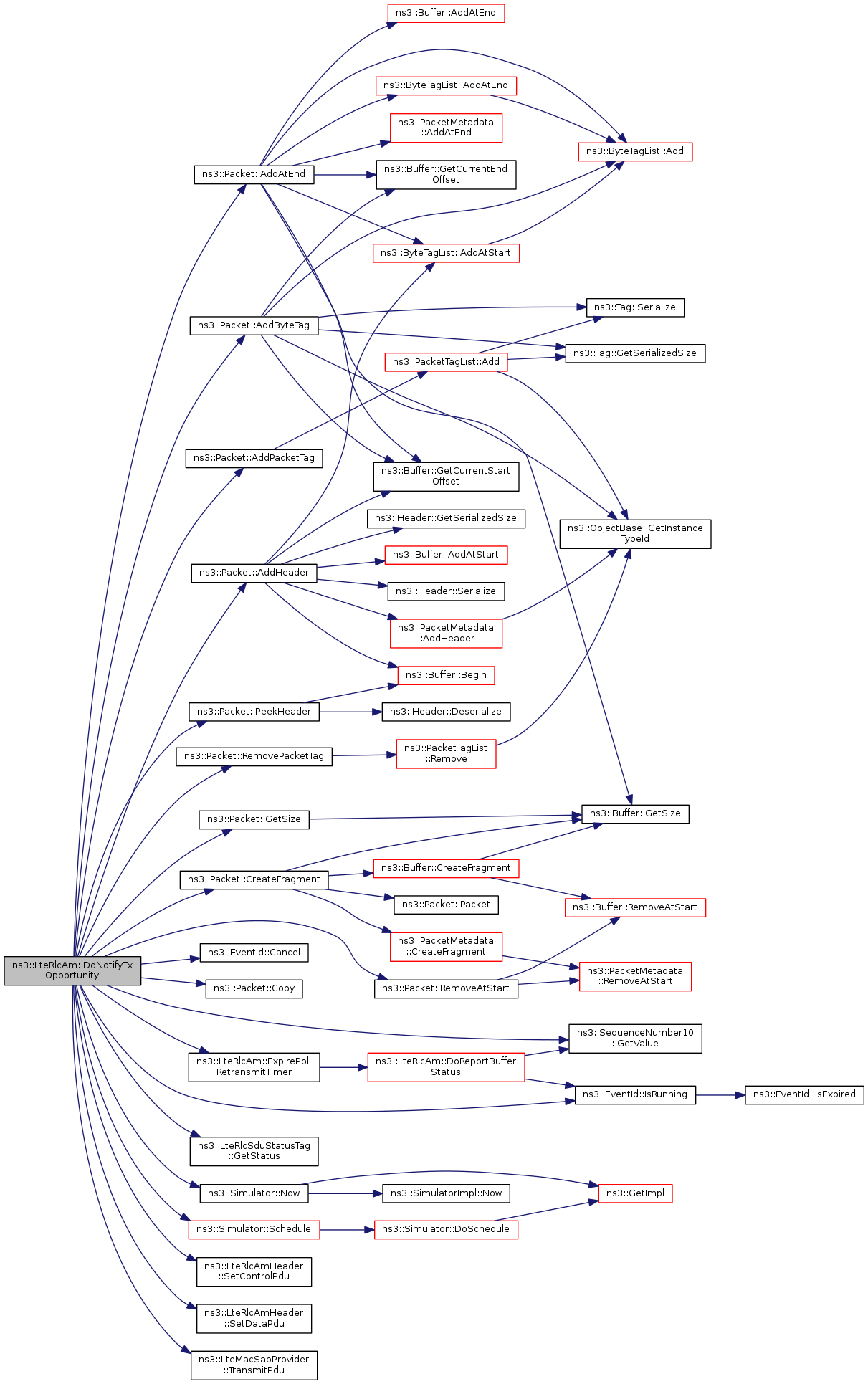

+ Here is the call graph for this function:

void ns3::LteRlcAm::DoReceivePdu ( Ptr< Packet >  p)
virtual

Implements ns3::LteRlc.

Definition at line 618 of file lte-rlc-am.cc.

References ns3::EventId::Cancel(), DoReportBufferStatus(), ExpireReorderingTimer(), ns3::Packet::FindFirstMatchingByteTag(), ns3::Time::GetNanoSeconds(), ns3::Packet::GetSize(), ns3::SequenceNumber10::GetValue(), IsInsideReceivingWindow(), ns3::EventId::IsRunning(), ns3::LteRlc::m_lcid, m_maxRetxThreshold, m_reorderingTimer, m_retxBuffer, m_retxBufferSize, ns3::LteRlc::m_rnti, m_rxonBuffer, ns3::LteRlc::m_rxPdu, m_statusPduBufferSize, m_statusPduRequested, m_statusProhibitTimer, m_txedBuffer, m_txedBufferSize, m_vrH, m_vrMr, m_vrMs, m_vrR, m_vrX, m_vtA, m_vtS, m_windowSize, ns3::Now(), NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_LOGIC, NS_LOG_WARN, ns3::LteRlcAmHeader::PDU, ns3::Packet::PeekHeader(), ReassembleAndDeliver(), ns3::Simulator::Schedule(), ns3::LteRlcAmHeader::SEGMENT, and ns3::LteRlcAmHeader::STATUS_REPORT_IS_REQUESTED.

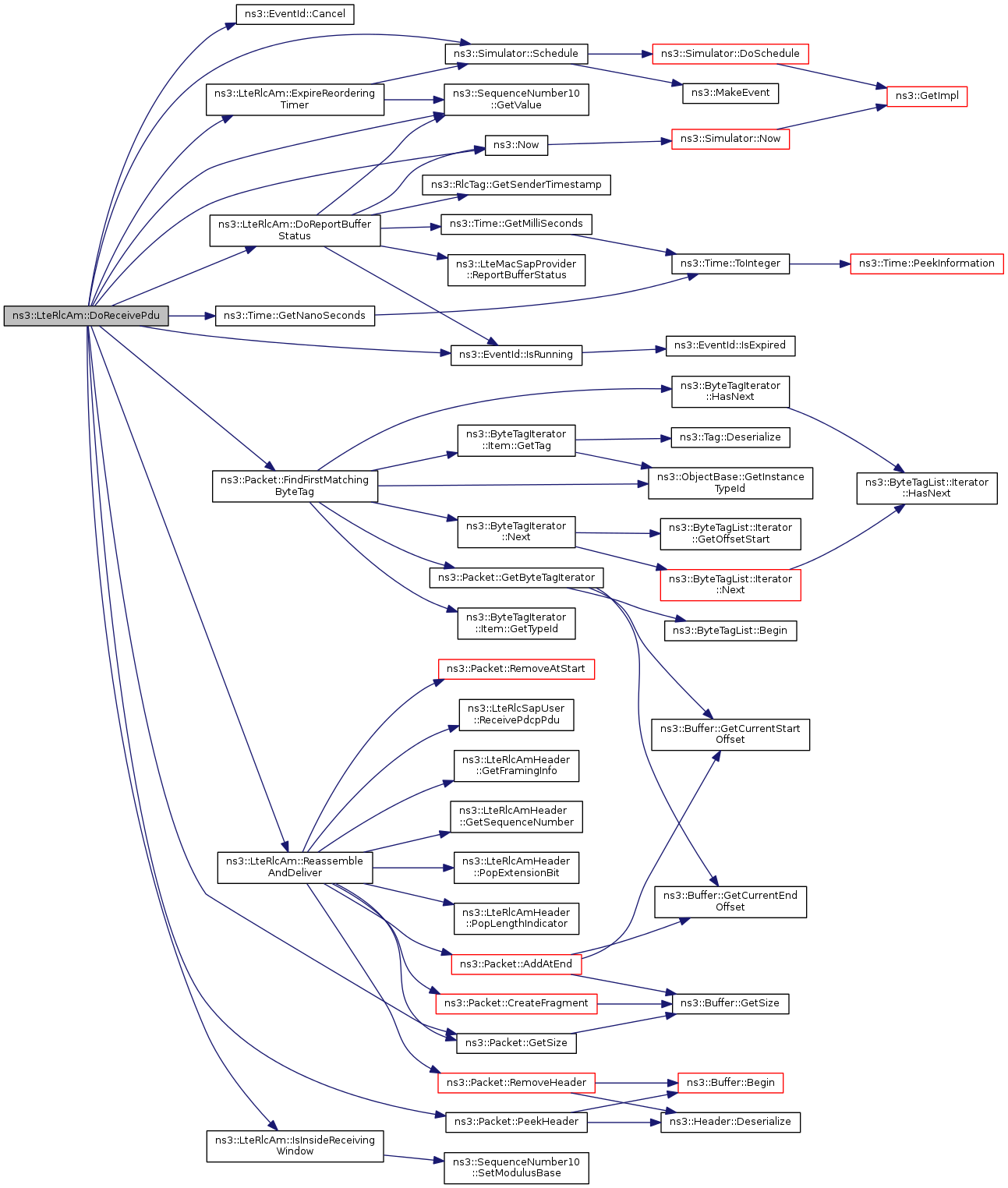

+ Here is the call graph for this function:

void ns3::LteRlcAm::DoReportBufferStatus ( void  )
private

Definition at line 1527 of file lte-rlc-am.cc.

References ns3::Time::GetMilliSeconds(), ns3::RlcTag::GetSenderTimestamp(), ns3::SequenceNumber10::GetValue(), ns3::EventId::IsRunning(), ns3::LteMacSapProvider::ReportBufferStatusParameters::lcid, ns3::LteRlc::m_lcid, ns3::LteRlc::m_macSapProvider, m_retxBuffer, m_retxBufferSize, ns3::LteRlc::m_rnti, m_statusPduBufferSize, m_statusPduRequested, m_statusProhibitTimer, m_txedBuffer, m_txedBufferSize, m_txonBuffer, m_txonBufferSize, m_vtA, m_vtS, ns3::Now(), NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_LOGIC, ns3::LteMacSapProvider::ReportBufferStatus(), ns3::LteMacSapProvider::ReportBufferStatusParameters::retxQueueHolDelay, ns3::LteMacSapProvider::ReportBufferStatusParameters::retxQueueSize, ns3::LteMacSapProvider::ReportBufferStatusParameters::rnti, ns3::LteMacSapProvider::ReportBufferStatusParameters::statusPduSize, ns3::LteMacSapProvider::ReportBufferStatusParameters::txQueueHolDelay, and ns3::LteMacSapProvider::ReportBufferStatusParameters::txQueueSize.

Referenced by DoReceivePdu(), DoTransmitPdcpPdu(), and ExpirePollRetransmitTimer().

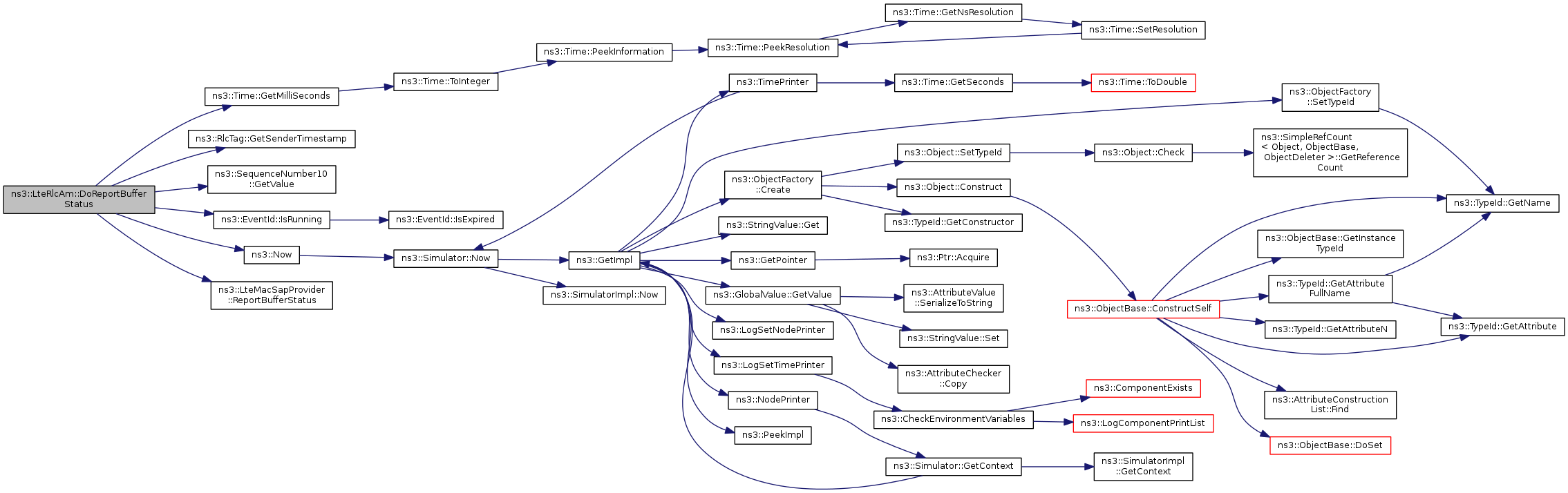

+ Here is the call graph for this function:

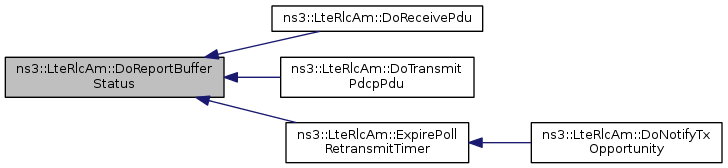

+ Here is the caller graph for this function:

void ns3::LteRlcAm::DoTransmitPdcpPdu ( Ptr< Packet >  p)
virtual

RLC SAP

Store arrival time

Store PDCP PDU

Report Buffer Status

Implements ns3::LteRlc.

Definition at line 128 of file lte-rlc-am.cc.

References ns3::Packet::AddPacketTag(), DoReportBufferStatus(), ns3::LteRlcSduStatusTag::FULL_SDU, ns3::Packet::GetSize(), ns3::LteRlc::m_lcid, ns3::LteRlc::m_rnti, m_txonBuffer, m_txonBufferSize, ns3::Now(), NS_LOG_FUNCTION, NS_LOG_LOGIC, and ns3::LteRlcSduStatusTag::SetStatus().

+ Here is the call graph for this function:

void ns3::LteRlcAm::ExpirePollRetransmitTimer ( void  )
private

Definition at line 1631 of file lte-rlc-am.cc.

References DoReportBufferStatus(), m_retxBufferSize, m_statusPduRequested, m_txedBufferSize, m_txonBufferSize, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Referenced by DoNotifyTxOpportunity().

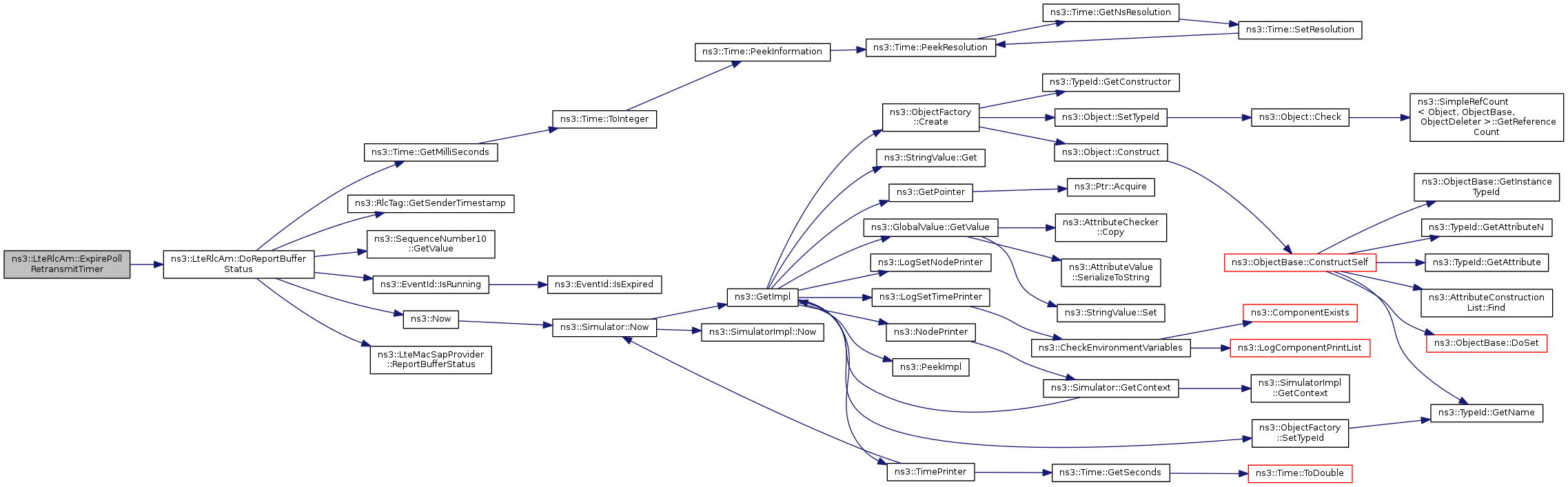

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::LteRlcAm::ExpireReorderingTimer ( void  )
private

This method will schedule a timeout at WaitReplyTimeout interval in the future, unless a timer is already running for the cache, in which case this method does nothing.

Definition at line 1594 of file lte-rlc-am.cc.

References ns3::SequenceNumber10::GetValue(), m_reorderingTimer, m_rxonBuffer, m_vrH, m_vrMs, m_vrX, NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_LOGIC, and ns3::Simulator::Schedule().

Referenced by DoReceivePdu().

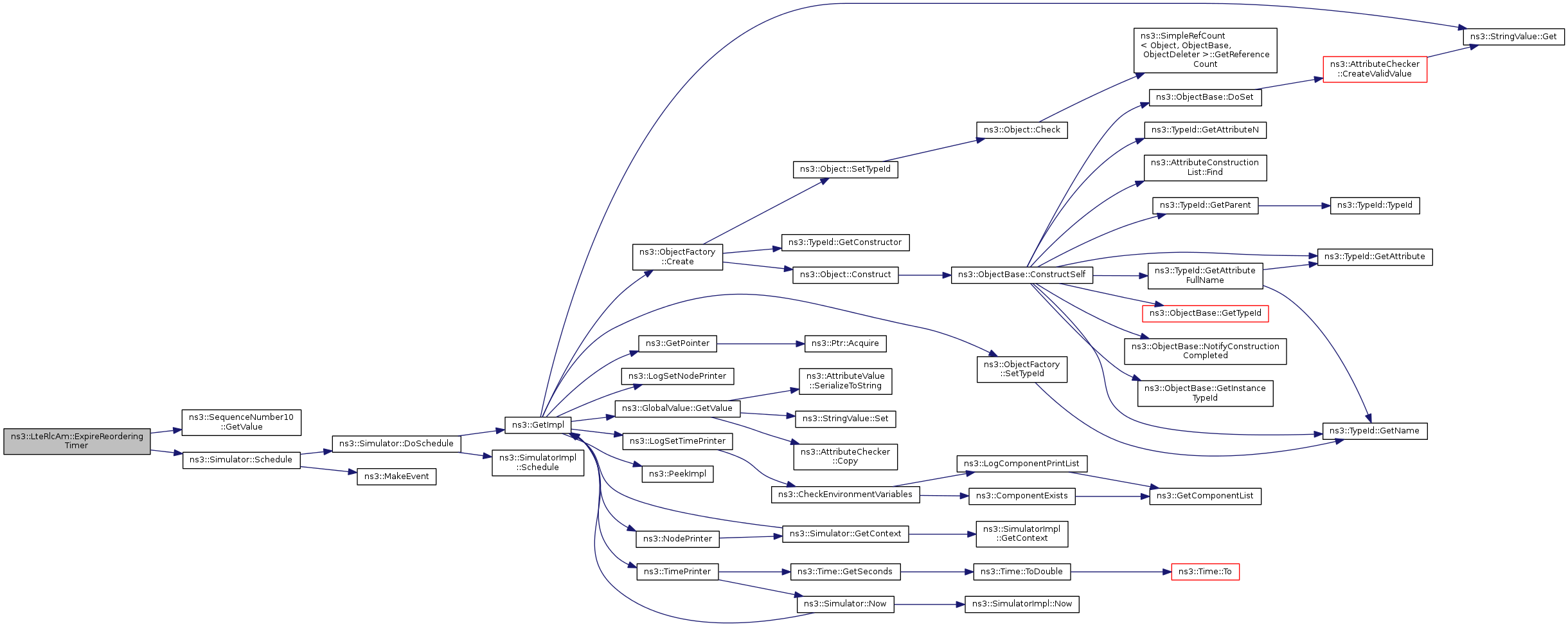

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

TypeId ns3::LteRlcAm::GetTypeId ( void  )
static

Reimplemented from ns3::LteRlc.

Definition at line 86 of file lte-rlc-am.cc.

References m_pollRetransmitTimerValue, ns3::MilliSeconds(), and ns3::TypeId::SetParent().

Referenced by ns3::UeManager::SetupDataRadioBearer().

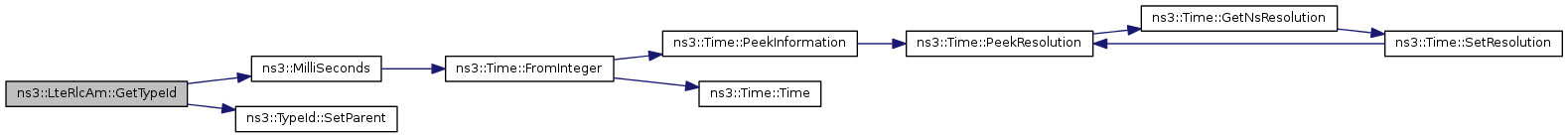

+ Here is the call graph for this function:

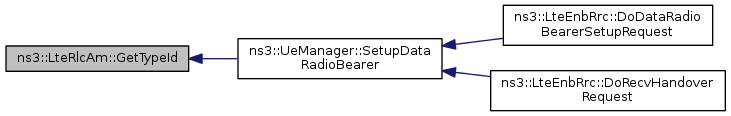

+ Here is the caller graph for this function:

bool ns3::LteRlcAm::IsInsideReceivingWindow ( SequenceNumber10  seqNumber)
private

Definition at line 1032 of file lte-rlc-am.cc.

References m_vrMr, m_vrR, NS_LOG_FUNCTION, NS_LOG_LOGIC, and ns3::SequenceNumber10::SetModulusBase().

Referenced by DoReceivePdu().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::LteRlcAm::ReassembleAndDeliver ( Ptr< Packet >  packet)
private

Deliver one or multiple PDUs

Deliver full PDUs

Keep S0

ERROR: Transition not possible

Deliver (Kept)S0 + SN

Deliver zero, one or multiple PDUs

Keep SI

Deliver (Kept)S0 + SN

Deliver zero, one or multiple PDUs

Keep S0

ERROR: Transition not possible

Deliver one or multiple PDUs

Deliver full PDUs

Keep S0

Discard SN

Deliver zero, one or multiple PDUs

Discard SI or SN

Deliver zero, one or multiple PDUs

Keep S0

ERROR: Transition not possible

Discard S0

Deliver one or multiple PDUs

Discard S0

Deliver zero, one or multiple PDUs

Keep S0

Discard S0

Discard SI or SN

Deliver zero, one or multiple PDUs

Discard S0

Discard SI or SN

Deliver zero, one or multiple PDUs

Keep S0

ERROR: Transition not possible

Definition at line 1056 of file lte-rlc-am.cc.

References ns3::Packet::AddAtEnd(), ns3::Packet::CreateFragment(), ns3::LteRlcAmHeader::FIRST_BYTE, ns3::LteRlcAmHeader::GetFramingInfo(), ns3::LteRlcAmHeader::GetSequenceNumber(), ns3::Packet::GetSize(), ns3::LteRlcAmHeader::LAST_BYTE, m_expectedSeqNumber, m_keepS0, m_reassemblingState, ns3::LteRlc::m_rlcSapUser, m_sdusBuffer, ns3::LteRlcAmHeader::NO_FIRST_BYTE, ns3::LteRlcAmHeader::NO_LAST_BYTE, NS_LOG_LOGIC, ns3::LteRlcAmHeader::PopExtensionBit(), ns3::LteRlcAmHeader::PopLengthIndicator(), ns3::LteRlcSapUser::ReceivePdcpPdu(), ns3::Packet::RemoveAtStart(), ns3::Packet::RemoveHeader(), WAITING_S0_FULL, and WAITING_SI_SF.

Referenced by DoReceivePdu().

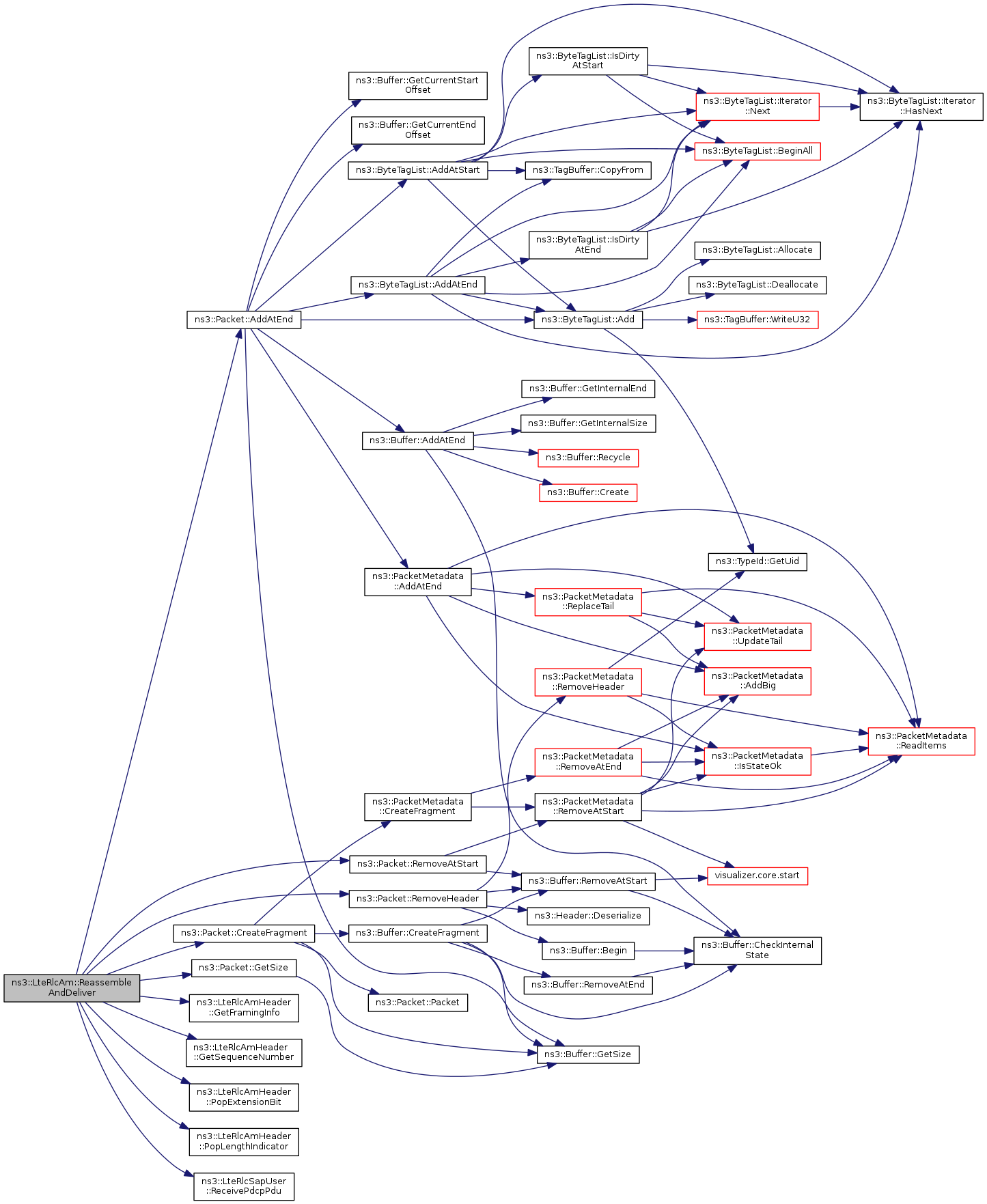

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

Member Data Documentation

uint32_t ns3::LteRlcAm::m_byteWithoutPoll
private

Definition at line 132 of file lte-rlc-am.h.

Referenced by DoNotifyTxOpportunity(), and LteRlcAm().

Ptr<Packet> ns3::LteRlcAm::m_controlPduBuffer
private

Definition at line 105 of file lte-rlc-am.h.

Referenced by DoDispose().

SequenceNumber10 ns3::LteRlcAm::m_expectedSeqNumber
private

Expected Sequence Number

Definition at line 166 of file lte-rlc-am.h.

Referenced by LteRlcAm(), and ReassembleAndDeliver().

Ptr<Packet> ns3::LteRlcAm::m_keepS0
private

Definition at line 161 of file lte-rlc-am.h.

Referenced by DoDispose(), and ReassembleAndDeliver().

uint16_t ns3::LteRlcAm::m_maxRetxThreshold
private

Configurable parameters. See section 7.4 in TS 36.322

Definition at line 150 of file lte-rlc-am.h.

Referenced by DoReceivePdu(), and LteRlcAm().

uint32_t ns3::LteRlcAm::m_pduWithoutPoll
private

Counters. See section 7.1 in TS 36.322

Definition at line 131 of file lte-rlc-am.h.

Referenced by DoNotifyTxOpportunity(), and LteRlcAm().

uint16_t ns3::LteRlcAm::m_pollByte
private

Definition at line 152 of file lte-rlc-am.h.

Referenced by DoNotifyTxOpportunity(), and LteRlcAm().

uint16_t ns3::LteRlcAm::m_pollPdu
private

Definition at line 151 of file lte-rlc-am.h.

Referenced by DoNotifyTxOpportunity(), and LteRlcAm().

EventId ns3::LteRlcAm::m_pollRetransmitTimer
private

Timers. See section 7.3 in TS 36.322

Definition at line 142 of file lte-rlc-am.h.

Referenced by DoDispose(), and DoNotifyTxOpportunity().

Time ns3::LteRlcAm::m_pollRetransmitTimerValue
private

Definition at line 143 of file lte-rlc-am.h.

Referenced by DoNotifyTxOpportunity(), GetTypeId(), and LteRlcAm().

SequenceNumber10 ns3::LteRlcAm::m_pollSn
private

Definition at line 119 of file lte-rlc-am.h.

Referenced by DoNotifyTxOpportunity(), and LteRlcAm().

ReassemblingState_t ns3::LteRlcAm::m_reassemblingState
private

Definition at line 160 of file lte-rlc-am.h.

Referenced by LteRlcAm(), and ReassembleAndDeliver().

EventId ns3::LteRlcAm::m_reorderingTimer
private

Definition at line 144 of file lte-rlc-am.h.

Referenced by DoDispose(), DoReceivePdu(), and ExpireReorderingTimer().

std::vector< RetxBuffer > ns3::LteRlcAm::m_retxBuffer
private

Definition at line 84 of file lte-rlc-am.h.

Referenced by DoDispose(), DoNotifyTxOpportunity(), DoReceivePdu(), DoReportBufferStatus(), and LteRlcAm().

uint32_t ns3::LteRlcAm::m_retxBufferSize
private

Definition at line 87 of file lte-rlc-am.h.

Referenced by DoDispose(), DoNotifyTxOpportunity(), DoReceivePdu(), DoReportBufferStatus(), ExpirePollRetransmitTimer(), and LteRlcAm().

std::map<uint16_t, PduBuffer > ns3::LteRlcAm::m_rxonBuffer
private

Definition at line 103 of file lte-rlc-am.h.

Referenced by DoDispose(), DoReceivePdu(), and ExpireReorderingTimer().

std::list< Ptr<Packet> > ns3::LteRlcAm::m_sdusBuffer
private

Definition at line 110 of file lte-rlc-am.h.

Referenced by DoDispose(), and ReassembleAndDeliver().

uint32_t ns3::LteRlcAm::m_statusPduBufferSize
private

Definition at line 91 of file lte-rlc-am.h.

Referenced by DoNotifyTxOpportunity(), DoReceivePdu(), DoReportBufferStatus(), and LteRlcAm().

bool ns3::LteRlcAm::m_statusPduRequested
private

Definition at line 90 of file lte-rlc-am.h.

Referenced by DoNotifyTxOpportunity(), DoReceivePdu(), DoReportBufferStatus(), ExpirePollRetransmitTimer(), and LteRlcAm().

EventId ns3::LteRlcAm::m_statusProhibitTimer
private

Definition at line 145 of file lte-rlc-am.h.

Referenced by DoDispose(), DoNotifyTxOpportunity(), DoReceivePdu(), and DoReportBufferStatus().

std::vector< Ptr<Packet> > ns3::LteRlcAm::m_txedBuffer
private

Definition at line 76 of file lte-rlc-am.h.

Referenced by DoDispose(), DoNotifyTxOpportunity(), DoReceivePdu(), DoReportBufferStatus(), and LteRlcAm().

uint32_t ns3::LteRlcAm::m_txedBufferSize
private

Definition at line 88 of file lte-rlc-am.h.

Referenced by DoDispose(), DoNotifyTxOpportunity(), DoReceivePdu(), DoReportBufferStatus(), ExpirePollRetransmitTimer(), and LteRlcAm().

std::vector< Ptr<Packet> > ns3::LteRlcAm::m_txonBuffer
private

Definition at line 75 of file lte-rlc-am.h.

Referenced by DoDispose(), DoNotifyTxOpportunity(), DoReportBufferStatus(), and DoTransmitPdcpPdu().

uint32_t ns3::LteRlcAm::m_txonBufferSize
private

Definition at line 86 of file lte-rlc-am.h.

Referenced by DoDispose(), DoNotifyTxOpportunity(), DoReportBufferStatus(), DoTransmitPdcpPdu(), ExpirePollRetransmitTimer(), and LteRlcAm().

SequenceNumber10 ns3::LteRlcAm::m_vrH
private

Definition at line 126 of file lte-rlc-am.h.

Referenced by DoReceivePdu(), ExpireReorderingTimer(), and LteRlcAm().

SequenceNumber10 ns3::LteRlcAm::m_vrMr
private

Definition at line 123 of file lte-rlc-am.h.

Referenced by DoReceivePdu(), IsInsideReceivingWindow(), and LteRlcAm().

SequenceNumber10 ns3::LteRlcAm::m_vrMs
private

Definition at line 125 of file lte-rlc-am.h.

Referenced by DoReceivePdu(), ExpireReorderingTimer(), and LteRlcAm().

SequenceNumber10 ns3::LteRlcAm::m_vrR
private

Definition at line 122 of file lte-rlc-am.h.

Referenced by DoNotifyTxOpportunity(), DoReceivePdu(), IsInsideReceivingWindow(), and LteRlcAm().

SequenceNumber10 ns3::LteRlcAm::m_vrX
private

Definition at line 124 of file lte-rlc-am.h.

Referenced by DoReceivePdu(), ExpireReorderingTimer(), and LteRlcAm().

SequenceNumber10 ns3::LteRlcAm::m_vtA
private

State variables. See section 7.1 in TS 36.322

Definition at line 116 of file lte-rlc-am.h.

Referenced by DoNotifyTxOpportunity(), DoReceivePdu(), DoReportBufferStatus(), and LteRlcAm().

SequenceNumber10 ns3::LteRlcAm::m_vtMs
private

Definition at line 117 of file lte-rlc-am.h.

Referenced by DoNotifyTxOpportunity(), and LteRlcAm().

SequenceNumber10 ns3::LteRlcAm::m_vtS
private

Definition at line 118 of file lte-rlc-am.h.

Referenced by DoNotifyTxOpportunity(), DoReceivePdu(), DoReportBufferStatus(), and LteRlcAm().

uint16_t ns3::LteRlcAm::m_windowSize
private

Constants. See section 7.2 in TS 36.322

Definition at line 137 of file lte-rlc-am.h.

Referenced by DoReceivePdu(), and LteRlcAm().

The documentation for this class was generated from the following files:
