ns3::LteUeRrcSapUser Class Reference

#include <lte-rrc-sap.h>

Inheritance diagram for ns3::LteUeRrcSapUser:

Collaboration diagram for ns3::LteUeRrcSapUser:

Classes
struct	SetupParameters

Public Member Functions
virtual void	SendRrcConnectionReconfigurationCompleted (RrcConnectionReconfigurationCompleted msg)=0
virtual void	SendRrcConnectionReestablishmentComplete (RrcConnectionReestablishmentComplete msg)=0
virtual void	SendRrcConnectionReestablishmentRequest (RrcConnectionReestablishmentRequest msg)=0
virtual void	SendRrcConnectionRequest (RrcConnectionRequest msg)=0
virtual void	SendRrcConnectionSetupCompleted (RrcConnectionSetupCompleted msg)=0
virtual void	Setup (SetupParameters params)=0
Public Member Functions inherited from ns3::LteRrcSap
virtual	~LteRrcSap ()

Additional Inherited Members
Public Types inherited from ns3::LteRrcSap
enum	ReestablishmentCause { RECONFIGURATION_FAILURE, HANDOVER_FAILURE, OTHER_FAILURE }

Detailed Description

Service Access Point (SAP) used by the UE RRC to send messages to the eNB. Each method defined in this class correspond to the transmission of a message that is defined in section 6.2.2 of TS 36.331.

Definition at line 501 of file lte-rrc-sap.h.

Member Function Documentation

virtual void ns3::LteUeRrcSapUser::SendRrcConnectionReconfigurationCompleted ( RrcConnectionReconfigurationCompleted  msg )

pure virtual

Implemented in ns3::MemberLteUeRrcSapUser< C >.

Referenced by ns3::LteUeRrc::DoNotifyRandomAccessSuccessful(), and ns3::LteUeRrc::DoRecvRrcConnectionReconfiguration().

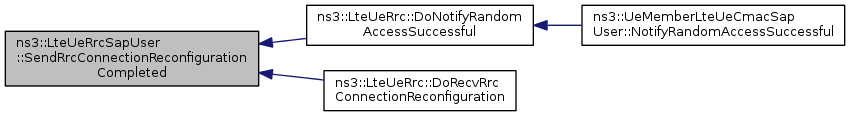

Here is the caller graph for this function:

virtual void ns3::LteUeRrcSapUser::SendRrcConnectionReestablishmentComplete ( RrcConnectionReestablishmentComplete  msg )

pure virtual

Implemented in ns3::MemberLteUeRrcSapUser< C >.

virtual void ns3::LteUeRrcSapUser::SendRrcConnectionReestablishmentRequest ( RrcConnectionReestablishmentRequest  msg )

pure virtual

Implemented in ns3::MemberLteUeRrcSapUser< C >.

virtual void ns3::LteUeRrcSapUser::SendRrcConnectionRequest ( RrcConnectionRequest  msg )

pure virtual

Implemented in ns3::MemberLteUeRrcSapUser< C >.

Referenced by ns3::LteUeRrc::DoNotifyRandomAccessSuccessful().

Here is the caller graph for this function:

virtual void ns3::LteUeRrcSapUser::SendRrcConnectionSetupCompleted ( RrcConnectionSetupCompleted  msg )

pure virtual

Implemented in ns3::MemberLteUeRrcSapUser< C >.

Referenced by ns3::LteUeRrc::DoRecvRrcConnectionSetup().

Here is the caller graph for this function:

virtual void ns3::LteUeRrcSapUser::Setup ( SetupParameters  params )

pure virtual

Implemented in ns3::MemberLteUeRrcSapUser< C >.

Referenced by ns3::LteUeRrc::ApplyRadioResourceConfigDedicated(), and ns3::LteUeRrc::DoInitialize().

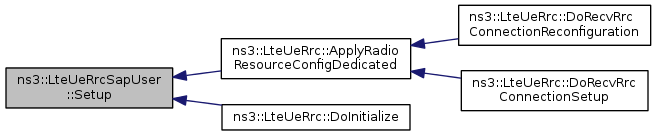

Here is the caller graph for this function:

---

The documentation for this class was generated from the following file:

• src/lte/model/lte-rrc-sap.h
