#include <lte-rrc-header.h>

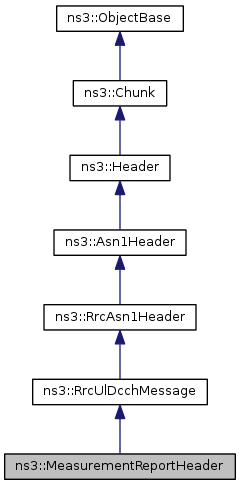

Inheritance diagram for ns3::MeasurementReportHeader:

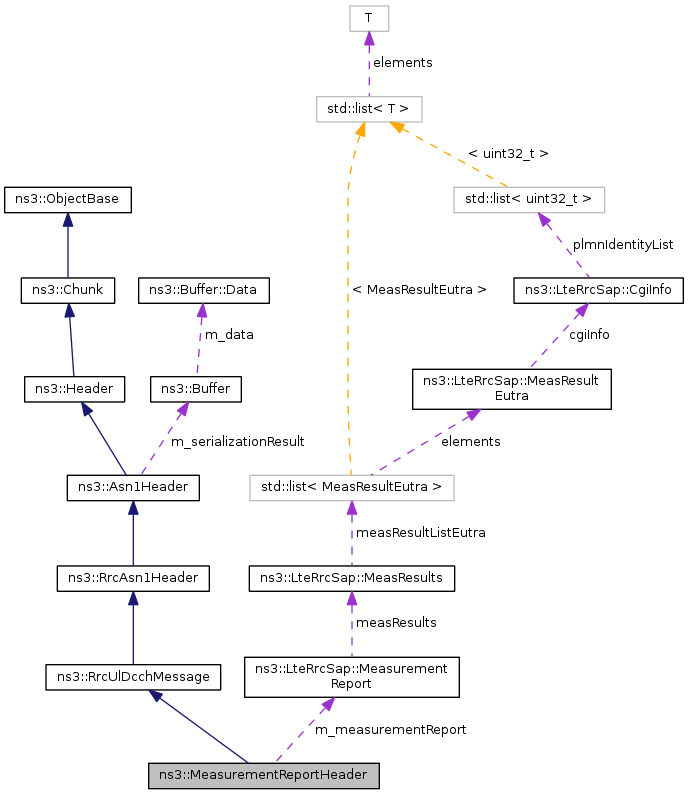

Collaboration diagram for ns3::MeasurementReportHeader:

Public Member Functions
	MeasurementReportHeader ()
	~MeasurementReportHeader ()
uint32_t	Deserialize (Buffer::Iterator bIterator)
LteRrcSap::MeasurementReport	GetMessage () const
void	PreSerialize () const
void	Print (std::ostream &os) const
void	SetMessage (LteRrcSap::MeasurementReport msg)
Public Member Functions inherited from ns3::RrcUlDcchMessage
	RrcUlDcchMessage ()
	~RrcUlDcchMessage ()
Public Member Functions inherited from ns3::RrcAsn1Header
	RrcAsn1Header ()
int	GetMessageType ()
Public Member Functions inherited from ns3::Asn1Header
	Asn1Header ()
virtual	~Asn1Header ()
uint32_t	GetSerializedSize (void) const
void	Serialize (Buffer::Iterator bIterator) const
Public Member Functions inherited from ns3::Header
virtual	~Header ()

Private Attributes
LteRrcSap::MeasurementReport	m_measurementReport

Additional Inherited Members
Protected Member Functions inherited from ns3::RrcUlDcchMessage
Buffer::Iterator	DeserializeUlDcchMessage (Buffer::Iterator bIterator)
void	SerializeUlDcchMessage (int msgType) const
Static Protected Member Functions inherited from ns3::RrcAsn1Header
static TypeId	GetTypeId (void)
Protected Attributes inherited from ns3::RrcAsn1Header
int	m_messageType
	Stores RRC message type, according to 3GPP TS 36.331.

Detailed Description

This class manages the serialization/deserialization of MeasurementReport IE

Definition at line 737 of file lte-rrc-header.h.

Constructor & Destructor Documentation

ns3::MeasurementReportHeader::MeasurementReportHeader ( )

Definition at line 5876 of file lte-rrc-header.cc.

ns3::MeasurementReportHeader::~MeasurementReportHeader ( )

Definition at line 5880 of file lte-rrc-header.cc.

Member Function Documentation

uint32_t ns3::MeasurementReportHeader::Deserialize ( Buffer::Iterator start )

virtual

Parameters

start an iterator which points to where the header should written.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Reimplemented from ns3::RrcUlDcchMessage.

Definition at line 5916 of file lte-rrc-header.cc.

References ns3::Asn1Header::DeserializeChoice(), ns3::RrcAsn1Header::DeserializeMeasResults(), ns3::Asn1Header::DeserializeNull(), ns3::Asn1Header::DeserializeSequence(), ns3::RrcUlDcchMessage::DeserializeUlDcchMessage(), ns3::Asn1Header::GetSerializedSize(), m_measurementReport, and ns3::LteRrcSap::MeasurementReport::measResults.

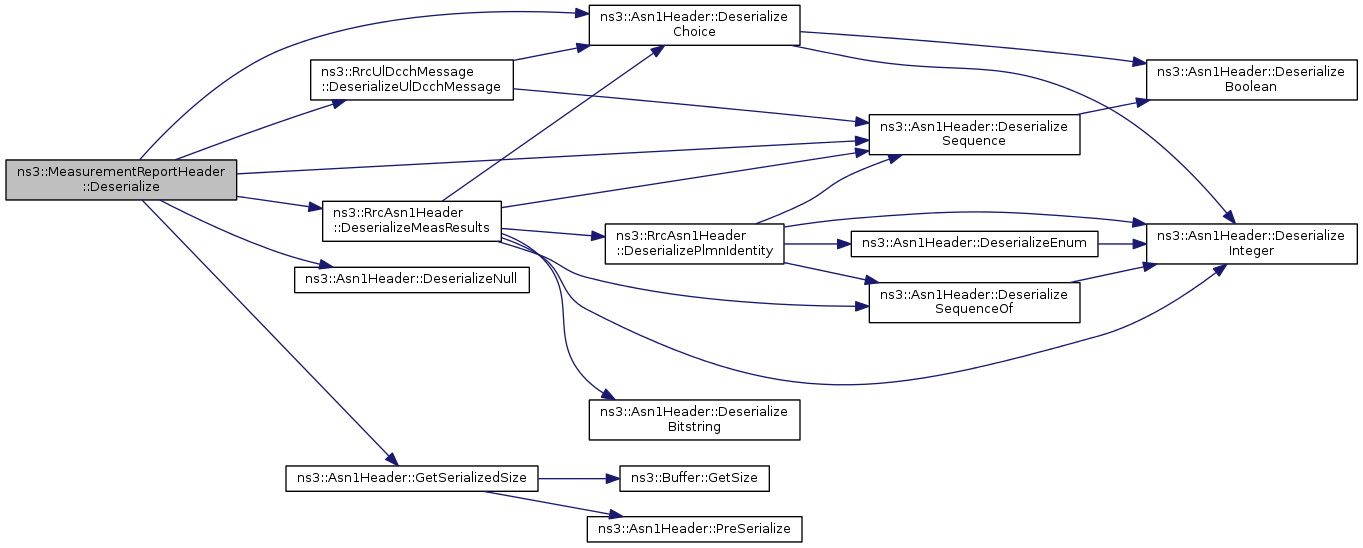

Here is the call graph for this function:

LteRrcSap::MeasurementReport ns3::MeasurementReportHeader::GetMessage ( ) const

Returns a MeasurementReport IE from the values in the class attributes

Returns: A MeasurementReport, as defined in LteRrcSap

Definition at line 6018 of file lte-rrc-header.cc.

References m_measurementReport.

Referenced by ns3::LteEnbRrcProtocolReal::DoReceivePdcpSdu().

Here is the caller graph for this function:

void ns3::MeasurementReportHeader::PreSerialize ( ) const

virtual

This function serializes class attributes to m_serializationResult local Buffer. As ASN1 encoding produces a bitstream that does not have a fixed length, this function is needed to store the result, so its length can be retrieved with Header::GetSerializedSize() function. This method is pure virtual in this class (needs to be implemented in child classes) as the meningful information elements are in the subclasses.

Reimplemented from ns3::RrcUlDcchMessage.

Definition at line 5885 of file lte-rrc-header.cc.

References ns3::Asn1Header::FinalizeSerialization(), m_measurementReport, ns3::Asn1Header::m_serializationResult, ns3::LteRrcSap::MeasurementReport::measResults, ns3::Asn1Header::SerializeChoice(), ns3::RrcAsn1Header::SerializeMeasResults(), ns3::Asn1Header::SerializeSequence(), and ns3::RrcUlDcchMessage::SerializeUlDcchMessage().

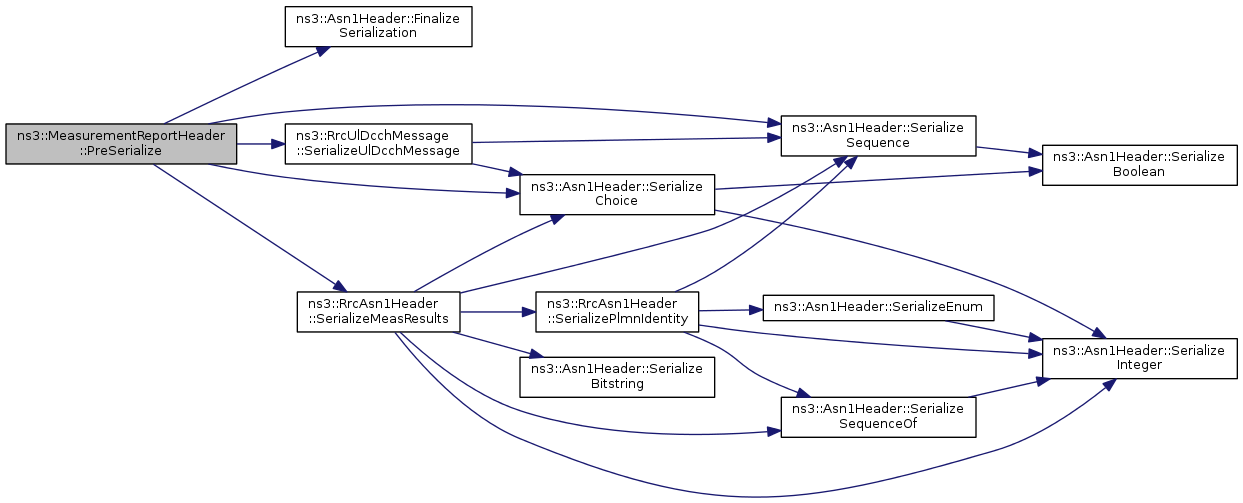

Here is the call graph for this function:

void ns3::MeasurementReportHeader::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a trailer as ascii data to a c++ output stream. Although the trailer is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Reimplemented from ns3::RrcUlDcchMessage.

Definition at line 5964 of file lte-rrc-header.cc.

References ns3::LteRrcSap::MeasResults::haveMeasResultNeighCells, m_measurementReport, ns3::LteRrcSap::MeasResults::measId, ns3::LteRrcSap::MeasResults::measResultListEutra, ns3::LteRrcSap::MeasurementReport::measResults, ns3::LteRrcSap::MeasResults::rsrpResult, and ns3::LteRrcSap::MeasResults::rsrqResult.

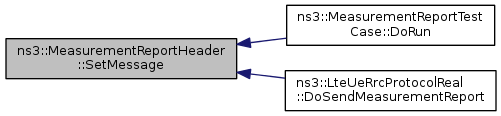

void ns3::MeasurementReportHeader::SetMessage ( LteRrcSap::MeasurementReport msg )

Receives a MeasurementReport IE and stores the contents into the class attributes

Parameters
