ns3::MemberLteUeCphySapProvider< C > Class Template Reference

#include <lte-ue-cphy-sap.h>

Inheritance diagram for ns3::MemberLteUeCphySapProvider< C >:

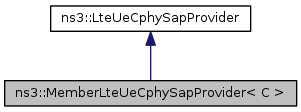

Collaboration diagram for ns3::MemberLteUeCphySapProvider< C >:

Public Member Functions
	MemberLteUeCphySapProvider (C *owner)
virtual void	ConfigureUplink (uint16_t ulEarfcn, uint8_t ulBandwidth)
virtual void	Reset ()
virtual void	SetDlBandwidth (uint8_t ulBandwidth)
virtual void	SetRnti (uint16_t rnti)
virtual void	SetSrsConfigurationIndex (uint16_t srcCi)
virtual void	SetTransmissionMode (uint8_t txMode)
virtual void	SyncronizeWithEnb (uint16_t cellId, uint16_t dlEarfcn)
Public Member Functions inherited from ns3::LteUeCphySapProvider
virtual	~LteUeCphySapProvider ()

Private Member Functions
	MemberLteUeCphySapProvider ()

Private Attributes
C *	m_owner

Detailed Description

template<class C>
class ns3::MemberLteUeCphySapProvider< C >

Template for the implementation of the LteUeCphySapProvider as a member of an owner class of type C to which all methods are forwarded

Definition at line 128 of file lte-ue-cphy-sap.h.

Constructor & Destructor Documentation

template<class C >

ns3::MemberLteUeCphySapProvider< C >::MemberLteUeCphySapProvider

(

C *

owner

)

Definition at line 148 of file lte-ue-cphy-sap.h.

template<class C >

ns3::MemberLteUeCphySapProvider< C >::MemberLteUeCphySapProvider ( )

private

Definition at line 154 of file lte-ue-cphy-sap.h.

Member Function Documentation

template<class C >

void ns3::MemberLteUeCphySapProvider< C >::ConfigureUplink ( uint16_t  ulEarfcn, uint8_t  ulBandwidth  )

virtual

Configure uplink (normally done after reception of SIB2)

Parameters

ulEarfcn	the carrier frequency (EARFCN) in uplink
ulBandwidth	the UL bandwidth in PRBs

Implements ns3::LteUeCphySapProvider.

Definition at line 181 of file lte-ue-cphy-sap.h.

template<class C >

void ns3::MemberLteUeCphySapProvider< C >::Reset ( )

virtual

reset the PHY

Implements ns3::LteUeCphySapProvider.

Definition at line 160 of file lte-ue-cphy-sap.h.

template<class C >

void ns3::MemberLteUeCphySapProvider< C >::SetDlBandwidth ( uint8_t  dlBandwidth )

virtual

Parameters

dlBandwidth

the DL bandwidth in PRBs

Implements ns3::LteUeCphySapProvider.

Definition at line 174 of file lte-ue-cphy-sap.h.

template<class C >

void ns3::MemberLteUeCphySapProvider< C >::SetRnti ( uint16_t  rnti )

virtual

Parameters

rnti	the cell-specific UE identifier

Implements ns3::LteUeCphySapProvider.

Definition at line 188 of file lte-ue-cphy-sap.h.

template<class C >

void ns3::MemberLteUeCphySapProvider< C >::SetSrsConfigurationIndex ( uint16_t  srcCi )

virtual

Parameters

txMode

the transmissionMode of the user

Implements ns3::LteUeCphySapProvider.

Definition at line 202 of file lte-ue-cphy-sap.h.

template<class C >

void ns3::MemberLteUeCphySapProvider< C >::SetTransmissionMode ( uint8_t  txMode )

virtual

Parameters

txMode

the transmissionMode of the user

Implements ns3::LteUeCphySapProvider.

Definition at line 195 of file lte-ue-cphy-sap.h.

template<class C >

void ns3::MemberLteUeCphySapProvider< C >::SyncronizeWithEnb ( uint16_t  cellId, uint16_t  dlEarfcn  )

virtual

tell the PHY to synchronize with a given eNB for communication purposes

Parameters

cellId	the ID of the eNB
dlEarfcn	the carrier frequency (EARFCN) in downlink

Implements ns3::LteUeCphySapProvider.

Definition at line 167 of file lte-ue-cphy-sap.h.

Member Data Documentation

template<class C>

C* ns3::MemberLteUeCphySapProvider< C >::m_owner

private

Definition at line 144 of file lte-ue-cphy-sap.h.

---

The documentation for this class was generated from the following file:

• src/lte/model/lte-ue-cphy-sap.h
