ns3::PssSchedulerMemberSchedSapProvider Class Reference

Inheritance diagram for ns3::PssSchedulerMemberSchedSapProvider:

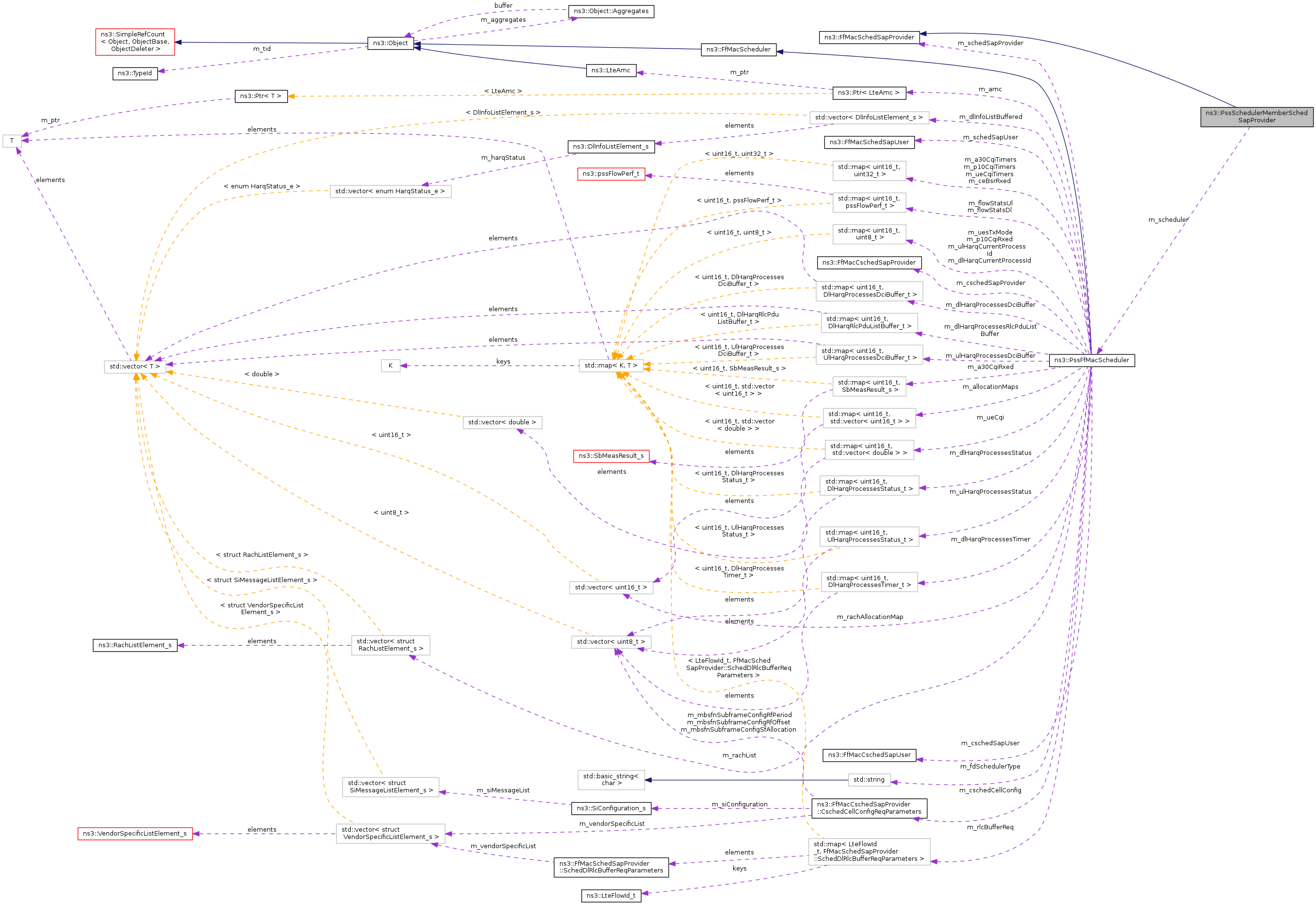

Collaboration diagram for ns3::PssSchedulerMemberSchedSapProvider:

Public Member Functions
	PssSchedulerMemberSchedSapProvider (PssFfMacScheduler *scheduler)
virtual void	SchedDlCqiInfoReq (const struct SchedDlCqiInfoReqParameters &params)
virtual void	SchedDlMacBufferReq (const struct SchedDlMacBufferReqParameters &params)
virtual void	SchedDlPagingBufferReq (const struct SchedDlPagingBufferReqParameters &params)
virtual void	SchedDlRachInfoReq (const struct SchedDlRachInfoReqParameters &params)
virtual void	SchedDlRlcBufferReq (const struct SchedDlRlcBufferReqParameters &params)
virtual void	SchedDlTriggerReq (const struct SchedDlTriggerReqParameters &params)
virtual void	SchedUlCqiInfoReq (const struct SchedUlCqiInfoReqParameters &params)
virtual void	SchedUlMacCtrlInfoReq (const struct SchedUlMacCtrlInfoReqParameters &params)
virtual void	SchedUlNoiseInterferenceReq (const struct SchedUlNoiseInterferenceReqParameters &params)
virtual void	SchedUlSrInfoReq (const struct SchedUlSrInfoReqParameters &params)
virtual void	SchedUlTriggerReq (const struct SchedUlTriggerReqParameters &params)
Public Member Functions inherited from ns3::FfMacSchedSapProvider
virtual	~FfMacSchedSapProvider ()

Private Member Functions
	PssSchedulerMemberSchedSapProvider ()

Private Attributes
PssFfMacScheduler *	m_scheduler

Detailed Description

Definition at line 112 of file pss-ff-mac-scheduler.cc.

Constructor & Destructor Documentation

ns3::PssSchedulerMemberSchedSapProvider::PssSchedulerMemberSchedSapProvider

(

PssFfMacScheduler *

scheduler

)

Definition at line 143 of file pss-ff-mac-scheduler.cc.

ns3::PssSchedulerMemberSchedSapProvider::PssSchedulerMemberSchedSapProvider ( )

private

Definition at line 138 of file pss-ff-mac-scheduler.cc.

Member Function Documentation

void ns3::PssSchedulerMemberSchedSapProvider::SchedDlCqiInfoReq ( const struct SchedDlCqiInfoReqParameters &  params )

virtual

Implements ns3::FfMacSchedSapProvider.

Definition at line 179 of file pss-ff-mac-scheduler.cc.

References ns3::PssFfMacScheduler::DoSchedDlCqiInfoReq(), and m_scheduler.

Here is the call graph for this function:

void ns3::PssSchedulerMemberSchedSapProvider::SchedDlMacBufferReq ( const struct SchedDlMacBufferReqParameters &  params )

virtual

Implements ns3::FfMacSchedSapProvider.

Definition at line 161 of file pss-ff-mac-scheduler.cc.

References ns3::PssFfMacScheduler::DoSchedDlMacBufferReq(), and m_scheduler.

Here is the call graph for this function:

void ns3::PssSchedulerMemberSchedSapProvider::SchedDlPagingBufferReq ( const struct SchedDlPagingBufferReqParameters &  params )

virtual

Implements ns3::FfMacSchedSapProvider.

Definition at line 155 of file pss-ff-mac-scheduler.cc.

References ns3::PssFfMacScheduler::DoSchedDlPagingBufferReq(), and m_scheduler.

Here is the call graph for this function:

void ns3::PssSchedulerMemberSchedSapProvider::SchedDlRachInfoReq ( const struct SchedDlRachInfoReqParameters &  params )

virtual

Implements ns3::FfMacSchedSapProvider.

Definition at line 173 of file pss-ff-mac-scheduler.cc.

References ns3::PssFfMacScheduler::DoSchedDlRachInfoReq(), and m_scheduler.

Here is the call graph for this function:

void ns3::PssSchedulerMemberSchedSapProvider::SchedDlRlcBufferReq ( const struct SchedDlRlcBufferReqParameters &  params )

virtual

Implements ns3::FfMacSchedSapProvider.

Definition at line 149 of file pss-ff-mac-scheduler.cc.

References ns3::PssFfMacScheduler::DoSchedDlRlcBufferReq(), and m_scheduler.

Here is the call graph for this function:

void ns3::PssSchedulerMemberSchedSapProvider::SchedDlTriggerReq ( const struct SchedDlTriggerReqParameters &  params )

virtual

Implements ns3::FfMacSchedSapProvider.

Definition at line 167 of file pss-ff-mac-scheduler.cc.

References ns3::PssFfMacScheduler::DoSchedDlTriggerReq(), and m_scheduler.

Here is the call graph for this function:

void ns3::PssSchedulerMemberSchedSapProvider::SchedUlCqiInfoReq ( const struct SchedUlCqiInfoReqParameters &  params )

virtual

Implements ns3::FfMacSchedSapProvider.

Definition at line 209 of file pss-ff-mac-scheduler.cc.

References ns3::PssFfMacScheduler::DoSchedUlCqiInfoReq(), and m_scheduler.

Here is the call graph for this function:

void ns3::PssSchedulerMemberSchedSapProvider::SchedUlMacCtrlInfoReq ( const struct SchedUlMacCtrlInfoReqParameters &  params )

virtual

Implements ns3::FfMacSchedSapProvider.

Definition at line 203 of file pss-ff-mac-scheduler.cc.

References ns3::PssFfMacScheduler::DoSchedUlMacCtrlInfoReq(), and m_scheduler.

Here is the call graph for this function:

void ns3::PssSchedulerMemberSchedSapProvider::SchedUlNoiseInterferenceReq ( const struct SchedUlNoiseInterferenceReqParameters &  params )

virtual

Implements ns3::FfMacSchedSapProvider.

Definition at line 191 of file pss-ff-mac-scheduler.cc.

References ns3::PssFfMacScheduler::DoSchedUlNoiseInterferenceReq(), and m_scheduler.

Here is the call graph for this function:

void ns3::PssSchedulerMemberSchedSapProvider::SchedUlSrInfoReq ( const struct SchedUlSrInfoReqParameters &  params )

virtual

Implements ns3::FfMacSchedSapProvider.

Definition at line 197 of file pss-ff-mac-scheduler.cc.

References ns3::PssFfMacScheduler::DoSchedUlSrInfoReq(), and m_scheduler.

Here is the call graph for this function:

void ns3::PssSchedulerMemberSchedSapProvider::SchedUlTriggerReq ( const struct SchedUlTriggerReqParameters &  params )

virtual

Implements ns3::FfMacSchedSapProvider.

Definition at line 185 of file pss-ff-mac-scheduler.cc.

References ns3::PssFfMacScheduler::DoSchedUlTriggerReq(), and m_scheduler.

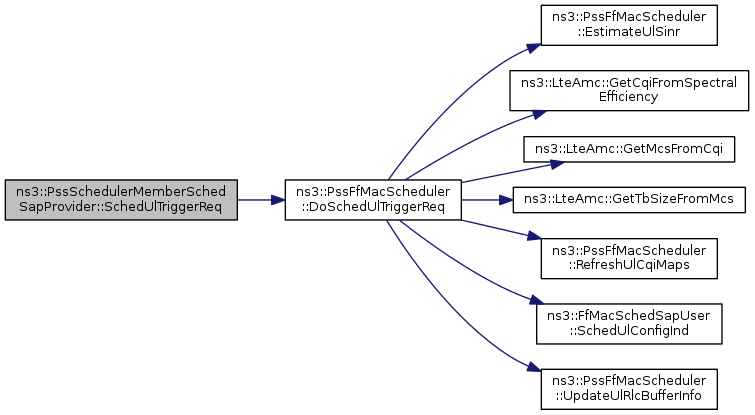

Here is the call graph for this function:

Member Data Documentation

PssFfMacScheduler* ns3::PssSchedulerMemberSchedSapProvider::m_scheduler

private

Definition at line 133 of file pss-ff-mac-scheduler.cc.

Referenced by SchedDlCqiInfoReq(), SchedDlMacBufferReq(), SchedDlPagingBufferReq(), SchedDlRachInfoReq(), SchedDlRlcBufferReq(), SchedDlTriggerReq(), SchedUlCqiInfoReq(), SchedUlMacCtrlInfoReq(), SchedUlNoiseInterferenceReq(), SchedUlSrInfoReq(), and SchedUlTriggerReq().

---

The documentation for this class was generated from the following file:

• src/lte/model/pss-ff-mac-scheduler.cc
