Radiotap header implementation. More...

#include <radiotap-header.h>

Inheritance diagram for ns3::RadiotapHeader:

Collaboration diagram for ns3::RadiotapHeader:

Public Types
enum	{ FRAME_FLAG_NONE = 0x00, FRAME_FLAG_CFP = 0x01, FRAME_FLAG_SHORT_PREAMBLE = 0x02, FRAME_FLAG_WEP = 0x04, FRAME_FLAG_FRAGMENTED = 0x08, FRAME_FLAG_FCS_INCLUDED = 0x10, FRAME_FLAG_DATA_PADDING = 0x20, FRAME_FLAG_BAD_FCS = 0x40, FRAME_FLAG_SHORT_GUARD = 0x80 }
enum	{ CHANNEL_FLAG_NONE = 0x0000, CHANNEL_FLAG_TURBO = 0x0010, CHANNEL_FLAG_CCK = 0x0020, CHANNEL_FLAG_OFDM = 0x0040, CHANNEL_FLAG_SPECTRUM_2GHZ = 0x0080, CHANNEL_FLAG_SPECTRUM_5GHZ = 0x0100, CHANNEL_FLAG_PASSIVE = 0x0200, CHANNEL_FLAG_DYNAMIC = 0x0400, CHANNEL_FLAG_GFSK = 0x0800 }

Public Member Functions
	RadiotapHeader ()
virtual uint32_t	Deserialize (Buffer::Iterator start)
uint8_t	GetAntennaNoisePower (void) const
	Get the RF noise power at the antenna as a decibel difference from an arbitrary, fixed reference.
uint8_t	GetAntennaSignalPower (void) const
	Get the RF signal power at the antenna as a decibel difference from an arbitrary, fixed reference.
uint16_t	GetChannelFlags (void) const
	Get the channel flags of the transmitted or received frame.
uint16_t	GetChannelFrequency (void) const
	Get the transmit/receive data rate in units of 500 kbps.
uint8_t	GetFrameFlags (void) const
	Get the frame flags of the transmitted or received frame.
virtual TypeId	GetInstanceTypeId (void) const
uint8_t	GetRate (void) const
	Get the transmit/receive channel frequency in units of megahertz.
virtual uint32_t	GetSerializedSize (void) const
uint64_t	GetTsft (void) const
	Get the Time Synchronization Function Timer (TSFT) value. Valid for received frames only.
virtual void	Print (std::ostream &os) const
virtual void	Serialize (Buffer::Iterator start) const
void	SetAntennaNoisePower (double noise)
	Set the RF noise power at the antenna as a decibel difference from an arbitrary, fixed reference.
void	SetAntennaSignalPower (double signal)
	Set the RF signal power at the antenna as a decibel difference from an arbitrary, fixed reference.
void	SetChannelFrequencyAndFlags (uint16_t frequency, uint16_t flags)
	Set the transmit/receive channel frequency and flags.
void	SetFrameFlags (uint8_t flags)
	Set the frame flags of the transmitted or received frame.
void	SetRate (uint8_t rate)
	Set the transmit/receive channel frequency in units of megahertz.
void	SetTsft (uint64_t tsft)
	Set the Time Synchronization Function Timer (TSFT) value. Valid for received frames only.
Public Member Functions inherited from ns3::Header
virtual	~Header ()

Static Public Member Functions
static TypeId	GetTypeId (void)

Private Types

enum {
RADIOTAP_TSFT = 0x00000001, RADIOTAP_FLAGS = 0x00000002, RADIOTAP_RATE = 0x00000004, RADIOTAP_CHANNEL = 0x00000008,
RADIOTAP_FHSS = 0x00000010, RADIOTAP_DBM_ANTSIGNAL = 0x00000020, RADIOTAP_DBM_ANTNOISE = 0x00000040, RADIOTAP_LOCK_QUALITY = 0x00000080,
RADIOTAP_TX_ATTENUATION = 0x00000100, RADIOTAP_DB_TX_ATTENUATION = 0x00000200, RADIOTAP_DBM_TX_POWER = 0x00000200, RADIOTAP_ANTENNA = 0x00000400,
RADIOTAP_DB_ANTSIGNAL = 0x00000800, RADIOTAP_DB_ANTNOISE = 0x00001000, RADIOTAP_EXT = 0x10000000
}

Private Member Functions
void	CheckAddChannelField ()

Private Attributes
int8_t	m_antennaNoise
int8_t	m_antennaSignal
uint16_t	m_channelFlags
uint16_t	m_channelFreq
uint8_t	m_flags
uint16_t	m_length
uint32_t	m_present
uint8_t	m_rate
uint64_t	m_tsft

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
virtual void	NotifyConstructionCompleted (void)

Detailed Description

Radiotap header implementation.

Radiotap is a de facto standard for 802.11 frame injection and reception. The radiotap header format is a mechanism to supply additional information about frames, from the driver to userspace applications such as libpcap, and from a userspace application to the driver for transmission.

Warning: the radiotap header specification says that the fields included in the header should be aligned to their natural ize (e.g., 16-bit fields aligned to 16-bit boundaries, 32-bit fields aligned to 32-bit boundaries, and so on. This implementation does not enforce this. However, the radiotap specification enforces an order in which fields have to appear (if they appear), and this ordering is such that, provided you don't leave gaps, all fields will end up aligned without the need of inserting padding space. By the term "gap" I mean not using a field which would appear between two used fields. Moral: don't leave gaps, or if you do be careful about how you do it.

Doxygen introspection did not find any typical Config paths.
No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 48 of file radiotap-header.h.

Member Enumeration Documentation

anonymous enum

Enumerator:

FRAME_FLAG_NONE	No flags set
FRAME_FLAG_CFP	Frame sent/received during CFP
FRAME_FLAG_SHORT_PREAMBLE	Frame sent/received with short preamble
FRAME_FLAG_WEP	Frame sent/received with WEP encryption
FRAME_FLAG_FRAGMENTED	Frame sent/received with fragmentation
FRAME_FLAG_FCS_INCLUDED	Frame includes FCS
FRAME_FLAG_DATA_PADDING	Frame has padding between 802.11 header and payload (to 32-bit boundary)
FRAME_FLAG_BAD_FCS	Frame failed FCS check
FRAME_FLAG_SHORT_GUARD	Frame used short guard interval (HT)

Definition at line 120 of file radiotap-header.h.

anonymous enum

Enumerator:

CHANNEL_FLAG_NONE	No flags set
CHANNEL_FLAG_TURBO	Turbo Channel
CHANNEL_FLAG_CCK	CCK channel
CHANNEL_FLAG_OFDM	OFDM channel
CHANNEL_FLAG_SPECTRUM_2GHZ	2 GHz spectrum channel
CHANNEL_FLAG_SPECTRUM_5GHZ	5 GHz spectrum channel
CHANNEL_FLAG_PASSIVE	Only passive scan allowed
CHANNEL_FLAG_DYNAMIC	Dynamic CCK-OFDM channel
CHANNEL_FLAG_GFSK	GFSK channel (FHSS PHY)

Definition at line 157 of file radiotap-header.h.

anonymous enum

private

Enumerator:

RADIOTAP_TSFT
RADIOTAP_FLAGS
RADIOTAP_RATE
RADIOTAP_CHANNEL
RADIOTAP_FHSS
RADIOTAP_DBM_ANTSIGNAL
RADIOTAP_DBM_ANTNOISE
RADIOTAP_LOCK_QUALITY
RADIOTAP_TX_ATTENUATION
RADIOTAP_DB_TX_ATTENUATION
RADIOTAP_DBM_TX_POWER
RADIOTAP_ANTENNA
RADIOTAP_DB_ANTSIGNAL
RADIOTAP_DB_ANTNOISE
RADIOTAP_EXT

Definition at line 227 of file radiotap-header.h.

Constructor & Destructor Documentation

ns3::RadiotapHeader::RadiotapHeader ( )

Definition at line 32 of file radiotap-header.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::RadiotapHeader::CheckAddChannelField ( )

private

uint32_t ns3::RadiotapHeader::Deserialize ( Buffer::Iterator start )

virtual

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Parameters

start An iterator which points to where the header should written.

Returns: The number of bytes read.

Implements ns3::Header.

Definition at line 132 of file radiotap-header.cc.

References m_antennaNoise, m_antennaSignal, m_channelFlags, m_channelFreq, m_flags, m_length, m_present, m_rate, m_tsft, NS_ASSERT_MSG, NS_LOG_FUNCTION, RADIOTAP_CHANNEL, RADIOTAP_DBM_ANTNOISE, RADIOTAP_DBM_ANTSIGNAL, RADIOTAP_FHSS, RADIOTAP_FLAGS, RADIOTAP_RATE, RADIOTAP_TSFT, ns3::Buffer::Iterator::ReadU16(), ns3::Buffer::Iterator::ReadU32(), ns3::Buffer::Iterator::ReadU64(), and ns3::Buffer::Iterator::ReadU8().

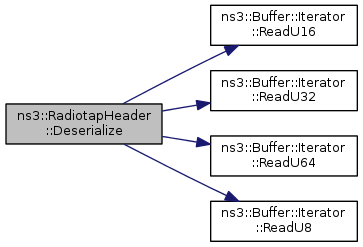

Here is the call graph for this function:

uint8_t ns3::RadiotapHeader::GetAntennaNoisePower ( void ) const

Get the RF noise power at the antenna as a decibel difference from an arbitrary, fixed reference.

Returns: The RF noise power at the antenna as a decibel difference from an arbitrary, fixed reference.

Definition at line 385 of file radiotap-header.cc.

References m_antennaNoise, and NS_LOG_FUNCTION.

uint8_t ns3::RadiotapHeader::GetAntennaSignalPower ( void ) const

Get the RF signal power at the antenna as a decibel difference from an arbitrary, fixed reference.

Returns: The RF signal power at the antenna as a decibel difference from an arbitrary, fixed reference.

Definition at line 352 of file radiotap-header.cc.

References m_antennaSignal, and NS_LOG_FUNCTION.

uint16_t ns3::RadiotapHeader::GetChannelFlags ( void ) const

Get the channel flags of the transmitted or received frame.

Returns: The frame flags.

See Also: ChannelFlags.

Definition at line 319 of file radiotap-header.cc.

References m_channelFlags, and NS_LOG_FUNCTION.

uint16_t ns3::RadiotapHeader::GetChannelFrequency ( void ) const

Get the transmit/receive data rate in units of 500 kbps.

Returns: The transmit/receive data rate in units of 500 kbps.

Definition at line 312 of file radiotap-header.cc.

References m_channelFreq, and NS_LOG_FUNCTION.

uint8_t ns3::RadiotapHeader::GetFrameFlags ( void ) const

Get the frame flags of the transmitted or received frame.

Returns: The frame flags.

See Also: FrameFlags.

Definition at line 267 of file radiotap-header.cc.

References m_flags, and NS_LOG_FUNCTION.

TypeId ns3::RadiotapHeader::GetInstanceTypeId ( void ) const

virtual

Returns: the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Implements ns3::ObjectBase.

Definition at line 56 of file radiotap-header.cc.

References GetTypeId().

Here is the call graph for this function:

uint8_t ns3::RadiotapHeader::GetRate ( void ) const

Get the transmit/receive channel frequency in units of megahertz.

Returns: The transmit/receive channel frequency in units of megahertz.

Definition at line 289 of file radiotap-header.cc.

References m_rate, and NS_LOG_FUNCTION.

uint32_t ns3::RadiotapHeader::GetSerializedSize ( void ) const

virtual

This method is used by Packet::AddHeader to store the header into the byte buffer of a packet. This method returns the number of bytes which are needed to store the header data during a Serialize.

Returns: The expected size of the header.

Implements ns3::Header.

Definition at line 62 of file radiotap-header.cc.

References m_length, and NS_LOG_FUNCTION.

uint64_t ns3::RadiotapHeader::GetTsft ( void ) const

Get the Time Synchronization Function Timer (TSFT) value. Valid for received frames only.

Returns: The value in microseconds of the MAC's 64-bit 802.11 Time Synchronization Function timer when the first bit of the MPDU arrived at the MAC.

Definition at line 245 of file radiotap-header.cc.

References m_tsft, and NS_LOG_FUNCTION.

TypeId ns3::RadiotapHeader::GetTypeId ( void )

static

Reimplemented from ns3::Header.

Definition at line 46 of file radiotap-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::RadiotapHeader::Print ( std::ostream & os ) const

virtual

This method is used by Packet::Print to print the content of the header as ascii data to a C++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace.

eg: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Parameters

os	The output stream

Implements ns3::Header.

Definition at line 217 of file radiotap-header.cc.

References m_antennaNoise, m_antennaSignal, m_channelFlags, m_channelFreq, m_flags, m_rate, m_tsft, and NS_LOG_FUNCTION.

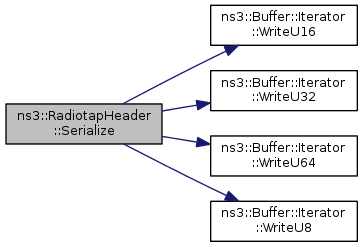

void ns3::RadiotapHeader::Serialize ( Buffer::Iterator start ) const

virtual

This method is used by Packet::AddHeader to store the header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Parameters

start An iterator which points to where the header should be written.

Implements ns3::Header.

Definition at line 69 of file radiotap-header.cc.

References m_antennaNoise, m_antennaSignal, m_channelFlags, m_channelFreq, m_flags, m_length, m_present, m_rate, m_tsft, NS_LOG_FUNCTION, RADIOTAP_CHANNEL, RADIOTAP_DBM_ANTNOISE, RADIOTAP_DBM_ANTSIGNAL, RADIOTAP_FLAGS, RADIOTAP_RATE, RADIOTAP_TSFT, ns3::Buffer::Iterator::WriteU16(), ns3::Buffer::Iterator::WriteU32(), ns3::Buffer::Iterator::WriteU64(), and ns3::Buffer::Iterator::WriteU8().
