#include <lte-rrc-header.h>

Inheritance diagram for ns3::RrcConnectionReconfigurationHeader:

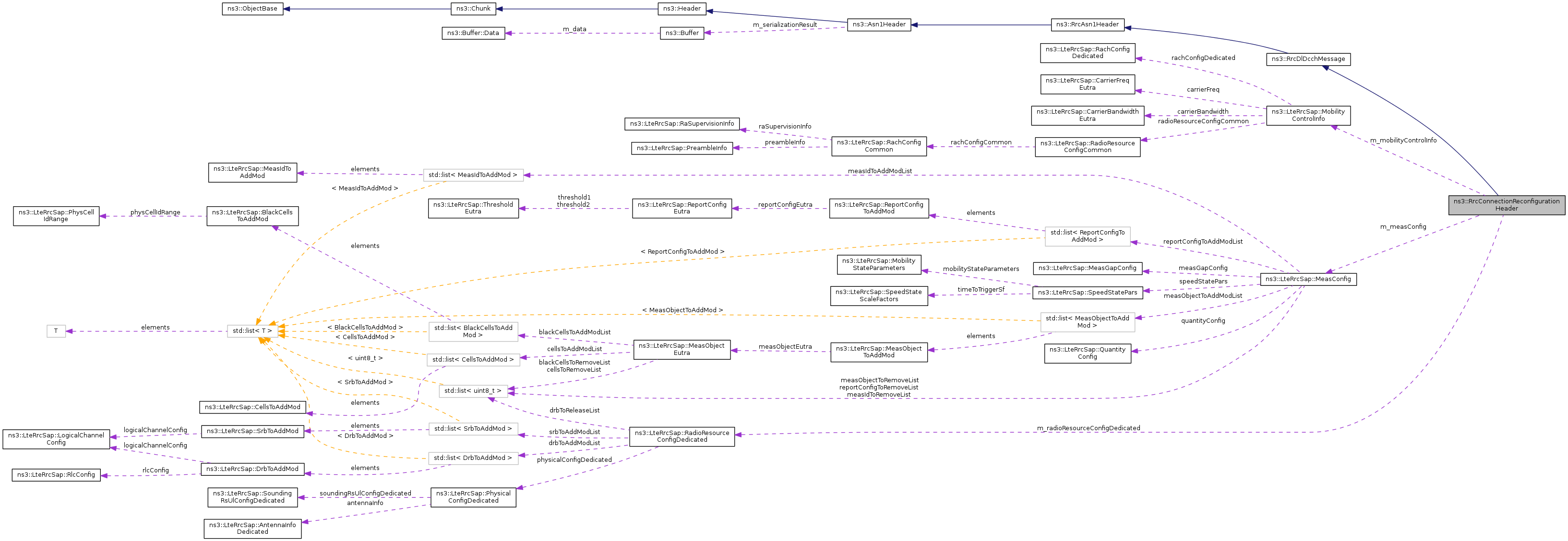

Collaboration diagram for ns3::RrcConnectionReconfigurationHeader:

Public Member Functions
	RrcConnectionReconfigurationHeader ()
	~RrcConnectionReconfigurationHeader ()
uint32_t	Deserialize (Buffer::Iterator bIterator)
std::list< LteRrcSap::DrbToAddMod >	GetDrbToAddModList () const
std::list< uint8_t >	GetDrbToReleaseList () const
bool	GetHaveMeasConfig ()
bool	GetHaveMobilityControlInfo ()
bool	GetHaveRadioResourceConfigDedicated ()
LteRrcSap::MeasConfig	GetMeasConfig ()
LteRrcSap::RrcConnectionReconfiguration	GetMessage () const
LteRrcSap::MobilityControlInfo	GetMobilityControlInfo ()
LteRrcSap::PhysicalConfigDedicated	GetPhysicalConfigDedicated () const
LteRrcSap::RadioResourceConfigDedicated	GetRadioResourceConfigDedicated ()
LteRrcSap::RadioResourceConfigDedicated	GetRadioResourceConfigDedicated () const
uint8_t	GetRrcTransactionIdentifier () const
std::list< LteRrcSap::SrbToAddMod >	GetSrbToAddModList () const
bool	HavePhysicalConfigDedicated () const
void	PreSerialize () const
void	Print (std::ostream &os) const
void	SetMessage (LteRrcSap::RrcConnectionReconfiguration msg)
Public Member Functions inherited from ns3::RrcDlDcchMessage
	RrcDlDcchMessage ()
	~RrcDlDcchMessage ()
Public Member Functions inherited from ns3::RrcAsn1Header
	RrcAsn1Header ()
int	GetMessageType ()
Public Member Functions inherited from ns3::Asn1Header
	Asn1Header ()
virtual	~Asn1Header ()
uint32_t	GetSerializedSize (void) const
void	Serialize (Buffer::Iterator bIterator) const
Public Member Functions inherited from ns3::Header
virtual	~Header ()

Private Attributes
bool	m_haveMeasConfig
bool	m_haveMobilityControlInfo
bool	m_haveRadioResourceConfigDedicated
LteRrcSap::MeasConfig	m_measConfig
LteRrcSap::MobilityControlInfo	m_mobilityControlInfo
LteRrcSap::RadioResourceConfigDedicated	m_radioResourceConfigDedicated
uint8_t	m_rrcTransactionIdentifier

Additional Inherited Members
Protected Member Functions inherited from ns3::RrcDlDcchMessage
Buffer::Iterator	DeserializeDlDcchMessage (Buffer::Iterator bIterator)
void	SerializeDlDcchMessage (int msgType) const
Static Protected Member Functions inherited from ns3::RrcAsn1Header
static TypeId	GetTypeId (void)
Protected Attributes inherited from ns3::RrcAsn1Header
int	m_messageType
	Stores RRC message type, according to 3GPP TS 36.331.

Detailed Description

This class manages the serialization/deserialization of RrcConnectionReconfiguration IE

Definition at line 377 of file lte-rrc-header.h.

Constructor & Destructor Documentation

ns3::RrcConnectionReconfigurationHeader::RrcConnectionReconfigurationHeader ( )

Definition at line 4376 of file lte-rrc-header.cc.

ns3::RrcConnectionReconfigurationHeader::~RrcConnectionReconfigurationHeader ( )

Definition at line 4380 of file lte-rrc-header.cc.

Member Function Documentation

uint32_t ns3::RrcConnectionReconfigurationHeader::Deserialize ( Buffer::Iterator start )

virtual

Parameters

start an iterator which points to where the header should written.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Reimplemented from ns3::RrcDlDcchMessage.

Definition at line 4527 of file lte-rrc-header.cc.

References ns3::LteRrcSap::MobilityControlInfo::carrierBandwidth, ns3::LteRrcSap::MobilityControlInfo::carrierFreq, ns3::Asn1Header::DeserializeBitstring(), ns3::Asn1Header::DeserializeChoice(), ns3::RrcDlDcchMessage::DeserializeDlDcchMessage(), ns3::Asn1Header::DeserializeEnum(), ns3::Asn1Header::DeserializeInteger(), ns3::RrcAsn1Header::DeserializeMeasConfig(), ns3::Asn1Header::DeserializeNull(), ns3::RrcAsn1Header::DeserializeRadioResourceConfigCommon(), ns3::RrcAsn1Header::DeserializeRadioResourceConfigDedicated(), ns3::Asn1Header::DeserializeSequence(), ns3::LteRrcSap::CarrierBandwidthEutra::dlBandwidth, ns3::LteRrcSap::CarrierFreqEutra::dlCarrierFreq, ns3::Asn1Header::GetSerializedSize(), ns3::LteRrcSap::MobilityControlInfo::haveCarrierBandwidth, ns3::LteRrcSap::MobilityControlInfo::haveCarrierFreq, ns3::LteRrcSap::MobilityControlInfo::haveRachConfigDedicated, m_haveMeasConfig, m_haveMobilityControlInfo, m_haveRadioResourceConfigDedicated, m_measConfig, m_mobilityControlInfo, m_radioResourceConfigDedicated, m_rrcTransactionIdentifier, MAX_EARFCN, ns3::LteRrcSap::MobilityControlInfo::newUeIdentity, ns3::LteRrcSap::MobilityControlInfo::rachConfigDedicated, ns3::LteRrcSap::MobilityControlInfo::radioResourceConfigCommon, ns3::LteRrcSap::RachConfigDedicated::raPrachMaskIndex, ns3::LteRrcSap::RachConfigDedicated::raPreambleIndex, ns3::LteRrcSap::MobilityControlInfo::targetPhysCellId, ns3::LteRrcSap::CarrierBandwidthEutra::ulBandwidth, and ns3::LteRrcSap::CarrierFreqEutra::ulCarrierFreq.

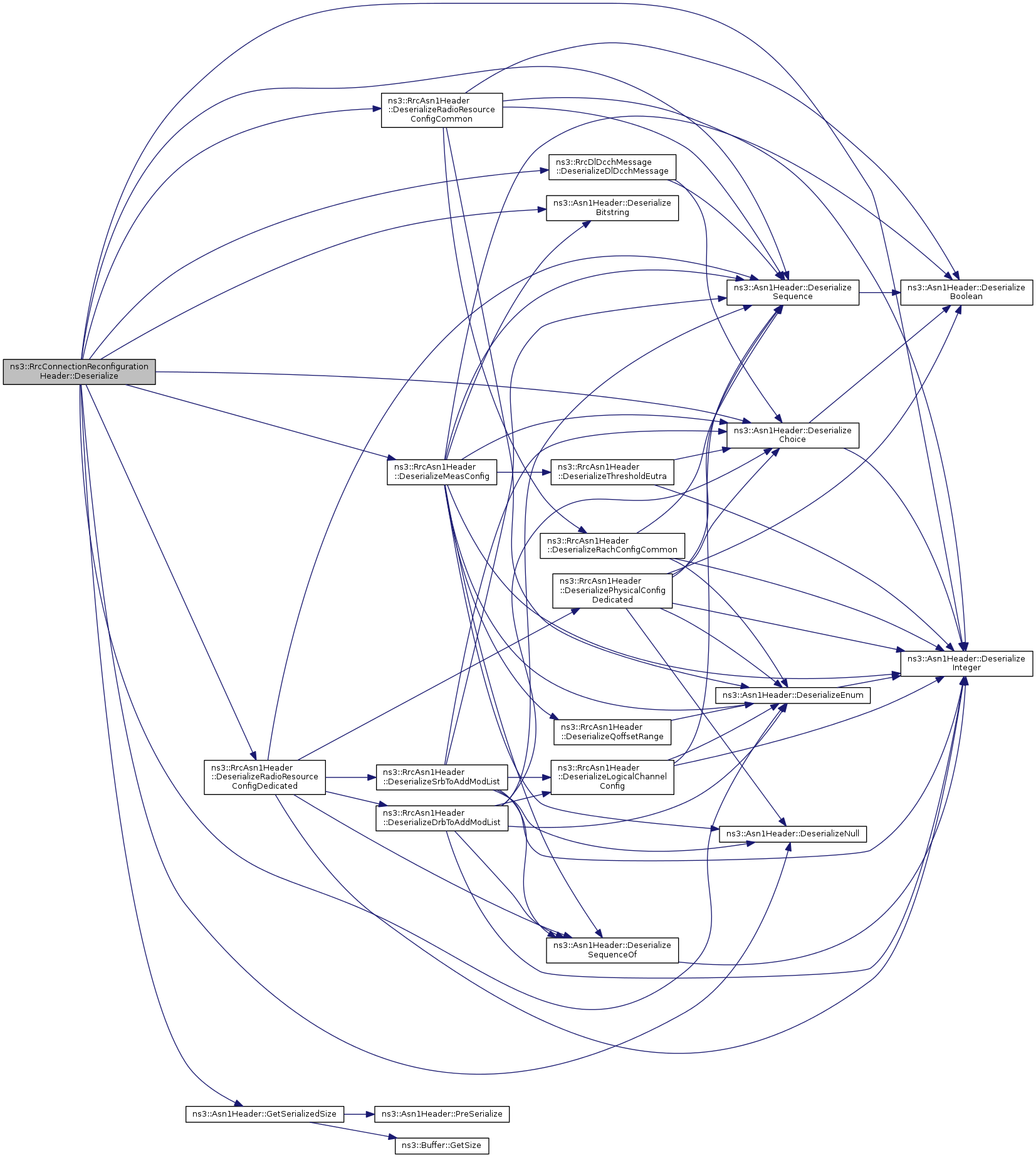

Here is the call graph for this function:

std::list< LteRrcSap::DrbToAddMod > ns3::RrcConnectionReconfigurationHeader::GetDrbToAddModList ( ) const

Gets m_radioResourceConfigDedicated.drbToAddModList

Returns: m_radioResourceConfigDedicated.drbToAddModList

Definition at line 4910 of file lte-rrc-header.cc.

References ns3::LteRrcSap::RadioResourceConfigDedicated::drbToAddModList, and m_radioResourceConfigDedicated.

std::list< uint8_t > ns3::RrcConnectionReconfigurationHeader::GetDrbToReleaseList ( ) const

Gets m_radioResourceConfigDedicated.drbToReleaseList

Returns: m_radioResourceConfigDedicated.drbToReleaseList

Definition at line 4916 of file lte-rrc-header.cc.

References ns3::LteRrcSap::RadioResourceConfigDedicated::drbToReleaseList, and m_radioResourceConfigDedicated.

bool ns3::RrcConnectionReconfigurationHeader::GetHaveMeasConfig ( )

Getter for m_haveMeasConfig

Returns: m_haveMeasConfig

Definition at line 4862 of file lte-rrc-header.cc.

References m_haveMeasConfig.

bool ns3::RrcConnectionReconfigurationHeader::GetHaveMobilityControlInfo ( )

Getter for m_haveMobilityControlInfo

Returns: m_haveMobilityControlInfo

Definition at line 4874 of file lte-rrc-header.cc.

References m_haveMobilityControlInfo.

bool ns3::RrcConnectionReconfigurationHeader::GetHaveRadioResourceConfigDedicated ( )

Getter for m_haveRadioResourceConfigDedicated

Returns: m_haveRadioResourceConfigDedicated

Definition at line 4886 of file lte-rrc-header.cc.

References m_haveRadioResourceConfigDedicated.

LteRrcSap::MeasConfig ns3::RrcConnectionReconfigurationHeader::GetMeasConfig ( )

Getter for m_measConfig

Returns: m_measConfig

Definition at line 4868 of file lte-rrc-header.cc.

References m_measConfig.

LteRrcSap::RrcConnectionReconfiguration ns3::RrcConnectionReconfigurationHeader::GetMessage ( ) const

Returns a RrcConnectionReconfiguration IE from the values in the class attributes

Returns: A RrcConnectionReconfiguration, as defined in LteRrcSap

Definition at line 4840 of file lte-rrc-header.cc.

References ns3::LteRrcSap::RrcConnectionReconfiguration::haveMeasConfig, ns3::LteRrcSap::RrcConnectionReconfiguration::haveMobilityControlInfo, ns3::LteRrcSap::RrcConnectionReconfiguration::haveRadioResourceConfigDedicated, m_haveMeasConfig, m_haveMobilityControlInfo, m_haveRadioResourceConfigDedicated, m_measConfig, m_mobilityControlInfo, m_radioResourceConfigDedicated, m_rrcTransactionIdentifier, ns3::LteRrcSap::RrcConnectionReconfiguration::measConfig, ns3::LteRrcSap::RrcConnectionReconfiguration::mobilityControlInfo, ns3::LteRrcSap::RrcConnectionReconfiguration::radioResourceConfigDedicated, and ns3::LteRrcSap::RrcConnectionReconfiguration::rrcTransactionIdentifier.

Referenced by ns3::LteEnbRrcProtocolReal::DoDecodeHandoverCommand(), and ns3::LteUeRrcProtocolReal::DoReceivePdcpSdu().

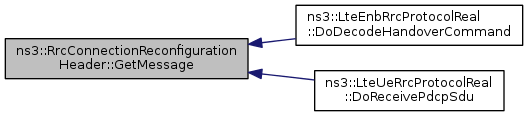

Here is the caller graph for this function:

LteRrcSap::MobilityControlInfo ns3::RrcConnectionReconfigurationHeader::GetMobilityControlInfo ( )

Getter for m_mobilityControlInfo

Returns: m_mobilityControlInfo

Definition at line 4880 of file lte-rrc-header.cc.

References m_mobilityControlInfo.

LteRrcSap::PhysicalConfigDedicated ns3::RrcConnectionReconfigurationHeader::GetPhysicalConfigDedicated ( ) const

Gets m_radioResourceConfigDedicated.physicalConfigDedicated

Returns: m_radioResourceConfigDedicated.physicalConfigDedicated

Definition at line 4922 of file lte-rrc-header.cc.

References m_radioResourceConfigDedicated, and ns3::LteRrcSap::RadioResourceConfigDedicated::physicalConfigDedicated.

LteRrcSap::RadioResourceConfigDedicated ns3::RrcConnectionReconfigurationHeader::GetRadioResourceConfigDedicated ( )

Getter for m_radioResourceConfigDedicated

Returns: m_radioResourceConfigDedicated

Definition at line 4892 of file lte-rrc-header.cc.

References m_radioResourceConfigDedicated.

LteRrcSap::RadioResourceConfigDedicated ns3::RrcConnectionReconfigurationHeader::GetRadioResourceConfigDedicated ( ) const

Getter for m_radioResourceConfigDedicated

Returns: m_radioResourceConfigDedicated

uint8_t ns3::RrcConnectionReconfigurationHeader::GetRrcTransactionIdentifier ( ) const

Getter for m_rrcTransactionIdentifier

Returns: m_rrcTransactionIdentifier

Definition at line 4856 of file lte-rrc-header.cc.

References m_rrcTransactionIdentifier.

std::list< LteRrcSap::SrbToAddMod > ns3::RrcConnectionReconfigurationHeader::GetSrbToAddModList ( ) const

Gets m_radioResourceConfigDedicated.srbToAddModList

Returns: m_radioResourceConfigDedicated.srbToAddModList

Definition at line 4904 of file lte-rrc-header.cc.

References m_radioResourceConfigDedicated, and ns3::LteRrcSap::RadioResourceConfigDedicated::srbToAddModList.

bool ns3::RrcConnectionReconfigurationHeader::HavePhysicalConfigDedicated ( ) const

Gets m_radioResourceConfigDedicated.havePhysicalConfigDedicated

Returns: m_radioResourceConfigDedicated.havePhysicalConfigDedicated

Definition at line 4898 of file lte-rrc-header.cc.

References ns3::LteRrcSap::RadioResourceConfigDedicated::havePhysicalConfigDedicated, and m_radioResourceConfigDedicated.

void ns3::RrcConnectionReconfigurationHeader::PreSerialize ( ) const

virtual

This function serializes class attributes to m_serializationResult local Buffer. As ASN1 encoding produces a bitstream that does not have a fixed length, this function is needed to store the result, so its length can be retrieved with Header::GetSerializedSize() function. This method is pure virtual in this class (needs to be implemented in child classes) as the meningful information elements are in the subclasses.

Reimplemented from ns3::RrcDlDcchMessage.

Definition at line 4385 of file lte-rrc-header.cc.

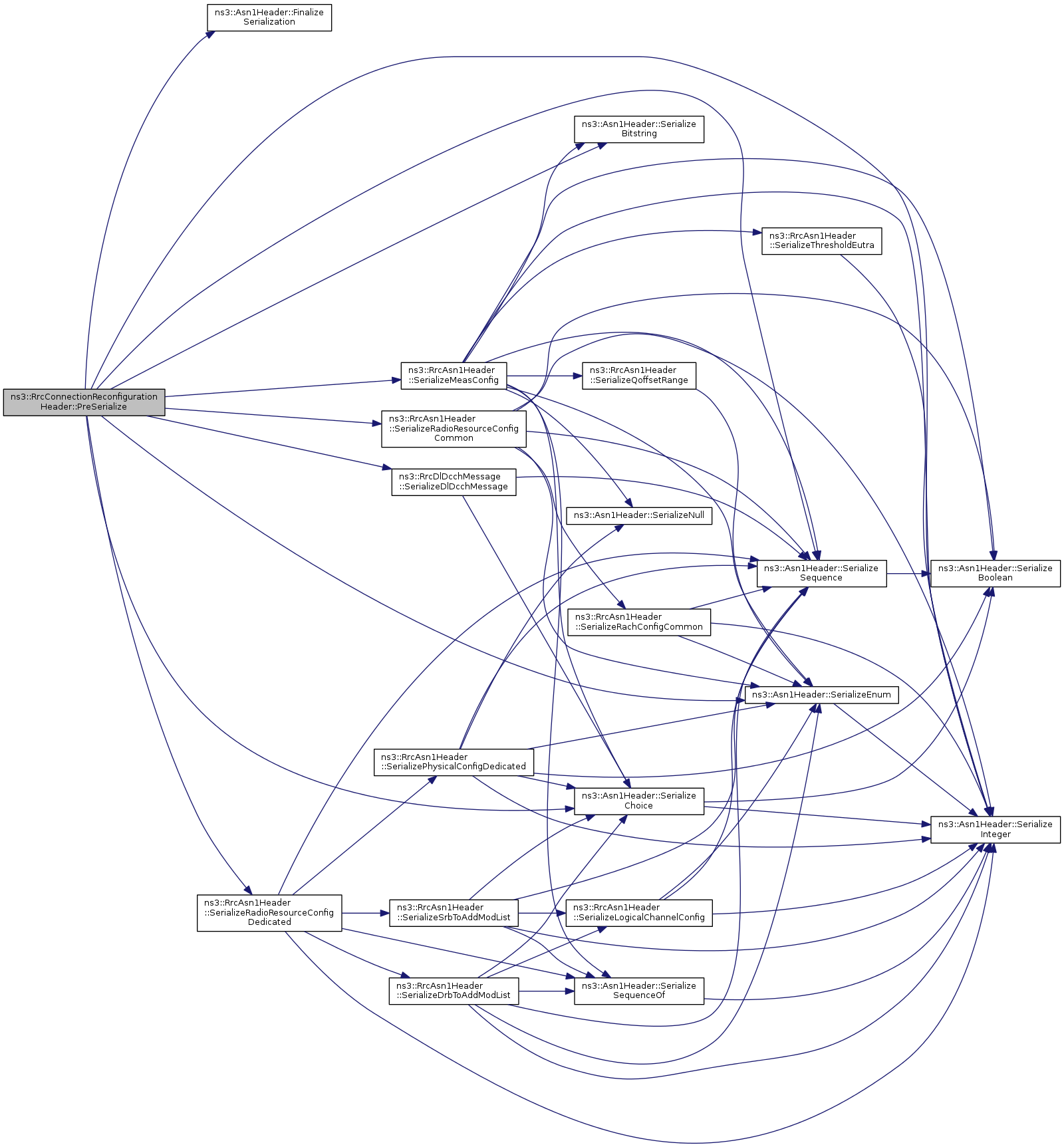

Here is the call graph for this function:

void ns3::RrcConnectionReconfigurationHeader::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a trailer as ascii data to a c++ output stream. Although the trailer is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Reimplemented from ns3::RrcDlDcchMessage.

Definition at line 4720 of file lte-rrc-header.cc.
