#include <lte-rrc-header.h>

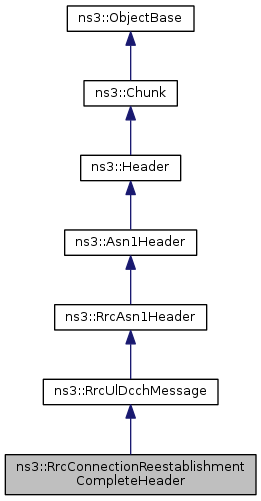

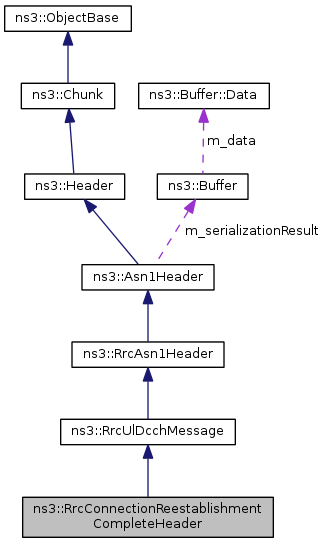

Inheritance diagram for ns3::RrcConnectionReestablishmentCompleteHeader: Collaboration diagram for ns3::RrcConnectionReestablishmentCompleteHeader:Public Member Functions | |
| RrcConnectionReestablishmentCompleteHeader () | |
| uint32_t | Deserialize (Buffer::Iterator bIterator) |
| LteRrcSap::RrcConnectionReestablishmentComplete | GetMessage () const |
| uint8_t | GetRrcTransactionIdentifier () const |
| void | PreSerialize () const |
| void | Print (std::ostream &os) const |
| void | SetMessage (LteRrcSap::RrcConnectionReestablishmentComplete msg) |
| Public Member Functions inherited from ns3::RrcUlDcchMessage | |
| Public Member Functions inherited from ns3::RrcAsn1Header | |
| RrcAsn1Header () | |
| int | GetMessageType () |
| Public Member Functions inherited from ns3::Asn1Header | |
| Asn1Header () | |
| virtual | ~Asn1Header () |
| uint32_t | GetSerializedSize (void) const |
| void | Serialize (Buffer::Iterator bIterator) const |
| Public Member Functions inherited from ns3::Header | |
| virtual | ~Header () |
Private Attributes | |
| uint8_t | m_rrcTransactionIdentifier |
Additional Inherited Members | |
| Protected Member Functions inherited from ns3::RrcUlDcchMessage | |
| Static Protected Member Functions inherited from ns3::RrcAsn1Header | |
| static TypeId | GetTypeId (void) |
| Protected Attributes inherited from ns3::RrcAsn1Header | |
| int | m_messageType |
| Stores RRC message type, according to 3GPP TS 36.331. | |
This class manages the serialization/deserialization of RrcConnectionReestablishmentComplete IE
Definition at line 612 of file lte-rrc-header.h.
| ns3::RrcConnectionReestablishmentCompleteHeader::RrcConnectionReestablishmentCompleteHeader | ( | ) |
Definition at line 5460 of file lte-rrc-header.cc.
|
virtual |
| start | an iterator which points to where the header should written. |
This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.
Reimplemented from ns3::RrcUlDcchMessage.
Definition at line 5491 of file lte-rrc-header.cc.
References ns3::Asn1Header::DeserializeChoice(), ns3::Asn1Header::DeserializeInteger(), ns3::Asn1Header::DeserializeSequence(), ns3::RrcUlDcchMessage::DeserializeUlDcchMessage(), ns3::Asn1Header::GetSerializedSize(), and m_rrcTransactionIdentifier.

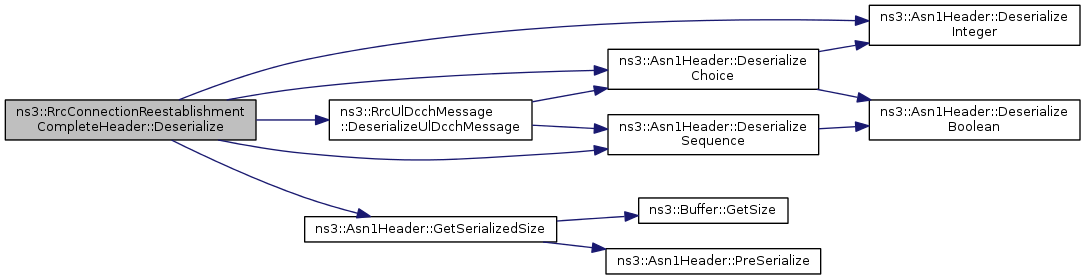

Here is the call graph for this function:| LteRrcSap::RrcConnectionReestablishmentComplete ns3::RrcConnectionReestablishmentCompleteHeader::GetMessage | ( | ) | const |
Returns a RrcConnectionReestablishmentComplete IE from the values in the class attributes
Definition at line 5543 of file lte-rrc-header.cc.
References m_rrcTransactionIdentifier, and ns3::LteRrcSap::RrcConnectionReestablishmentComplete::rrcTransactionIdentifier.
Referenced by ns3::LteEnbRrcProtocolReal::DoReceivePdcpSdu().
Here is the caller graph for this function:| uint8_t ns3::RrcConnectionReestablishmentCompleteHeader::GetRrcTransactionIdentifier | ( | ) | const |
Getter for m_rrcTransactionIdentifier attribute
Definition at line 5551 of file lte-rrc-header.cc.
References m_rrcTransactionIdentifier.
|
virtual |
This function serializes class attributes to m_serializationResult local Buffer. As ASN1 encoding produces a bitstream that does not have a fixed length, this function is needed to store the result, so its length can be retrieved with Header::GetSerializedSize() function. This method is pure virtual in this class (needs to be implemented in child classes) as the meningful information elements are in the subclasses.
Reimplemented from ns3::RrcUlDcchMessage.
Definition at line 5465 of file lte-rrc-header.cc.
References ns3::Asn1Header::FinalizeSerialization(), m_rrcTransactionIdentifier, ns3::Asn1Header::m_serializationResult, ns3::Asn1Header::SerializeChoice(), ns3::Asn1Header::SerializeInteger(), ns3::Asn1Header::SerializeSequence(), and ns3::RrcUlDcchMessage::SerializeUlDcchMessage().

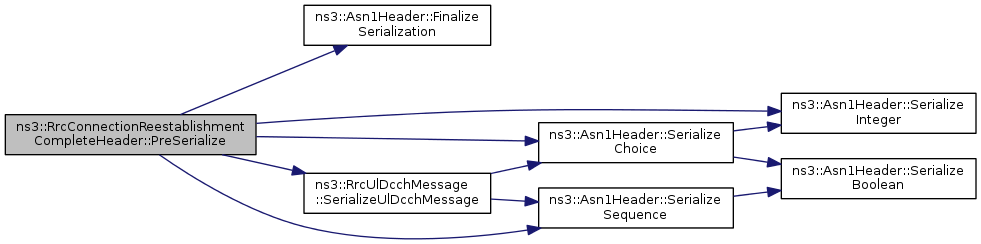

Here is the call graph for this function:
|
virtual |
| os | output stream This method is used by Packet::Print to print the content of a trailer as ascii data to a c++ output stream. Although the trailer is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5 |
Reimplemented from ns3::RrcUlDcchMessage.
Definition at line 5530 of file lte-rrc-header.cc.
References m_rrcTransactionIdentifier.
| void ns3::RrcConnectionReestablishmentCompleteHeader::SetMessage | ( | LteRrcSap::RrcConnectionReestablishmentComplete | msg | ) |
Receives a RrcConnectionReestablishmentComplete IE and stores the contents into the class attributes
| msg | The information element to parse |
Definition at line 5536 of file lte-rrc-header.cc.
References ns3::Asn1Header::m_isDataSerialized, m_rrcTransactionIdentifier, and ns3::LteRrcSap::RrcConnectionReestablishmentComplete::rrcTransactionIdentifier.
Referenced by ns3::RrcConnectionReestablishmentCompleteTestCase::DoRun(), and ns3::LteUeRrcProtocolReal::DoSendRrcConnectionReestablishmentComplete().

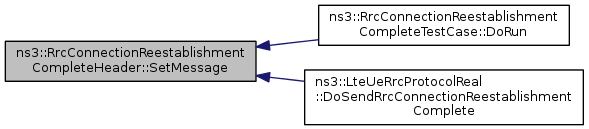

Here is the caller graph for this function:
|
private |
Definition at line 641 of file lte-rrc-header.h.
Referenced by Deserialize(), GetMessage(), GetRrcTransactionIdentifier(), PreSerialize(), Print(), and SetMessage().
