#include <lte-rrc-header.h>

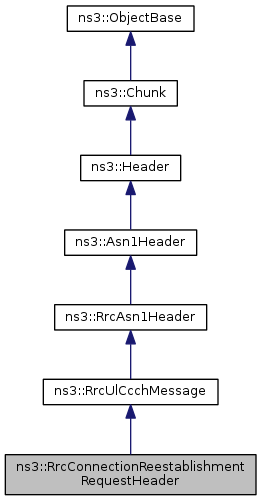

Inheritance diagram for ns3::RrcConnectionReestablishmentRequestHeader:

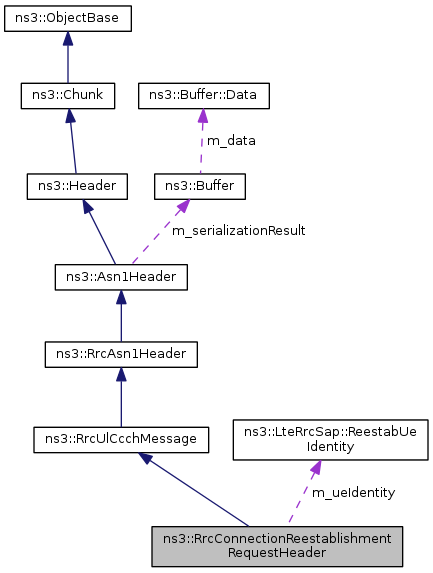

Collaboration diagram for ns3::RrcConnectionReestablishmentRequestHeader:

Public Member Functions
	RrcConnectionReestablishmentRequestHeader ()
	~RrcConnectionReestablishmentRequestHeader ()
uint32_t	Deserialize (Buffer::Iterator bIterator)
LteRrcSap::RrcConnectionReestablishmentRequest	GetMessage () const
LteRrcSap::ReestablishmentCause	GetReestablishmentCause () const
LteRrcSap::ReestabUeIdentity	GetUeIdentity () const
void	PreSerialize () const
void	Print (std::ostream &os) const
void	SetMessage (LteRrcSap::RrcConnectionReestablishmentRequest msg)
Public Member Functions inherited from ns3::RrcUlCcchMessage
	RrcUlCcchMessage ()
	~RrcUlCcchMessage ()
Public Member Functions inherited from ns3::RrcAsn1Header
	RrcAsn1Header ()
int	GetMessageType ()
Public Member Functions inherited from ns3::Asn1Header
	Asn1Header ()
virtual	~Asn1Header ()
uint32_t	GetSerializedSize (void) const
void	Serialize (Buffer::Iterator bIterator) const
Public Member Functions inherited from ns3::Header
virtual	~Header ()

Private Attributes
LteRrcSap::ReestablishmentCause	m_reestablishmentCause
LteRrcSap::ReestabUeIdentity	m_ueIdentity

Additional Inherited Members
Protected Member Functions inherited from ns3::RrcUlCcchMessage
Buffer::Iterator	DeserializeUlCcchMessage (Buffer::Iterator bIterator)
void	SerializeUlCcchMessage (int msgType) const
Static Protected Member Functions inherited from ns3::RrcAsn1Header
static TypeId	GetTypeId (void)
Protected Attributes inherited from ns3::RrcAsn1Header
int	m_messageType
	Stores RRC message type, according to 3GPP TS 36.331.

Detailed Description

This class manages the serialization/deserialization of RRCConnectionReestablishmentRequest IE

Definition at line 526 of file lte-rrc-header.h.

Constructor & Destructor Documentation

ns3::RrcConnectionReestablishmentRequestHeader::RrcConnectionReestablishmentRequestHeader ( )

Definition at line 5162 of file lte-rrc-header.cc.

ns3::RrcConnectionReestablishmentRequestHeader::~RrcConnectionReestablishmentRequestHeader ( )

Definition at line 5166 of file lte-rrc-header.cc.

Member Function Documentation

uint32_t ns3::RrcConnectionReestablishmentRequestHeader::Deserialize ( Buffer::Iterator start )

virtual

Parameters

start an iterator which points to where the header should written.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Reimplemented from ns3::RrcUlCcchMessage.

Definition at line 5222 of file lte-rrc-header.cc.

References ns3::LteRrcSap::ReestabUeIdentity::cRnti, ns3::Asn1Header::DeserializeBitstring(), ns3::Asn1Header::DeserializeChoice(), ns3::Asn1Header::DeserializeEnum(), ns3::Asn1Header::DeserializeInteger(), ns3::Asn1Header::DeserializeSequence(), ns3::RrcUlCcchMessage::DeserializeUlCcchMessage(), ns3::Asn1Header::GetSerializedSize(), ns3::LteRrcSap::HANDOVER_FAILURE, m_reestablishmentCause, m_ueIdentity, ns3::LteRrcSap::OTHER_FAILURE, ns3::LteRrcSap::ReestabUeIdentity::physCellId, and ns3::LteRrcSap::RECONFIGURATION_FAILURE.

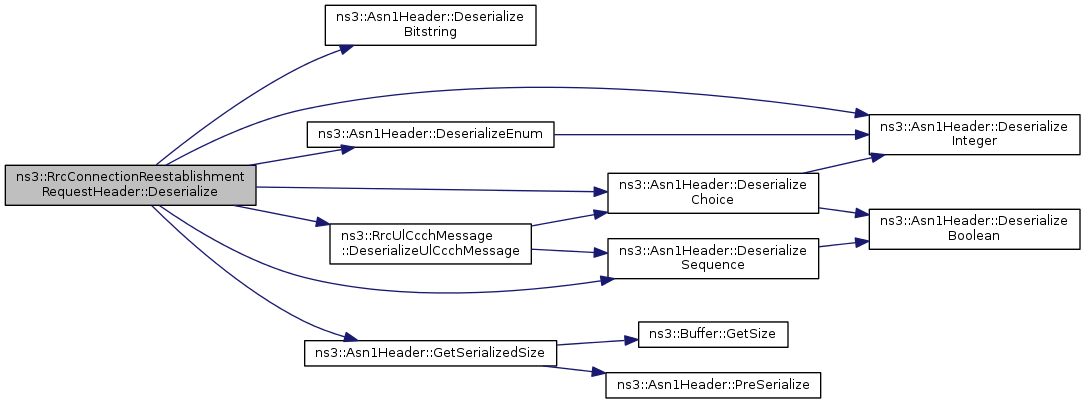

Here is the call graph for this function:

LteRrcSap::RrcConnectionReestablishmentRequest ns3::RrcConnectionReestablishmentRequestHeader::GetMessage ( ) const

Returns a RrcConnectionReestablishmentRequest IE from the values in the class attributes

Returns: A RrcConnectionReestablishmentRequest, as defined in LteRrcSap

Definition at line 5305 of file lte-rrc-header.cc.

References m_reestablishmentCause, m_ueIdentity, ns3::LteRrcSap::RrcConnectionReestablishmentRequest::reestablishmentCause, and ns3::LteRrcSap::RrcConnectionReestablishmentRequest::ueIdentity.

Referenced by ns3::LteEnbRrcProtocolReal::DoReceivePdcpPdu().

Here is the caller graph for this function:

LteRrcSap::ReestablishmentCause ns3::RrcConnectionReestablishmentRequestHeader::GetReestablishmentCause ( ) const

Getter for m_reestablishmentCause

Returns: m_reestablishmentCause

Definition at line 5321 of file lte-rrc-header.cc.

References m_reestablishmentCause.

LteRrcSap::ReestabUeIdentity ns3::RrcConnectionReestablishmentRequestHeader::GetUeIdentity ( ) const

Getter for m_ueIdentity

Returns: m_ueIdentity

Definition at line 5315 of file lte-rrc-header.cc.

References m_ueIdentity.

void ns3::RrcConnectionReestablishmentRequestHeader::PreSerialize ( ) const

virtual

This function serializes class attributes to m_serializationResult local Buffer. As ASN1 encoding produces a bitstream that does not have a fixed length, this function is needed to store the result, so its length can be retrieved with Header::GetSerializedSize() function. This method is pure virtual in this class (needs to be implemented in child classes) as the meningful information elements are in the subclasses.

Reimplemented from ns3::RrcUlCcchMessage.

Definition at line 5171 of file lte-rrc-header.cc.

References ns3::LteRrcSap::ReestabUeIdentity::cRnti, ns3::Asn1Header::FinalizeSerialization(), ns3::LteRrcSap::HANDOVER_FAILURE, m_reestablishmentCause, ns3::Asn1Header::m_serializationResult, m_ueIdentity, ns3::LteRrcSap::OTHER_FAILURE, ns3::LteRrcSap::ReestabUeIdentity::physCellId, ns3::LteRrcSap::RECONFIGURATION_FAILURE, ns3::Asn1Header::SerializeBitstring(), ns3::Asn1Header::SerializeChoice(), ns3::Asn1Header::SerializeEnum(), ns3::Asn1Header::SerializeInteger(), ns3::Asn1Header::SerializeSequence(), and ns3::RrcUlCcchMessage::SerializeUlCcchMessage().

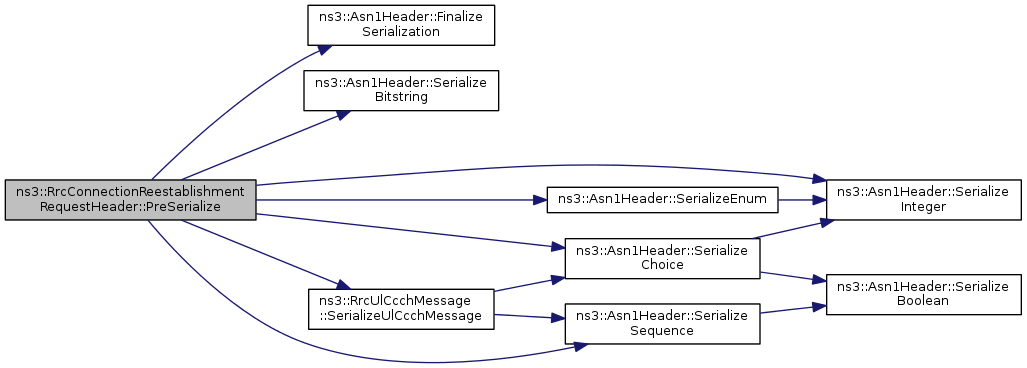

Here is the call graph for this function:

void ns3::RrcConnectionReestablishmentRequestHeader::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a trailer as ascii data to a c++ output stream. Although the trailer is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Reimplemented from ns3::RrcUlCcchMessage.

Definition at line 5289 of file lte-rrc-header.cc.

References ns3::LteRrcSap::ReestabUeIdentity::cRnti, m_reestablishmentCause, m_ueIdentity, and ns3::LteRrcSap::ReestabUeIdentity::physCellId.

void ns3::RrcConnectionReestablishmentRequestHeader::SetMessage ( LteRrcSap::RrcConnectionReestablishmentRequest msg )

Receives a RrcConnectionReestablishmentRequest IE and stores the contents into the class attributes

Parameters

msg	The information element to parse

Definition at line 5297 of file lte-rrc-header.cc.

References ns3::Asn1Header::m_isDataSerialized, m_reestablishmentCause, m_ueIdentity, ns3::LteRrcSap::RrcConnectionReestablishmentRequest::reestablishmentCause, and ns3::LteRrcSap::RrcConnectionReestablishmentRequest::ueIdentity.

Referenced by ns3::RrcConnectionReestablishmentRequestTestCase::DoRun(), and ns3::LteUeRrcProtocolReal::DoSendRrcConnectionReestablishmentRequest().

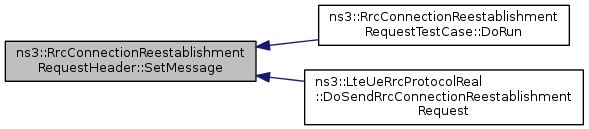

Here is the caller graph for this function:

Member Data Documentation

LteRrcSap::ReestablishmentCause ns3::RrcConnectionReestablishmentRequestHeader::m_reestablishmentCause

private

Definition at line 563 of file lte-rrc-header.h.

Referenced by Deserialize(), GetMessage(), GetReestablishmentCause(), PreSerialize(), Print(), and SetMessage().

LteRrcSap::ReestabUeIdentity ns3::RrcConnectionReestablishmentRequestHeader::m_ueIdentity

private

Definition at line 562 of file lte-rrc-header.h.

Referenced by Deserialize(), GetMessage(), GetUeIdentity(), PreSerialize(), Print(), and SetMessage().

The documentation for this class was generated from the following files:

src/lte/model/lte-rrc-header.h
src/lte/model/lte-rrc-header.cc
