ns3::RrcConnectionReleaseHeader Class Reference

#include <lte-rrc-header.h>

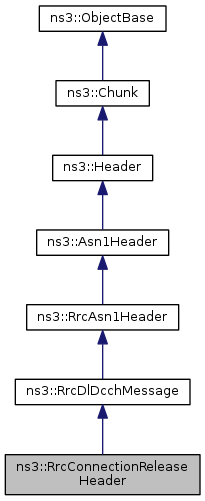

Inheritance diagram for ns3::RrcConnectionReleaseHeader:

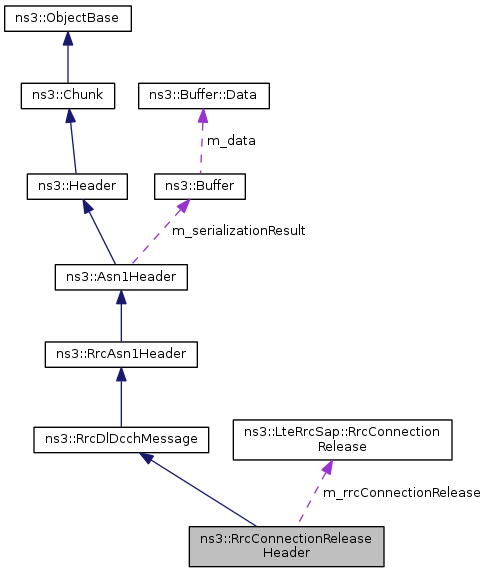

Collaboration diagram for ns3::RrcConnectionReleaseHeader:

Public Member Functions
	RrcConnectionReleaseHeader ()
	~RrcConnectionReleaseHeader ()
uint32_t	Deserialize (Buffer::Iterator bIterator)
LteRrcSap::RrcConnectionRelease	GetMessage () const
void	PreSerialize () const
void	Print (std::ostream &os) const
void	SetMessage (LteRrcSap::RrcConnectionRelease msg)
Public Member Functions inherited from ns3::RrcDlDcchMessage
	RrcDlDcchMessage ()
	~RrcDlDcchMessage ()
Public Member Functions inherited from ns3::RrcAsn1Header
	RrcAsn1Header ()
int	GetMessageType ()
Public Member Functions inherited from ns3::Asn1Header
	Asn1Header ()
virtual	~Asn1Header ()
uint32_t	GetSerializedSize (void) const
void	Serialize (Buffer::Iterator bIterator) const
Public Member Functions inherited from ns3::Header
virtual	~Header ()

Private Attributes
LteRrcSap::RrcConnectionRelease	m_rrcConnectionRelease

Additional Inherited Members
Protected Member Functions inherited from ns3::RrcDlDcchMessage
Buffer::Iterator	DeserializeDlDcchMessage (Buffer::Iterator bIterator)
void	SerializeDlDcchMessage (int msgType) const
Static Protected Member Functions inherited from ns3::RrcAsn1Header
static TypeId	GetTypeId (void)
Protected Attributes inherited from ns3::RrcAsn1Header
int	m_messageType
	Stores RRC message type, according to 3GPP TS 36.331.

Detailed Description

This class manages the serialization/deserialization of RrcConnectionRelease IE

Definition at line 677 of file lte-rrc-header.h.

Constructor & Destructor Documentation

ns3::RrcConnectionReleaseHeader::RrcConnectionReleaseHeader

(

)

Definition at line 5643 of file lte-rrc-header.cc.

ns3::RrcConnectionReleaseHeader::~RrcConnectionReleaseHeader

(

)

Definition at line 5647 of file lte-rrc-header.cc.

Member Function Documentation

uint32_t ns3::RrcConnectionReleaseHeader::Deserialize ( Buffer::Iterator  start )

virtual

Parameters

start

an iterator which points to where the header should written.

Returns

the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Reimplemented from ns3::RrcDlDcchMessage.

Definition at line 5684 of file lte-rrc-header.cc.

References ns3::Asn1Header::DeserializeChoice(), ns3::RrcDlDcchMessage::DeserializeDlDcchMessage(), ns3::Asn1Header::DeserializeEnum(), ns3::Asn1Header::DeserializeInteger(), ns3::Asn1Header::DeserializeNull(), ns3::Asn1Header::DeserializeSequence(), ns3::Asn1Header::GetSerializedSize(), m_rrcConnectionRelease, and ns3::LteRrcSap::RrcConnectionRelease::rrcTransactionIdentifier.

Here is the call graph for this function:

LteRrcSap::RrcConnectionRelease ns3::RrcConnectionReleaseHeader::GetMessage

(

)

const

Returns a RrcConnectionRelease IE from the values in the class attributes

Returns

A RrcConnectionRelease, as defined in LteRrcSap

Definition at line 5761 of file lte-rrc-header.cc.

References m_rrcConnectionRelease.

Referenced by ns3::LteUeRrcProtocolReal::DoReceivePdcpSdu().

Here is the caller graph for this function:

void ns3::RrcConnectionReleaseHeader::PreSerialize ( ) const

virtual

This function serializes class attributes to m_serializationResult local Buffer. As ASN1 encoding produces a bitstream that does not have a fixed length, this function is needed to store the result, so its length can be retrieved with Header::GetSerializedSize() function. This method is pure virtual in this class (needs to be implemented in child classes) as the meningful information elements are in the subclasses.

Reimplemented from ns3::RrcDlDcchMessage.

Definition at line 5652 of file lte-rrc-header.cc.

References ns3::Asn1Header::FinalizeSerialization(), m_rrcConnectionRelease, ns3::Asn1Header::m_serializationResult, ns3::LteRrcSap::RrcConnectionRelease::rrcTransactionIdentifier, ns3::Asn1Header::SerializeChoice(), ns3::RrcDlDcchMessage::SerializeDlDcchMessage(), ns3::Asn1Header::SerializeEnum(), ns3::Asn1Header::SerializeInteger(), and ns3::Asn1Header::SerializeSequence().

Here is the call graph for this function:

void ns3::RrcConnectionReleaseHeader::Print ( std::ostream &  os ) const

virtual

Parameters

os

output stream This method is used by Packet::Print to print the content of a trailer as ascii data to a c++ output stream. Although the trailer is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Reimplemented from ns3::RrcDlDcchMessage.

Definition at line 5749 of file lte-rrc-header.cc.

void ns3::RrcConnectionReleaseHeader::SetMessage

(

LteRrcSap::RrcConnectionRelease

msg

)

Receives a RrcConnectionRelease IE and stores the contents into the class attributes

Parameters

msg	The information element to parse

Definition at line 5754 of file lte-rrc-header.cc.

References ns3::Asn1Header::m_isDataSerialized, and m_rrcConnectionRelease.

Referenced by ns3::LteEnbRrcProtocolReal::DoSendRrcConnectionRelease().

Here is the caller graph for this function:

Member Data Documentation

LteRrcSap::RrcConnectionRelease ns3::RrcConnectionReleaseHeader::m_rrcConnectionRelease

private

Definition at line 701 of file lte-rrc-header.h.

Referenced by Deserialize(), GetMessage(), PreSerialize(), and SetMessage().

---

The documentation for this class was generated from the following files:

• src/lte/model/lte-rrc-header.h
• src/lte/model/lte-rrc-header.cc
