#include <lte-rrc-header.h>

Inheritance diagram for ns3::RrcConnectionSetupHeader:

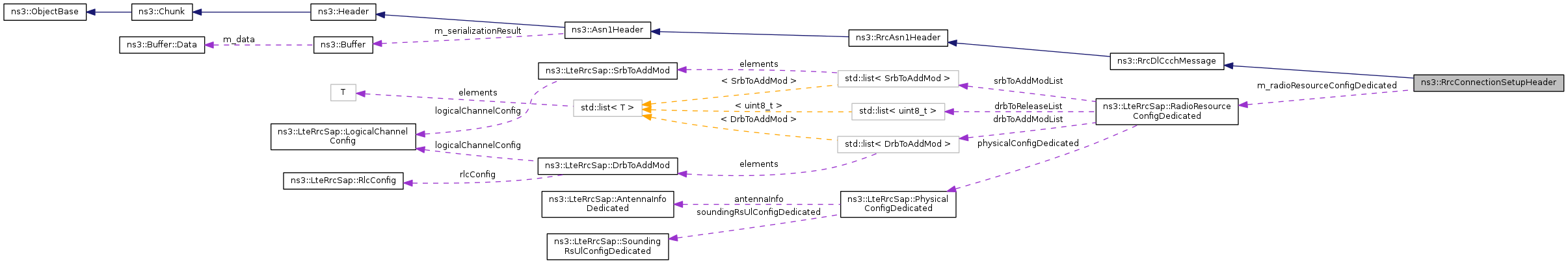

Collaboration diagram for ns3::RrcConnectionSetupHeader:

Public Member Functions
	RrcConnectionSetupHeader ()
	~RrcConnectionSetupHeader ()
uint32_t	Deserialize (Buffer::Iterator bIterator)
std::list< LteRrcSap::DrbToAddMod >	GetDrbToAddModList () const
std::list< uint8_t >	GetDrbToReleaseList () const
LteRrcSap::RrcConnectionSetup	GetMessage () const
LteRrcSap::PhysicalConfigDedicated	GetPhysicalConfigDedicated () const
LteRrcSap::RadioResourceConfigDedicated	GetRadioResourceConfigDedicated () const
uint8_t	GetRrcTransactionIdentifier () const
std::list< LteRrcSap::SrbToAddMod >	GetSrbToAddModList () const
bool	HavePhysicalConfigDedicated () const
void	PreSerialize () const
void	Print (std::ostream &os) const
void	SetMessage (LteRrcSap::RrcConnectionSetup msg)
Public Member Functions inherited from ns3::RrcDlCcchMessage
	RrcDlCcchMessage ()
	~RrcDlCcchMessage ()
Public Member Functions inherited from ns3::RrcAsn1Header
	RrcAsn1Header ()
int	GetMessageType ()
Public Member Functions inherited from ns3::Asn1Header
	Asn1Header ()
virtual	~Asn1Header ()
uint32_t	GetSerializedSize (void) const
void	Serialize (Buffer::Iterator bIterator) const
Public Member Functions inherited from ns3::Header
virtual	~Header ()

Private Attributes
LteRrcSap::RadioResourceConfigDedicated	m_radioResourceConfigDedicated
uint8_t	m_rrcTransactionIdentifier

Additional Inherited Members
Protected Member Functions inherited from ns3::RrcDlCcchMessage
Buffer::Iterator	DeserializeDlCcchMessage (Buffer::Iterator bIterator)
void	SerializeDlCcchMessage (int msgType) const
Static Protected Member Functions inherited from ns3::RrcAsn1Header
static TypeId	GetTypeId (void)
Protected Attributes inherited from ns3::RrcAsn1Header
int	m_messageType
	Stores RRC message type, according to 3GPP TS 36.331.

Detailed Description

This class manages the serialization/deserialization of RrcConnectionSetup IE

Definition at line 230 of file lte-rrc-header.h.

Constructor & Destructor Documentation

ns3::RrcConnectionSetupHeader::RrcConnectionSetupHeader ( )

Definition at line 4000 of file lte-rrc-header.cc.

ns3::RrcConnectionSetupHeader::~RrcConnectionSetupHeader ( )

Definition at line 4004 of file lte-rrc-header.cc.

Member Function Documentation

uint32_t ns3::RrcConnectionSetupHeader::Deserialize ( Buffer::Iterator start )

virtual

Parameters

start an iterator which points to where the header should written.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Reimplemented from ns3::RrcDlCcchMessage.

Definition at line 4057 of file lte-rrc-header.cc.

References ns3::Asn1Header::DeserializeChoice(), ns3::RrcDlCcchMessage::DeserializeDlCcchMessage(), ns3::Asn1Header::DeserializeInteger(), ns3::Asn1Header::DeserializeNull(), ns3::RrcAsn1Header::DeserializeRadioResourceConfigDedicated(), ns3::Asn1Header::DeserializeSequence(), ns3::Asn1Header::GetSerializedSize(), m_radioResourceConfigDedicated, and m_rrcTransactionIdentifier.

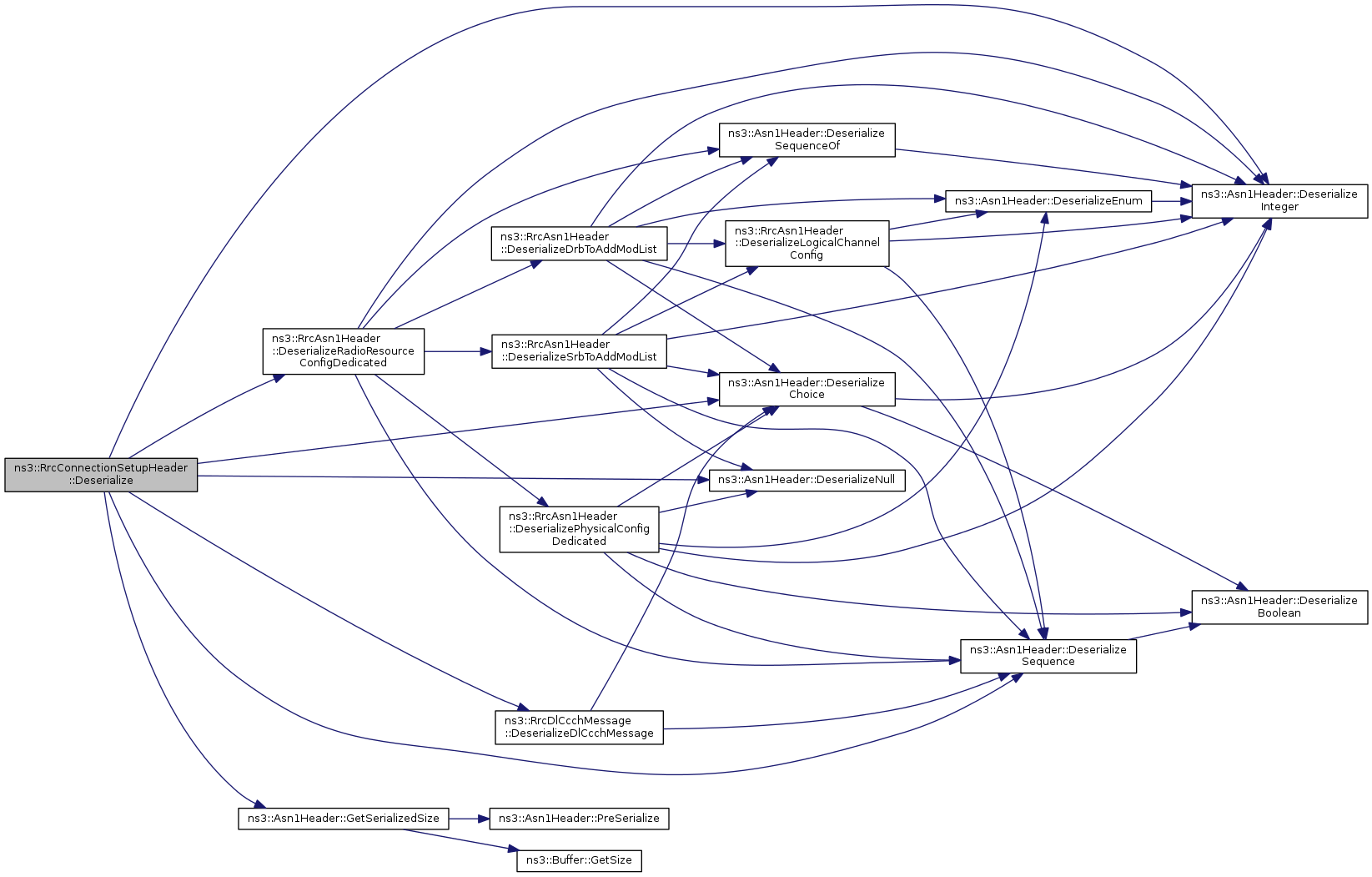

Here is the call graph for this function:

std::list< LteRrcSap::DrbToAddMod > ns3::RrcConnectionSetupHeader::GetDrbToAddModList ( ) const

Gets m_radioResourceConfigDedicated.drbToAddModList

Returns: m_radioResourceConfigDedicated.drbToAddModList

Definition at line 4154 of file lte-rrc-header.cc.

References ns3::LteRrcSap::RadioResourceConfigDedicated::drbToAddModList, and m_radioResourceConfigDedicated.

std::list< uint8_t > ns3::RrcConnectionSetupHeader::GetDrbToReleaseList ( ) const

Gets m_radioResourceConfigDedicated.drbToReleaseList

Returns: m_radioResourceConfigDedicated.drbToReleaseList

Definition at line 4160 of file lte-rrc-header.cc.

References ns3::LteRrcSap::RadioResourceConfigDedicated::drbToReleaseList, and m_radioResourceConfigDedicated.

LteRrcSap::RrcConnectionSetup ns3::RrcConnectionSetupHeader::GetMessage ( ) const

Returns a RrcConnectionSetup IE from the values in the class attributes

Returns: A RrcConnectionSetup, as defined in LteRrcSap

Definition at line 4127 of file lte-rrc-header.cc.

References m_radioResourceConfigDedicated, m_rrcTransactionIdentifier, ns3::LteRrcSap::RrcConnectionSetup::radioResourceConfigDedicated, and ns3::LteRrcSap::RrcConnectionSetup::rrcTransactionIdentifier.

Referenced by ns3::LteUeRrcProtocolReal::DoReceivePdcpPdu().

Here is the caller graph for this function:

LteRrcSap::PhysicalConfigDedicated ns3::RrcConnectionSetupHeader::GetPhysicalConfigDedicated ( ) const

Gets m_radioResourceConfigDedicated.physicalConfigDedicated

Returns: m_radioResourceConfigDedicated.physicalConfigDedicated

Definition at line 4166 of file lte-rrc-header.cc.

References m_radioResourceConfigDedicated, and ns3::LteRrcSap::RadioResourceConfigDedicated::physicalConfigDedicated.

LteRrcSap::RadioResourceConfigDedicated ns3::RrcConnectionSetupHeader::GetRadioResourceConfigDedicated ( ) const

Getter for m_radioResourceConfigDedicated

Returns: m_radioResourceConfigDedicated

Definition at line 4172 of file lte-rrc-header.cc.

References m_radioResourceConfigDedicated.

uint8_t ns3::RrcConnectionSetupHeader::GetRrcTransactionIdentifier ( ) const

Getter for m_rrcTransactionIdentifier

Returns: m_rrcTransactionIdentifier

Definition at line 4136 of file lte-rrc-header.cc.

References m_rrcTransactionIdentifier.

std::list< LteRrcSap::SrbToAddMod > ns3::RrcConnectionSetupHeader::GetSrbToAddModList ( ) const

Gets m_radioResourceConfigDedicated.srbToAddModList

Returns: m_radioResourceConfigDedicated.srbToAddModList

Definition at line 4148 of file lte-rrc-header.cc.

References m_radioResourceConfigDedicated, and ns3::LteRrcSap::RadioResourceConfigDedicated::srbToAddModList.

bool ns3::RrcConnectionSetupHeader::HavePhysicalConfigDedicated ( ) const

Gets m_radioResourceConfigDedicated.havePhysicalConfigDedicated

Returns: m_radioResourceConfigDedicated.havePhysicalConfigDedicated

Definition at line 4142 of file lte-rrc-header.cc.

References ns3::LteRrcSap::RadioResourceConfigDedicated::havePhysicalConfigDedicated, and m_radioResourceConfigDedicated.

void ns3::RrcConnectionSetupHeader::PreSerialize ( ) const

virtual

This function serializes class attributes to m_serializationResult local Buffer. As ASN1 encoding produces a bitstream that does not have a fixed length, this function is needed to store the result, so its length can be retrieved with Header::GetSerializedSize() function. This method is pure virtual in this class (needs to be implemented in child classes) as the meningful information elements are in the subclasses.

Reimplemented from ns3::RrcDlCcchMessage.

Definition at line 4017 of file lte-rrc-header.cc.

References ns3::Asn1Header::FinalizeSerialization(), m_radioResourceConfigDedicated, m_rrcTransactionIdentifier, ns3::Asn1Header::m_serializationResult, ns3::Asn1Header::SerializeChoice(), ns3::RrcDlCcchMessage::SerializeDlCcchMessage(), ns3::Asn1Header::SerializeInteger(), ns3::RrcAsn1Header::SerializeRadioResourceConfigDedicated(), and ns3::Asn1Header::SerializeSequence().

Here is the call graph for this function:

void ns3::RrcConnectionSetupHeader::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a trailer as ascii data to a c++ output stream. Although the trailer is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Reimplemented from ns3::RrcDlCcchMessage.

Definition at line 4009 of file lte-rrc-header.cc.

References m_radioResourceConfigDedicated, and m_rrcTransactionIdentifier.

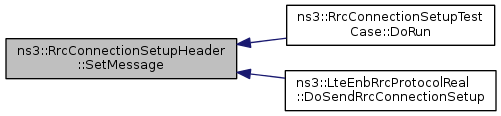

void ns3::RrcConnectionSetupHeader::SetMessage ( LteRrcSap::RrcConnectionSetup msg )

Receives a RrcConnectionSetup IE and stores the contents into the class attributes

Parameters
