Object to create transport layer instances that provide a socket API to applications. More...
#include <socket-factory.h>

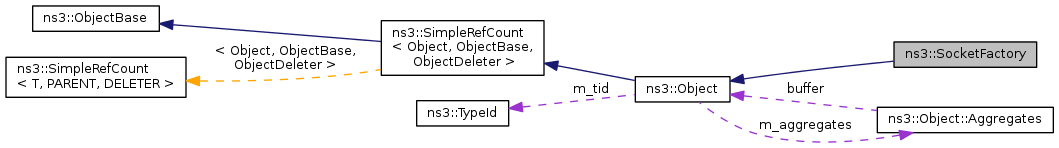

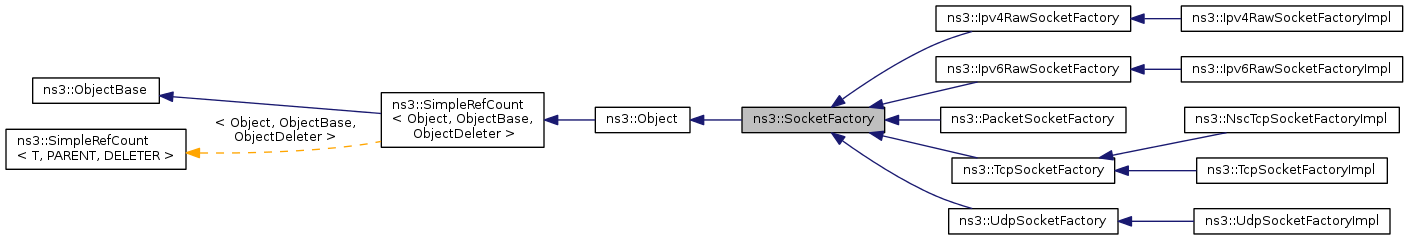

Inheritance diagram for ns3::SocketFactory: Collaboration diagram for ns3::SocketFactory:Public Member Functions | |
| SocketFactory () | |
| virtual Ptr< Socket > | CreateSocket (void)=0 |
| Public Member Functions inherited from ns3::Object | |
| Object () | |
| virtual | ~Object () |
| void | AggregateObject (Ptr< Object > other) |
| void | Dispose (void) |
| AggregateIterator | GetAggregateIterator (void) const |
| virtual TypeId | GetInstanceTypeId (void) const |
| template<typename T > | |
| Ptr< T > | GetObject (void) const |
| template<typename T > | |
| Ptr< T > | GetObject (TypeId tid) const |
| void | Initialize (void) |
| Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter > | |
| SimpleRefCount () | |
| SimpleRefCount (const SimpleRefCount &o) | |
| uint32_t | GetReferenceCount (void) const |
| SimpleRefCount & | operator= (const SimpleRefCount &o) |
| void | Ref (void) const |
| void | Unref (void) const |
| Public Member Functions inherited from ns3::ObjectBase | |
| virtual | ~ObjectBase () |
| void | GetAttribute (std::string name, AttributeValue &value) const |
| bool | GetAttributeFailSafe (std::string name, AttributeValue &attribute) const |
| void | SetAttribute (std::string name, const AttributeValue &value) |
| bool | SetAttributeFailSafe (std::string name, const AttributeValue &value) |
| bool | TraceConnect (std::string name, std::string context, const CallbackBase &cb) |
| bool | TraceConnectWithoutContext (std::string name, const CallbackBase &cb) |
| bool | TraceDisconnect (std::string name, std::string context, const CallbackBase &cb) |
| bool | TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb) |
Static Public Member Functions | |
| static TypeId | GetTypeId (void) |
Additional Inherited Members | |
| Protected Member Functions inherited from ns3::Object | |
| Object (const Object &o) | |
| virtual void | DoDispose (void) |
| virtual void | DoInitialize (void) |
| virtual void | NotifyNewAggregate (void) |
Object to create transport layer instances that provide a socket API to applications.
This base class defines the API for creating sockets. The socket factory also can hold the global variables used to initialize newly created sockets, such as values that are set through the sysctl or proc interfaces in Linux.
If you want to write a new transport protocol accessible through sockets, you need to subclass this factory class, implement CreateSocket, instantiate the object, and aggregate it to the node.
Doxygen introspection did not find any typical Config paths.
No Attributes are defined for this type.
No TraceSources are defined for this type.
Definition at line 48 of file socket-factory.h.
| ns3::SocketFactory::SocketFactory | ( | ) |
Definition at line 36 of file socket-factory.cc.
References NS_LOG_FUNCTION.
Base class method for creating socket instances.
Implemented in ns3::UdpSocketFactoryImpl, ns3::NscTcpSocketFactoryImpl, ns3::TcpSocketFactoryImpl, ns3::PacketSocketFactory, ns3::Ipv6RawSocketFactoryImpl, and ns3::Ipv4RawSocketFactoryImpl.
Referenced by Ipv6PacketInfoTagTest::DoRun(), Ipv6RawSocketImplTest::DoRun(), Ipv4HeaderTest::DoRun(), Ipv4PacketInfoTagTest::DoRun(), Ipv4RawSocketImplTest::DoRun(), UdpSocketLoopbackTest::DoRun(), Udp6SocketLoopbackTest::DoRun(), UdpSocketImplTest::DoRun(), Udp6SocketImplTest::DoRun(), TcpTestCase::SetupDefaultSim(), TcpTestCase::SetupDefaultSim6(), and DualStackTestCase::SetUpSim().

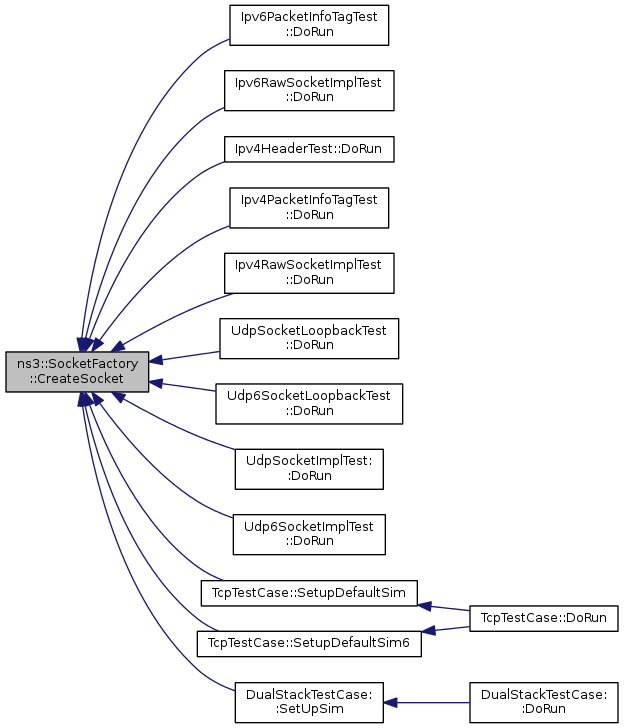

Here is the caller graph for this function:
|
static |
Reimplemented from ns3::Object.
Reimplemented in ns3::Ipv6RawSocketFactory, ns3::TcpSocketFactory, ns3::UdpSocketFactory, ns3::Ipv4RawSocketFactory, and ns3::PacketSocketFactory.
Definition at line 29 of file socket-factory.cc.
References ns3::TypeId::SetParent().
Here is the call graph for this function:
