#include <ssid.h>

Inheritance diagram for ns3::Ssid:

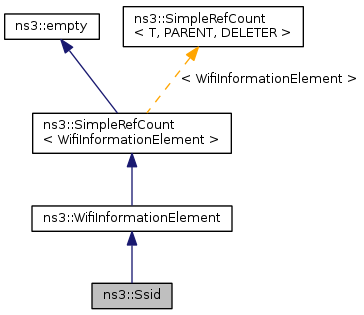

Collaboration diagram for ns3::Ssid:

Public Member Functions
	Ssid ()
	Ssid (std::string s)
	Ssid (char const ssid[32], uint8_t length)
uint8_t	DeserializeInformationField (Buffer::Iterator start, uint8_t length)
WifiInformationElementId	ElementId () const
	Own unique Element ID.
uint8_t	GetInformationFieldSize () const
bool	IsBroadcast (void) const
bool	IsEqual (const Ssid &o) const
char *	PeekString (void) const
void	SerializeInformationField (Buffer::Iterator start) const
Public Member Functions inherited from ns3::WifiInformationElement
virtual	~WifiInformationElement ()
Buffer::Iterator	Deserialize (Buffer::Iterator i)
Buffer::Iterator	DeserializeIfPresent (Buffer::Iterator i)
uint16_t	GetSerializedSize () const
Buffer::Iterator	Serialize (Buffer::Iterator i) const
	Serialize entire IE including Element ID and length fields.
virtual void	Print (std::ostream &os) const
	In addition, a subclass may optionally override the following...
virtual bool	operator< (WifiInformationElement const &a) const
	Compare information elements using Element ID.
virtual bool	operator== (WifiInformationElement const &a) const
Public Member Functions inherited from ns3::SimpleRefCount< WifiInformationElement >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const

Private Attributes
uint8_t	m_length
uint8_t	m_ssid [33]

Additional Inherited Members
Static Public Member Functions inherited from ns3::SimpleRefCount< WifiInformationElement >
static void	Cleanup (void)

Detailed Description

The IEEE 802.11 SSID Information Element

Definition at line 35 of file ssid.h.

Constructor & Destructor Documentation

ns3::Ssid::Ssid ( )

Definition at line 25 of file ssid.cc.

References m_length, and m_ssid.

ns3::Ssid::Ssid ( std::string s )

Definition at line 33 of file ssid.cc.

References m_length, m_ssid, and NS_ASSERT.

ns3::Ssid::Ssid	(	char const	ssid[32],
		uint8_t	length
	)

Definition at line 52 of file ssid.cc.

References m_length, m_ssid, and NS_ASSERT.

Member Function Documentation

uint8_t ns3::Ssid::DeserializeInformationField	(	Buffer::Iterator	start,
		uint8_t	length
	)

virtual

Deserialize information (i.e., the body of the IE, not including the Element ID and length octets)

Implements ns3::WifiInformationElement.

Definition at line 121 of file ssid.cc.

References m_length, m_ssid, NS_ASSERT, and ns3::Buffer::Iterator::Read().

Here is the call graph for this function:

WifiInformationElementId ns3::Ssid::ElementId ( ) const

virtual

Own unique Element ID.

Implements ns3::WifiInformationElement.

Definition at line 103 of file ssid.cc.

References IE_SSID.

uint8_t ns3::Ssid::GetInformationFieldSize ( ) const

virtual

Length of serialized information (i.e., the length of the body of the IE, not including the Element ID and length octets. This is the value that will appear in the second octet of the entire IE - the length field)

Implements ns3::WifiInformationElement.

Definition at line 109 of file ssid.cc.

References m_length.

bool ns3::Ssid::IsBroadcast ( void ) const

Definition at line 85 of file ssid.cc.

References m_ssid.

bool ns3::Ssid::IsEqual ( const Ssid & o ) const

Definition at line 69 of file ssid.cc.

References m_ssid.

Referenced by ns3::StaWifiMac::Receive(), and ns3::MeshWifiInterfaceMac::Receive().

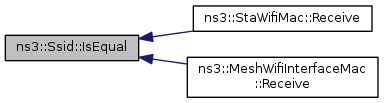

Here is the caller graph for this function:
