build a set of FdNetDevice objects attached to a virtua TAP network interface More...

#include <tap-fd-net-device-helper.h>

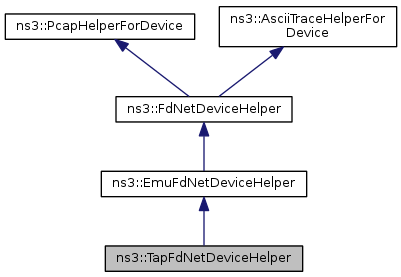

Inheritance diagram for ns3::TapFdNetDeviceHelper:

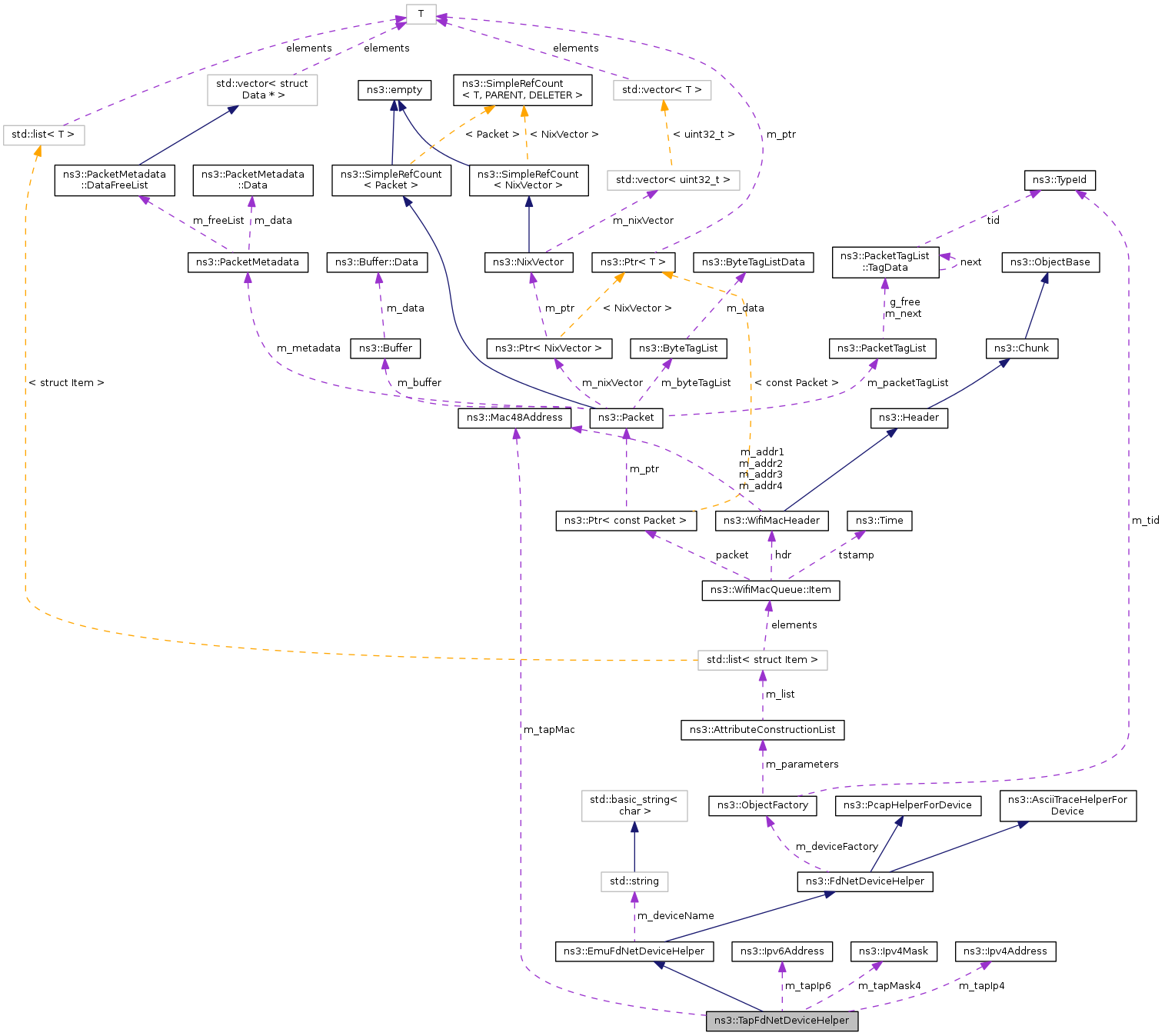

Collaboration diagram for ns3::TapFdNetDeviceHelper:

Public Member Functions
	TapFdNetDeviceHelper ()
virtual	~TapFdNetDeviceHelper ()
void	SetModePi (bool pi)
void	SetTapIpv4Address (Ipv4Address address)
void	SetTapIpv4Mask (Ipv4Mask mask)
void	SetTapIpv6Address (Ipv6Address address)
void	SetTapIpv6Prefix (int prefix)
void	SetTapMacAddress (Mac48Address mac)
Public Member Functions inherited from ns3::EmuFdNetDeviceHelper
	EmuFdNetDeviceHelper ()
virtual	~EmuFdNetDeviceHelper ()
std::string	GetDeviceName (void)
void	SetDeviceName (std::string deviceName)
Public Member Functions inherited from ns3::FdNetDeviceHelper
	FdNetDeviceHelper ()
virtual	~FdNetDeviceHelper ()
virtual NetDeviceContainer	Install (Ptr< Node > node) const
virtual NetDeviceContainer	Install (std::string name) const
virtual NetDeviceContainer	Install (const NodeContainer &c) const
void	SetAttribute (std::string n1, const AttributeValue &v1)
Public Member Functions inherited from ns3::PcapHelperForDevice
	PcapHelperForDevice ()
	Construct a PcapHelperForDevice.
virtual	~PcapHelperForDevice ()
	Destroy a PcapHelperForDevice.
void	EnablePcap (std::string prefix, Ptr< NetDevice > nd, bool promiscuous=false, bool explicitFilename=false)
	Enable pcap output the indicated net device.
void	EnablePcap (std::string prefix, std::string ndName, bool promiscuous=false, bool explicitFilename=false)
	Enable pcap output the indicated net device using a device previously named using the ns-3 object name service.
void	EnablePcap (std::string prefix, NetDeviceContainer d, bool promiscuous=false)
	Enable pcap output on each device in the container which is of the appropriate type.
void	EnablePcap (std::string prefix, NodeContainer n, bool promiscuous=false)
	Enable pcap output on each device (which is of the appropriate type) in the nodes provided in the container.
void	EnablePcap (std::string prefix, uint32_t nodeid, uint32_t deviceid, bool promiscuous=false)
	Enable pcap output on the device specified by a global node-id (of a previously created node) and associated device-id.
void	EnablePcapAll (std::string prefix, bool promiscuous=false)
	Enable pcap output on each device (which is of the appropriate type) in the set of all nodes created in the simulation.
virtual void	EnablePcapInternal (std::string prefix, Ptr< NetDevice > nd, bool promiscuous, bool explicitFilename)=0
	Enable pcap output the indicated net device.
Public Member Functions inherited from ns3::AsciiTraceHelperForDevice
	AsciiTraceHelperForDevice ()
	Construct an AsciiTraceHelperForDevice.
virtual	~AsciiTraceHelperForDevice ()
	Destroy an AsciiTraceHelperForDevice.
void	EnableAscii (std::string prefix, Ptr< NetDevice > nd, bool explicitFilename=false)
	Enable ascii trace output on the indicated net device.
void	EnableAscii (Ptr< OutputStreamWrapper > stream, Ptr< NetDevice > nd)
	Enable ascii trace output on the indicated net device.
void	EnableAscii (std::string prefix, std::string ndName, bool explicitFilename=false)
	Enable ascii trace output the indicated net device using a device previously named using the ns-3 object name service.
void	EnableAscii (Ptr< OutputStreamWrapper > stream, std::string ndName)
	Enable ascii trace output the indicated net device using a device previously named using the ns-3 object name service.
void	EnableAscii (std::string prefix, NetDeviceContainer d)
	Enable ascii trace output on each device in the container which is of the appropriate type.
void	EnableAscii (Ptr< OutputStreamWrapper > stream, NetDeviceContainer d)
	Enable ascii trace output on each device in the container which is of the appropriate type.
void	EnableAscii (std::string prefix, NodeContainer n)
	Enable ascii trace output on each device (which is of the appropriate type) in the nodes provided in the container.
void	EnableAscii (Ptr< OutputStreamWrapper > stream, NodeContainer n)
	Enable ascii trace output on each device (which is of the appropriate type) in the nodes provided in the container.
void	EnableAscii (std::string prefix, uint32_t nodeid, uint32_t deviceid, bool explicitFilename)
	Enable ascii trace output on the device specified by a global node-id (of a previously created node) and associated device-id.
void	EnableAscii (Ptr< OutputStreamWrapper > stream, uint32_t nodeid, uint32_t deviceid)
	Enable ascii trace output on the device specified by a global node-id (of a previously created node) and associated device-id.
void	EnableAsciiAll (std::string prefix)
	Enable ascii trace output on each device (which is of the appropriate type) in the set of all nodes created in the simulation.
void	EnableAsciiAll (Ptr< OutputStreamWrapper > stream)
	Enable ascii trace output on each device (which is of the appropriate type) in the set of all nodes created in the simulation.
virtual void	EnableAsciiInternal (Ptr< OutputStreamWrapper > stream, std::string prefix, Ptr< NetDevice > nd, bool explicitFilename)=0
	Enable ascii trace output on the indicated net device.

Protected Member Functions
virtual int	CreateFileDescriptor (void) const
Ptr< NetDevice >	InstallPriv (Ptr< Node > node) const
virtual void	SetFileDescriptor (Ptr< FdNetDevice > device) const

Protected Attributes
bool	m_modePi
Ipv4Address	m_tapIp4
Ipv6Address	m_tapIp6
Mac48Address	m_tapMac
Ipv4Mask	m_tapMask4
int	m_tapPrefix6
Protected Attributes inherited from ns3::EmuFdNetDeviceHelper
std::string	m_deviceName

Detailed Description

build a set of FdNetDevice objects attached to a virtua TAP network interface

Definition at line 41 of file tap-fd-net-device-helper.h.

Constructor & Destructor Documentation

ns3::TapFdNetDeviceHelper::TapFdNetDeviceHelper ( )

Construct a TapFdNetDeviceHelper.

Definition at line 63 of file tap-fd-net-device-helper.cc.

References ns3::Mac48Address::Allocate(), ns3::EmuFdNetDeviceHelper::m_deviceName, m_modePi, m_tapIp4, m_tapIp6, m_tapMac, m_tapMask4, and m_tapPrefix6.

Here is the call graph for this function:

virtual ns3::TapFdNetDeviceHelper::~TapFdNetDeviceHelper ( )

inlinevirtual

Definition at line 48 of file tap-fd-net-device-helper.h.

Member Function Documentation

int ns3::TapFdNetDeviceHelper::CreateFileDescriptor ( void ) const

protectedvirtual

Call out to a separate process running as suid root in order to create a TAP device and obtain the file descriptor associated to it.

Reimplemented from ns3::EmuFdNetDeviceHelper.

Definition at line 146 of file tap-fd-net-device-helper.cc.

References ns3::BufferToString(), ns3::EmuFdNetDeviceHelper::m_deviceName, m_modePi, m_tapIp4, m_tapIp6, m_tapMac, m_tapMask4, m_tapPrefix6, NS_ABORT_MSG_IF, NS_ASSERT_MSG, NS_FATAL_ERROR, NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_LOG_INFO, and TAP_MAGIC.

Referenced by SetFileDescriptor().

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr< NetDevice > ns3::TapFdNetDeviceHelper::InstallPriv ( Ptr< Node > node ) const

protectedvirtual

Reimplemented from ns3::EmuFdNetDeviceHelper.

Definition at line 111 of file tap-fd-net-device-helper.cc.

References ns3::FdNetDevice::DIXPI, ns3::Object::GetObject(), m_modePi, ns3::FdNetDevice::SetEncapsulationMode(), and SetFileDescriptor().

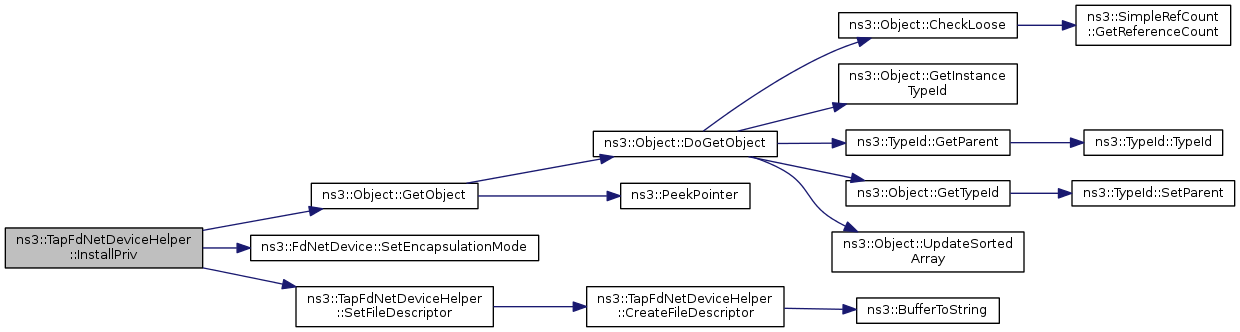

Here is the call graph for this function:

void ns3::TapFdNetDeviceHelper::SetFileDescriptor ( Ptr< FdNetDevice > device ) const

protectedvirtual

Sets a file descriptor on the FileDescriptorNetDevice.

Reimplemented from ns3::EmuFdNetDeviceHelper.

Definition at line 133 of file tap-fd-net-device-helper.cc.

References CreateFileDescriptor(), and NS_LOG_LOGIC.

Referenced by InstallPriv().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::TapFdNetDeviceHelper::SetModePi ( bool pi )

Set flag IFF_NO_PI on the device.

Parameters

pi	Set the IFF_NO_PI flag if pi is false.

Definition at line 75 of file tap-fd-net-device-helper.cc.

References m_modePi.

Referenced by main().

Here is the caller graph for this function:

void ns3::TapFdNetDeviceHelper::SetTapIpv4Address ( Ipv4Address address )

Set the device IPv4 address.

Parameters

address The IPv4 address for the TAP device.

Definition at line 81 of file tap-fd-net-device-helper.cc.

References m_tapIp4.

Referenced by main().

Here is the caller graph for this function:

void ns3::TapFdNetDeviceHelper::SetTapIpv4Mask ( Ipv4Mask mask )

Set the IPv4 network mask for the TAP device.

Parameters

mask	The IPv4 network mask for the TAP device.

Definition at line 87 of file tap-fd-net-device-helper.cc.

References m_tapMask4.

Referenced by main().

Here is the caller graph for this function:

void ns3::TapFdNetDeviceHelper::SetTapIpv6Address ( Ipv6Address address )

Set the device IPv6 address.

Parameters

address The IPv6 address for the TAP device.

Definition at line 93 of file tap-fd-net-device-helper.cc.

References m_tapIp6.

Referenced by main().

Here is the caller graph for this function:

void ns3::TapFdNetDeviceHelper::SetTapIpv6Prefix ( int prefix )

Set the IPv6 network mask for the TAP device.

Parameters

prefix The IPv6 network prefix for the TAP device.

Definition at line 99 of file tap-fd-net-device-helper.cc.

References m_tapPrefix6.

Referenced by main().

Here is the caller graph for this function:

void ns3::TapFdNetDeviceHelper::SetTapMacAddress ( Mac48Address mac )

Set the MAC address for the TAP device.

Parameters

mac	The MAC address the TAP device.

Definition at line 105 of file tap-fd-net-device-helper.cc.

References m_tapMac.

Member Data Documentation

bool ns3::TapFdNetDeviceHelper::m_modePi

protected

The TAP device flag IFF_NO_PI.

Definition at line 116 of file tap-fd-net-device-helper.h.

Referenced by CreateFileDescriptor(), InstallPriv(), SetModePi(), and TapFdNetDeviceHelper().

Ipv4Address ns3::TapFdNetDeviceHelper::m_tapIp4

protected

The IPv4 address for the TAP device.

Definition at line 123 of file tap-fd-net-device-helper.h.

Referenced by CreateFileDescriptor(), SetTapIpv4Address(), and TapFdNetDeviceHelper().

Ipv6Address ns3::TapFdNetDeviceHelper::m_tapIp6

protected

The IPv6 address for the TAP device.

Definition at line 130 of file tap-fd-net-device-helper.h.

Referenced by CreateFileDescriptor(), SetTapIpv6Address(), and TapFdNetDeviceHelper().

Mac48Address ns3::TapFdNetDeviceHelper::m_tapMac

protected

The TAP device MAC address.

Definition at line 153 of file tap-fd-net-device-helper.h.

Referenced by CreateFileDescriptor(), SetTapMacAddress(), and TapFdNetDeviceHelper().

Ipv4Mask ns3::TapFdNetDeviceHelper::m_tapMask4

protected

The network mask IPv4 for the TAP device.

Definition at line 138 of file tap-fd-net-device-helper.h.

Referenced by CreateFileDescriptor(), SetTapIpv4Mask(), and TapFdNetDeviceHelper().

int ns3::TapFdNetDeviceHelper::m_tapPrefix6

protected

The network prefix IPv6 for the TAP device.

Definition at line 145 of file tap-fd-net-device-helper.h.

Referenced by CreateFileDescriptor(), SetTapIpv6Prefix(), and TapFdNetDeviceHelper().

The documentation for this class was generated from the following files:

src/fd-net-device/helper/tap-fd-net-device-helper.h
src/fd-net-device/helper/tap-fd-net-device-helper.cc
