A Udp Echo client. More...

#include <udp-echo-client.h>

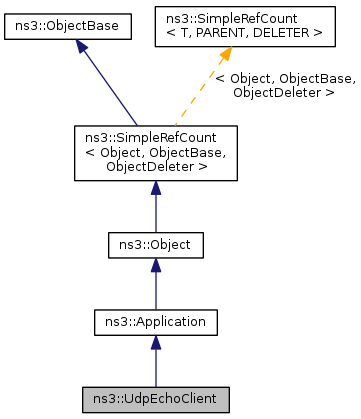

Inheritance diagram for ns3::UdpEchoClient:

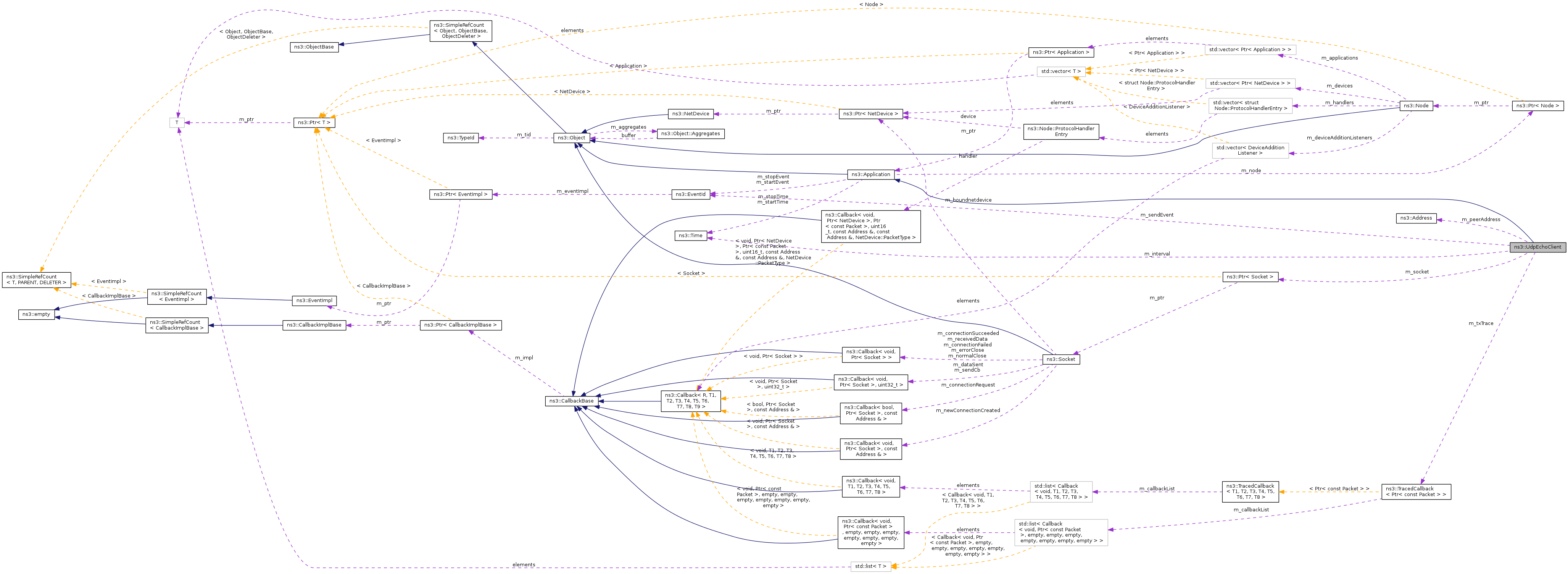

Collaboration diagram for ns3::UdpEchoClient:

Public Member Functions
	UdpEchoClient ()
virtual	~UdpEchoClient ()
uint32_t	GetDataSize (void) const
void	SetDataSize (uint32_t dataSize)
void	SetFill (std::string fill)
void	SetFill (uint8_t fill, uint32_t dataSize)
void	SetFill (uint8_t *fill, uint32_t fillSize, uint32_t dataSize)
void	SetRemote (Address ip, uint16_t port)
void	SetRemote (Ipv4Address ip, uint16_t port)
void	SetRemote (Ipv6Address ip, uint16_t port)
Public Member Functions inherited from ns3::Application
	Application ()
virtual	~Application ()
Ptr< Node >	GetNode () const
void	SetNode (Ptr< Node > node)
void	SetStartTime (Time start)
	Specify application start time.
void	SetStopTime (Time stop)
	Specify application stop time.
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Initialize (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Protected Member Functions
virtual void	DoDispose (void)
Protected Member Functions inherited from ns3::Application
virtual void	DoInitialize (void)
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	NotifyNewAggregate (void)

Private Member Functions
void	HandleRead (Ptr< Socket > socket)
void	ScheduleTransmit (Time dt)
void	Send (void)
virtual void	StartApplication (void)
virtual void	StopApplication (void)

Private Attributes
uint32_t	m_count
uint8_t *	m_data
uint32_t	m_dataSize
Time	m_interval
Address	m_peerAddress
uint16_t	m_peerPort
EventId	m_sendEvent
uint32_t	m_sent
uint32_t	m_size
Ptr< Socket >	m_socket
TracedCallback< Ptr< const Packet > >	m_txTrace
	Callbacks for tracing the packet Tx events.

Additional Inherited Members
Protected Attributes inherited from ns3::Application
Ptr< Node >	m_node
EventId	m_startEvent
Time	m_startTime
EventId	m_stopEvent
Time	m_stopTime

Detailed Description

A Udp Echo client.

Every packet sent should be returned by the server and received here.

Config Paths

ns3::UdpEchoClient is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/ApplicationList/[i]/$ns3::UdpEchoClient

Attributes

MaxPackets: The maximum number of packets the application will send
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 100
- Flags: construct write read
Interval: The time to wait between packets
- Set with class: TimeValue
- Underlying type: Time
- Initial value: +1000000000.0ns
- Flags: construct write read
RemoteAddress: The destination Address of the outbound packets
- Set with class: AddressValue
- Underlying type: Address
- Initial value: 00-00-00
- Flags: construct write read
RemotePort: The destination port of the outbound packets
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 0
- Flags: construct write read
PacketSize: Size of echo data in outbound packets
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 100
- Flags: construct write read

Attributes defined in parent class ns3::Application

StartTime: Time at which the application will start
- Set with class: TimeValue
- Underlying type: Time
- Initial value: +0.0ns
- Flags: construct write read
StopTime: Time at which the application will stop
- Set with class: TimeValue
- Underlying type: Time
- Initial value: +0.0ns
- Flags: construct write read

TraceSources

Tx: A new packet is created and is sent

Definition at line 39 of file udp-echo-client.h.

Constructor & Destructor Documentation

ns3::UdpEchoClient::UdpEchoClient ( )

Definition at line 74 of file udp-echo-client.cc.

References m_data, m_dataSize, m_sendEvent, m_sent, m_socket, and NS_LOG_FUNCTION.

ns3::UdpEchoClient::~UdpEchoClient ( )

virtual

Definition at line 84 of file udp-echo-client.cc.

References m_data, m_dataSize, m_socket, and NS_LOG_FUNCTION.

Member Function Documentation

void ns3::UdpEchoClient::DoDispose ( void )

protectedvirtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Application.

Definition at line 119 of file udp-echo-client.cc.

References NS_LOG_FUNCTION.

uint32_t ns3::UdpEchoClient::GetDataSize ( void ) const

Get the number of data bytes that will be sent to the server.

Warning: The number of bytes may be modified by calling any one of the SetFill methods. If you have called SetFill, then the number of data bytes will correspond to the size of an initialized data buffer. If you have not called a SetFill method, the number of data bytes will correspond to the number of don't care bytes that will be sent.

Returns: The number of data bytes.

Definition at line 183 of file udp-echo-client.cc.

References m_size, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

TypeId ns3::UdpEchoClient::GetTypeId ( void )

static

Reimplemented from ns3::Application.

Definition at line 38 of file udp-echo-client.cc.

References GetDataSize(), m_count, m_interval, m_peerAddress, m_peerPort, m_txTrace, ns3::MakeTraceSourceAccessor(), ns3::Seconds(), SetDataSize(), and ns3::TypeId::SetParent().

Referenced by ns3::UdpEchoClientHelper::UdpEchoClientHelper().

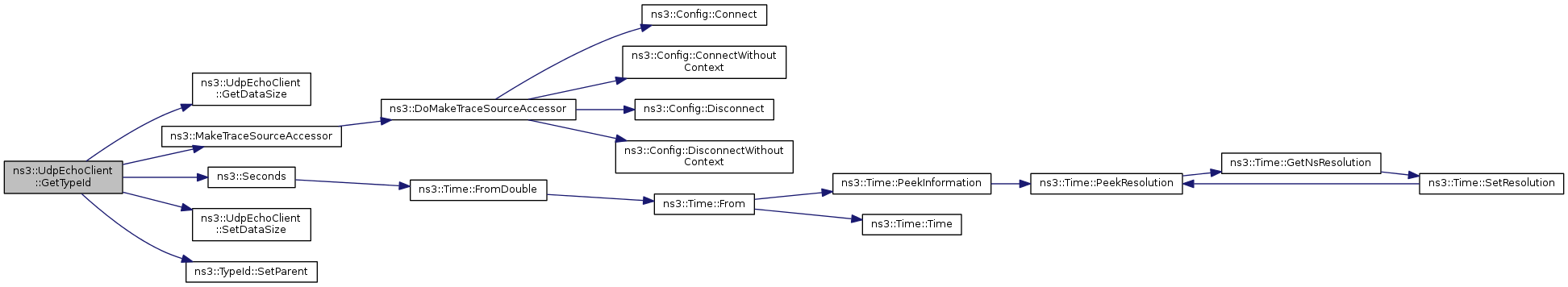

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::UdpEchoClient::HandleRead ( Ptr< Socket > socket )

private

Definition at line 332 of file udp-echo-client.cc.

References ns3::InetSocketAddress::ConvertFrom(), ns3::Inet6SocketAddress::ConvertFrom(), ns3::InetSocketAddress::GetIpv4(), ns3::Inet6SocketAddress::GetIpv6(), ns3::InetSocketAddress::GetPort(), ns3::Inet6SocketAddress::GetPort(), ns3::Packet::GetSize(), ns3::InetSocketAddress::IsMatchingType(), ns3::Inet6SocketAddress::IsMatchingType(), ns3::Simulator::Now(), NS_LOG_FUNCTION, NS_LOG_INFO, and ns3::Socket::RecvFrom().

Referenced by StartApplication().

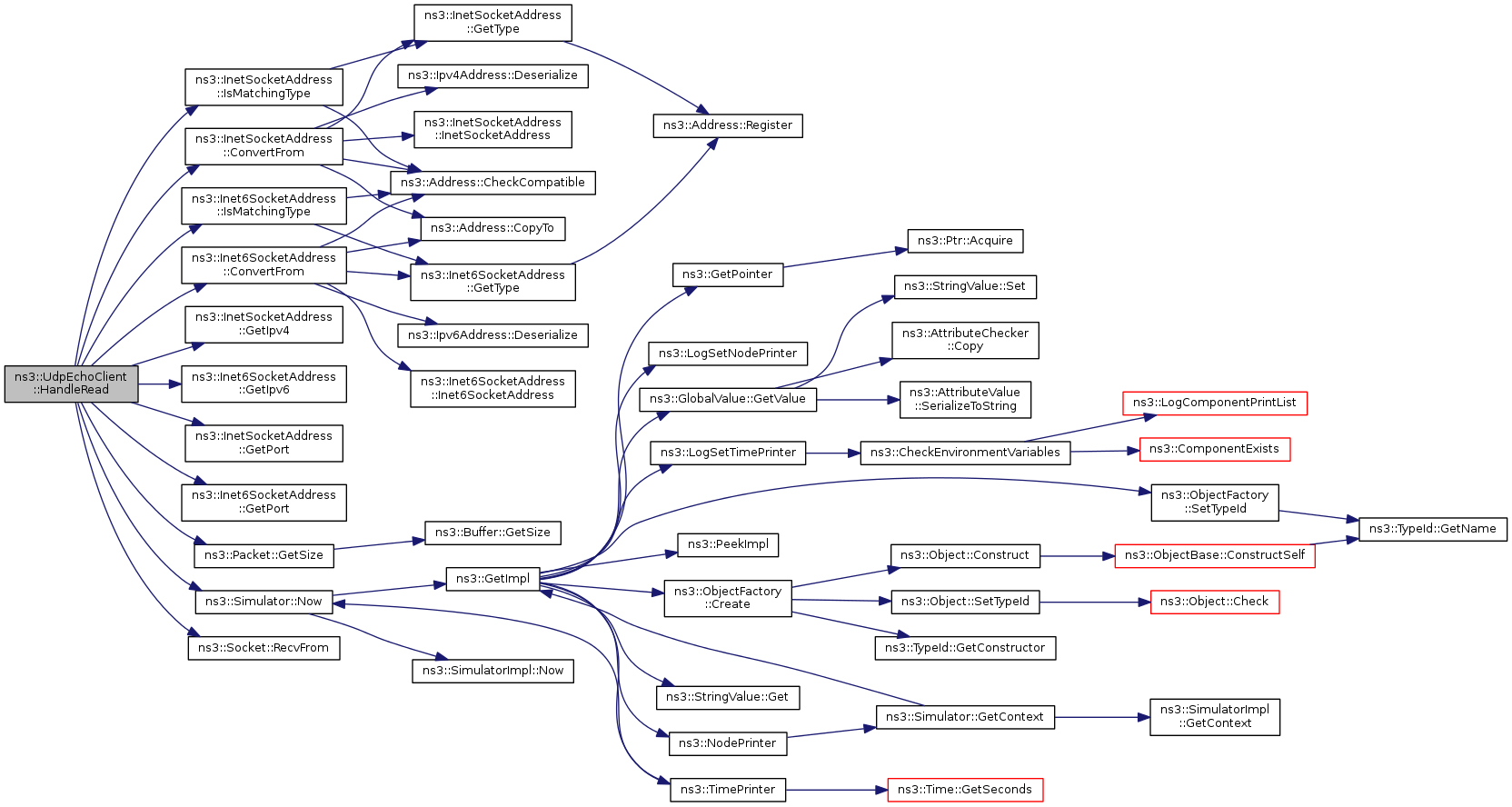

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::UdpEchoClient::ScheduleTransmit ( Time dt )

private

Definition at line 270 of file udp-echo-client.cc.

References m_sendEvent, NS_LOG_FUNCTION, ns3::Simulator::Schedule(), and Send().

Referenced by Send(), and StartApplication().

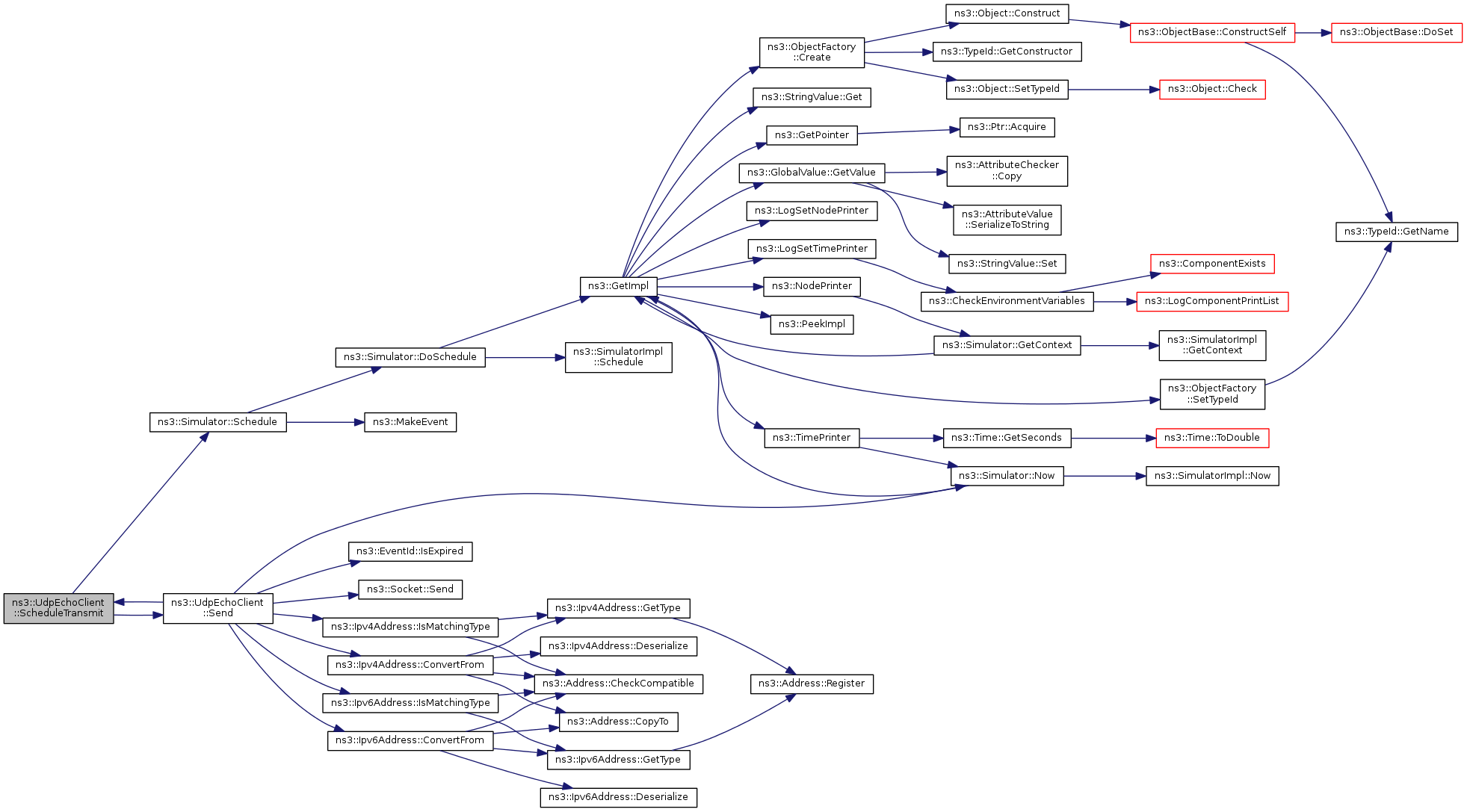

Here is the call graph for this function:

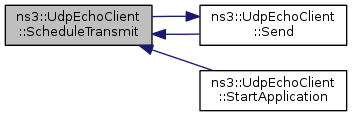

Here is the caller graph for this function:

void ns3::UdpEchoClient::Send ( void )

private

Definition at line 277 of file udp-echo-client.cc.

References ns3::Ipv4Address::ConvertFrom(), ns3::Ipv6Address::ConvertFrom(), ns3::EventId::IsExpired(), ns3::Ipv4Address::IsMatchingType(), ns3::Ipv6Address::IsMatchingType(), m_count, m_data, m_dataSize, m_interval, m_peerAddress, m_peerPort, m_sendEvent, m_sent, m_size, m_socket, m_txTrace, ns3::Simulator::Now(), NS_ASSERT, NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_INFO, ScheduleTransmit(), and ns3::Socket::Send().

Referenced by ScheduleTransmit().

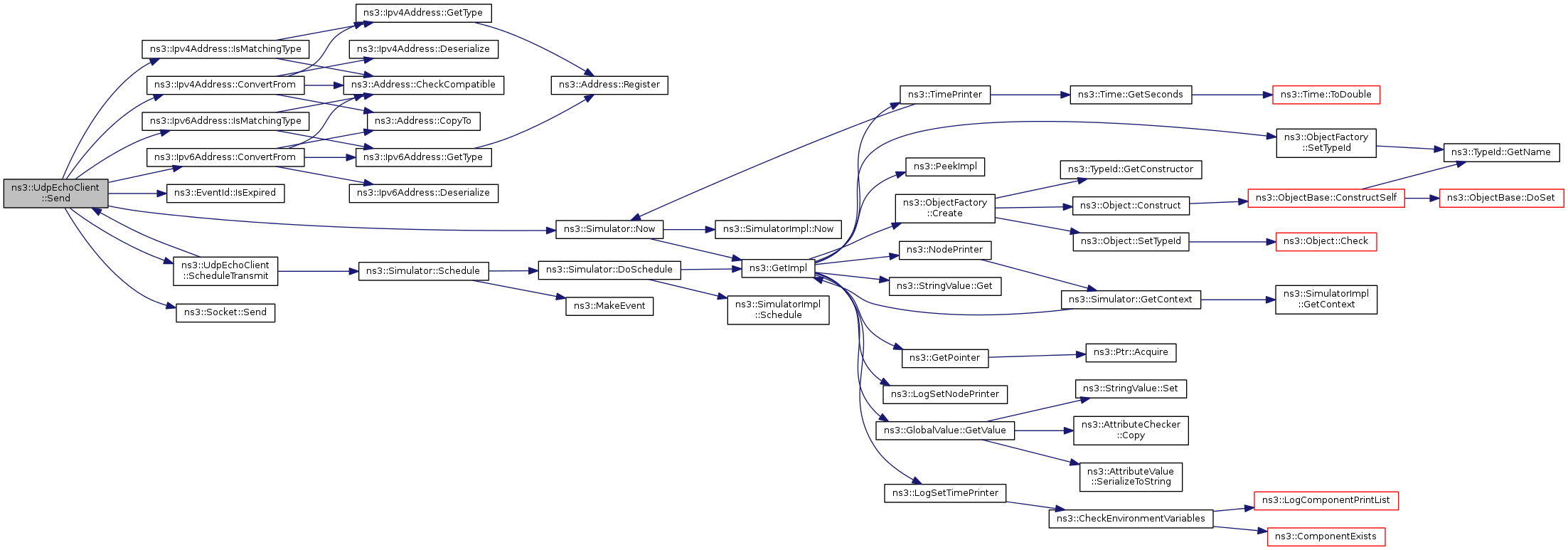

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::UdpEchoClient::SetDataSize ( uint32_t dataSize )

Set the data size of the packet (the number of bytes that are sent as data to the server). The contents of the data are set to unspecified (don't care) by this call.

Warning: If you have set the fill data for the echo client using one of the SetFill calls, this will undo those effects.

Parameters

dataSize The size of the echo data you want to sent.

Definition at line 167 of file udp-echo-client.cc.

References m_data, m_dataSize, m_size, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::UdpEchoClient::SetFill ( std::string fill )

Set the data fill of the packet (what is sent as data to the server) to the zero-terminated contents of the fill string string.

Warning: The size of resulting echo packets will be automatically adjusted to reflect the size of the fill string – this means that the PacketSize attribute may be changed as a result of this call.

Parameters

fill	The string to use as the actual echo data bytes.

Definition at line 190 of file udp-echo-client.cc.

References m_data, m_dataSize, m_size, and NS_LOG_FUNCTION.

void ns3::UdpEchoClient::SetFill	(	uint8_t	fill,
		uint32_t	dataSize
	)

Set the data fill of the packet (what is sent as data to the server) to the repeated contents of the fill byte. i.e., the fill byte will be used to initialize the contents of the data packet.

Warning: The size of resulting echo packets will be automatically adjusted to reflect the dataSize parameter – this means that the PacketSize attribute may be changed as a result of this call.

Parameters

fill	The byte to be repeated in constructing the packet data..
dataSize	The desired size of the resulting echo packet data.

Definition at line 212 of file udp-echo-client.cc.

References m_data, m_dataSize, m_size, and NS_LOG_FUNCTION.

void ns3::UdpEchoClient::SetFill	(	uint8_t *	fill,
		uint32_t	fillSize,
		uint32_t	dataSize
	)

Set the data fill of the packet (what is sent as data to the server) to the contents of the fill buffer, repeated as many times as is required.

Initializing the packet to the contents of a provided single buffer is accomplished by setting the fillSize set to your desired dataSize (and providing an appropriate buffer).

Warning: The size of resulting echo packets will be automatically adjusted to reflect the dataSize parameter – this means that the PacketSize attribute of the Application may be changed as a result of this call.

Parameters

fill	The fill pattern to use when constructing packets.
fillSize	The number of bytes in the provided fill pattern.
dataSize	The desired size of the final echo data.

Definition at line 231 of file udp-echo-client.cc.

References m_data, m_dataSize, m_size, and NS_LOG_FUNCTION.
