A Udp server. Receives UDP packets from a remote host. UDP packets carry a 32bits sequence number followed by a 64bits time stamp in their payloads. The application uses, the sequence number to determine if a packet is lost, and the time stamp to compute the delay. More...

#include <udp-server.h>

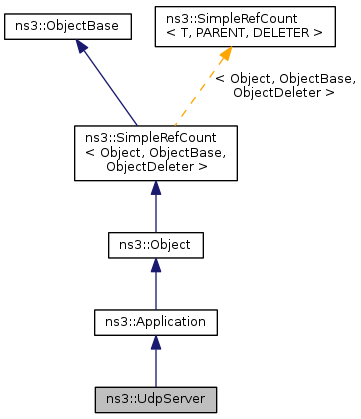

Inheritance diagram for ns3::UdpServer:

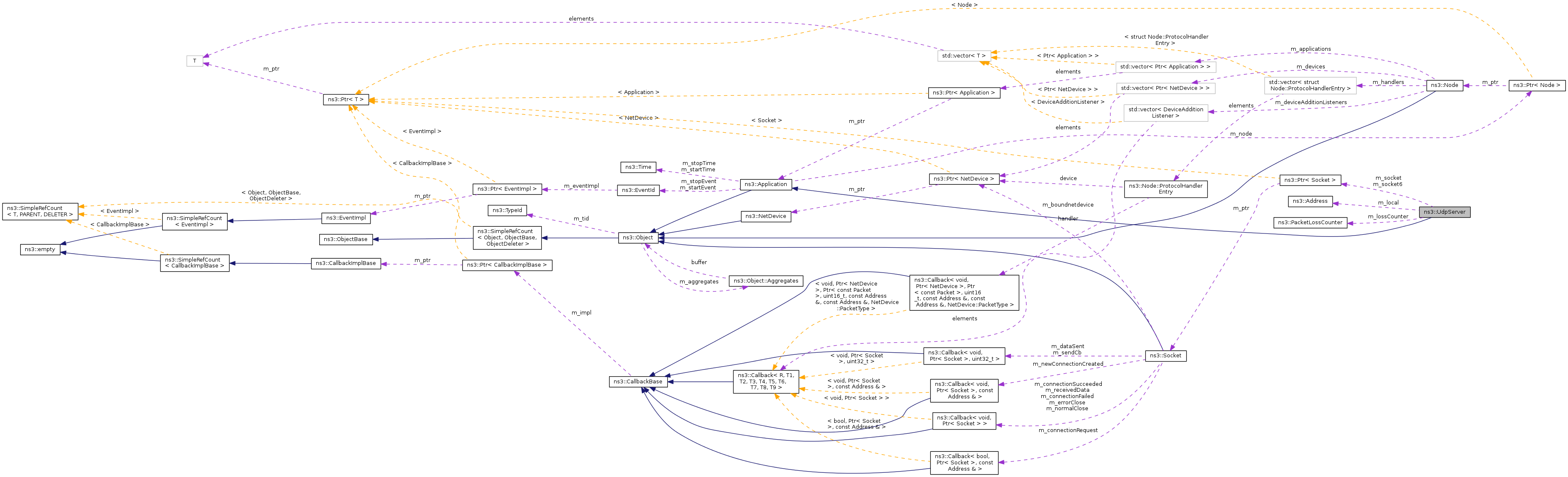

Collaboration diagram for ns3::UdpServer:

Public Member Functions
	UdpServer ()
virtual	~UdpServer ()
uint32_t	GetLost (void) const
uint16_t	GetPacketWindowSize () const

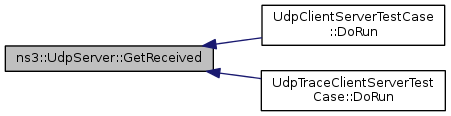

uint32_t	GetReceived (void) const
	returns the number of received packets
void	SetPacketWindowSize (uint16_t size)
	Set the size of the window used for checking loss. This value should be a multiple of 8.
Public Member Functions inherited from ns3::Application
	Application ()
virtual	~Application ()
Ptr< Node >	GetNode () const
void	SetNode (Ptr< Node > node)
void	SetStartTime (Time start)
	Specify application start time.
void	SetStopTime (Time stop)
	Specify application stop time.
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Initialize (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions

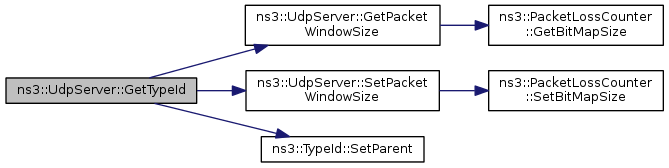

static TypeId	GetTypeId (void)

Protected Member Functions
virtual void	DoDispose (void)
Protected Member Functions inherited from ns3::Application
virtual void	DoInitialize (void)
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	NotifyNewAggregate (void)

Private Member Functions
void	HandleRead (Ptr< Socket > socket)
virtual void	StartApplication (void)
virtual void	StopApplication (void)

Private Attributes
Address	m_local
PacketLossCounter	m_lossCounter
uint16_t	m_port
uint32_t	m_received
Ptr< Socket >	m_socket
Ptr< Socket >	m_socket6

Additional Inherited Members
Protected Attributes inherited from ns3::Application
Ptr< Node >	m_node
EventId	m_startEvent
Time	m_startTime
EventId	m_stopEvent
Time	m_stopTime

Detailed Description

A Udp server. Receives UDP packets from a remote host. UDP packets carry a 32bits sequence number followed by a 64bits time stamp in their payloads. The application uses, the sequence number to determine if a packet is lost, and the time stamp to compute the delay.

Config Paths

ns3::UdpServer is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/ApplicationList/[i]/$ns3::UdpServer

Attributes

Port: Port on which we listen for incoming packets.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 100
- Flags: construct write read
PacketWindowSize: The size of the window used to compute the packet loss. This value should be a multiple of 8.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 8:256
- Initial value: 32
- Flags: construct write read

Attributes defined in parent class ns3::Application

StartTime: Time at which the application will start
- Set with class: TimeValue
- Underlying type: Time
- Initial value: +0.0ns
- Flags: construct write read
StopTime: Time at which the application will stop
- Set with class: TimeValue
- Underlying type: Time
- Initial value: +0.0ns
- Flags: construct write read

No TraceSources are defined for this type.

Definition at line 45 of file udp-server.h.

Constructor & Destructor Documentation

ns3::UdpServer::UdpServer ( )

Definition at line 64 of file udp-server.cc.

References m_received, and NS_LOG_FUNCTION.

ns3::UdpServer::~UdpServer ( )

virtual

Definition at line 71 of file udp-server.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::UdpServer::DoDispose ( void )

protectedvirtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Application.

Definition at line 105 of file udp-server.cc.

References NS_LOG_FUNCTION.

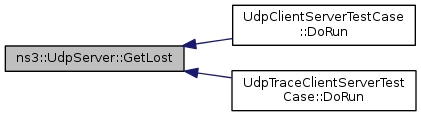

uint32_t ns3::UdpServer::GetLost ( void ) const

returns the number of lost packets
