ns3::UeMemberLteMacSapProvider Class Reference

Inheritance diagram for ns3::UeMemberLteMacSapProvider:

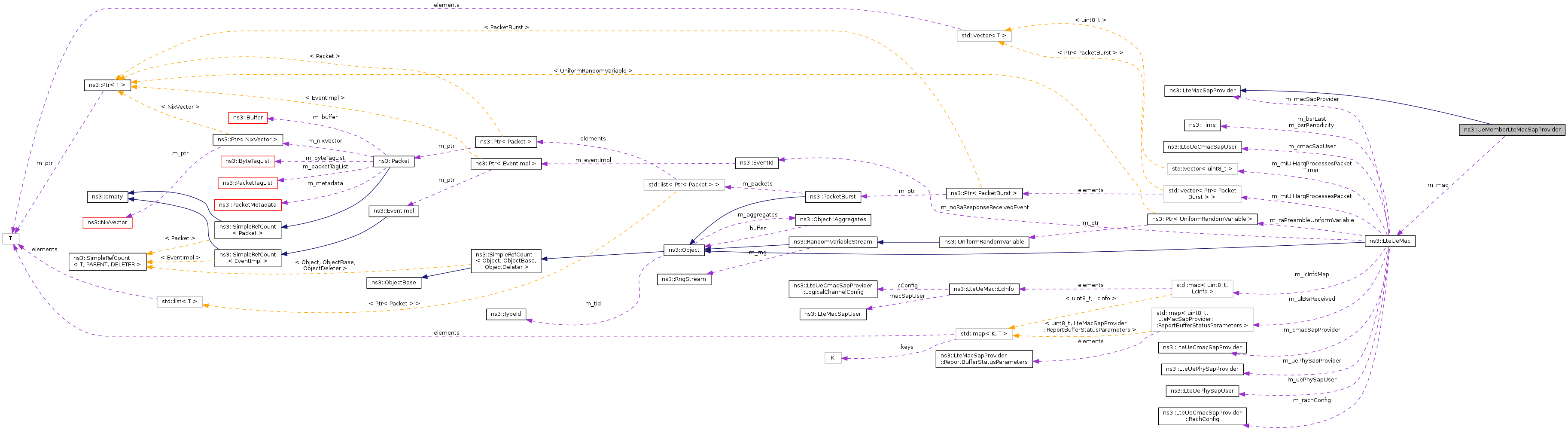

Collaboration diagram for ns3::UeMemberLteMacSapProvider:

Public Member Functions
	UeMemberLteMacSapProvider (LteUeMac *mac)
virtual void	ReportBufferStatus (ReportBufferStatusParameters params)
virtual void	TransmitPdu (TransmitPduParameters params)
Public Member Functions inherited from ns3::LteMacSapProvider
virtual	~LteMacSapProvider ()

Private Attributes
LteUeMac *	m_mac

Detailed Description

Definition at line 112 of file lte-ue-mac.cc.

Constructor & Destructor Documentation

ns3::UeMemberLteMacSapProvider::UeMemberLteMacSapProvider

(

LteUeMac *

mac

)

Definition at line 126 of file lte-ue-mac.cc.

Member Function Documentation

void ns3::UeMemberLteMacSapProvider::ReportBufferStatus ( ReportBufferStatusParameters  params )

virtual

Report the RLC buffer status to the MAC

Parameters

params

Implements ns3::LteMacSapProvider.

Definition at line 139 of file lte-ue-mac.cc.

References ns3::LteUeMac::DoReportBufferStatus(), and m_mac.

Here is the call graph for this function:

void ns3::UeMemberLteMacSapProvider::TransmitPdu ( TransmitPduParameters  params )

virtual

send an RLC PDU to the MAC for transmission. This method is to be called as a response to LteMacSapUser::NotifyTxOpportunity

Implements ns3::LteMacSapProvider.

Definition at line 132 of file lte-ue-mac.cc.

References ns3::LteUeMac::DoTransmitPdu(), and m_mac.

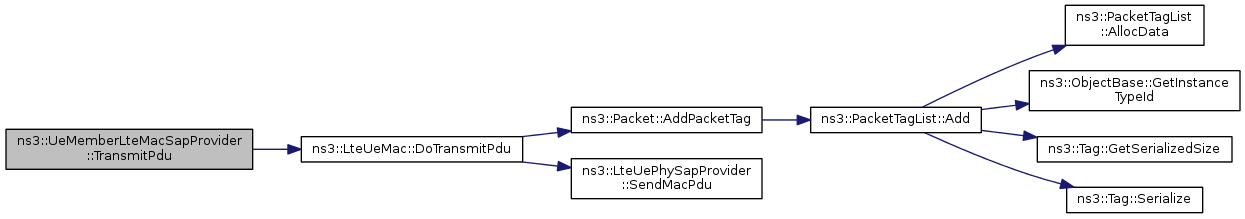

Here is the call graph for this function:

Member Data Documentation

LteUeMac* ns3::UeMemberLteMacSapProvider::m_mac

private

Definition at line 122 of file lte-ue-mac.cc.

Referenced by ReportBufferStatus(), and TransmitPdu().

---

The documentation for this class was generated from the following file:

• src/lte/model/lte-ue-mac.cc
