#include <wifi-phy-state-helper.h>

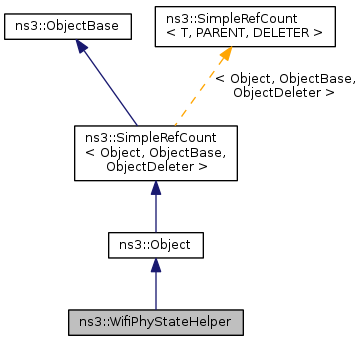

Inheritance diagram for ns3::WifiPhyStateHelper:

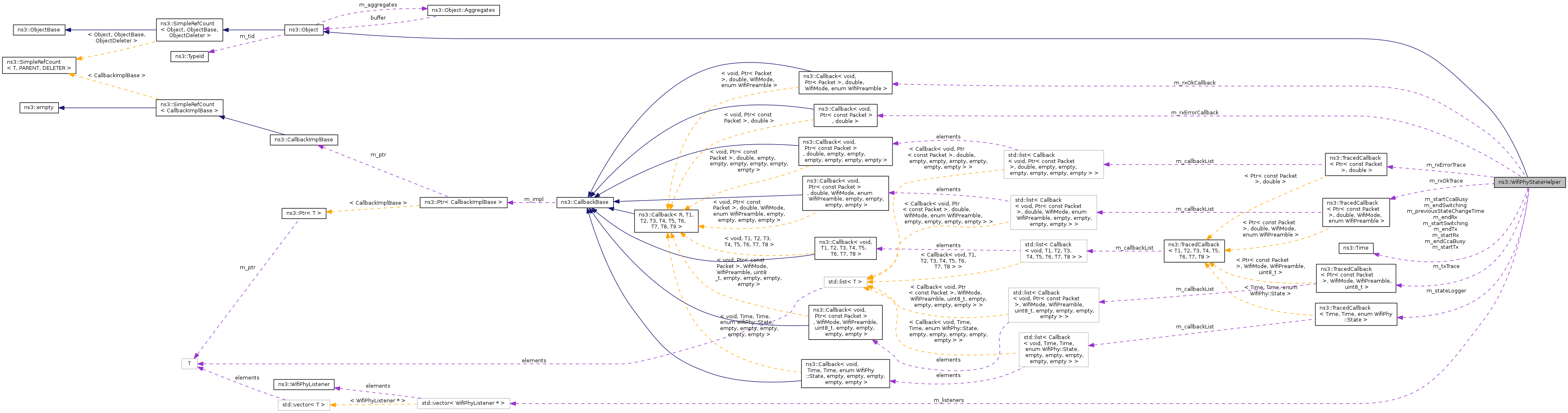

Collaboration diagram for ns3::WifiPhyStateHelper:

Public Member Functions
	WifiPhyStateHelper ()
Time	GetDelayUntilIdle (void)
Time	GetLastRxStartTime (void) const
enum WifiPhy::State	GetState (void)
Time	GetStateDuration (void)
bool	IsStateBusy (void)
bool	IsStateCcaBusy (void)
bool	IsStateIdle (void)
bool	IsStateRx (void)
bool	IsStateSwitching (void)
bool	IsStateTx (void)
void	RegisterListener (WifiPhyListener *listener)
void	SetReceiveErrorCallback (WifiPhy::RxErrorCallback callback)
void	SetReceiveOkCallback (WifiPhy::RxOkCallback callback)
void	SwitchFromRxEndError (Ptr< const Packet > packet, double snr)
void	SwitchFromRxEndOk (Ptr< Packet > packet, double snr, WifiMode mode, enum WifiPreamble preamble)
void	SwitchMaybeToCcaBusy (Time duration)
void	SwitchToChannelSwitching (Time switchingDuration)
void	SwitchToRx (Time rxDuration)
void	SwitchToTx (Time txDuration, Ptr< const Packet > packet, WifiMode txMode, WifiPreamble preamble, uint8_t txPower)
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Initialize (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Public Attributes
TracedCallback< Time, Time, enum WifiPhy::State >	m_stateLogger

Private Types
typedef std::vector < WifiPhyListener * >	Listeners

Private Member Functions
void	DoSwitchFromRx (void)
void	LogPreviousIdleAndCcaBusyStates (void)
void	NotifyMaybeCcaBusyStart (Time duration)
void	NotifyRxEndError (void)
void	NotifyRxEndOk (void)
void	NotifyRxStart (Time duration)
void	NotifySwitchingStart (Time duration)
void	NotifyTxStart (Time duration)
void	NotifyWakeup (void)

Private Attributes
Time	m_endCcaBusy
Time	m_endRx
Time	m_endSwitching
Time	m_endTx
Listeners	m_listeners
Time	m_previousStateChangeTime
WifiPhy::RxErrorCallback	m_rxErrorCallback
TracedCallback< Ptr< const Packet >, double >	m_rxErrorTrace
bool	m_rxing
WifiPhy::RxOkCallback	m_rxOkCallback
TracedCallback< Ptr< const Packet >, double, WifiMode, enum WifiPreamble >	m_rxOkTrace
Time	m_startCcaBusy
Time	m_startRx
Time	m_startSwitching
Time	m_startTx
TracedCallback< Ptr< const Packet >, WifiMode, WifiPreamble, uint8_t >	m_txTrace

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoDispose (void)
virtual void	DoInitialize (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

This objects implements the PHY state machine of the Wifi device.

Config Paths

ns3::WifiPhyStateHelper is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Phy/$ns3::YansWifiPhy/State

No Attributes are defined for this type.

TraceSources

State: The state of the PHY layer
RxOk: A packet has been received successfully.
RxError: A packet has been received unsuccessfully.
Tx: Packet transmission is starting.

Definition at line 35 of file wifi-phy-state-helper.h.

Member Typedef Documentation

typedef std::vector<WifiPhyListener *> ns3::WifiPhyStateHelper::Listeners

private

Definition at line 65 of file wifi-phy-state-helper.h.

Constructor & Destructor Documentation

ns3::WifiPhyStateHelper::WifiPhyStateHelper ( )

Definition at line 52 of file wifi-phy-state-helper.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::WifiPhyStateHelper::DoSwitchFromRx ( void )

private

Definition at line 392 of file wifi-phy-state-helper.cc.

References IsStateCcaBusy(), IsStateIdle(), IsStateRx(), m_previousStateChangeTime, m_rxing, m_startRx, m_stateLogger, ns3::Now(), NS_ASSERT, and ns3::WifiPhy::RX.

Referenced by SwitchFromRxEndError(), and SwitchFromRxEndOk().

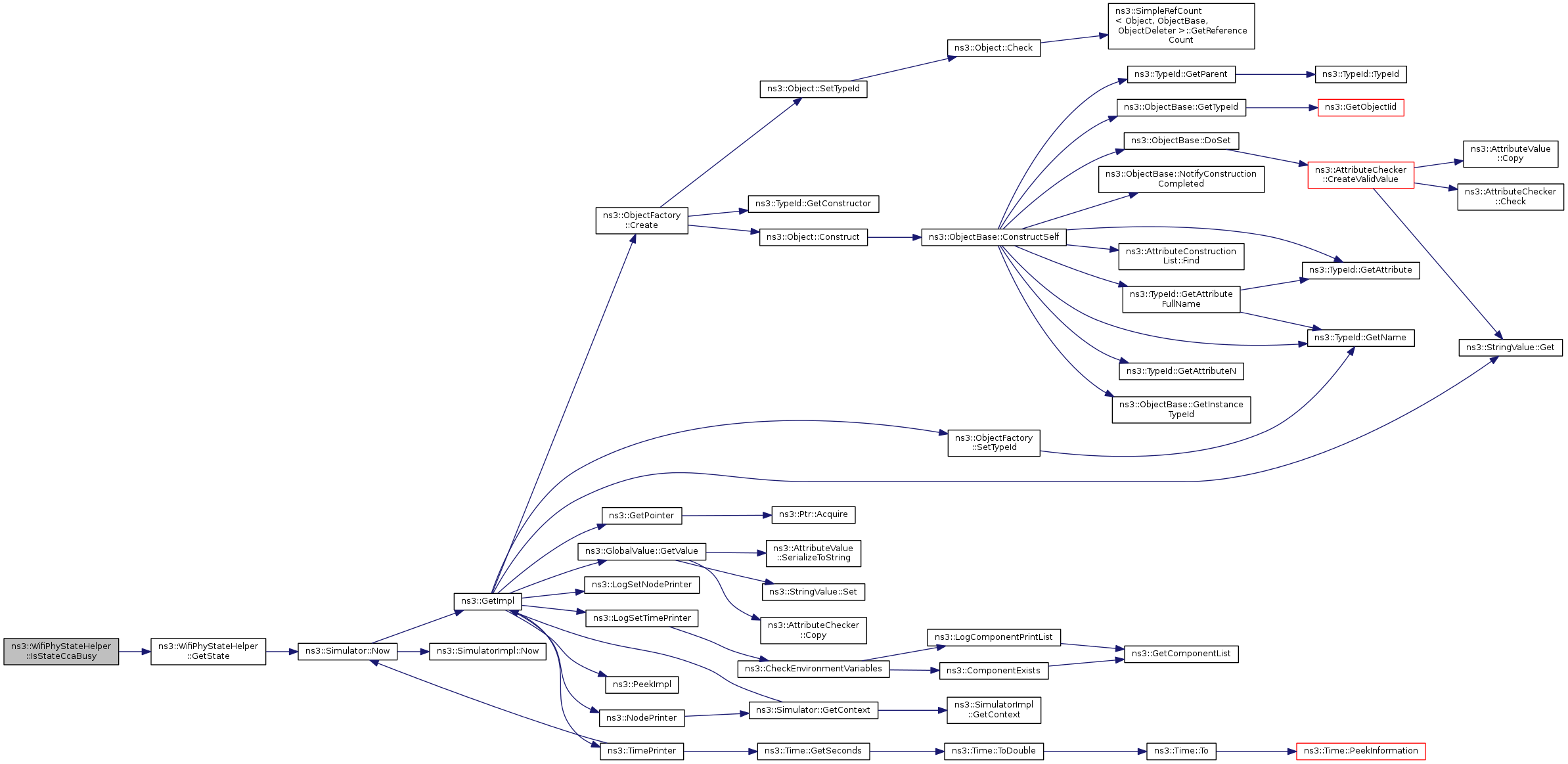

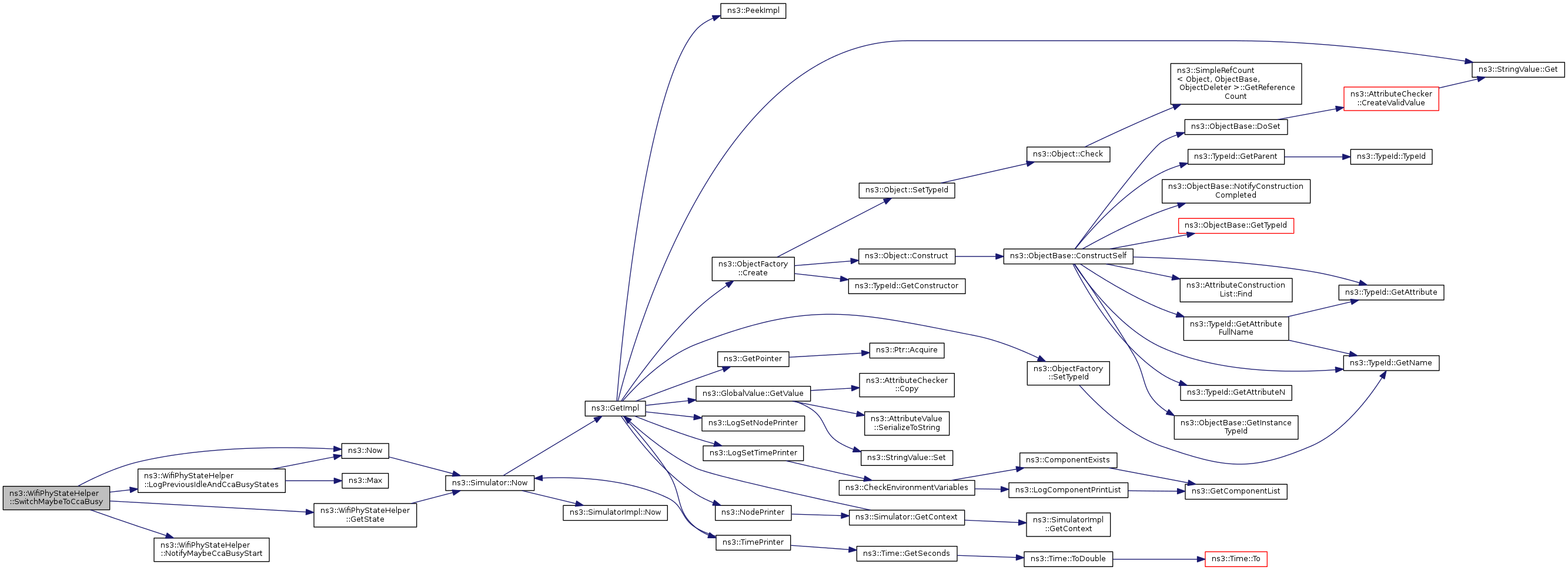

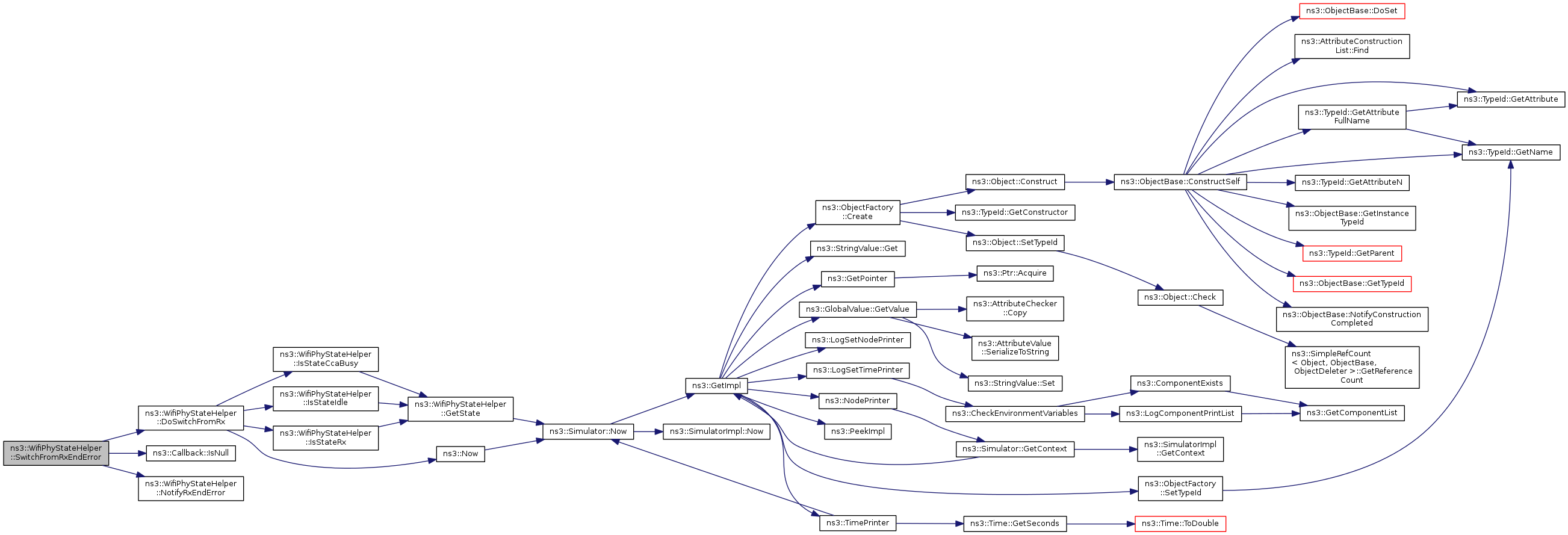

Here is the call graph for this function:

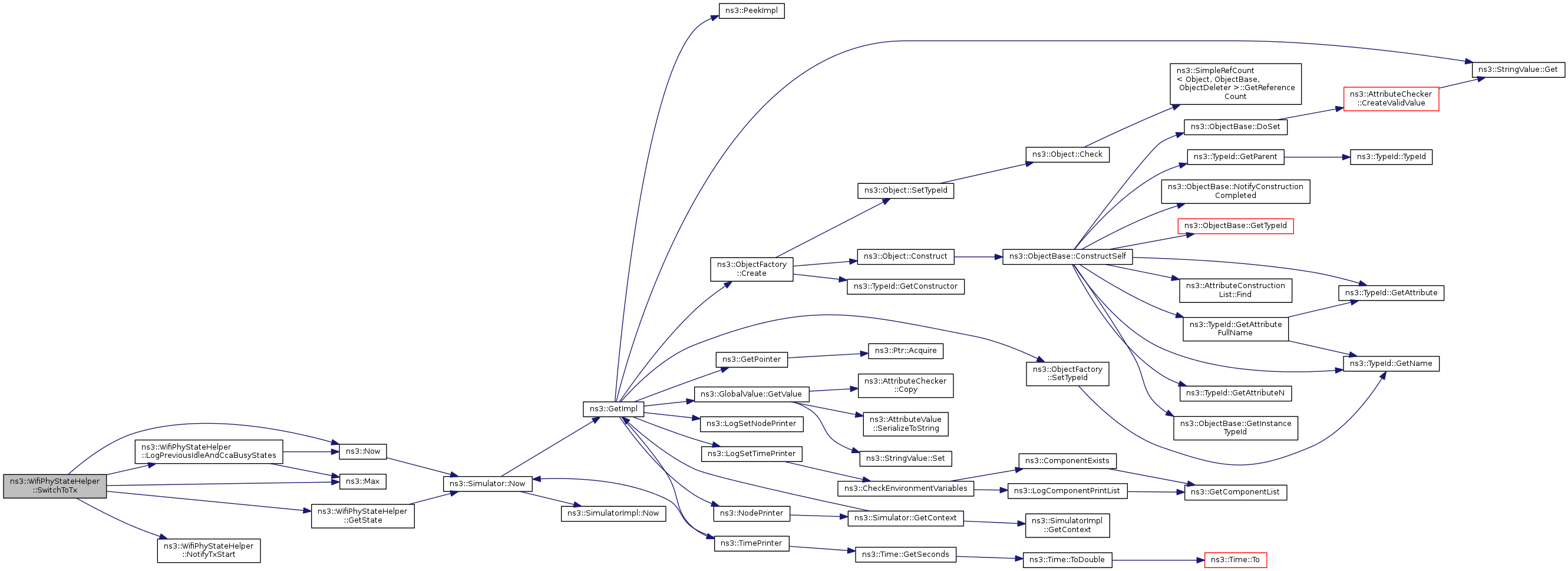

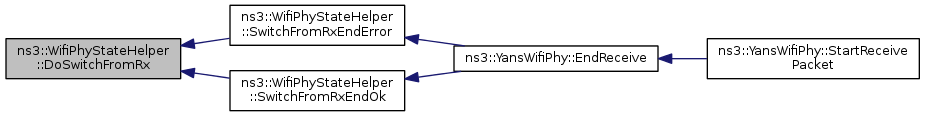

Here is the caller graph for this function:

Time ns3::WifiPhyStateHelper::GetDelayUntilIdle ( void )

Definition at line 123 of file wifi-phy-state-helper.cc.

References ns3::WifiPhy::CCA_BUSY, GetState(), ns3::WifiPhy::IDLE, m_endCcaBusy, m_endRx, m_endSwitching, m_endTx, ns3::Max(), ns3::Now(), NS_FATAL_ERROR, ns3::WifiPhy::RX, ns3::Seconds(), ns3::WifiPhy::SWITCHING, and ns3::WifiPhy::TX.

Referenced by ns3::YansWifiPhy::GetDelayUntilIdle(), and ns3::YansWifiPhy::StartReceivePacket().

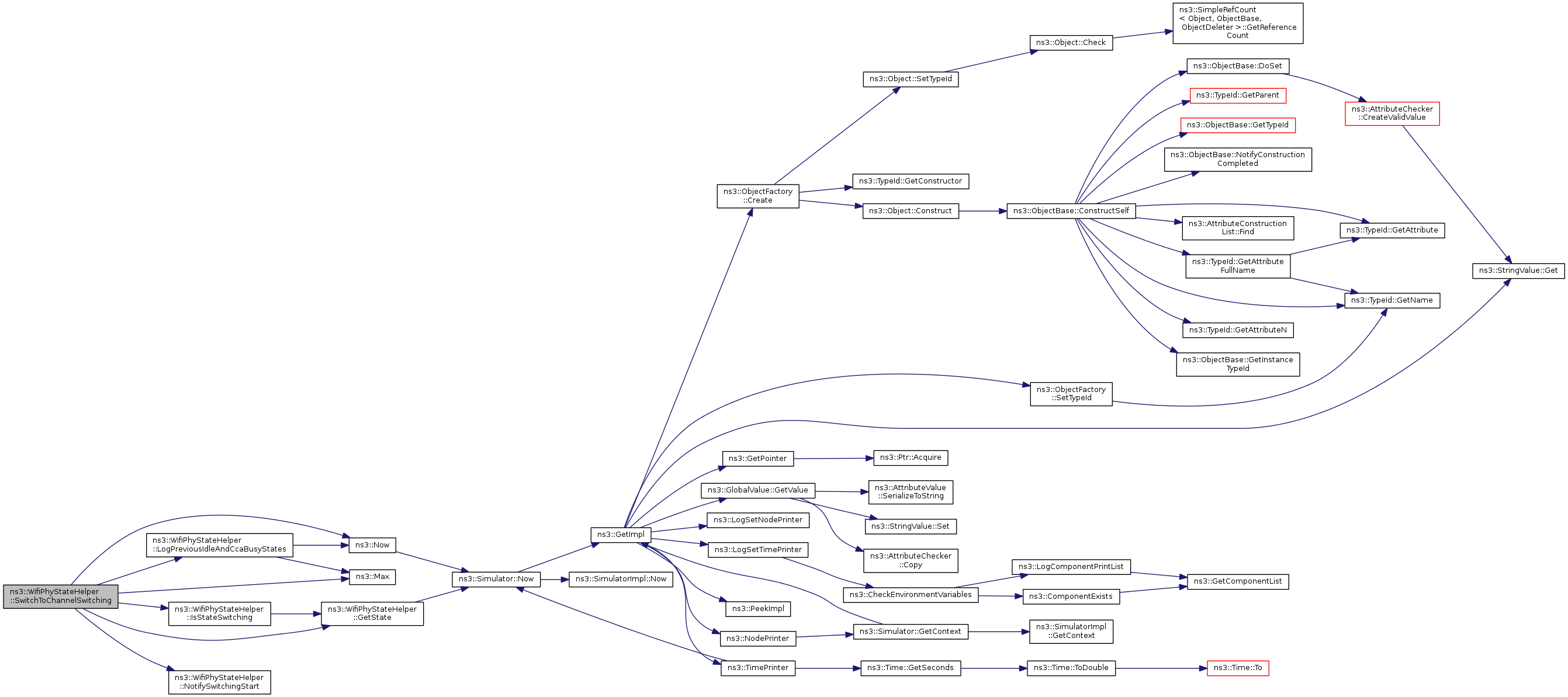

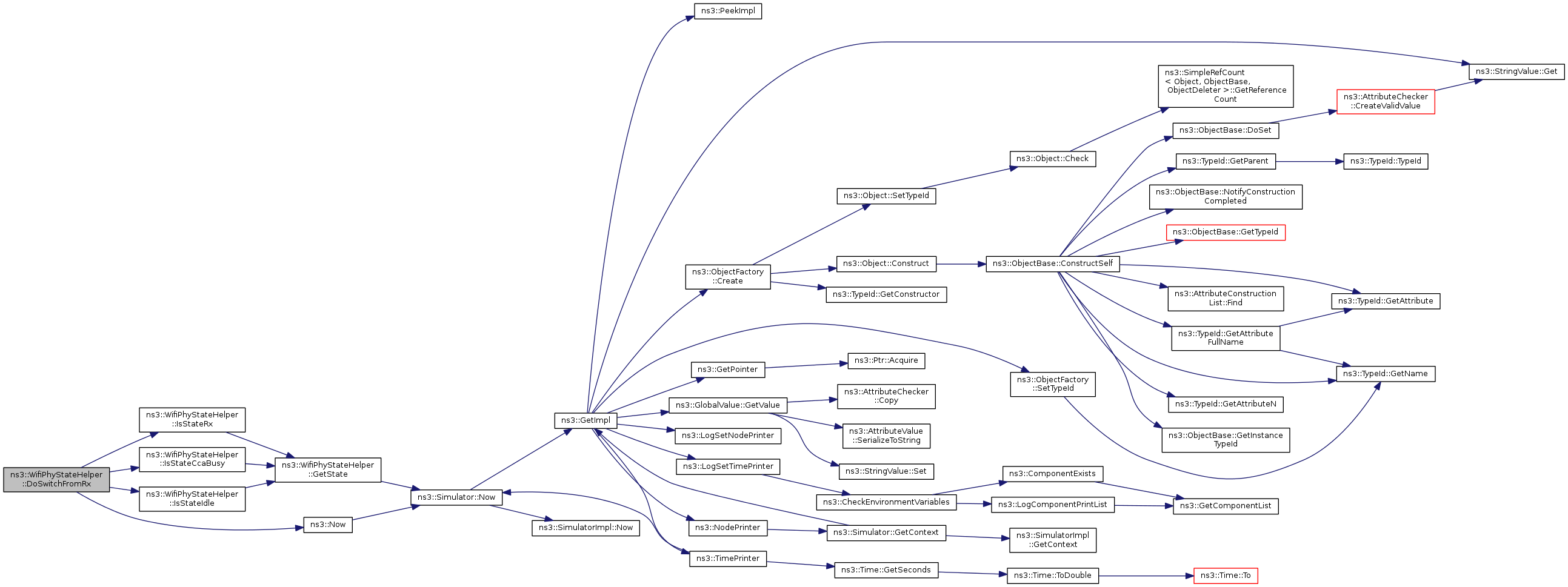

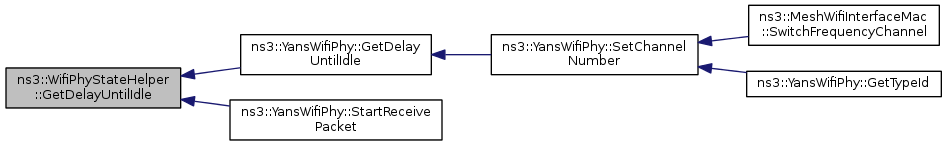

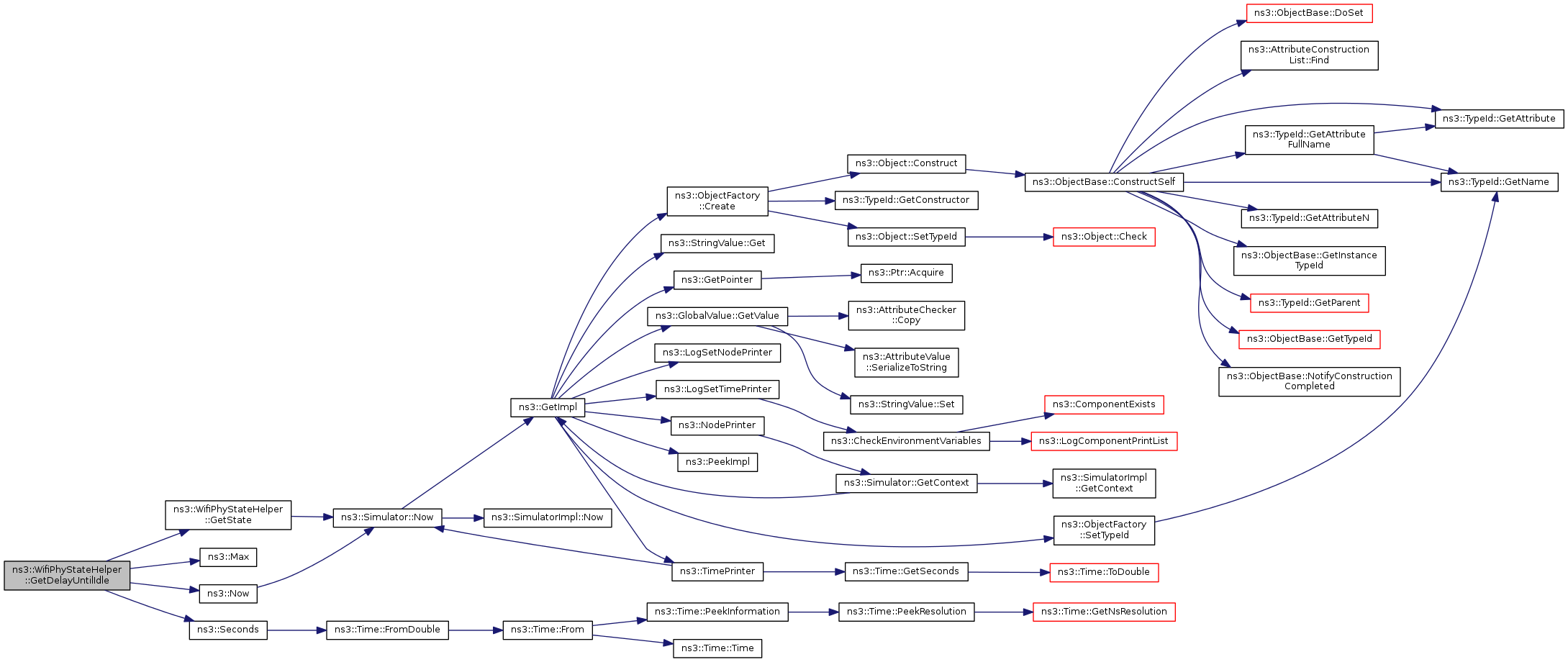

Here is the call graph for this function:

Here is the caller graph for this function:

Time ns3::WifiPhyStateHelper::GetLastRxStartTime ( void ) const

Definition at line 154 of file wifi-phy-state-helper.cc.

References m_startRx.

Referenced by ns3::YansWifiPhy::GetLastRxStartTime().

Here is the caller graph for this function:

enum WifiPhy::State ns3::WifiPhyStateHelper::GetState ( void )

Definition at line 160 of file wifi-phy-state-helper.cc.

References ns3::WifiPhy::CCA_BUSY, ns3::IDLE, m_endCcaBusy, m_endSwitching, m_endTx, m_rxing, ns3::Simulator::Now(), ns3::WifiPhy::RX, ns3::WifiPhy::SWITCHING, and ns3::WifiPhy::TX.

Referenced by GetDelayUntilIdle(), IsStateBusy(), IsStateCcaBusy(), IsStateIdle(), IsStateRx(), IsStateSwitching(), IsStateTx(), ns3::YansWifiPhy::SetChannelNumber(), ns3::YansWifiPhy::StartReceivePacket(), SwitchMaybeToCcaBusy(), SwitchToChannelSwitching(), SwitchToRx(), and SwitchToTx().

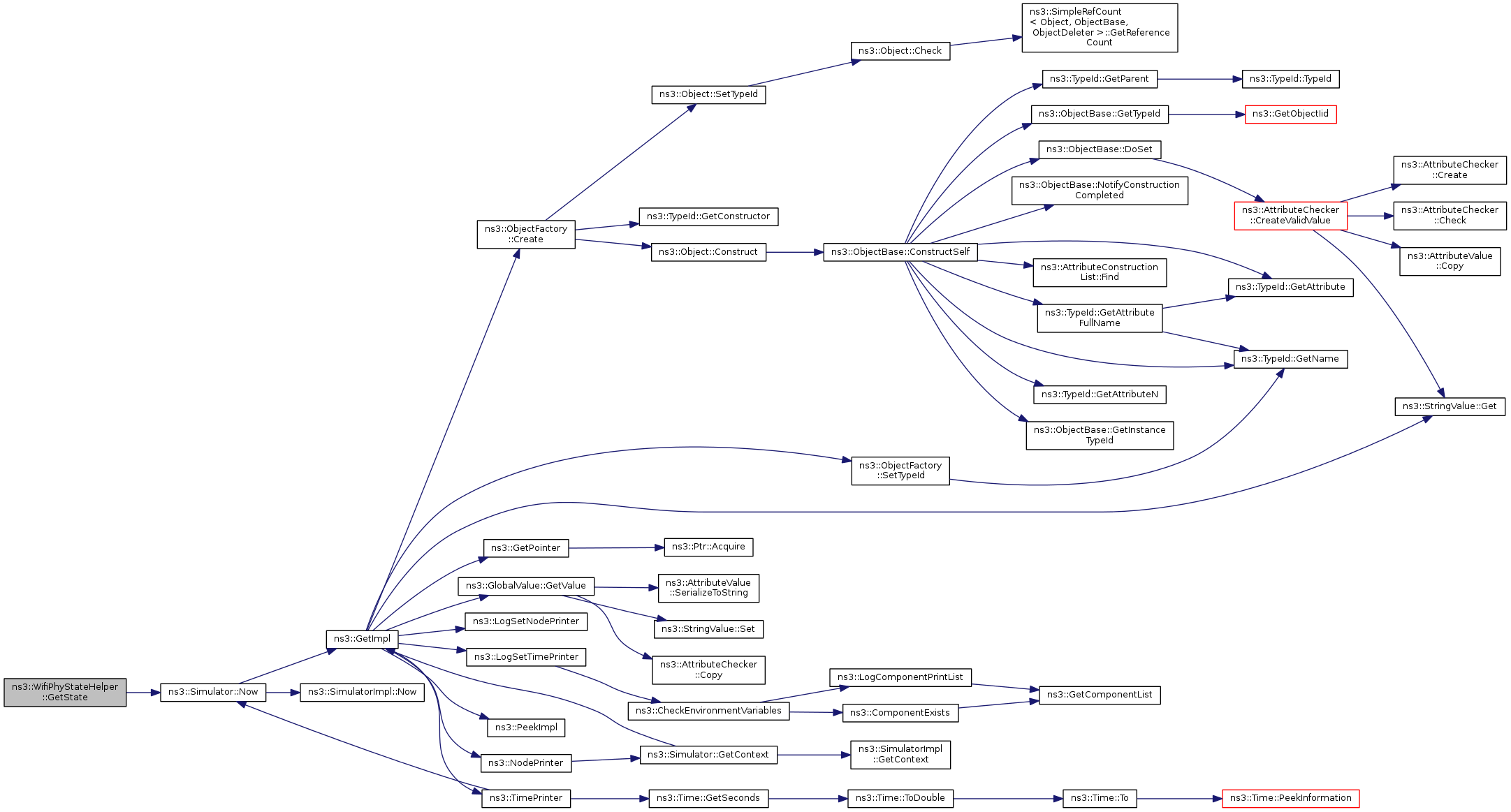

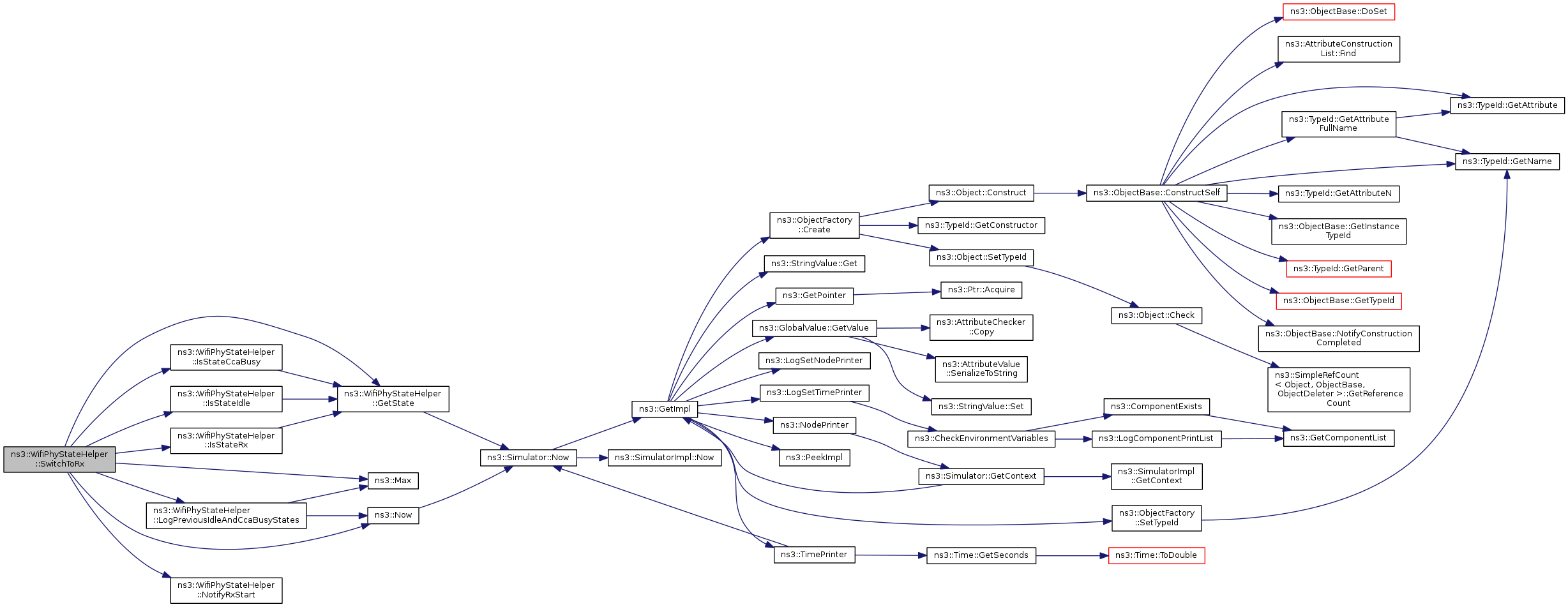

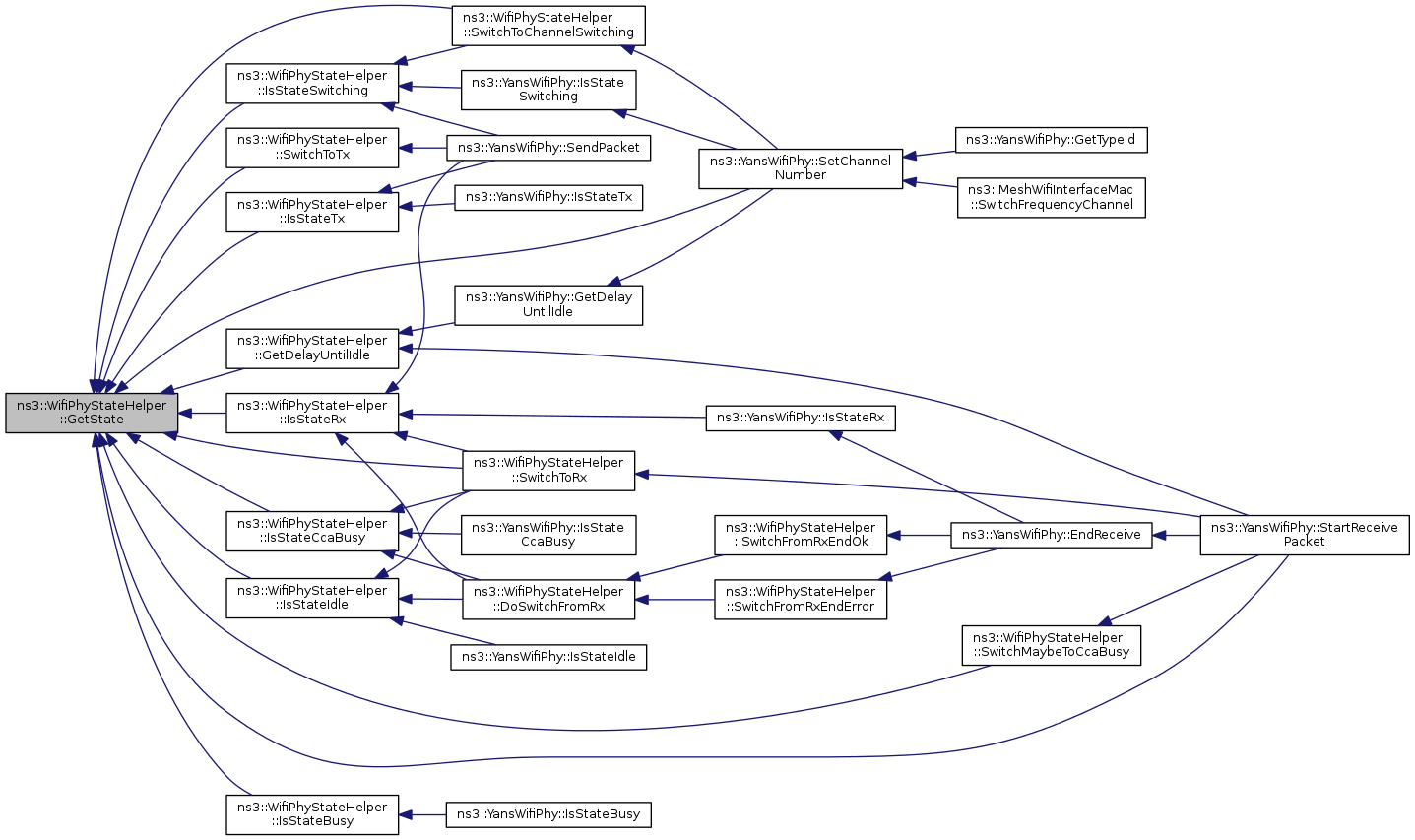

Here is the call graph for this function:

Here is the caller graph for this function:

Time ns3::WifiPhyStateHelper::GetStateDuration ( void )

Definition at line 117 of file wifi-phy-state-helper.cc.

References m_previousStateChangeTime, and ns3::Now().

Referenced by ns3::YansWifiPhy::GetStateDuration().

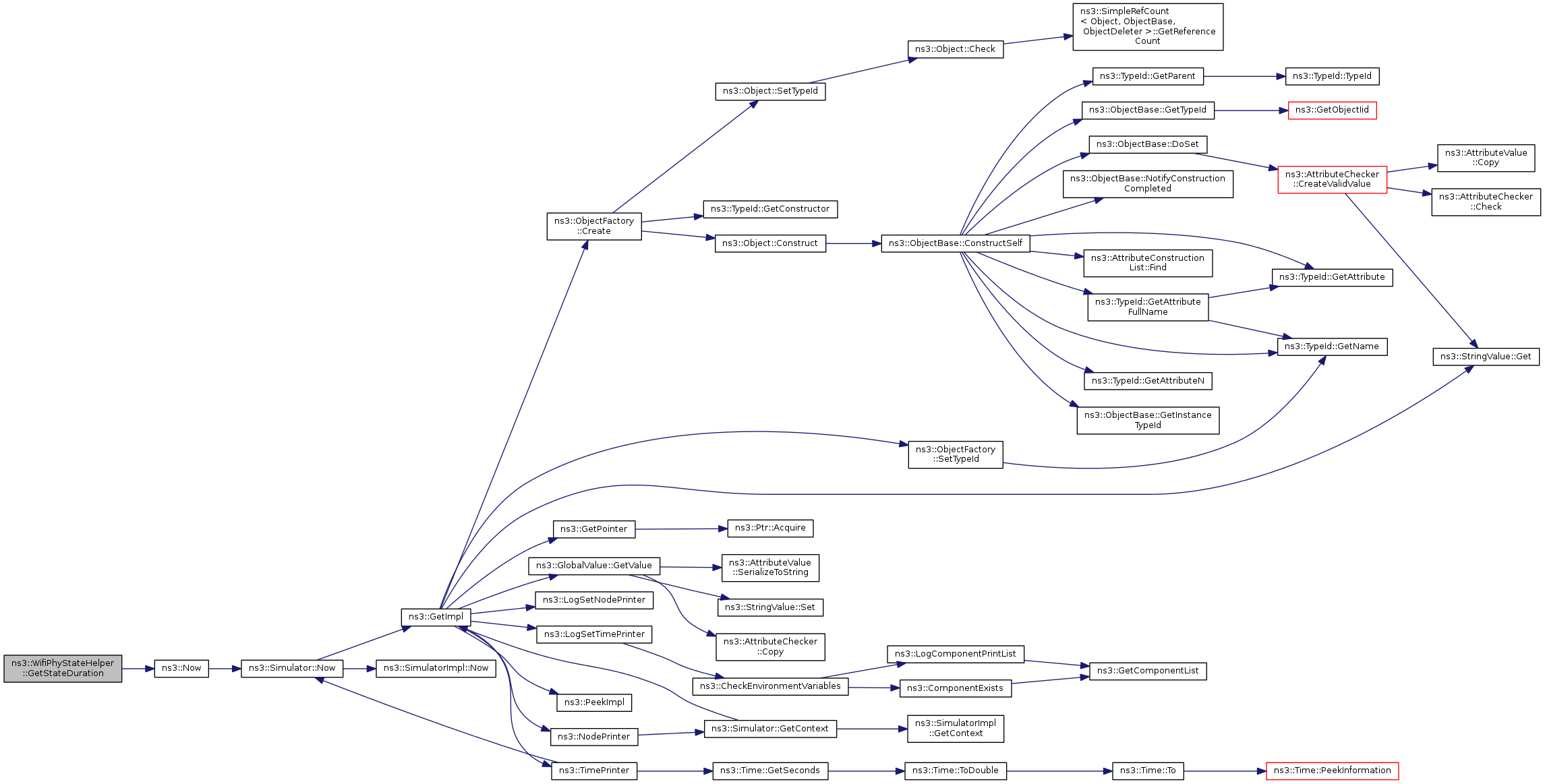

Here is the call graph for this function:

Here is the caller graph for this function:

TypeId ns3::WifiPhyStateHelper::GetTypeId ( void )

static

Reimplemented from ns3::Object.

Definition at line 32 of file wifi-phy-state-helper.cc.

References m_rxErrorTrace, m_rxOkTrace, m_stateLogger, m_txTrace, ns3::MakeTraceSourceAccessor(), and ns3::TypeId::SetParent().

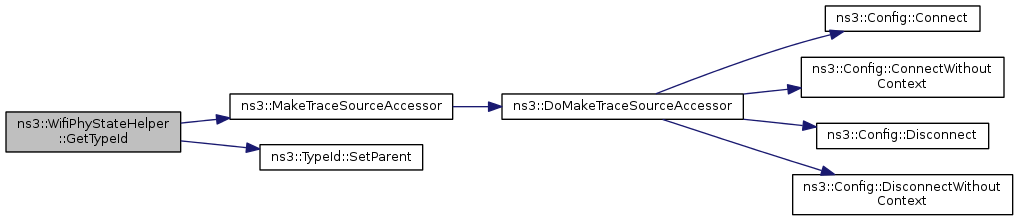

Here is the call graph for this function:

bool ns3::WifiPhyStateHelper::IsStateBusy ( void )

Definition at line 89 of file wifi-phy-state-helper.cc.

References GetState(), and ns3::WifiPhy::IDLE.

Referenced by ns3::YansWifiPhy::IsStateBusy().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::WifiPhyStateHelper::IsStateCcaBusy ( void )

Definition at line 94 of file wifi-phy-state-helper.cc.

References ns3::WifiPhy::CCA_BUSY, and GetState().

Referenced by DoSwitchFromRx(), ns3::YansWifiPhy::IsStateCcaBusy(), and SwitchToRx().

Here is the call graph for this function:

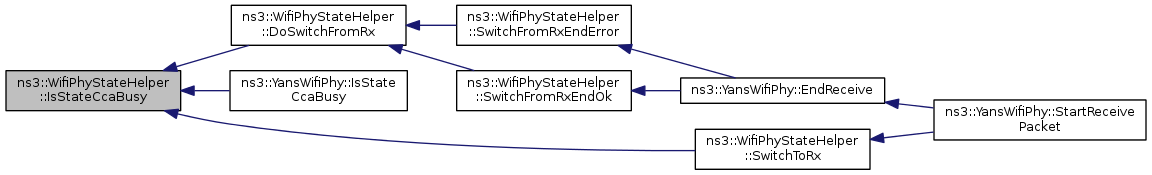

Here is the caller graph for this function:

bool ns3::WifiPhyStateHelper::IsStateIdle ( void )

Definition at line 84 of file wifi-phy-state-helper.cc.

References GetState(), and ns3::WifiPhy::IDLE.

Referenced by DoSwitchFromRx(), ns3::YansWifiPhy::IsStateIdle(), and SwitchToRx().

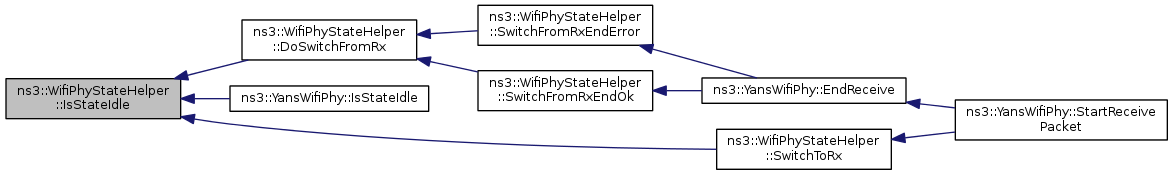

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::WifiPhyStateHelper::IsStateRx ( void )

Definition at line 99 of file wifi-phy-state-helper.cc.

References GetState(), and ns3::WifiPhy::RX.

Referenced by DoSwitchFromRx(), ns3::YansWifiPhy::IsStateRx(), ns3::YansWifiPhy::SendPacket(), and SwitchToRx().

Here is the call graph for this function:

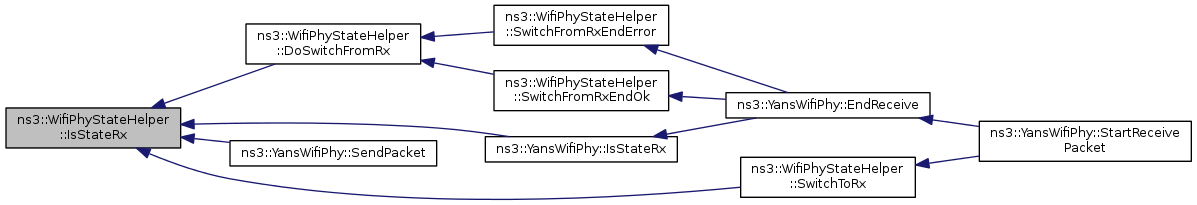

Here is the caller graph for this function:

bool ns3::WifiPhyStateHelper::IsStateSwitching ( void )

Definition at line 109 of file wifi-phy-state-helper.cc.

References GetState(), and ns3::WifiPhy::SWITCHING.

Referenced by ns3::YansWifiPhy::IsStateSwitching(), ns3::YansWifiPhy::SendPacket(), and SwitchToChannelSwitching().

Here is the call graph for this function:

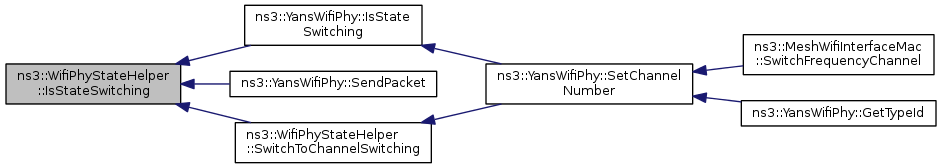

Here is the caller graph for this function:

bool ns3::WifiPhyStateHelper::IsStateTx ( void )

Definition at line 104 of file wifi-phy-state-helper.cc.

References GetState(), and ns3::WifiPhy::TX.

Referenced by ns3::YansWifiPhy::IsStateTx(), and ns3::YansWifiPhy::SendPacket().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::WifiPhyStateHelper::LogPreviousIdleAndCcaBusyStates ( void )

private

Definition at line 235 of file wifi-phy-state-helper.cc.

References ns3::WifiPhy::CCA_BUSY, ns3::WifiPhy::IDLE, m_endCcaBusy, m_endRx, m_endSwitching, m_endTx, m_startCcaBusy, m_stateLogger, ns3::Max(), ns3::Now(), and NS_ASSERT.

Referenced by SwitchMaybeToCcaBusy(), SwitchToChannelSwitching(), SwitchToRx(), and SwitchToTx().

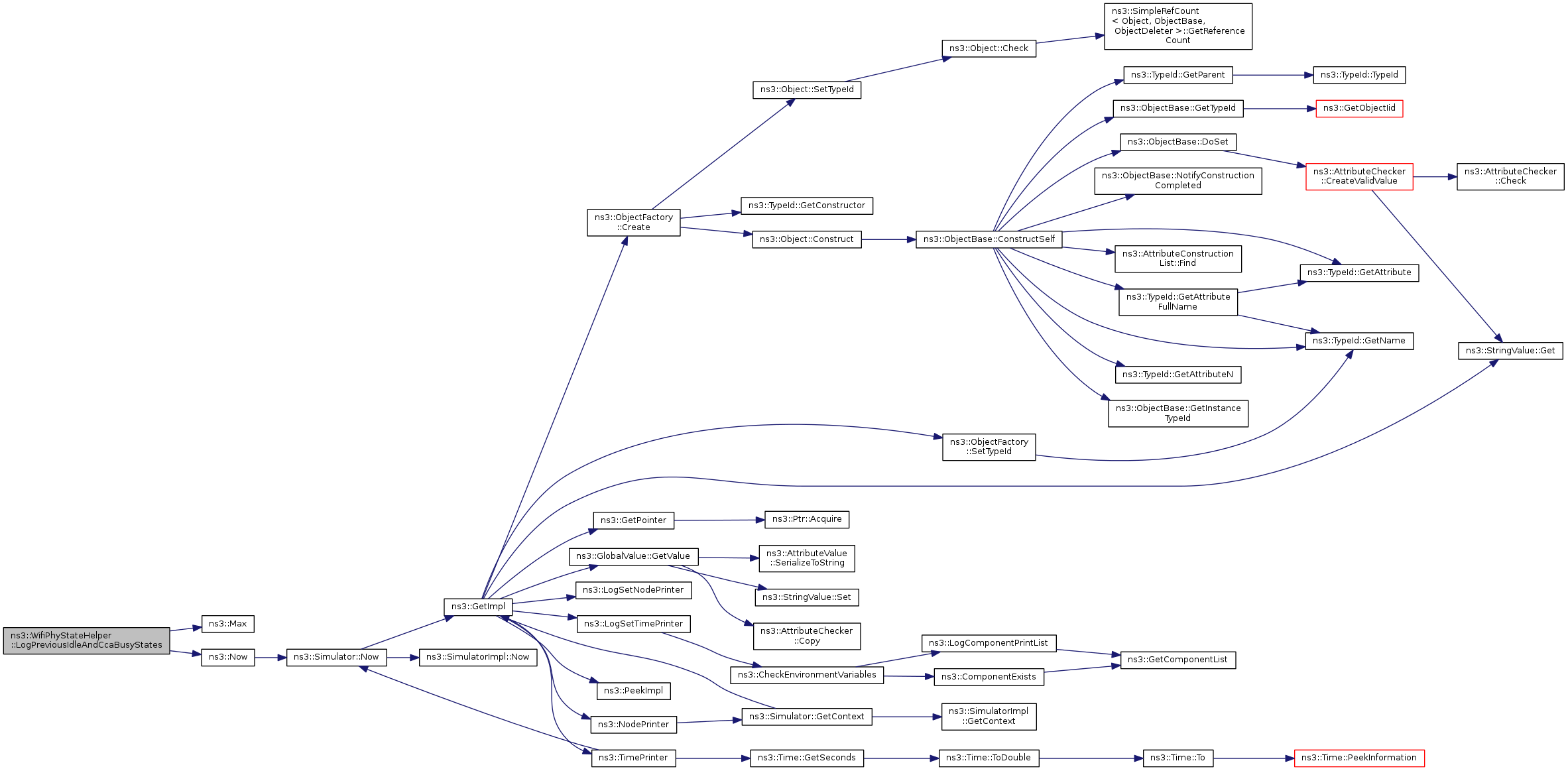

Here is the call graph for this function:

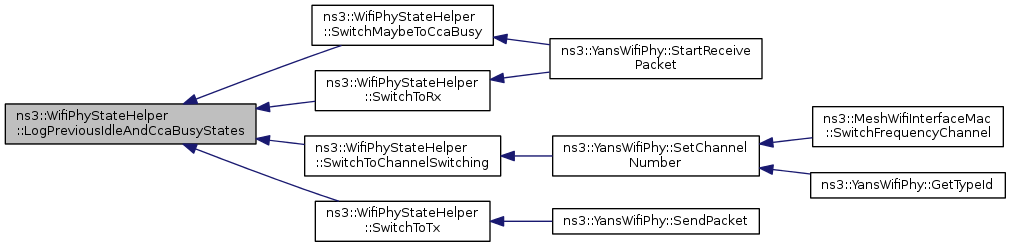

Here is the caller graph for this function:

void ns3::WifiPhyStateHelper::NotifyMaybeCcaBusyStart ( Time duration )

private

Definition at line 218 of file wifi-phy-state-helper.cc.

References m_listeners.

Referenced by SwitchMaybeToCcaBusy().

Here is the caller graph for this function:

void ns3::WifiPhyStateHelper::NotifyRxEndError ( void )

private

Definition at line 210 of file wifi-phy-state-helper.cc.

References m_listeners.

Referenced by SwitchFromRxEndError().

Here is the caller graph for this function:

void ns3::WifiPhyStateHelper::NotifyRxEndOk ( void )

private

Definition at line 202 of file wifi-phy-state-helper.cc.

References m_listeners.

Referenced by SwitchFromRxEndOk().

Here is the caller graph for this function:

void ns3::WifiPhyStateHelper::NotifyRxStart ( Time duration )

private

Definition at line 194 of file wifi-phy-state-helper.cc.

References m_listeners.

Referenced by SwitchToRx().

Here is the caller graph for this function:

void ns3::WifiPhyStateHelper::NotifySwitchingStart ( Time duration )

private

Definition at line 226 of file wifi-phy-state-helper.cc.

References m_listeners.

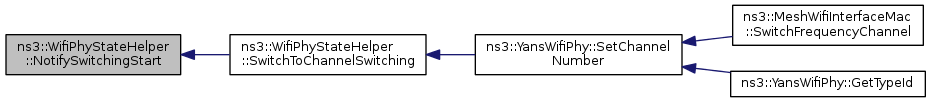

Referenced by SwitchToChannelSwitching().

Here is the caller graph for this function:

void ns3::WifiPhyStateHelper::NotifyTxStart ( Time duration )

private

Definition at line 186 of file wifi-phy-state-helper.cc.

References m_listeners.

Referenced by SwitchToTx().

Here is the caller graph for this function:

void ns3::WifiPhyStateHelper::NotifyWakeup ( void )

private

void ns3::WifiPhyStateHelper::RegisterListener ( WifiPhyListener * listener )

Definition at line 78 of file wifi-phy-state-helper.cc.

References m_listeners.

Referenced by ns3::YansWifiPhy::RegisterListener().

Here is the caller graph for this function:

void ns3::WifiPhyStateHelper::SetReceiveErrorCallback ( WifiPhy::RxErrorCallback callback )

Definition at line 73 of file wifi-phy-state-helper.cc.

References m_rxErrorCallback.

Referenced by ns3::YansWifiPhy::SetReceiveErrorCallback().

Here is the caller graph for this function:

void ns3::WifiPhyStateHelper::SetReceiveOkCallback ( WifiPhy::RxOkCallback callback )

Definition at line 68 of file wifi-phy-state-helper.cc.

References m_rxOkCallback.

Referenced by ns3::YansWifiPhy::SetReceiveOkCallback().

Here is the caller graph for this function:

void ns3::WifiPhyStateHelper::SwitchFromRxEndError	(	Ptr< const Packet >	packet,
		double	snr
	)

Definition at line 380 of file wifi-phy-state-helper.cc.

References DoSwitchFromRx(), ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), m_rxErrorCallback, m_rxErrorTrace, and NotifyRxEndError().

Referenced by ns3::YansWifiPhy::EndReceive().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::WifiPhyStateHelper::SwitchFromRxEndOk	(	Ptr< Packet >	packet,
		double	snr,
		WifiMode	mode,
		enum WifiPreamble	preamble
	)

Definition at line 368 of file wifi-phy-state-helper.cc.

References DoSwitchFromRx(), ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), m_rxOkCallback, m_rxOkTrace, and NotifyRxEndOk().

Referenced by ns3::YansWifiPhy::EndReceive().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::WifiPhyStateHelper::SwitchMaybeToCcaBusy ( Time duration )

Definition at line 405 of file wifi-phy-state-helper.cc.

References ns3::WifiPhy::CCA_BUSY, GetState(), ns3::WifiPhy::IDLE, LogPreviousIdleAndCcaBusyStates(), m_endCcaBusy, m_startCcaBusy, NotifyMaybeCcaBusyStart(), ns3::Now(), ns3::WifiPhy::RX, ns3::WifiPhy::SWITCHING, and ns3::WifiPhy::TX.

Referenced by ns3::YansWifiPhy::StartReceivePacket().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::WifiPhyStateHelper::SwitchToChannelSwitching ( Time switchingDuration )

Definition at line 324 of file wifi-phy-state-helper.cc.

References ns3::WifiPhy::CCA_BUSY, GetState(), ns3::WifiPhy::IDLE, IsStateSwitching(), LogPreviousIdleAndCcaBusyStates(), m_endCcaBusy, m_endRx, m_endSwitching, m_endTx, m_previousStateChangeTime, m_rxing, m_startCcaBusy, m_startRx, m_startSwitching, m_stateLogger, ns3::Max(), NotifySwitchingStart(), ns3::Now(), NS_ASSERT, NS_FATAL_ERROR, ns3::WifiPhy::RX, ns3::WifiPhy::SWITCHING, and ns3::WifiPhy::TX.

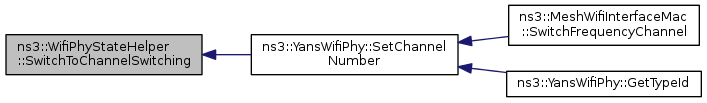

Referenced by ns3::YansWifiPhy::SetChannelNumber().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::WifiPhyStateHelper::SwitchToRx ( Time rxDuration )

Definition at line 292 of file wifi-phy-state-helper.cc.

References ns3::WifiPhy::CCA_BUSY, GetState(), ns3::WifiPhy::IDLE, IsStateCcaBusy(), IsStateIdle(), IsStateRx(), LogPreviousIdleAndCcaBusyStates(), m_endRx, m_endSwitching, m_endTx, m_previousStateChangeTime, m_rxing, m_startCcaBusy, m_startRx, m_stateLogger, ns3::Max(), NotifyRxStart(), ns3::Now(), NS_ASSERT, NS_FATAL_ERROR, ns3::WifiPhy::RX, ns3::WifiPhy::SWITCHING, and ns3::WifiPhy::TX.

Referenced by ns3::YansWifiPhy::StartReceivePacket().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::WifiPhyStateHelper::SwitchToTx	(	Time	txDuration,
		Ptr< const Packet >	packet,
		WifiMode	txMode,
		WifiPreamble	preamble,
		uint8_t	txPower
	)

Definition at line 255 of file wifi-phy-state-helper.cc.

References ns3::WifiPhy::CCA_BUSY, GetState(), ns3::WifiPhy::IDLE, LogPreviousIdleAndCcaBusyStates(), m_endRx, m_endSwitching, m_endTx, m_previousStateChangeTime, m_rxing, m_startCcaBusy, m_startRx, m_startTx, m_stateLogger, m_txTrace, ns3::Max(), NotifyTxStart(), ns3::Now(), NS_FATAL_ERROR, ns3::WifiPhy::RX, ns3::WifiPhy::SWITCHING, and ns3::WifiPhy::TX.

Referenced by ns3::YansWifiPhy::SendPacket().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

Time ns3::WifiPhyStateHelper::m_endCcaBusy

private

Definition at line 81 of file wifi-phy-state-helper.h.

Referenced by GetDelayUntilIdle(), GetState(), LogPreviousIdleAndCcaBusyStates(), SwitchMaybeToCcaBusy(), and SwitchToChannelSwitching().

Time ns3::WifiPhyStateHelper::m_endRx

private

Definition at line 80 of file wifi-phy-state-helper.h.

Referenced by GetDelayUntilIdle(), LogPreviousIdleAndCcaBusyStates(), SwitchToChannelSwitching(), SwitchToRx(), and SwitchToTx().

Time ns3::WifiPhyStateHelper::m_endSwitching

private

Definition at line 82 of file wifi-phy-state-helper.h.

Referenced by GetDelayUntilIdle(), GetState(), LogPreviousIdleAndCcaBusyStates(), SwitchToChannelSwitching(), SwitchToRx(), and SwitchToTx().

Time ns3::WifiPhyStateHelper::m_endTx

private

Definition at line 79 of file wifi-phy-state-helper.h.

Referenced by GetDelayUntilIdle(), GetState(), LogPreviousIdleAndCcaBusyStates(), SwitchToChannelSwitching(), SwitchToRx(), and SwitchToTx().

Listeners ns3::WifiPhyStateHelper::m_listeners

private

Definition at line 89 of file wifi-phy-state-helper.h.

Referenced by NotifyMaybeCcaBusyStart(), NotifyRxEndError(), NotifyRxEndOk(), NotifyRxStart(), NotifySwitchingStart(), NotifyTxStart(), and RegisterListener().

Time ns3::WifiPhyStateHelper::m_previousStateChangeTime

private

Definition at line 87 of file wifi-phy-state-helper.h.

Referenced by DoSwitchFromRx(), GetStateDuration(), SwitchToChannelSwitching(), SwitchToRx(), and SwitchToTx().

WifiPhy::RxErrorCallback ns3::WifiPhyStateHelper::m_rxErrorCallback

private

Definition at line 94 of file wifi-phy-state-helper.h.

Referenced by SetReceiveErrorCallback(), and SwitchFromRxEndError().

TracedCallback<Ptr<const Packet>, double> ns3::WifiPhyStateHelper::m_rxErrorTrace

private

Definition at line 91 of file wifi-phy-state-helper.h.

Referenced by GetTypeId(), and SwitchFromRxEndError().

bool ns3::WifiPhyStateHelper::m_rxing

private

Definition at line 78 of file wifi-phy-state-helper.h.

Referenced by DoSwitchFromRx(), GetState(), SwitchToChannelSwitching(), SwitchToRx(), and SwitchToTx().

WifiPhy::RxOkCallback ns3::WifiPhyStateHelper::m_rxOkCallback

private

Definition at line 93 of file wifi-phy-state-helper.h.

Referenced by SetReceiveOkCallback(), and SwitchFromRxEndOk().

TracedCallback<Ptr<const Packet>, double, WifiMode, enum WifiPreamble> ns3::WifiPhyStateHelper::m_rxOkTrace

private

Definition at line 90 of file wifi-phy-state-helper.h.

Referenced by GetTypeId(), and SwitchFromRxEndOk().

Time ns3::WifiPhyStateHelper::m_startCcaBusy

private

Definition at line 85 of file wifi-phy-state-helper.h.

Referenced by LogPreviousIdleAndCcaBusyStates(), SwitchMaybeToCcaBusy(), SwitchToChannelSwitching(), SwitchToRx(), and SwitchToTx().

Time ns3::WifiPhyStateHelper::m_startRx

private

Definition at line 84 of file wifi-phy-state-helper.h.

Referenced by DoSwitchFromRx(), GetLastRxStartTime(), SwitchToChannelSwitching(), SwitchToRx(), and SwitchToTx().

Time ns3::WifiPhyStateHelper::m_startSwitching

private

Definition at line 86 of file wifi-phy-state-helper.h.

Referenced by SwitchToChannelSwitching().

Time ns3::WifiPhyStateHelper::m_startTx

private

Definition at line 83 of file wifi-phy-state-helper.h.

Referenced by SwitchToTx().

TracedCallback<Time,Time,enum WifiPhy::State> ns3::WifiPhyStateHelper::m_stateLogger

Definition at line 63 of file wifi-phy-state-helper.h.

Referenced by DoSwitchFromRx(), GetTypeId(), LogPreviousIdleAndCcaBusyStates(), SwitchToChannelSwitching(), SwitchToRx(), and SwitchToTx().

TracedCallback<Ptr<const Packet>,WifiMode,WifiPreamble,uint8_t> ns3::WifiPhyStateHelper::m_txTrace

private

Definition at line 92 of file wifi-phy-state-helper.h.

Referenced by GetTypeId(), and SwitchToTx().

The documentation for this class was generated from the following files:

src/wifi/model/wifi-phy-state-helper.h
src/wifi/model/wifi-phy-state-helper.cc

Public Member Functions

Static Public Member Functions

Public Attributes

Private Types

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Config Paths

TraceSources

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
