ns3::dsr::ReceivedRreqEntry Class Reference

#include <dsr-rreq-table.h>

Collaboration diagram for ns3::dsr::ReceivedRreqEntry:

Public Member Functions
	ReceivedRreqEntry (Ipv4Address d=Ipv4Address(), uint16_t i=0)
bool	operator== (ReceivedRreqEntry const &o) const
	Compare send buffer entries.
Ipv4Address	GetDestination () const
void	SetDestination (Ipv4Address d)
Ipv4Address	GetSource () const
void	SetSource (Ipv4Address s)
uint16_t	GetIdentification () const
void	SetIdentification (uint16_t i)
void	SetExpireTime (Time exp)
Time	GetExpireTime () const

Private Attributes
Ipv4Address	m_destination
Time	m_expire
uint16_t	m_identification
Ipv4Address	m_source

Detailed Description

The request entry for intermediate nodes to check if they have received this request or not This is used to control the duplication request from being processed

Definition at line 77 of file dsr-rreq-table.h.

Constructor & Destructor Documentation

ns3::dsr::ReceivedRreqEntry::ReceivedRreqEntry ( Ipv4Address  d = Ipv4Address (), uint16_t  i = 0  )

inline

Definition at line 81 of file dsr-rreq-table.h.

Member Function Documentation

Ipv4Address ns3::dsr::ReceivedRreqEntry::GetDestination ( void  ) const

inline

Definition at line 97 of file dsr-rreq-table.h.

References m_destination.

Time ns3::dsr::ReceivedRreqEntry::GetExpireTime ( ) const

inline

Definition at line 125 of file dsr-rreq-table.h.

References m_expire, and ns3::Now().

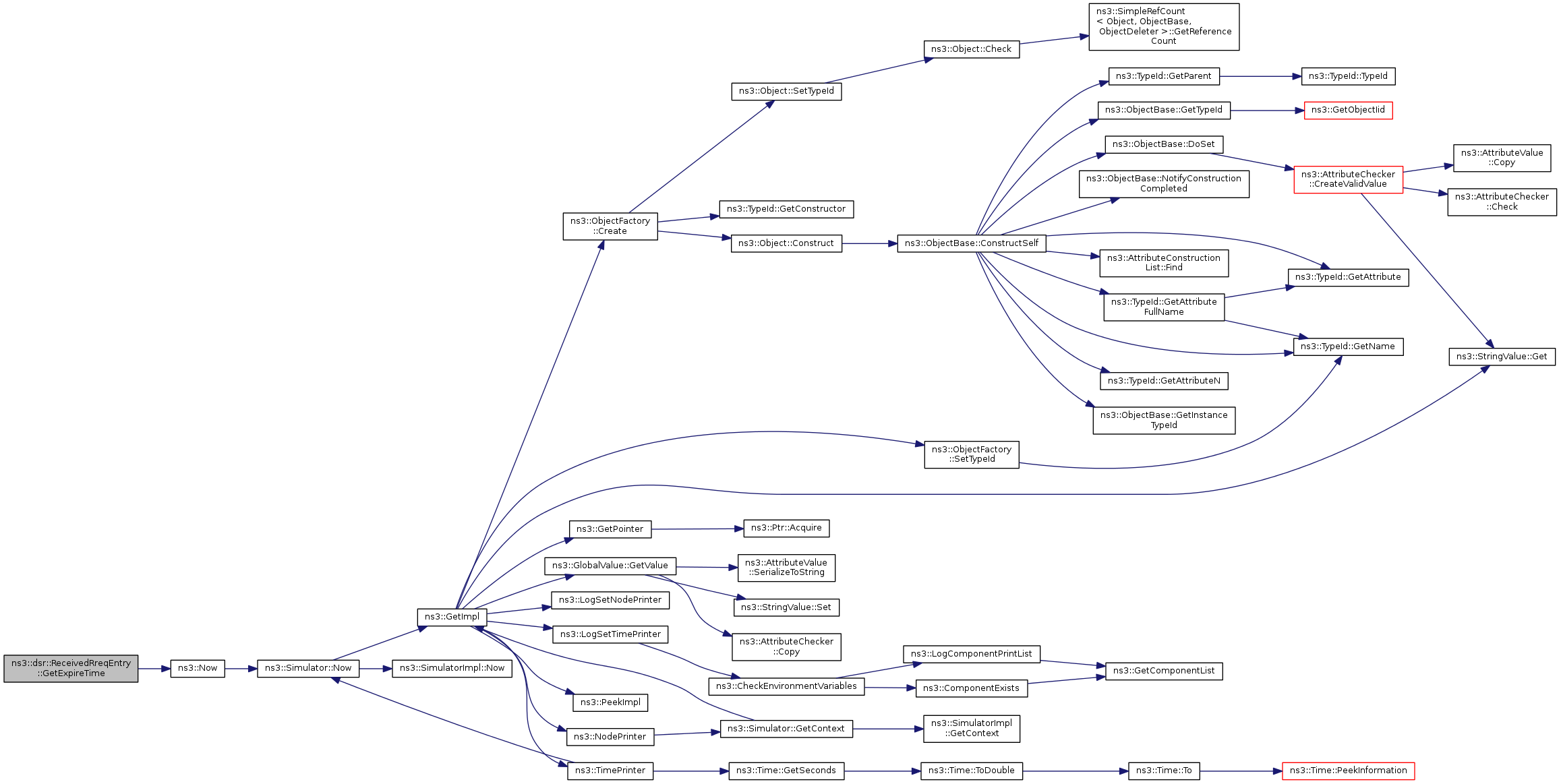

Here is the call graph for this function:

uint16_t ns3::dsr::ReceivedRreqEntry::GetIdentification ( ) const

inline

Definition at line 113 of file dsr-rreq-table.h.

References m_identification.

Ipv4Address ns3::dsr::ReceivedRreqEntry::GetSource ( ) const

inline

Definition at line 105 of file dsr-rreq-table.h.

References m_source.

bool ns3::dsr::ReceivedRreqEntry::operator== ( ReceivedRreqEntry const &  o ) const

inline

Compare send buffer entries.

Returns

true if equal

Definition at line 90 of file dsr-rreq-table.h.

References m_destination, and m_identification.

void ns3::dsr::ReceivedRreqEntry::SetDestination ( Ipv4Address  d )

inline

Definition at line 101 of file dsr-rreq-table.h.

References m_destination.

Referenced by ns3::dsr::RreqTable::FindSourceEntry().

Here is the caller graph for this function:

void ns3::dsr::ReceivedRreqEntry::SetExpireTime ( Time  exp )

inline

Definition at line 121 of file dsr-rreq-table.h.

References m_expire, and ns3::Now().

Here is the call graph for this function:

void ns3::dsr::ReceivedRreqEntry::SetIdentification ( uint16_t  i )

inline

Definition at line 117 of file dsr-rreq-table.h.

References m_identification.

Referenced by ns3::dsr::RreqTable::FindSourceEntry().

Here is the caller graph for this function:

void ns3::dsr::ReceivedRreqEntry::SetSource ( Ipv4Address  s )

inline

Definition at line 109 of file dsr-rreq-table.h.

References m_source.

Member Data Documentation

Ipv4Address ns3::dsr::ReceivedRreqEntry::m_destination

private

Definition at line 131 of file dsr-rreq-table.h.

Referenced by GetDestination(), operator==(), and SetDestination().

Time ns3::dsr::ReceivedRreqEntry::m_expire

private

Definition at line 134 of file dsr-rreq-table.h.

Referenced by GetExpireTime(), and SetExpireTime().

uint16_t ns3::dsr::ReceivedRreqEntry::m_identification

private

Definition at line 133 of file dsr-rreq-table.h.

Referenced by GetIdentification(), operator==(), and SetIdentification().

Ipv4Address ns3::dsr::ReceivedRreqEntry::m_source

private

Definition at line 132 of file dsr-rreq-table.h.

Referenced by GetSource(), and SetSource().

---

The documentation for this class was generated from the following file:

• src/dsr/model/dsr-rreq-table.h
