dynamic_linknode.cc File Reference

#include <iostream>
#include "ns3/core-module.h"
#include "ns3/network-module.h"
#include "ns3/internet-module.h"
#include "ns3/point-to-point-module.h"
#include "ns3/netanim-module.h"
#include "ns3/applications-module.h"
#include "ns3/point-to-point-layout-module.h"

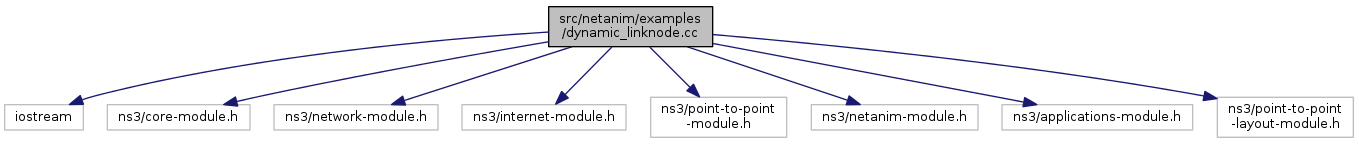

Include dependency graph for dynamic_linknode.cc:

Go to the source code of this file.

Classes
struct	rgb

Functions
int	main (int argc, char *argv[])
void	modify ()

Variables
struct rgb	colors []
AnimationInterface *	pAnim = 0

Function Documentation

int main	(	int	argc,
		char *	argv[]
	)

Definition at line 88 of file dynamic_linknode.cc.

References ns3::ApplicationContainer::Add(), ns3::CommandLine::AddValue(), ns3::PointToPointDumbbellHelper::AssignIpv4Addresses(), ns3::PointToPointDumbbellHelper::BoundingBox(), ns3::Simulator::Destroy(), ns3::PointToPointDumbbellHelper::GetLeftIpv4Address(), ns3::PointToPointDumbbellHelper::GetRight(), ns3::OnOffHelper::Install(), ns3::PointToPointDumbbellHelper::InstallStack(), modify(), pAnim, ns3::CommandLine::Parse(), ns3::Ipv4GlobalRoutingHelper::PopulateRoutingTables(), ns3::PointToPointDumbbellHelper::RightCount(), ns3::Simulator::Run(), ns3::Simulator::Schedule(), ns3::Seconds(), ns3::OnOffHelper::SetAttribute(), ns3::PointToPointHelper::SetChannelAttribute(), ns3::Config::SetDefault(), ns3::PointToPointHelper::SetDeviceAttribute(), ns3::ApplicationContainer::Start(), and ns3::ApplicationContainer::Stop().

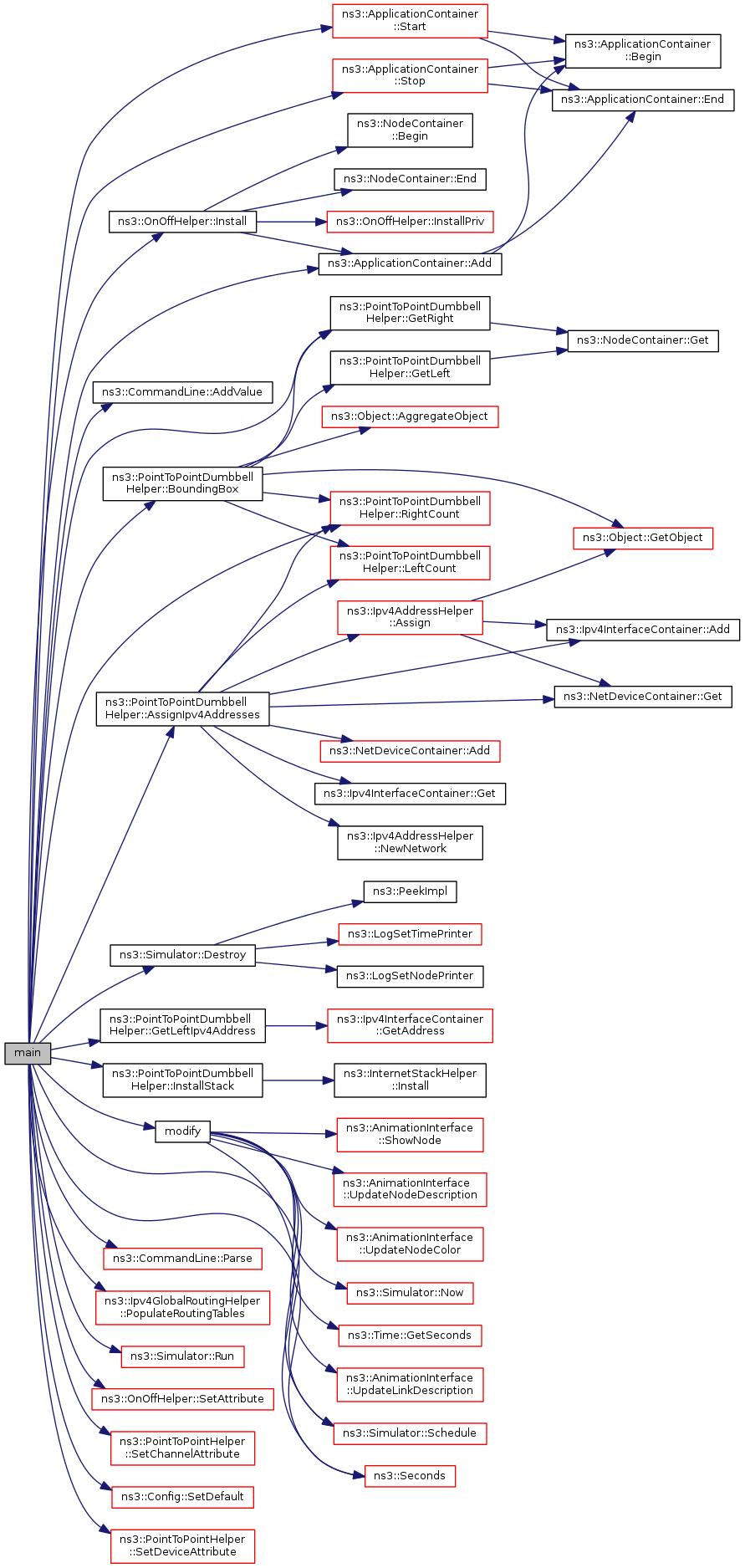

Here is the call graph for this function:

void modify

(

)

Definition at line 45 of file dynamic_linknode.cc.

References rgb::b, colors, rgb::g, ns3::Time::GetSeconds(), ns3::Simulator::Now(), pAnim, rgb::r, ns3::Simulator::Schedule(), ns3::Seconds(), ns3::AnimationInterface::ShowNode(), ns3::AnimationInterface::UpdateLinkDescription(), ns3::AnimationInterface::UpdateNodeColor(), and ns3::AnimationInterface::UpdateNodeDescription().

Referenced by main().

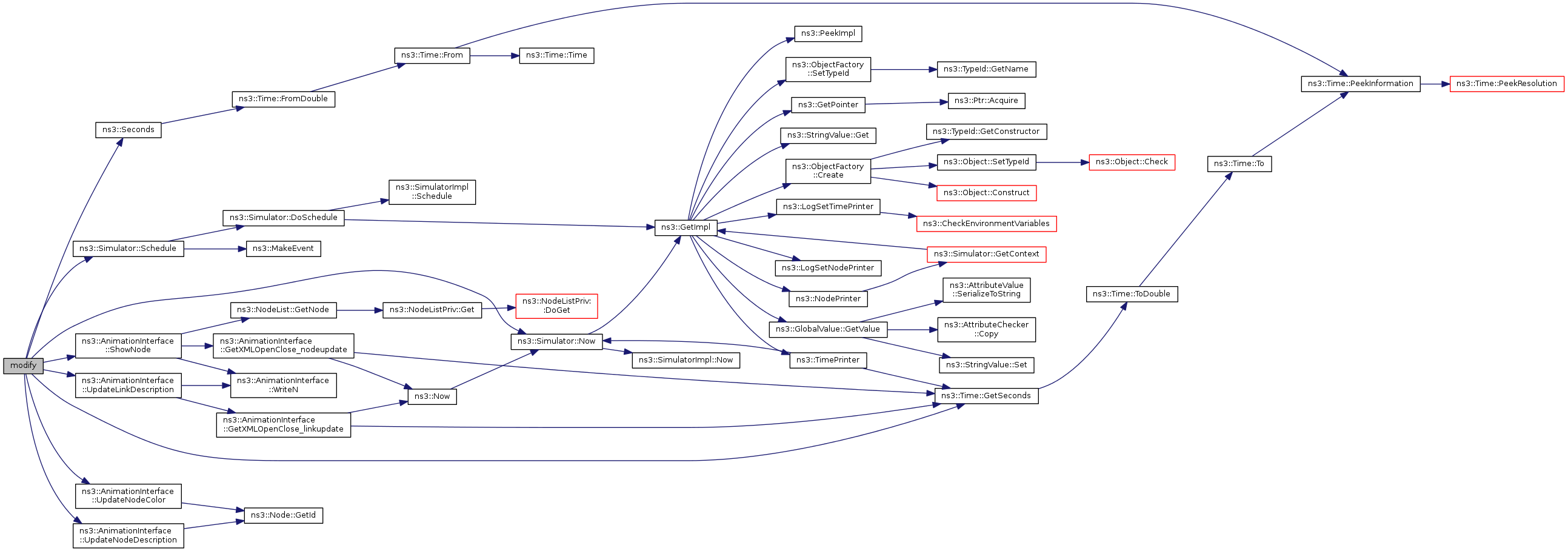

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

struct rgb colors[]

Initial value:

 {
                        { 255, 0, 0 },
                        { 0, 255, 0 },
                        { 0, 0, 255 }
                        }

Definition at line 39 of file dynamic_linknode.cc.

Referenced by modify().

AnimationInterface* pAnim = 0

Definition at line 31 of file dynamic_linknode.cc.

Referenced by main(), and modify().
