ns3::AmrrWifiRemoteStation Struct Reference

Inheritance diagram for ns3::AmrrWifiRemoteStation:

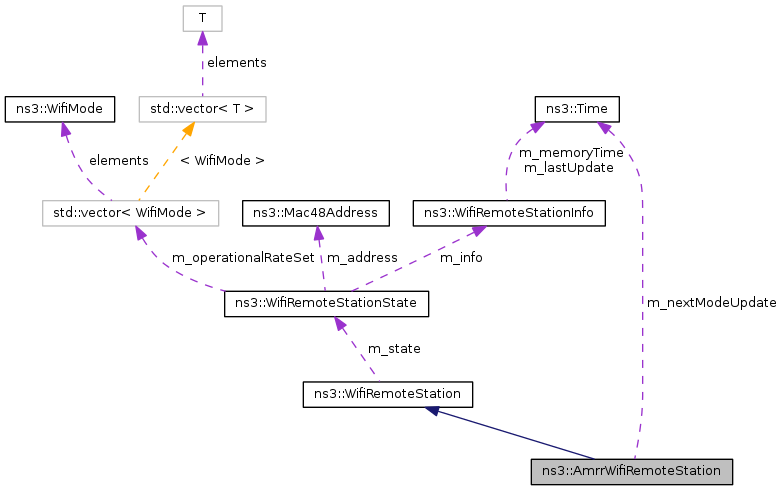

Collaboration diagram for ns3::AmrrWifiRemoteStation:

Public Attributes
Time	m_nextModeUpdate
bool	m_recovery
uint32_t	m_retry
uint32_t	m_success
uint32_t	m_successThreshold
uint32_t	m_tx_err
uint32_t	m_tx_ok
uint32_t	m_tx_retr
uint32_t	m_txrate
Public Attributes inherited from ns3::WifiRemoteStation
uint32_t	m_slrc
uint32_t	m_ssrc
WifiRemoteStationState *	m_state
uint8_t	m_tid

Detailed Description

Definition at line 31 of file amrr-wifi-manager.cc.

Member Data Documentation

Time ns3::AmrrWifiRemoteStation::m_nextModeUpdate

Definition at line 33 of file amrr-wifi-manager.cc.

Referenced by ns3::AmrrWifiManager::DoCreateStation(), and ns3::AmrrWifiManager::UpdateMode().

bool ns3::AmrrWifiRemoteStation::m_recovery

Definition at line 41 of file amrr-wifi-manager.cc.

Referenced by ns3::AmrrWifiManager::DoCreateStation(), and ns3::AmrrWifiManager::UpdateMode().

uint32_t ns3::AmrrWifiRemoteStation::m_retry

Definition at line 37 of file amrr-wifi-manager.cc.

Referenced by ns3::AmrrWifiManager::DoCreateStation(), ns3::AmrrWifiManager::DoGetDataMode(), ns3::AmrrWifiManager::DoReportDataFailed(), ns3::AmrrWifiManager::DoReportDataOk(), and ns3::AmrrWifiManager::DoReportFinalDataFailed().

uint32_t ns3::AmrrWifiRemoteStation::m_success

Definition at line 40 of file amrr-wifi-manager.cc.

Referenced by ns3::AmrrWifiManager::DoCreateStation(), and ns3::AmrrWifiManager::UpdateMode().

uint32_t ns3::AmrrWifiRemoteStation::m_successThreshold

Definition at line 39 of file amrr-wifi-manager.cc.

Referenced by ns3::AmrrWifiManager::DoCreateStation(), and ns3::AmrrWifiManager::UpdateMode().

uint32_t ns3::AmrrWifiRemoteStation::m_tx_err

Definition at line 35 of file amrr-wifi-manager.cc.

Referenced by ns3::AmrrWifiManager::DoCreateStation(), ns3::AmrrWifiManager::DoReportFinalDataFailed(), ns3::AmrrWifiManager::IsEnough(), ns3::AmrrWifiManager::IsFailure(), ns3::AmrrWifiManager::IsSuccess(), ns3::AmrrWifiManager::ResetCnt(), and ns3::AmrrWifiManager::UpdateMode().

uint32_t ns3::AmrrWifiRemoteStation::m_tx_ok

Definition at line 34 of file amrr-wifi-manager.cc.

Referenced by ns3::AmrrWifiManager::DoCreateStation(), ns3::AmrrWifiManager::DoReportDataOk(), ns3::AmrrWifiManager::IsEnough(), ns3::AmrrWifiManager::IsFailure(), ns3::AmrrWifiManager::IsSuccess(), ns3::AmrrWifiManager::ResetCnt(), and ns3::AmrrWifiManager::UpdateMode().

uint32_t ns3::AmrrWifiRemoteStation::m_tx_retr

Definition at line 36 of file amrr-wifi-manager.cc.

Referenced by ns3::AmrrWifiManager::DoCreateStation(), ns3::AmrrWifiManager::DoReportDataFailed(), ns3::AmrrWifiManager::IsEnough(), ns3::AmrrWifiManager::IsFailure(), ns3::AmrrWifiManager::IsSuccess(), ns3::AmrrWifiManager::ResetCnt(), and ns3::AmrrWifiManager::UpdateMode().

uint32_t ns3::AmrrWifiRemoteStation::m_txrate

Definition at line 38 of file amrr-wifi-manager.cc.

Referenced by ns3::AmrrWifiManager::DecreaseRate(), ns3::AmrrWifiManager::DoCreateStation(), ns3::AmrrWifiManager::DoGetDataMode(), ns3::AmrrWifiManager::IncreaseRate(), ns3::AmrrWifiManager::IsMaxRate(), ns3::AmrrWifiManager::IsMinRate(), and ns3::AmrrWifiManager::UpdateMode().

---

The documentation for this struct was generated from the following file:

• src/wifi/model/amrr-wifi-manager.cc
