TypeId information manager. More...

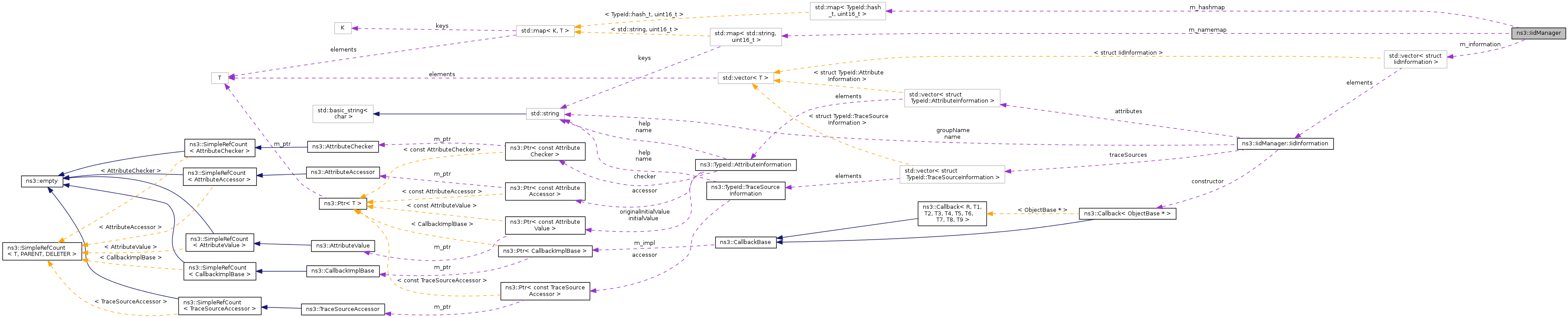

Collaboration diagram for ns3::IidManager:

Classes
struct	IidInformation

Public Member Functions
	IidManager ()
void	AddAttribute (uint16_t uid, std::string name, std::string help, uint32_t flags, Ptr< const AttributeValue > initialValue, Ptr< const AttributeAccessor > spec, Ptr< const AttributeChecker > checker)
void	AddConstructor (uint16_t uid, Callback< ObjectBase * > callback)
void	AddTraceSource (uint16_t uid, std::string name, std::string help, Ptr< const TraceSourceAccessor > accessor)
uint16_t	AllocateUid (std::string name)
struct TypeId::AttributeInformation	GetAttribute (uint16_t uid, uint32_t i) const
uint32_t	GetAttributeN (uint16_t uid) const
Callback< ObjectBase * >	GetConstructor (uint16_t uid) const
std::string	GetGroupName (uint16_t uid) const
TypeId::hash_t	GetHash (uint16_t uid) const
std::string	GetName (uint16_t uid) const
uint16_t	GetParent (uint16_t uid) const
uint16_t	GetRegistered (uint32_t i) const
uint32_t	GetRegisteredN (void) const
struct TypeId::TraceSourceInformation	GetTraceSource (uint16_t uid, uint32_t i) const
uint32_t	GetTraceSourceN (uint16_t uid) const
uint16_t	GetUid (std::string name) const
uint16_t	GetUid (TypeId::hash_t hash) const
bool	HasConstructor (uint16_t uid) const
void	HideFromDocumentation (uint16_t uid)
bool	MustHideFromDocumentation (uint16_t uid) const
void	SetAttributeInitialValue (uint16_t uid, uint32_t i, Ptr< const AttributeValue > initialValue)
void	SetGroupName (uint16_t uid, std::string groupName)
void	SetParent (uint16_t uid, uint16_t parent)

Private Types
enum	{ HashChainFlag = 0x80000000 }
typedef std::map < TypeId::hash_t, uint16_t >	hashmap_t
typedef std::vector< struct IidInformation > ::const_iterator	Iterator
typedef std::map< std::string, uint16_t >	namemap_t

Private Member Functions
bool	HasAttribute (uint16_t uid, std::string name)
bool	HasTraceSource (uint16_t uid, std::string name)
struct IidManager::IidInformation *	LookupInformation (uint16_t uid) const

Static Private Member Functions
static TypeId::hash_t	Hasher (const std::string name)

Private Attributes
hashmap_t	m_hashmap
std::vector< struct IidInformation >	m_information
namemap_t	m_namemap

Detailed Description

TypeId information manager.

Information records are stored in a vector. Name and hash lookup are performed by maps to the vector index.

Internal:: Hash Chaining

We require all types to produce distinct hashes. What if we encounter two types that produce the same hash value? As we move to a federated distribution model (the App store), it becomes increasingly likely that the core ns3 team won't discover this in test builds. Therefore, we need to handle this case explicitly.

Note, we expect this to be extremely rare. As of this writing we have ~400 < 2^9 types, so the probability of getting a collision when we introduce a new type is ~2^9/2^31 = 2^-22, assuming we reserve 31 bits for the hash, and one bit for chaining. Even with double the number of types the probability of having a collision is only 2 x 10^-4. The probability for a three-fold collision is 1 x 10^-10.

Therefore, we'll handle one collision explicitly by reserving the high order bit of the hash value, and assert on higher level collisions. The three-fold collision probability should be an acceptablly small error rate.

Definition at line 70 of file type-id.cc.

Member Typedef Documentation

typedef std::map<TypeId::hash_t, uint16_t> ns3::IidManager::hashmap_t

private

Definition at line 134 of file type-id.cc.

typedef std::vector<struct IidInformation>::const_iterator ns3::IidManager::Iterator

private

Definition at line 125 of file type-id.cc.

typedef std::map<std::string, uint16_t> ns3::IidManager::namemap_t

private

Definition at line 131 of file type-id.cc.

Member Enumeration Documentation

anonymous enum

private

Enumerator:

HashChainFlag

Definition at line 140 of file type-id.cc.

Constructor & Destructor Documentation

ns3::IidManager::IidManager ( )

Definition at line 143 of file type-id.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::IidManager::AddAttribute	(	uint16_t	uid,
		std::string	name,
		std::string	help,
		uint32_t	flags,
		Ptr< const AttributeValue >	initialValue,
		Ptr< const AttributeAccessor >	spec,
		Ptr< const AttributeChecker >	checker
	)

Definition at line 388 of file type-id.cc.

References ns3::TypeId::AttributeInformation::accessor, ns3::IidManager::IidInformation::attributes, ns3::TypeId::AttributeInformation::checker, ns3::TypeId::AttributeInformation::flags, HasAttribute(), ns3::TypeId::AttributeInformation::help, ns3::TypeId::AttributeInformation::initialValue, LookupInformation(), ns3::TypeId::AttributeInformation::name, ns3::IidManager::IidInformation::name, NS_FATAL_ERROR, NS_LOG_FUNCTION, and ns3::TypeId::AttributeInformation::originalInitialValue.

Here is the call graph for this function:

void ns3::IidManager::AddConstructor	(	uint16_t	uid,
		Callback< ObjectBase * >	callback
	)

Definition at line 258 of file type-id.cc.

References ns3::IidManager::IidInformation::constructor, ns3::IidManager::IidInformation::hasConstructor, LookupInformation(), ns3::IidManager::IidInformation::name, NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::IidManager::AddTraceSource	(	uint16_t	uid,
		std::string	name,
		std::string	help,
		Ptr< const TraceSourceAccessor >	accessor
	)

Definition at line 471 of file type-id.cc.

References ns3::TypeId::TraceSourceInformation::accessor, HasTraceSource(), ns3::TypeId::TraceSourceInformation::help, LookupInformation(), ns3::TypeId::TraceSourceInformation::name, ns3::IidManager::IidInformation::name, NS_FATAL_ERROR, NS_LOG_FUNCTION, and ns3::IidManager::IidInformation::traceSources.

Here is the call graph for this function:

uint16_t ns3::IidManager::AllocateUid ( std::string name )

Definition at line 157 of file type-id.cc.

References GetUid(), ns3::IidManager::IidInformation::groupName, ns3::IidManager::IidInformation::hasConstructor, ns3::IidManager::IidInformation::hash, HashChainFlag, Hasher(), LookupInformation(), m_hashmap, m_information, m_namemap, ns3::IidManager::IidInformation::mustHideFromDocumentation, ns3::IidManager::IidInformation::name, NS_ASSERT, NS_ASSERT_MSG, NS_LOG_ERROR, NS_LOG_FUNCTION, NS_LOG_LOGIC, and ns3::IidManager::IidInformation::parent.

Here is the call graph for this function:

struct TypeId::AttributeInformation ns3::IidManager::GetAttribute	(	uint16_t	uid,
		uint32_t	i
	)		const

read

Definition at line 434 of file type-id.cc.

References NS_ASSERT, and NS_LOG_FUNCTION.

uint32_t ns3::IidManager::GetAttributeN ( uint16_t uid ) const

Definition at line 427 of file type-id.cc.

References ns3::IidManager::IidInformation::attributes, LookupInformation(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

Callback< ObjectBase * > ns3::IidManager::GetConstructor ( uint16_t uid ) const

Definition at line 327 of file type-id.cc.

References ns3::IidManager::IidInformation::constructor, ns3::IidManager::IidInformation::hasConstructor, LookupInformation(), ns3::IidManager::IidInformation::name, NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Here is the call graph for this function:

std::string ns3::IidManager::GetGroupName ( uint16_t uid ) const

Definition at line 319 of file type-id.cc.

References ns3::IidManager::IidInformation::groupName, LookupInformation(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

TypeId::hash_t ns3::IidManager::GetHash ( uint16_t uid ) const

Definition at line 305 of file type-id.cc.

References ns3::IidManager::IidInformation::hash, LookupInformation(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

std::string ns3::IidManager::GetName ( uint16_t uid ) const

Definition at line 298 of file type-id.cc.

References LookupInformation(), ns3::IidManager::IidInformation::name, and NS_LOG_FUNCTION.

Here is the call graph for this function:

uint16_t ns3::IidManager::GetParent ( uint16_t uid ) const

Definition at line 312 of file type-id.cc.

References LookupInformation(), NS_LOG_FUNCTION, and ns3::IidManager::IidInformation::parent.

Here is the call graph for this function:

uint16_t ns3::IidManager::GetRegistered ( uint32_t i ) const

Definition at line 353 of file type-id.cc.

References NS_LOG_FUNCTION.

uint32_t ns3::IidManager::GetRegisteredN ( void ) const

Definition at line 347 of file type-id.cc.

References m_information, and NS_LOG_FUNCTION.

struct TypeId::TraceSourceInformation ns3::IidManager::GetTraceSource	(	uint16_t	uid,
		uint32_t	i
	)		const

read

Definition at line 497 of file type-id.cc.

References NS_ASSERT, and NS_LOG_FUNCTION.

uint32_t ns3::IidManager::GetTraceSourceN ( uint16_t uid ) const

Definition at line 490 of file type-id.cc.

References LookupInformation(), NS_LOG_FUNCTION, and ns3::IidManager::IidInformation::traceSources.

Here is the call graph for this function:

uint16_t ns3::IidManager::GetUid ( std::string name ) const

Definition at line 271 of file type-id.cc.

References m_namemap, and NS_LOG_FUNCTION.

Referenced by AllocateUid().

Here is the caller graph for this function:

uint16_t ns3::IidManager::GetUid ( TypeId::hash_t hash ) const

Definition at line 285 of file type-id.cc.

References m_hashmap.

bool ns3::IidManager::HasAttribute	(	uint16_t	uid,
		std::string	name
	)

private

Definition at line 360 of file type-id.cc.

References ns3::IidManager::IidInformation::attributes, LookupInformation(), NS_LOG_FUNCTION, and ns3::IidManager::IidInformation::parent.

Referenced by AddAttribute().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::IidManager::HasConstructor ( uint16_t uid ) const

Definition at line 339 of file type-id.cc.

References ns3::IidManager::IidInformation::hasConstructor, LookupInformation(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

TypeId::hash_t ns3::IidManager::Hasher ( const std::string name )

staticprivate

Definition at line 150 of file type-id.cc.

References ns3::Hasher::clear(), and ns3::Hasher::GetHash32().

Referenced by AllocateUid().

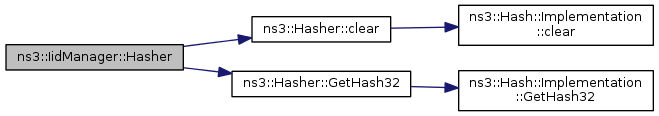

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::IidManager::HasTraceSource	(	uint16_t	uid,
		std::string	name
	)

private

Definition at line 443 of file type-id.cc.

References LookupInformation(), NS_LOG_FUNCTION, ns3::IidManager::IidInformation::parent, and ns3::IidManager::IidInformation::traceSources.

Referenced by AddTraceSource().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::IidManager::HideFromDocumentation ( uint16_t uid )

Definition at line 250 of file type-id.cc.

References LookupInformation(), ns3::IidManager::IidInformation::mustHideFromDocumentation, and NS_LOG_FUNCTION.

Here is the call graph for this function:

struct IidManager::IidInformation * ns3::IidManager::LookupInformation ( uint16_t uid ) const

readprivate

Definition at line 227 of file type-id.cc.

References m_information, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by AddAttribute(), AddConstructor(), AddTraceSource(), AllocateUid(), GetAttributeN(), GetConstructor(), GetGroupName(), GetHash(), GetName(), GetParent(), GetTraceSourceN(), HasAttribute(), HasConstructor(), HasTraceSource(), HideFromDocumentation(), MustHideFromDocumentation(), SetAttributeInitialValue(), SetGroupName(), and SetParent().

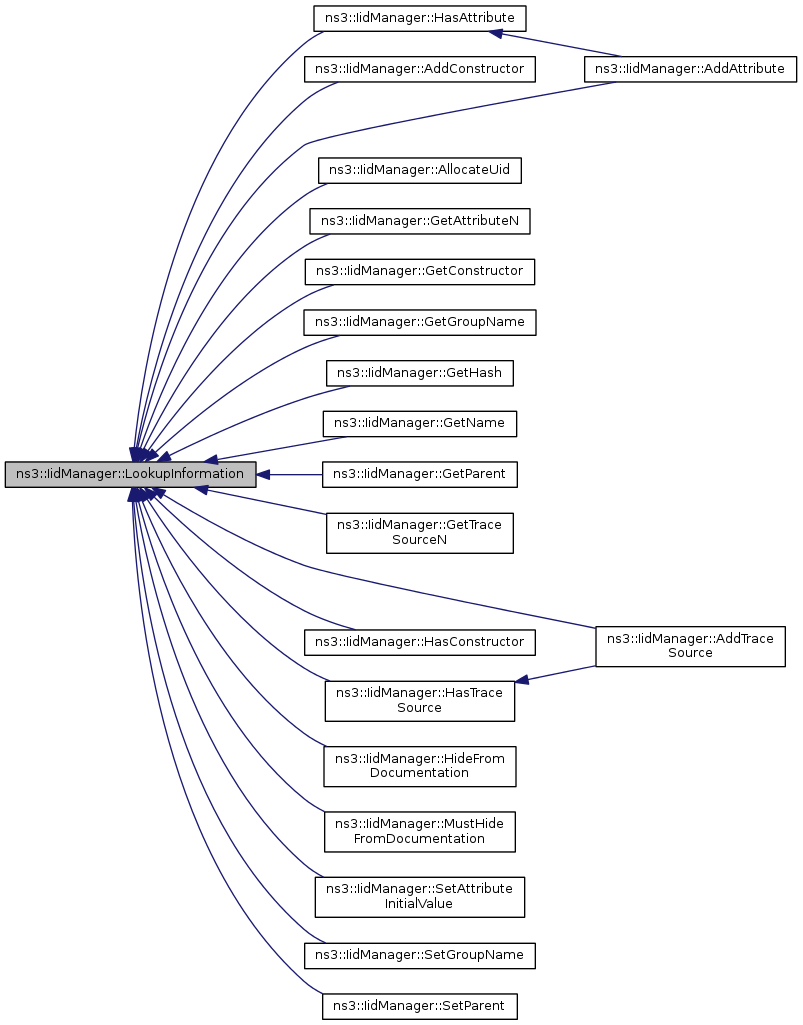

Here is the caller graph for this function:

bool ns3::IidManager::MustHideFromDocumentation ( uint16_t uid ) const

Definition at line 505 of file type-id.cc.

References LookupInformation(), ns3::IidManager::IidInformation::mustHideFromDocumentation, and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::IidManager::SetAttributeInitialValue	(	uint16_t	uid,
		uint32_t	i,
		Ptr< const AttributeValue >	initialValue
	)

Definition at line 414 of file type-id.cc.

References ns3::IidManager::IidInformation::attributes, LookupInformation(), NS_ASSERT, and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::IidManager::SetGroupName	(	uint16_t	uid,
		std::string	groupName
	)

Definition at line 243 of file type-id.cc.

References ns3::IidManager::IidInformation::groupName, LookupInformation(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::IidManager::SetParent	(	uint16_t	uid,
		uint16_t	parent
	)

Definition at line 235 of file type-id.cc.

References LookupInformation(), m_information, NS_ASSERT, NS_LOG_FUNCTION, and ns3::IidManager::IidInformation::parent.

Here is the call graph for this function:

Member Data Documentation

hashmap_t ns3::IidManager::m_hashmap

private

Definition at line 135 of file type-id.cc.

Referenced by AllocateUid(), and GetUid().

std::vector<struct IidInformation> ns3::IidManager::m_information

private

Definition at line 129 of file type-id.cc.

Referenced by AllocateUid(), GetRegisteredN(), LookupInformation(), and SetParent().

namemap_t ns3::IidManager::m_namemap

private

Definition at line 132 of file type-id.cc.

Referenced by AllocateUid(), and GetUid().

The documentation for this class was generated from the following file:

src/core/model/type-id.cc
