ns3::LteControlMessage Class Reference
LTE Models

#include <lte-control-messages.h>

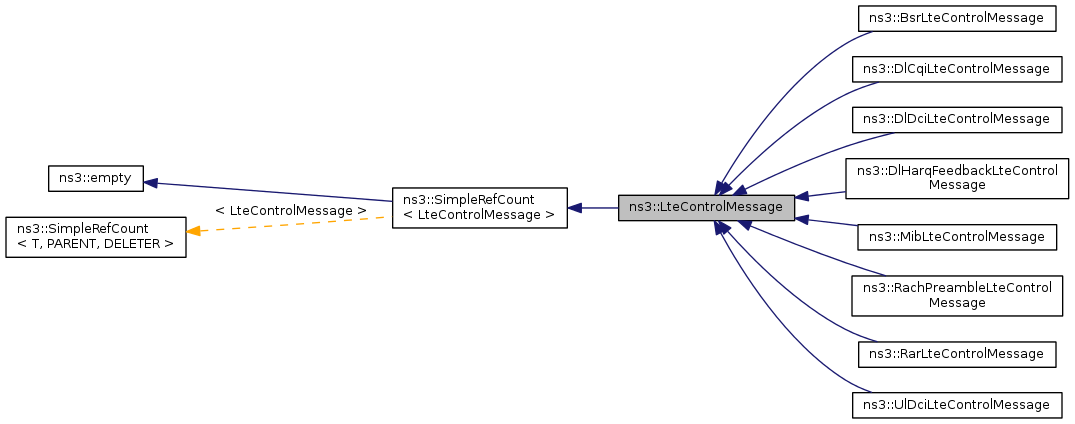

+ Inheritance diagram for ns3::LteControlMessage:

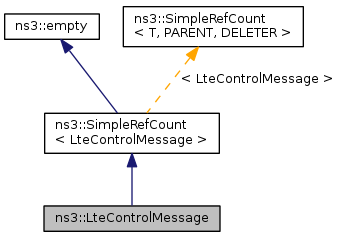

+ Collaboration diagram for ns3::LteControlMessage:

Public Types

enum  MessageType {
  DL_DCI, UL_DCI, DL_CQI, UL_CQI,
  BSR, DL_HARQ, RACH_PREAMBLE, RAR,
  MIB
}

Public Member Functions

 LteControlMessage (void)
virtual ~LteControlMessage (void)
MessageType GetMessageType (void)
 Get the type of the message.
void SetMessageType (MessageType type)
 Set the type of the message.
- Public Member Functions inherited from ns3::SimpleRefCount< LteControlMessage >
 SimpleRefCount ()
 SimpleRefCount (const SimpleRefCount &o)
uint32_t GetReferenceCount (void) const
SimpleRefCount & operator= (const SimpleRefCount &o)
void Ref (void) const
void Unref (void) const

Private Attributes

MessageType m_type

Additional Inherited Members

- Static Public Member Functions inherited from ns3::SimpleRefCount< LteControlMessage >
static void Cleanup (void)

Detailed Description

The LteControlMessage provides a basic implementations for control messages (such as PDCCH allocation map, CQI feedbacks) that are exchanged among eNodeB and UEs.

Definition at line 41 of file lte-control-messages.h.

Member Enumeration Documentation

enum ns3::LteControlMessage::MessageType

The type of the message NOTE: The messages sent by UE are filtered by the LteEnbPhy::ReceiveLteControlMessageList in order to remove the ones that has been already handoff by the eNB for avoiding propagation of spurious messages. When new messaged have to been added, consider to update the switch statement implementing teh filtering.

Enumerator:
DL_DCI
UL_DCI
DL_CQI
UL_CQI
BSR
DL_HARQ
RACH_PREAMBLE
RAR
MIB

Definition at line 52 of file lte-control-messages.h.

Constructor & Destructor Documentation

ns3::LteControlMessage::LteControlMessage ( void  )

Definition at line 34 of file lte-control-messages.cc.

ns3::LteControlMessage::~LteControlMessage ( void  )
virtual

Definition at line 39 of file lte-control-messages.cc.

Member Function Documentation

LteControlMessage::MessageType ns3::LteControlMessage::GetMessageType ( void  )

Get the type of the message.

Returns
the type of the message

Definition at line 52 of file lte-control-messages.cc.

References m_type.

Referenced by ns3::LteUeMac::DoReceiveLteControlMessage(), ns3::LteEnbMac::DoReceiveLteControlMessage(), ns3::LteUePhy::ReceiveLteControlMessageList(), and ns3::LteEnbPhy::StartSubFrame().

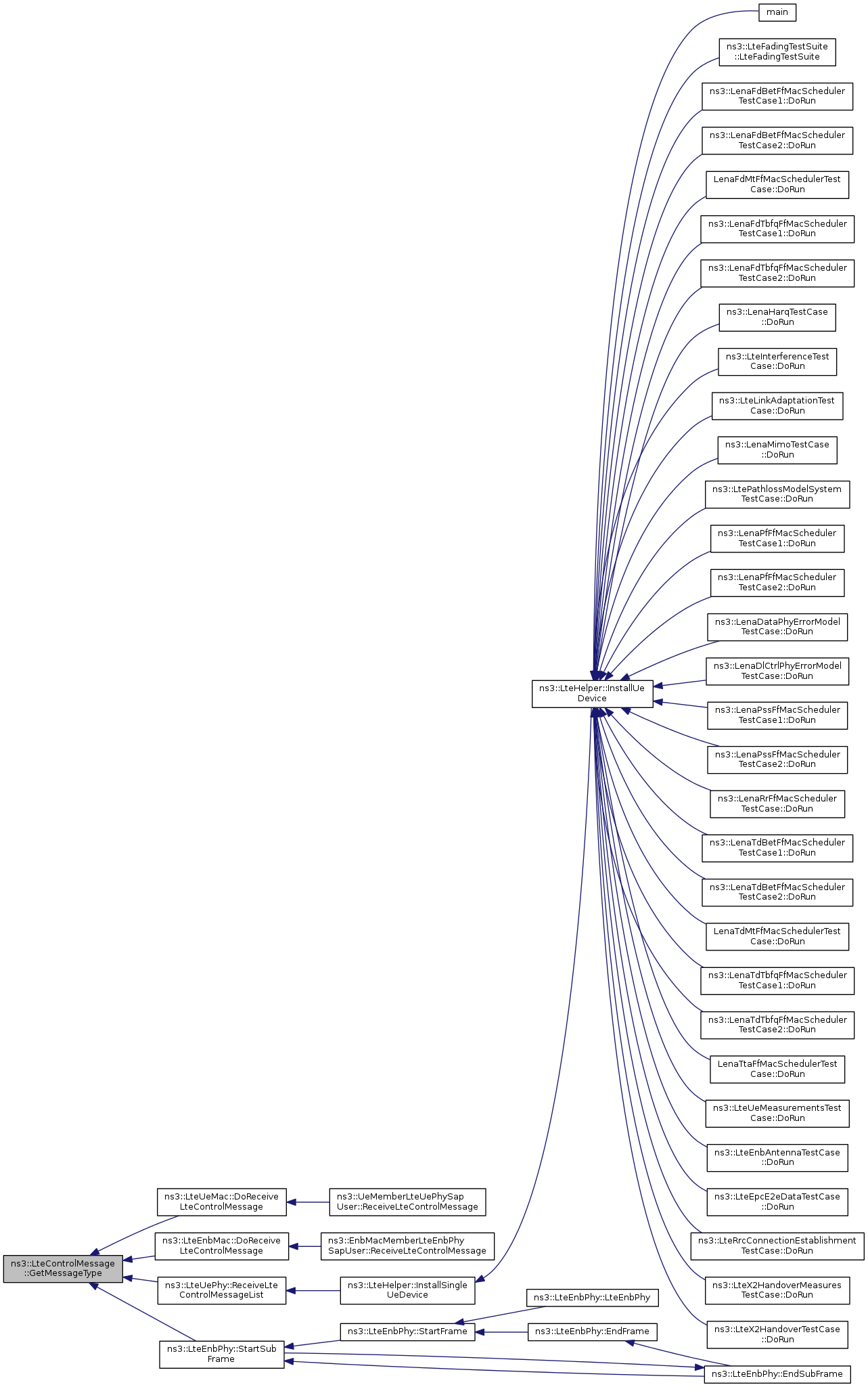

+ Here is the caller graph for this function:

void ns3::LteControlMessage::SetMessageType ( LteControlMessage::MessageType  type)

Set the type of the message.

Parameters
typethe type of the message

Definition at line 45 of file lte-control-messages.cc.

References m_type.

Referenced by ns3::BsrLteControlMessage::BsrLteControlMessage(), ns3::DlCqiLteControlMessage::DlCqiLteControlMessage(), ns3::DlDciLteControlMessage::DlDciLteControlMessage(), ns3::DlHarqFeedbackLteControlMessage::DlHarqFeedbackLteControlMessage(), ns3::MibLteControlMessage::MibLteControlMessage(), ns3::RachPreambleLteControlMessage::RachPreambleLteControlMessage(), ns3::RarLteControlMessage::RarLteControlMessage(), and ns3::UlDciLteControlMessage::UlDciLteControlMessage().

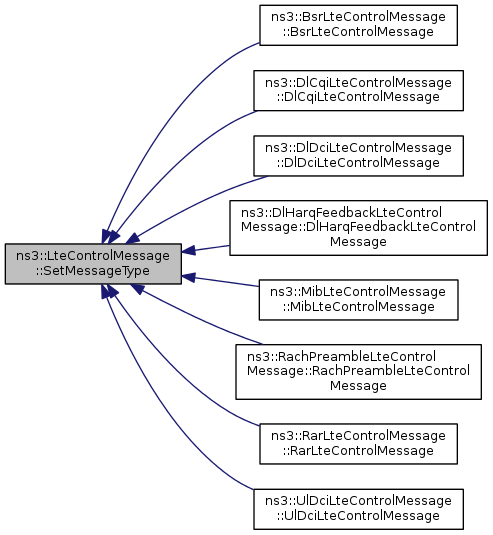

+ Here is the caller graph for this function:

Member Data Documentation

MessageType ns3::LteControlMessage::m_type
private

Definition at line 78 of file lte-control-messages.h.

Referenced by GetMessageType(), and SetMessageType().

The documentation for this class was generated from the following files:
