ns3::LteDataRadioBearerInfo Class Reference

#include <lte-radio-bearer-info.h>

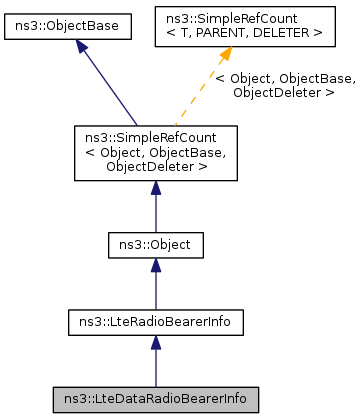

Inheritance diagram for ns3::LteDataRadioBearerInfo:

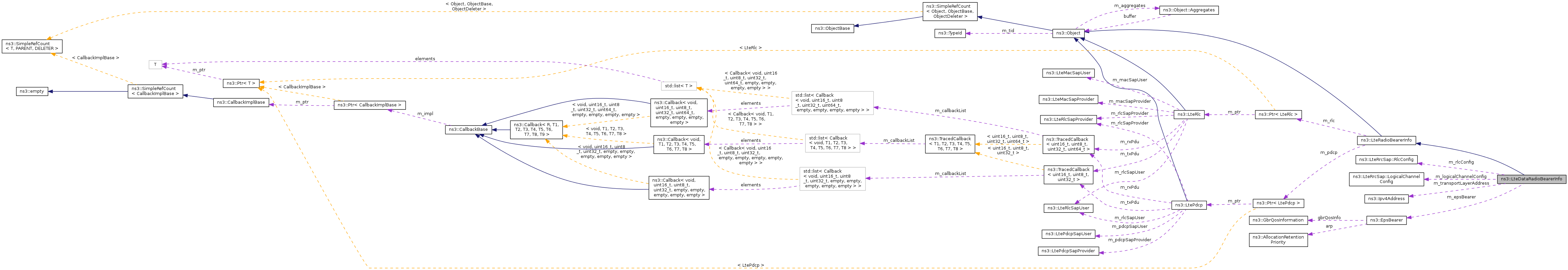

Collaboration diagram for ns3::LteDataRadioBearerInfo:

Static Public Member Functions
static TypeId	GetTypeId (void)

Public Attributes
uint8_t	m_drbIdentity
EpsBearer	m_epsBearer
uint8_t	m_epsBearerIdentity
uint32_t	m_gtpTeid
LteRrcSap::LogicalChannelConfig	m_logicalChannelConfig
uint8_t	m_logicalChannelIdentity
LteRrcSap::RlcConfig	m_rlcConfig
Ipv4Address	m_transportLayerAddress
Public Attributes inherited from ns3::LteRadioBearerInfo
Ptr< LtePdcp >	m_pdcp
Ptr< LteRlc >	m_rlc

Additional Inherited Members
Public Member Functions inherited from ns3::LteRadioBearerInfo
	LteRadioBearerInfo (void)
virtual	~LteRadioBearerInfo (void)
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoDispose (void)
virtual void	DoInitialize (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

store information on active data radio bearer instance

Config Paths

ns3::LteDataRadioBearerInfo is accessible through the following paths with Config::Set and Config::Connect:

• /NodeList/[i]/DeviceList/[i]/$ns3::LteEnbNetDevice/LteEnbRrc/UeMap/[i]/DataRadioBearerMap/[i]
• /NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteEnbNetDevice/LteEnbRrc/UeMap/[i]/DataRadioBearerMap/[i]
• /NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteUeNetDevice/LteUeRrc/DataRadioBearerMap/[i]
• /NodeList/[i]/DeviceList/[i]/$ns3::LteUeNetDevice/LteUeRrc/DataRadioBearerMap/[i]

Attributes

• DrbIdentity: The id of this Data Radio Bearer
  • Set with class: ns3::UintegerValue
  • Underlying type: uint8_t 0:255
  • Flags: read
• EpsBearerIdentity: The id of the EPS bearer corresponding to this Data Radio Bearer
  • Set with class: ns3::UintegerValue
  • Underlying type: uint8_t 0:255
  • Flags: read
• logicalChannelIdentity: The id of the Logical Channel corresponding to this Data Radio Bearer
  • Set with class: ns3::UintegerValue
  • Underlying type: uint8_t 0:255
  • Flags: read
• LteRlc: RLC instance of the radio bearer.
  • Set with class: ns3::PointerValue
  • Underlying type: ns3::Ptr< ns3::LteRlc >
  • Initial value: 0
  • Flags: construct write read
• LtePdcp: PDCP instance of the radio bearer.
  • Set with class: ns3::PointerValue
  • Underlying type: ns3::Ptr< ns3::LtePdcp >
  • Initial value: 0
  • Flags: construct write read

No TraceSources are defined for this type.

Definition at line 71 of file lte-radio-bearer-info.h.

Member Function Documentation

TypeId ns3::LteDataRadioBearerInfo::GetTypeId ( void  )

static

Get the type ID.

Reimplemented from ns3::LteRadioBearerInfo.

Definition at line 56 of file lte-radio-bearer-info.cc.

References ns3::TypeId::ATTR_GET, m_drbIdentity, m_epsBearerIdentity, m_logicalChannelIdentity, ns3::LteRadioBearerInfo::m_pdcp, ns3::LteRadioBearerInfo::m_rlc, and ns3::TypeId::SetParent().

Here is the call graph for this function:

Member Data Documentation

uint8_t ns3::LteDataRadioBearerInfo::m_drbIdentity

Definition at line 79 of file lte-radio-bearer-info.h.

Referenced by ns3::UeManager::AddDataRadioBearerInfo(), ns3::LteUeRrc::ApplyRadioResourceConfigDedicated(), ns3::LteRrcConnectionEstablishmentTestCase::CheckConnected(), ns3::LteX2HandoverTestCase::CheckConnected(), ns3::LteX2HandoverMeasuresTestCase::CheckConnected(), GetTypeId(), and ns3::UeManager::SetupDataRadioBearer().

EpsBearer ns3::LteDataRadioBearerInfo::m_epsBearer

Definition at line 77 of file lte-radio-bearer-info.h.

uint8_t ns3::LteDataRadioBearerInfo::m_epsBearerIdentity

Definition at line 78 of file lte-radio-bearer-info.h.

Referenced by ns3::LteUeRrc::ApplyRadioResourceConfigDedicated(), ns3::LteRrcConnectionEstablishmentTestCase::CheckConnected(), ns3::LteX2HandoverTestCase::CheckConnected(), ns3::LteX2HandoverMeasuresTestCase::CheckConnected(), GetTypeId(), and ns3::UeManager::SetupDataRadioBearer().

uint32_t ns3::LteDataRadioBearerInfo::m_gtpTeid

S1-bearer GTP tunnel endpoint identifier, see 36.423 9.2.1

Definition at line 83 of file lte-radio-bearer-info.h.

Referenced by ns3::UeManager::SendData(), and ns3::UeManager::SetupDataRadioBearer().

LteRrcSap::LogicalChannelConfig ns3::LteDataRadioBearerInfo::m_logicalChannelConfig

Definition at line 82 of file lte-radio-bearer-info.h.

Referenced by ns3::UeManager::SetupDataRadioBearer().

uint8_t ns3::LteDataRadioBearerInfo::m_logicalChannelIdentity

Definition at line 81 of file lte-radio-bearer-info.h.

Referenced by ns3::LteUeRrc::ApplyRadioResourceConfigDedicated(), ns3::LteRrcConnectionEstablishmentTestCase::CheckConnected(), ns3::LteX2HandoverTestCase::CheckConnected(), ns3::LteX2HandoverMeasuresTestCase::CheckConnected(), GetTypeId(), and ns3::UeManager::SetupDataRadioBearer().

LteRrcSap::RlcConfig ns3::LteDataRadioBearerInfo::m_rlcConfig

Definition at line 80 of file lte-radio-bearer-info.h.

Referenced by ns3::UeManager::SetupDataRadioBearer().

Ipv4Address ns3::LteDataRadioBearerInfo::m_transportLayerAddress

IP Address of the SGW, see 36.423 9.2.1

Definition at line 84 of file lte-radio-bearer-info.h.

Referenced by ns3::UeManager::SetupDataRadioBearer().

---

The documentation for this class was generated from the following files:

• src/lte/model/lte-radio-bearer-info.h
• src/lte/model/lte-radio-bearer-info.cc
