ns3::LteSignalingRadioBearerInfo Class Reference

#include <lte-radio-bearer-info.h>

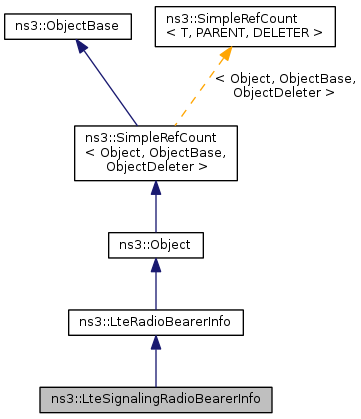

Inheritance diagram for ns3::LteSignalingRadioBearerInfo:

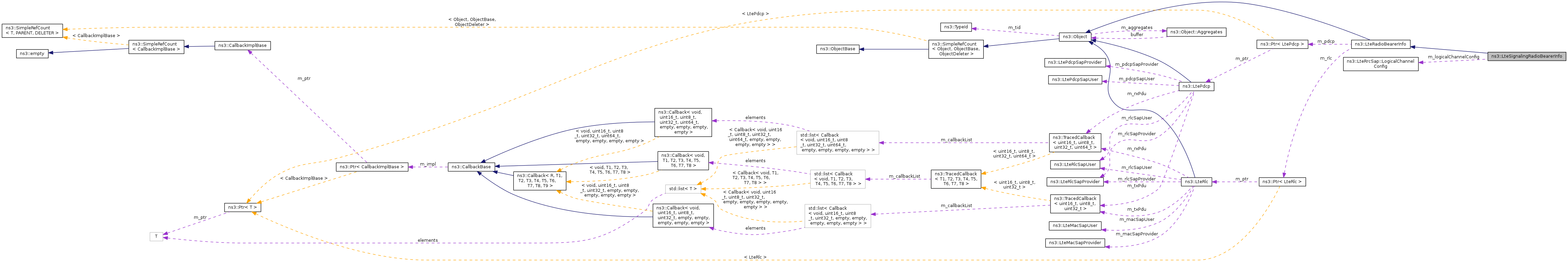

Collaboration diagram for ns3::LteSignalingRadioBearerInfo:

Static Public Member Functions
static TypeId	GetTypeId (void)

Public Attributes
LteRrcSap::LogicalChannelConfig	m_logicalChannelConfig
uint8_t	m_srbIdentity
Public Attributes inherited from ns3::LteRadioBearerInfo
Ptr< LtePdcp >	m_pdcp
Ptr< LteRlc >	m_rlc

Additional Inherited Members
Public Member Functions inherited from ns3::LteRadioBearerInfo
	LteRadioBearerInfo (void)
virtual	~LteRadioBearerInfo (void)
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoDispose (void)
virtual void	DoInitialize (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

store information on active signaling radio bearer instance

Config Paths

ns3::LteSignalingRadioBearerInfo is accessible through the following paths with Config::Set and Config::Connect:

• /NodeList/[i]/DeviceList/[i]/$ns3::LteEnbNetDevice/LteEnbRrc/UeMap/[i]/Srb0
• /NodeList/[i]/DeviceList/[i]/$ns3::LteEnbNetDevice/LteEnbRrc/UeMap/[i]/Srb1
• /NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteEnbNetDevice/LteEnbRrc/UeMap/[i]/Srb0
• /NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteEnbNetDevice/LteEnbRrc/UeMap/[i]/Srb1
• /NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteUeNetDevice/LteUeRrc/Srb0
• /NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteUeNetDevice/LteUeRrc/Srb1
• /NodeList/[i]/DeviceList/[i]/$ns3::LteUeNetDevice/LteUeRrc/Srb0
• /NodeList/[i]/DeviceList/[i]/$ns3::LteUeNetDevice/LteUeRrc/Srb1

Attributes

• SrbIdentity: The id of this Signaling Radio Bearer
  • Set with class: ns3::UintegerValue
  • Underlying type: uint8_t 0:255
  • Flags: read
• LteRlc: RLC instance of the radio bearer.
  • Set with class: ns3::PointerValue
  • Underlying type: ns3::Ptr< ns3::LteRlc >
  • Initial value: 0
  • Flags: construct write read
• LtePdcp: PDCP instance of the radio bearer.
  • Set with class: ns3::PointerValue
  • Underlying type: ns3::Ptr< ns3::LtePdcp >
  • Initial value: 0
  • Flags: construct write read

No TraceSources are defined for this type.

Definition at line 56 of file lte-radio-bearer-info.h.

Member Function Documentation

TypeId ns3::LteSignalingRadioBearerInfo::GetTypeId ( void  )

static

Get the type ID.

Reimplemented from ns3::LteRadioBearerInfo.

Definition at line 92 of file lte-radio-bearer-info.cc.

References ns3::TypeId::ATTR_GET, ns3::LteRadioBearerInfo::m_pdcp, ns3::LteRadioBearerInfo::m_rlc, m_srbIdentity, and ns3::TypeId::SetParent().

Here is the call graph for this function:

Member Data Documentation

LteRrcSap::LogicalChannelConfig ns3::LteSignalingRadioBearerInfo::m_logicalChannelConfig

Definition at line 63 of file lte-radio-bearer-info.h.

Referenced by ns3::LteUeRrc::ApplyRadioResourceConfigDedicated(), ns3::UeManager::BuildRadioResourceConfigDedicated(), and ns3::UeManager::DoInitialize().

uint8_t ns3::LteSignalingRadioBearerInfo::m_srbIdentity

Definition at line 62 of file lte-radio-bearer-info.h.

Referenced by ns3::LteUeRrc::ApplyRadioResourceConfigDedicated(), ns3::UeManager::BuildRadioResourceConfigDedicated(), ns3::LteUeRrc::DoInitialize(), ns3::UeManager::DoInitialize(), and GetTypeId().

---

The documentation for this class was generated from the following files:

• src/lte/model/lte-radio-bearer-info.h
• src/lte/model/lte-radio-bearer-info.cc
