ns3::PacketBurst Class Reference

#include <packet-burst.h>

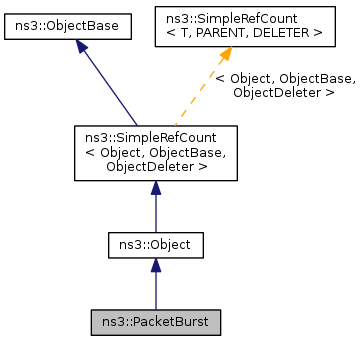

+ Inheritance diagram for ns3::PacketBurst:

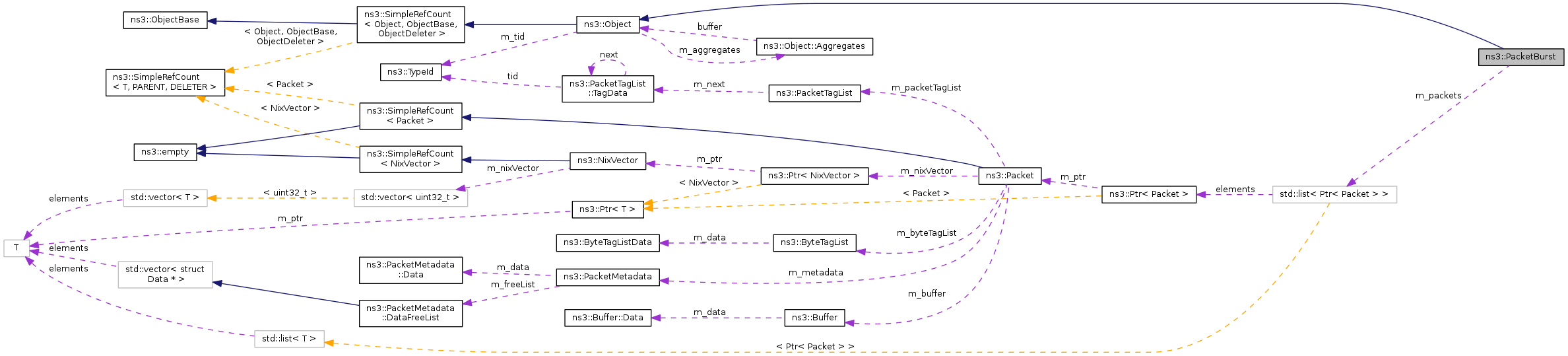

+ Collaboration diagram for ns3::PacketBurst:

Public Member Functions

 PacketBurst (void)
virtual ~PacketBurst (void)
void AddPacket (Ptr< Packet > packet)
 add a packet to the list of packet
std::list< Ptr< Packet >
>::const_iterator 		Begin (void) const
Ptr< PacketBurst > Copy (void) const
std::list< Ptr< Packet >
>::const_iterator 		End (void) const
uint32_t GetNPackets (void) const
std::list< Ptr< Packet > > GetPackets (void) const
uint32_t GetSize (void) const
- Public Member Functions inherited from ns3::Object
 Object ()
virtual ~Object ()
void AggregateObject (Ptr< Object > other)
void Dispose (void)
AggregateIterator GetAggregateIterator (void) const
virtual TypeId GetInstanceTypeId (void) const
template<typename T >
Ptr< T > GetObject (void) const
template<typename T >
Ptr< T > GetObject (TypeId tid) const
void Initialize (void)
- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 SimpleRefCount (const SimpleRefCount &o)
uint32_t GetReferenceCount (void) const
SimpleRefCount & operator= (const SimpleRefCount &o)
void Ref (void) const
void Unref (void) const
- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
void GetAttribute (std::string name, AttributeValue &value) const
bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void SetAttribute (std::string name, const AttributeValue &value)
bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions

static TypeId GetTypeId (void)
 this class implement a burst as a list of packets

Private Member Functions

void DoDispose (void)

Private Attributes

std::list< Ptr< Packet > > m_packets

Additional Inherited Members

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
virtual void DoDispose (void)
virtual void DoInitialize (void)
virtual void NotifyNewAggregate (void)

Detailed Description

Doxygen introspection did not find any typical Config paths.
No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 32 of file packet-burst.h.

Constructor & Destructor Documentation

ns3::PacketBurst::PacketBurst ( void  )

Definition at line 43 of file packet-burst.cc.

References NS_LOG_FUNCTION.

ns3::PacketBurst::~PacketBurst ( void  )
virtual

Definition at line 48 of file packet-burst.cc.

References list, m_packets, and NS_LOG_FUNCTION.

Member Function Documentation

void ns3::PacketBurst::AddPacket ( Ptr< Packet >  packet)

add a packet to the list of packet

Parameters
packetthe packet to add

Definition at line 81 of file packet-burst.cc.

References m_packets, and NS_LOG_FUNCTION.

Referenced by ns3::BSSchedulerRtps::BSSchedulerBasicConnection(), ns3::BSSchedulerRtps::BSSchedulerBEConnection(), ns3::BSSchedulerRtps::BSSchedulerBroadcastConnection(), ns3::BSSchedulerRtps::BSSchedulerInitialRangingConnection(), ns3::BSSchedulerRtps::BSSchedulerNRTPSConnection(), ns3::BSSchedulerRtps::BSSchedulerPrimaryConnection(), ns3::BSSchedulerRtps::BSSchedulerRTPSConnection(), ns3::SimpleOfdmWimaxPhy::ConvertBitsToBurst(), Copy(), ns3::BSSchedulerSimple::CreateUgsBurst(), ns3::BSSchedulerRtps::CreateUgsBurst(), ns3::LteUplinkDataSinrTestCase::DoRun(), ns3::LteDownlinkDataSinrTestCase::DoRun(), ns3::SSScheduler::Schedule(), and ns3::BSSchedulerSimple::Schedule().

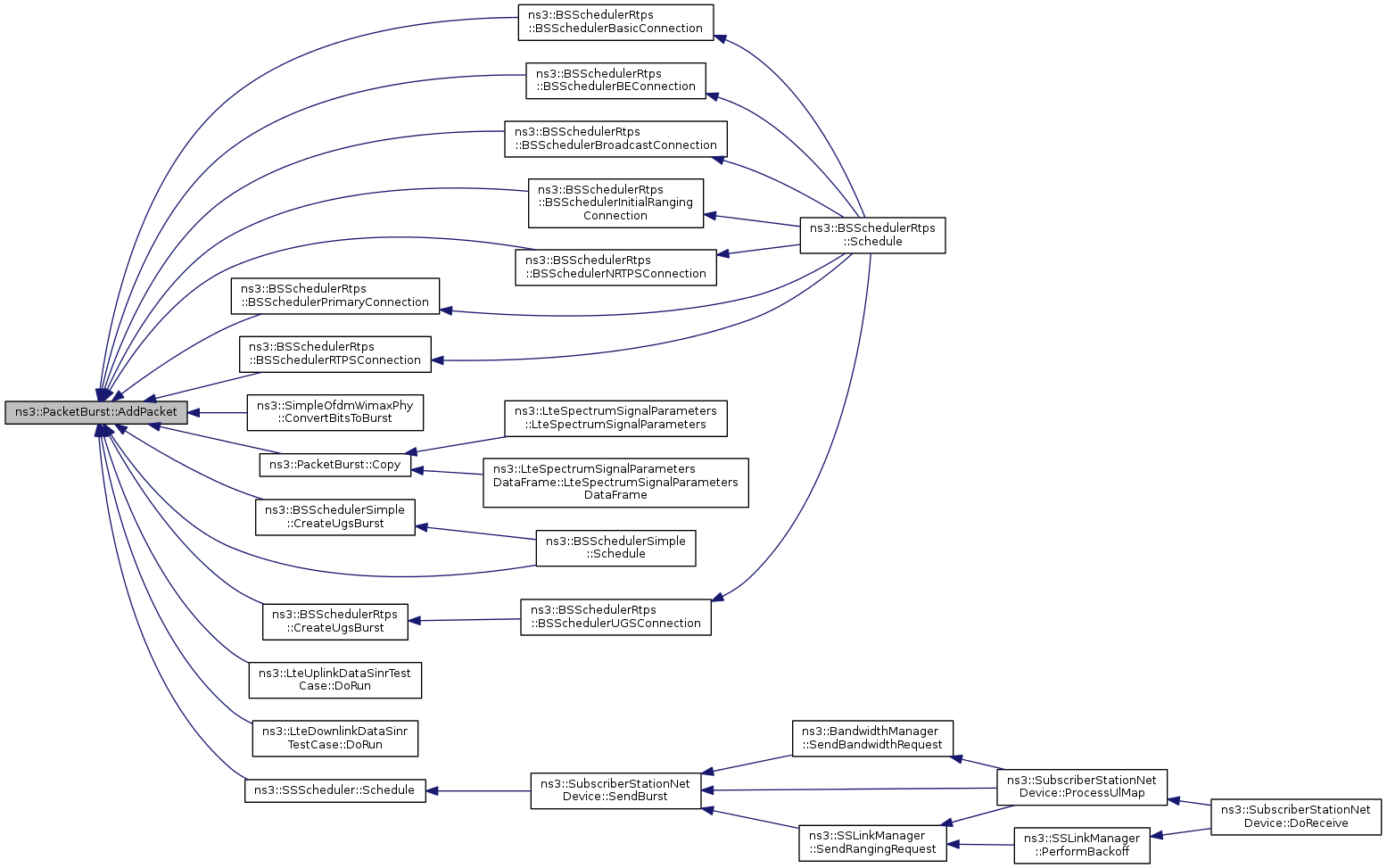

+ Here is the caller graph for this function:

std::list< Ptr< Packet > >::const_iterator ns3::PacketBurst::Begin ( void  ) const

Definition at line 119 of file packet-burst.cc.

References m_packets, and NS_LOG_FUNCTION.

Referenced by ns3::LteUeMac::DoReceiveLteControlMessage(), ns3::LteSpectrumPhy::EndTx(), and ns3::WimaxNetDevice::Receive().

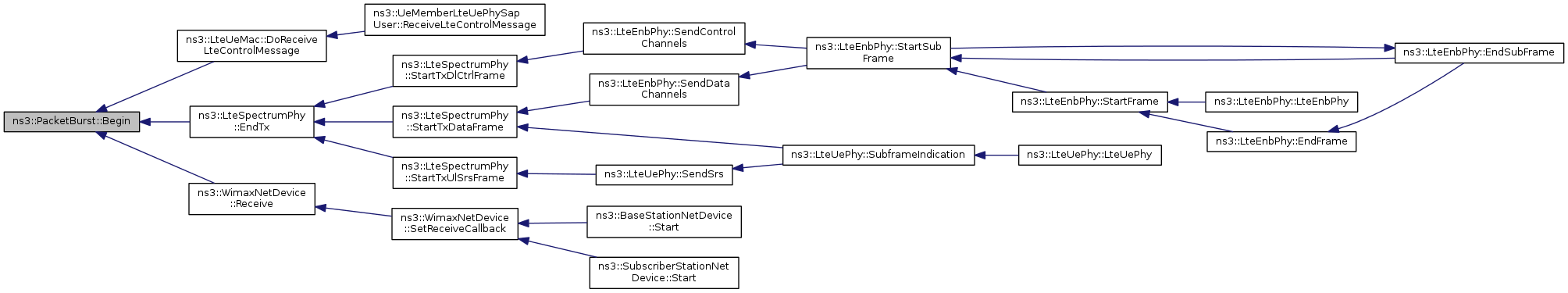

+ Here is the caller graph for this function:

Ptr< PacketBurst > ns3::PacketBurst::Copy ( void  ) const
Returns
a copy the packetBurst

Definition at line 66 of file packet-burst.cc.

References AddPacket(), ns3::Packet::Copy(), list, m_packets, and NS_LOG_FUNCTION.

Referenced by ns3::LteSpectrumSignalParameters::LteSpectrumSignalParameters(), and ns3::LteSpectrumSignalParametersDataFrame::LteSpectrumSignalParametersDataFrame().

+ Here is the call graph for this function:

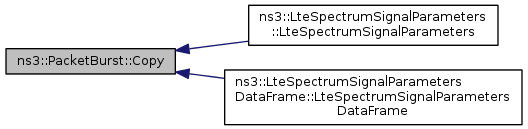

+ Here is the caller graph for this function:

void ns3::PacketBurst::DoDispose ( void  )
private

Definition at line 60 of file packet-burst.cc.

References m_packets, and NS_LOG_FUNCTION.

std::list< Ptr< Packet > >::const_iterator ns3::PacketBurst::End ( void  ) const

Definition at line 126 of file packet-burst.cc.

References m_packets, and NS_LOG_FUNCTION.

Referenced by ns3::LteUeMac::DoReceiveLteControlMessage(), ns3::LteSpectrumPhy::EndTx(), and ns3::WimaxNetDevice::Receive().

+ Here is the caller graph for this function:

uint32_t ns3::PacketBurst::GetNPackets ( void  ) const
Returns
the number of packet in the burst

Definition at line 98 of file packet-burst.cc.

References m_packets, and NS_LOG_FUNCTION.

Referenced by ns3::BSSchedulerSimple::AddDownlinkBurst(), ns3::BSSchedulerRtps::AddDownlinkBurst(), ns3::BSSchedulerRtps::BSSchedulerBasicConnection(), ns3::BSSchedulerRtps::BSSchedulerBEConnection(), ns3::BSSchedulerRtps::BSSchedulerBroadcastConnection(), ns3::BSSchedulerRtps::BSSchedulerInitialRangingConnection(), ns3::BSSchedulerRtps::BSSchedulerNRTPSConnection(), ns3::BSSchedulerRtps::BSSchedulerPrimaryConnection(), ns3::BSSchedulerRtps::BSSchedulerRTPSConnection(), ns3::BSSchedulerRtps::BSSchedulerUGSConnection(), ns3::BSSchedulerSimple::Schedule(), and ns3::SubscriberStationNetDevice::SendBurst().

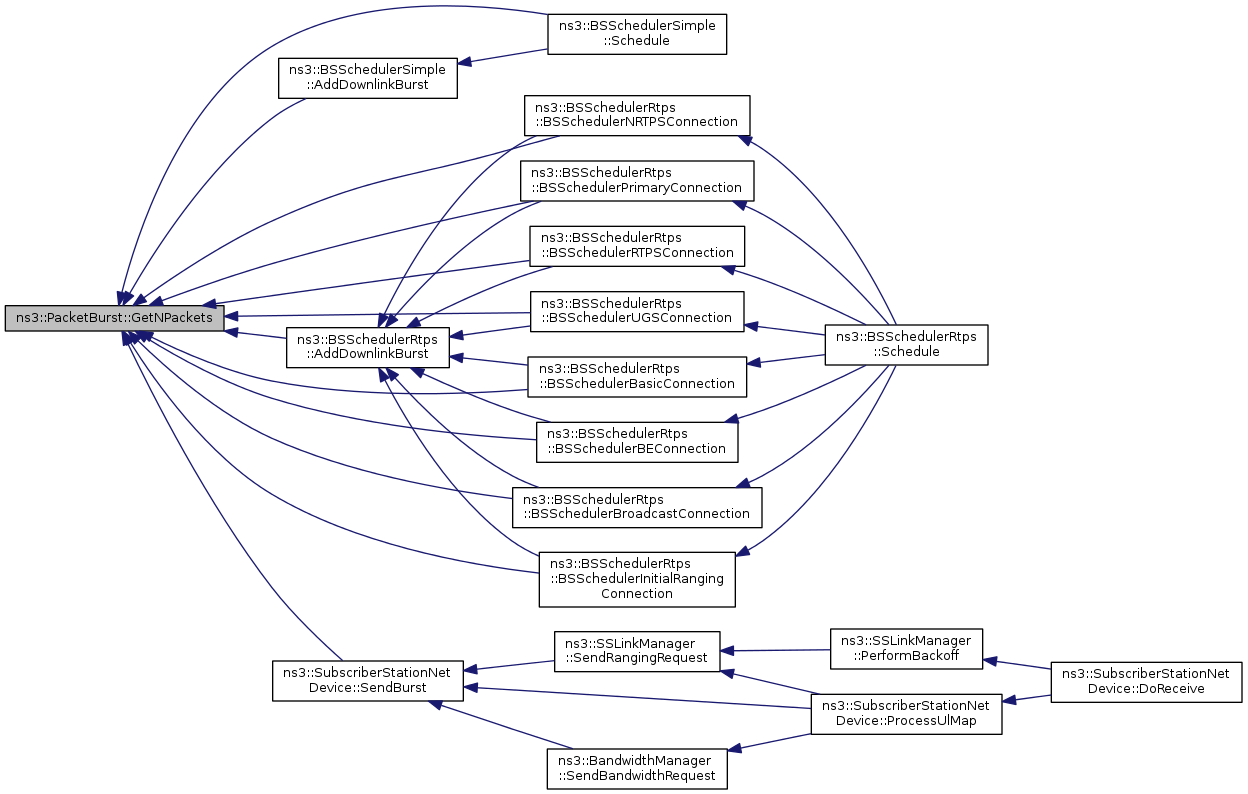

+ Here is the caller graph for this function:

std::list< Ptr< Packet > > ns3::PacketBurst::GetPackets ( void  ) const
Returns
the list of packet of this burst

Definition at line 91 of file packet-burst.cc.

References m_packets, and NS_LOG_FUNCTION.

Referenced by ns3::PcapSniffTxRxEvent().

+ Here is the caller graph for this function:

uint32_t ns3::PacketBurst::GetSize ( void  ) const
Returns
the size of the burst in byte (the size of all packets)

Definition at line 105 of file packet-burst.cc.

References ns3::Packet::GetSize(), list, m_packets, and NS_LOG_FUNCTION.

Referenced by ns3::BSSchedulerSimple::AddDownlinkBurst(), ns3::BSSchedulerRtps::AddDownlinkBurst(), ns3::BSSchedulerSimple::Schedule(), ns3::SimpleOfdmWimaxPhy::Send(), ns3::SubscriberStationNetDevice::SendBurst(), and ns3::BaseStationNetDevice::SendBursts().

+ Here is the call graph for this function:

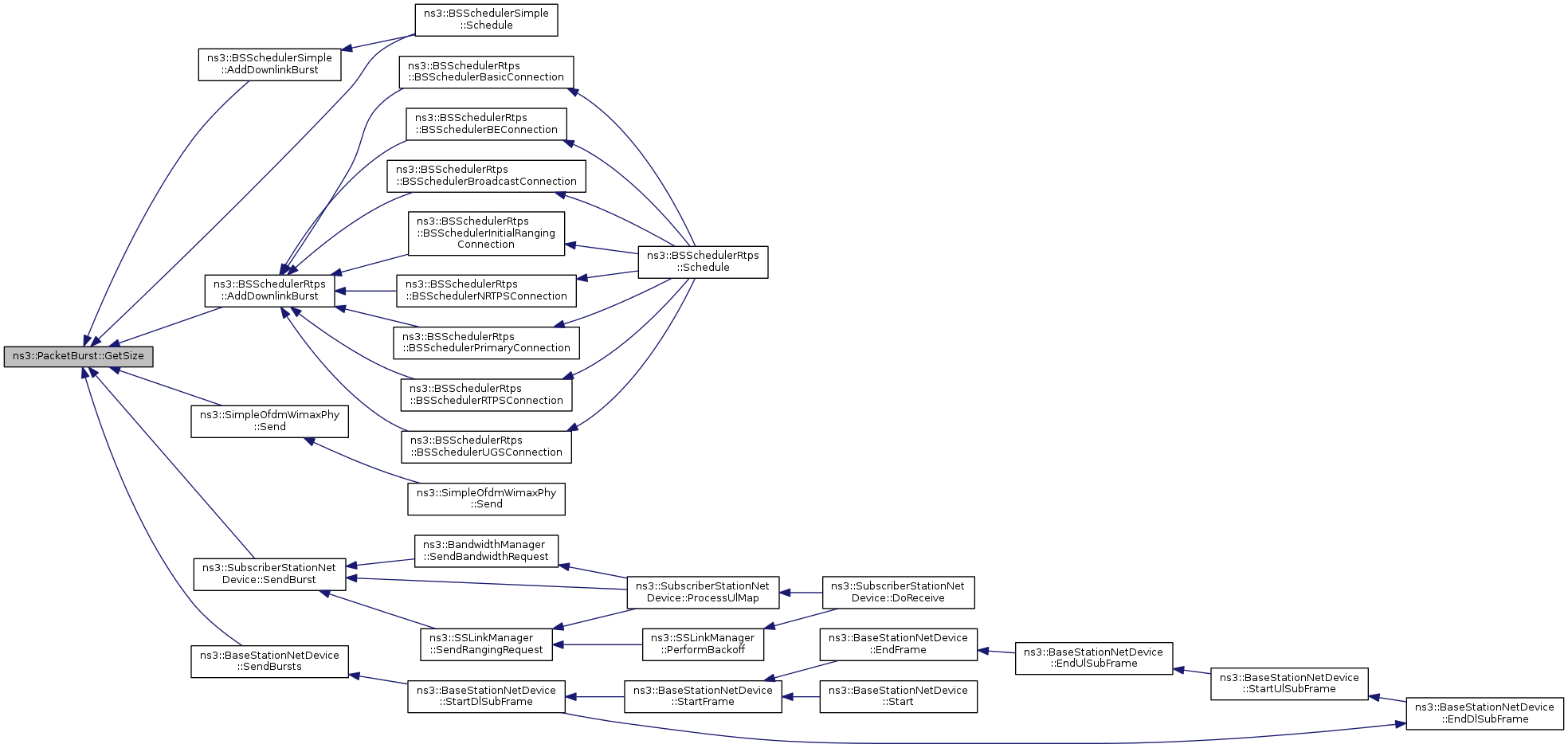

+ Here is the caller graph for this function:

TypeId ns3::PacketBurst::GetTypeId ( void  )
static

this class implement a burst as a list of packets

Reimplemented from ns3::Object.

Definition at line 34 of file packet-burst.cc.

References ns3::TypeId::SetParent().

+ Here is the call graph for this function:

Member Data Documentation

std::list<Ptr<Packet> > ns3::PacketBurst::m_packets
private

Definition at line 67 of file packet-burst.h.

Referenced by AddPacket(), Begin(), Copy(), DoDispose(), End(), GetNPackets(), GetPackets(), GetSize(), and ~PacketBurst().

The documentation for this class was generated from the following files:
