ns3::RandomVariable Class Reference

The basic RNG for NS-3.Note: The underlying random number generation method used by NS-3 is the RngStream code by Pierre L'Ecuyer at the University of Montreal. More...

#include <random-variable.h>

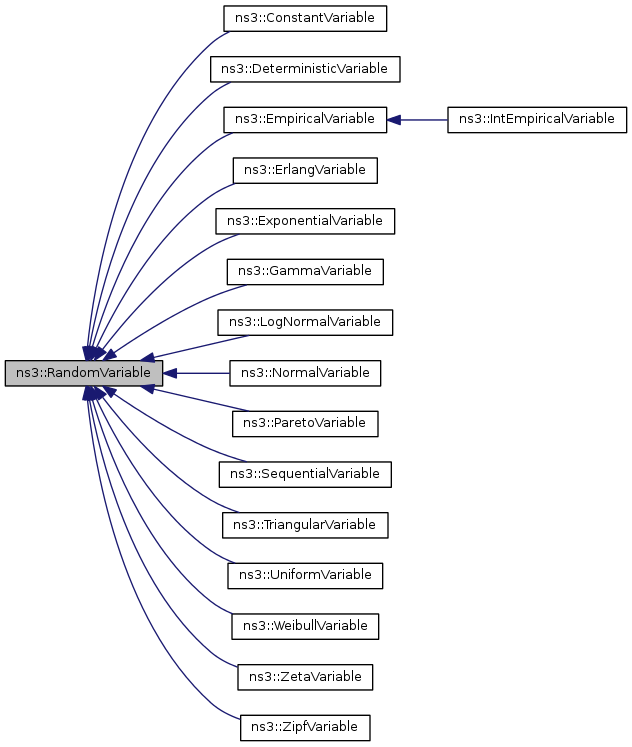

Inheritance diagram for ns3::RandomVariable:

Collaboration diagram for ns3::RandomVariable:

Public Member Functions
	RandomVariable ()
	RandomVariable (const RandomVariable &o)
	~RandomVariable ()
uint32_t	GetInteger (void) const
	Returns a random integer integer from the underlying distribution.
double	GetValue (void) const
	Returns a random double from the underlying distribution.
RandomVariable &	operator= (const RandomVariable &o)

Protected Member Functions
	RandomVariable (const RandomVariableBase &variable)
RandomVariableBase *	Peek (void) const

Private Attributes
RandomVariableBase *	m_variable

Friends
std::ostream &	operator<< (std::ostream &os, const RandomVariable &var)
std::istream &	operator>> (std::istream &os, RandomVariable &var)

Detailed Description

The basic RNG for NS-3.

Note: The underlying random number generation method used by NS-3 is the RngStream code by Pierre L'Ecuyer at the University of Montreal.

NS-3 has a rich set of random number generators. Class RandomVariable defines the base class functionalty required for all random number generators. By default, the underlying generator is seeded all the time with the same seed value and run number coming from the ns3::GlobalValue RngSeed and RngRun.

Definition at line 60 of file random-variable.h.

Constructor & Destructor Documentation

ns3::RandomVariable::RandomVariable

(

)

Definition at line 109 of file random-variable.cc.

References NS_LOG_FUNCTION.

ns3::RandomVariable::RandomVariable

(

const RandomVariable &

o

)

Definition at line 114 of file random-variable.cc.

ns3::RandomVariable::~RandomVariable

(

)

Definition at line 133 of file random-variable.cc.

References m_variable, and NS_LOG_FUNCTION.

ns3::RandomVariable::RandomVariable ( const RandomVariableBase &  variable )

protected

Definition at line 118 of file random-variable.cc.

Member Function Documentation

uint32_t ns3::RandomVariable::GetInteger

(

void

)

const

Returns a random integer integer from the underlying distribution.

Returns

Integer cast of RandomVariable::GetValue

Definition at line 146 of file random-variable.cc.

References ns3::RandomVariableBase::GetInteger(), m_variable, and NS_LOG_FUNCTION.

Here is the call graph for this function:

double ns3::RandomVariable::GetValue

(

void

)

const

Returns a random double from the underlying distribution.

Returns

A floating point random value

Reimplemented in ns3::ErlangVariable, ns3::GammaVariable, and ns3::UniformVariable.

Definition at line 139 of file random-variable.cc.

References ns3::RandomVariableBase::GetValue(), m_variable, and NS_LOG_FUNCTION.

Referenced by RngNormalTestCase::ChiSquaredTest(), RngExponentialTestCase::ChiSquaredTest(), RngParetoTestCase::ChiSquaredTest(), BasicRandomNumberTestCase::DoRun(), ns3::SequentialVariableImpl::GetValue(), ns3::GammaVariableImpl::GetValue(), and ns3::ErlangVariableImpl::GetValue().

Here is the call graph for this function:

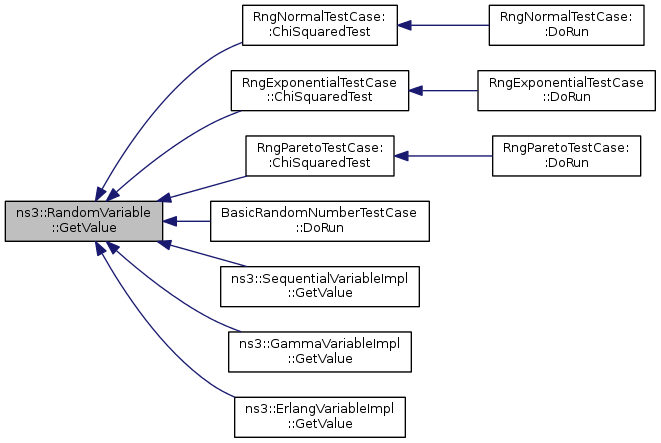

Here is the caller graph for this function:

RandomVariable & ns3::RandomVariable::operator=

(

const RandomVariable &

o

)

Definition at line 123 of file random-variable.cc.

References ns3::RandomVariableBase::Copy(), and m_variable.

Here is the call graph for this function:

RandomVariableBase * ns3::RandomVariable::Peek ( void  ) const

protected

Definition at line 153 of file random-variable.cc.

References m_variable, and NS_LOG_FUNCTION.

Referenced by ns3::EmpiricalVariable::CDF(), ns3::UniformVariable::GetValue(), ns3::GammaVariable::GetValue(), ns3::ErlangVariable::GetValue(), and ns3::operator<<().

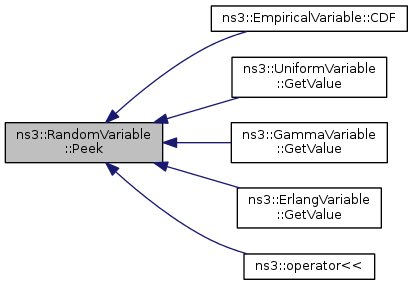

Here is the caller graph for this function:

Friends And Related Function Documentation

std::ostream& operator<< ( std::ostream &  os, const RandomVariable &  var  )

friend

Todo:

support other distributions

Definition at line 2033 of file random-variable.cc.

std::istream& operator>> ( std::istream &  os, RandomVariable &  var  )

friend

Todo:

support other distributions.

Definition at line 2063 of file random-variable.cc.

Member Data Documentation

RandomVariableBase* ns3::RandomVariable::m_variable

private

Definition at line 84 of file random-variable.h.

Referenced by GetInteger(), GetValue(), operator=(), Peek(), and ~RandomVariable().

---

The documentation for this class was generated from the following files:

• src/core/model/random-variable.h
• src/core/model/random-variable.cc
