ns3::SeqTsHeader Class Reference

Packet header for Udp client/server application The header is made of a 32bits sequence number followed by a 64bits time stamp. More...

#include <seq-ts-header.h>

Inheritance diagram for ns3::SeqTsHeader:

Collaboration diagram for ns3::SeqTsHeader:

Public Member Functions
	SeqTsHeader ()
uint32_t	GetSeq (void) const
Time	GetTs (void) const
void	SetSeq (uint32_t seq)
Public Member Functions inherited from ns3::Header
virtual	~Header ()
virtual uint32_t	Deserialize (Buffer::Iterator start)=0
virtual uint32_t	GetSerializedSize (void) const =0
virtual void	Print (std::ostream &os) const =0
virtual void	Serialize (Buffer::Iterator start) const =0

Static Public Member Functions
static TypeId	GetTypeId (void)

Private Member Functions
virtual uint32_t	Deserialize (Buffer::Iterator start)
virtual TypeId	GetInstanceTypeId (void) const
virtual uint32_t	GetSerializedSize (void) const
virtual void	Print (std::ostream &os) const
virtual void	Serialize (Buffer::Iterator start) const

Private Attributes
uint32_t	m_seq
uint64_t	m_ts

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
virtual void	NotifyConstructionCompleted (void)

Detailed Description

Packet header for Udp client/server application The header is made of a 32bits sequence number followed by a 64bits time stamp.

Doxygen introspection did not find any typical Config paths.
No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 35 of file seq-ts-header.h.

Constructor & Destructor Documentation

ns3::SeqTsHeader::SeqTsHeader

(

)

Definition at line 33 of file seq-ts-header.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

uint32_t ns3::SeqTsHeader::Deserialize ( Buffer::Iterator  start )

privatevirtual

Definition at line 96 of file seq-ts-header.cc.

References GetSerializedSize(), m_seq, m_ts, NS_LOG_FUNCTION, ns3::Buffer::Iterator::ReadNtohU32(), ns3::Buffer::Iterator::ReadNtohU64(), and visualizer.core::start().

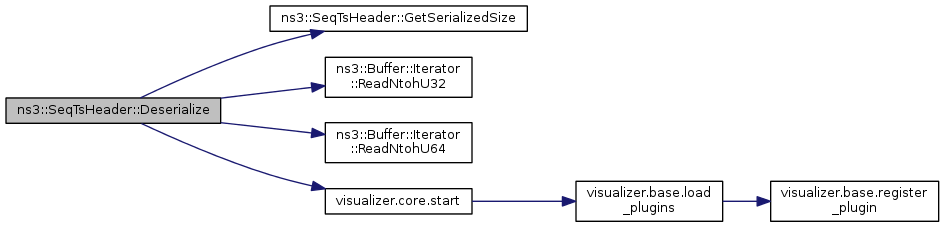

Here is the call graph for this function:

TypeId ns3::SeqTsHeader::GetInstanceTypeId ( void  ) const

privatevirtual

Definition at line 70 of file seq-ts-header.cc.

References GetTypeId().

Here is the call graph for this function:

uint32_t ns3::SeqTsHeader::GetSeq

(

void

)

const

Returns

the sequence number

Definition at line 47 of file seq-ts-header.cc.

References m_seq, and NS_LOG_FUNCTION.

Referenced by ns3::UdpServer::HandleRead().

Here is the caller graph for this function:

uint32_t ns3::SeqTsHeader::GetSerializedSize ( void  ) const

privatevirtual

Definition at line 81 of file seq-ts-header.cc.

References NS_LOG_FUNCTION.

Referenced by Deserialize().

Here is the caller graph for this function:

Time ns3::SeqTsHeader::GetTs

(

void

)

const

Returns

the time stamp

Definition at line 54 of file seq-ts-header.cc.

References m_ts, NS_LOG_FUNCTION, and ns3::TimeStep().

Referenced by ns3::UdpServer::HandleRead().

Here is the call graph for this function:

Here is the caller graph for this function:

TypeId ns3::SeqTsHeader::GetTypeId ( void  )

static

Get the type ID.

Reimplemented from ns3::Header.

Definition at line 61 of file seq-ts-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::SeqTsHeader::Print ( std::ostream &  os ) const

privatevirtual

Definition at line 75 of file seq-ts-header.cc.

References ns3::Time::GetSeconds(), m_seq, m_ts, NS_LOG_FUNCTION, and ns3::TimeStep().

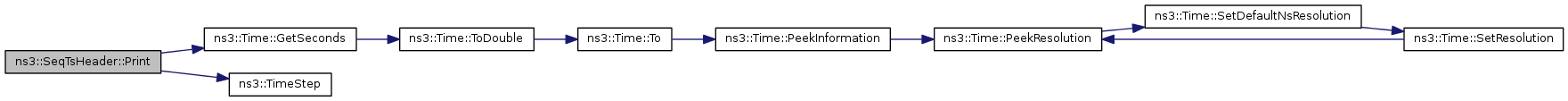

Here is the call graph for this function:

void ns3::SeqTsHeader::Serialize ( Buffer::Iterator  start ) const

privatevirtual

Definition at line 88 of file seq-ts-header.cc.

References m_seq, m_ts, NS_LOG_FUNCTION, visualizer.core::start(), ns3::Buffer::Iterator::WriteHtonU32(), and ns3::Buffer::Iterator::WriteHtonU64().

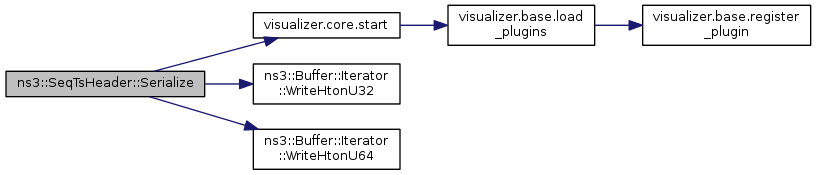

Here is the call graph for this function:

void ns3::SeqTsHeader::SetSeq

(

uint32_t

seq

)

Parameters

seq	the sequence number

Definition at line 41 of file seq-ts-header.cc.

References m_seq, and NS_LOG_FUNCTION.

Referenced by ns3::UdpClient::Send(), ns3::EpsBearerTagUdpClient::Send(), and ns3::UdpTraceClient::SendPacket().

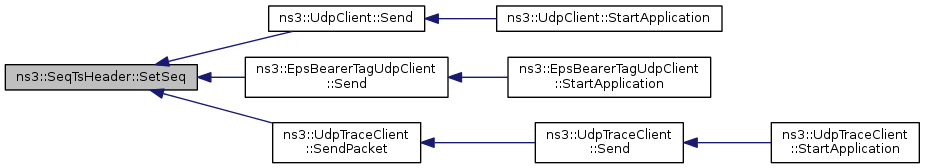

Here is the caller graph for this function:

Member Data Documentation

uint32_t ns3::SeqTsHeader::m_seq

private

Definition at line 61 of file seq-ts-header.h.

Referenced by Deserialize(), GetSeq(), Print(), Serialize(), and SetSeq().

uint64_t ns3::SeqTsHeader::m_ts

private

Definition at line 62 of file seq-ts-header.h.

Referenced by Deserialize(), GetTs(), Print(), and Serialize().

---

The documentation for this class was generated from the following files:

• src/applications/model/seq-ts-header.h
• src/applications/model/seq-ts-header.cc
