ns3::TdTbfqSchedulerMemberSchedSapProvider Class Reference

Inheritance diagram for ns3::TdTbfqSchedulerMemberSchedSapProvider:

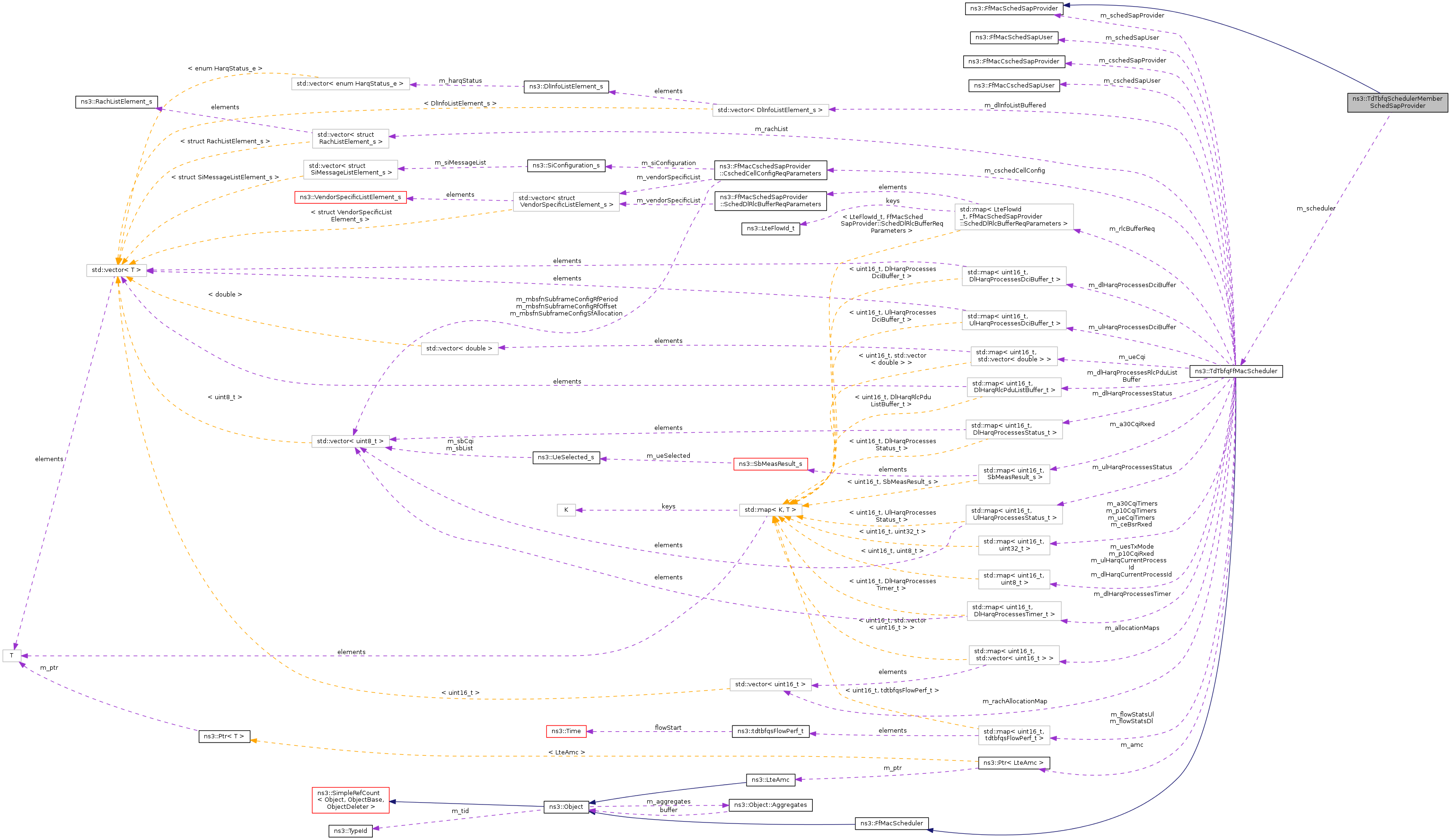

Collaboration diagram for ns3::TdTbfqSchedulerMemberSchedSapProvider:

Public Member Functions
	TdTbfqSchedulerMemberSchedSapProvider (TdTbfqFfMacScheduler *scheduler)
virtual void	SchedDlCqiInfoReq (const struct SchedDlCqiInfoReqParameters &params)
virtual void	SchedDlMacBufferReq (const struct SchedDlMacBufferReqParameters &params)
virtual void	SchedDlPagingBufferReq (const struct SchedDlPagingBufferReqParameters &params)
virtual void	SchedDlRachInfoReq (const struct SchedDlRachInfoReqParameters &params)
virtual void	SchedDlRlcBufferReq (const struct SchedDlRlcBufferReqParameters &params)
virtual void	SchedDlTriggerReq (const struct SchedDlTriggerReqParameters &params)
virtual void	SchedUlCqiInfoReq (const struct SchedUlCqiInfoReqParameters &params)
virtual void	SchedUlMacCtrlInfoReq (const struct SchedUlMacCtrlInfoReqParameters &params)
virtual void	SchedUlNoiseInterferenceReq (const struct SchedUlNoiseInterferenceReqParameters &params)
virtual void	SchedUlSrInfoReq (const struct SchedUlSrInfoReqParameters &params)
virtual void	SchedUlTriggerReq (const struct SchedUlTriggerReqParameters &params)
Public Member Functions inherited from ns3::FfMacSchedSapProvider
virtual	~FfMacSchedSapProvider ()

Private Member Functions
	TdTbfqSchedulerMemberSchedSapProvider ()

Private Attributes
TdTbfqFfMacScheduler *	m_scheduler

Detailed Description

Definition at line 111 of file tdtbfq-ff-mac-scheduler.cc.

Constructor & Destructor Documentation

ns3::TdTbfqSchedulerMemberSchedSapProvider::TdTbfqSchedulerMemberSchedSapProvider

(

TdTbfqFfMacScheduler *

scheduler

)

Definition at line 142 of file tdtbfq-ff-mac-scheduler.cc.

ns3::TdTbfqSchedulerMemberSchedSapProvider::TdTbfqSchedulerMemberSchedSapProvider ( )

private

Definition at line 137 of file tdtbfq-ff-mac-scheduler.cc.

Member Function Documentation

void ns3::TdTbfqSchedulerMemberSchedSapProvider::SchedDlCqiInfoReq ( const struct SchedDlCqiInfoReqParameters &  params )

virtual

Implements ns3::FfMacSchedSapProvider.

Definition at line 178 of file tdtbfq-ff-mac-scheduler.cc.

References ns3::TdTbfqFfMacScheduler::DoSchedDlCqiInfoReq(), and m_scheduler.

Here is the call graph for this function:

void ns3::TdTbfqSchedulerMemberSchedSapProvider::SchedDlMacBufferReq ( const struct SchedDlMacBufferReqParameters &  params )

virtual

Implements ns3::FfMacSchedSapProvider.

Definition at line 160 of file tdtbfq-ff-mac-scheduler.cc.

References ns3::TdTbfqFfMacScheduler::DoSchedDlMacBufferReq(), and m_scheduler.

Here is the call graph for this function:

void ns3::TdTbfqSchedulerMemberSchedSapProvider::SchedDlPagingBufferReq ( const struct SchedDlPagingBufferReqParameters &  params )

virtual

Implements ns3::FfMacSchedSapProvider.

Definition at line 154 of file tdtbfq-ff-mac-scheduler.cc.

References ns3::TdTbfqFfMacScheduler::DoSchedDlPagingBufferReq(), and m_scheduler.

Here is the call graph for this function:

void ns3::TdTbfqSchedulerMemberSchedSapProvider::SchedDlRachInfoReq ( const struct SchedDlRachInfoReqParameters &  params )

virtual

Implements ns3::FfMacSchedSapProvider.

Definition at line 172 of file tdtbfq-ff-mac-scheduler.cc.

References ns3::TdTbfqFfMacScheduler::DoSchedDlRachInfoReq(), and m_scheduler.

Here is the call graph for this function:

void ns3::TdTbfqSchedulerMemberSchedSapProvider::SchedDlRlcBufferReq ( const struct SchedDlRlcBufferReqParameters &  params )

virtual

Implements ns3::FfMacSchedSapProvider.

Definition at line 148 of file tdtbfq-ff-mac-scheduler.cc.

References ns3::TdTbfqFfMacScheduler::DoSchedDlRlcBufferReq(), and m_scheduler.

Here is the call graph for this function:

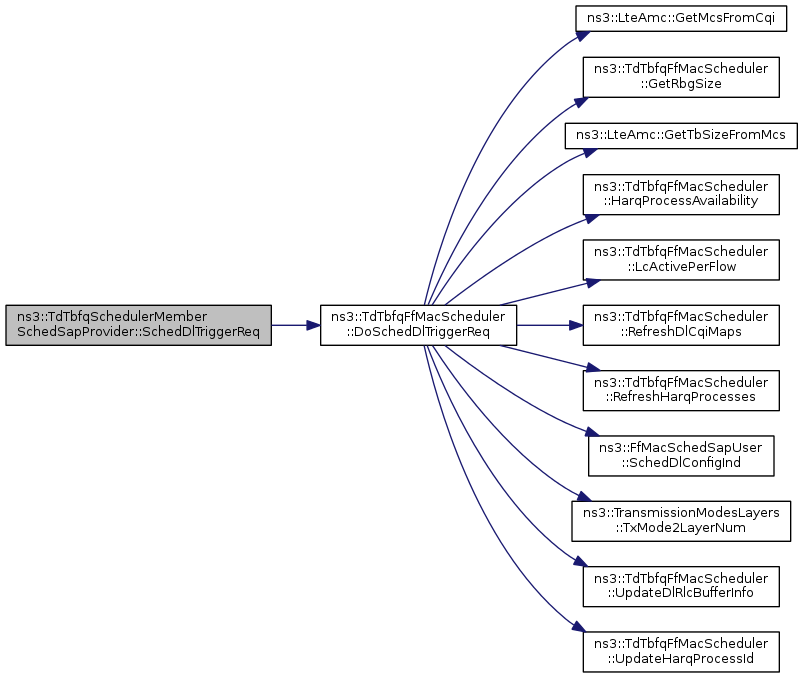

void ns3::TdTbfqSchedulerMemberSchedSapProvider::SchedDlTriggerReq ( const struct SchedDlTriggerReqParameters &  params )

virtual

Implements ns3::FfMacSchedSapProvider.

Definition at line 166 of file tdtbfq-ff-mac-scheduler.cc.

References ns3::TdTbfqFfMacScheduler::DoSchedDlTriggerReq(), and m_scheduler.

Here is the call graph for this function:

void ns3::TdTbfqSchedulerMemberSchedSapProvider::SchedUlCqiInfoReq ( const struct SchedUlCqiInfoReqParameters &  params )

virtual

Implements ns3::FfMacSchedSapProvider.

Definition at line 208 of file tdtbfq-ff-mac-scheduler.cc.

References ns3::TdTbfqFfMacScheduler::DoSchedUlCqiInfoReq(), and m_scheduler.

Here is the call graph for this function:

void ns3::TdTbfqSchedulerMemberSchedSapProvider::SchedUlMacCtrlInfoReq ( const struct SchedUlMacCtrlInfoReqParameters &  params )

virtual

Implements ns3::FfMacSchedSapProvider.

Definition at line 202 of file tdtbfq-ff-mac-scheduler.cc.

References ns3::TdTbfqFfMacScheduler::DoSchedUlMacCtrlInfoReq(), and m_scheduler.

Here is the call graph for this function:

void ns3::TdTbfqSchedulerMemberSchedSapProvider::SchedUlNoiseInterferenceReq ( const struct SchedUlNoiseInterferenceReqParameters &  params )

virtual

Implements ns3::FfMacSchedSapProvider.

Definition at line 190 of file tdtbfq-ff-mac-scheduler.cc.

References ns3::TdTbfqFfMacScheduler::DoSchedUlNoiseInterferenceReq(), and m_scheduler.

Here is the call graph for this function:

void ns3::TdTbfqSchedulerMemberSchedSapProvider::SchedUlSrInfoReq ( const struct SchedUlSrInfoReqParameters &  params )

virtual

Implements ns3::FfMacSchedSapProvider.

Definition at line 196 of file tdtbfq-ff-mac-scheduler.cc.

References ns3::TdTbfqFfMacScheduler::DoSchedUlSrInfoReq(), and m_scheduler.

Here is the call graph for this function:

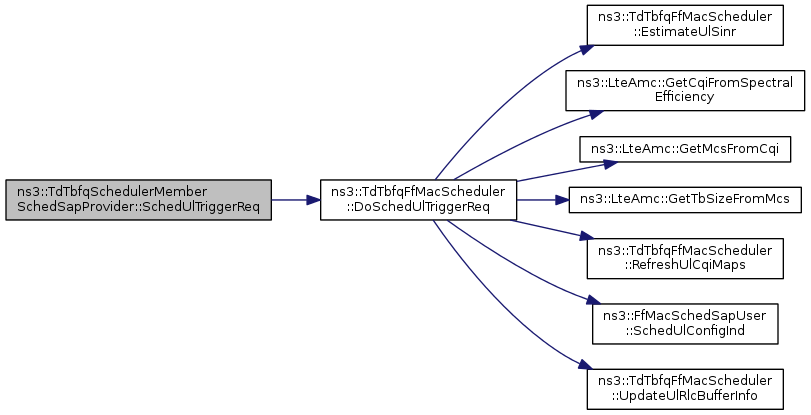

void ns3::TdTbfqSchedulerMemberSchedSapProvider::SchedUlTriggerReq ( const struct SchedUlTriggerReqParameters &  params )

virtual

Implements ns3::FfMacSchedSapProvider.

Definition at line 184 of file tdtbfq-ff-mac-scheduler.cc.

References ns3::TdTbfqFfMacScheduler::DoSchedUlTriggerReq(), and m_scheduler.

Here is the call graph for this function:

Member Data Documentation

TdTbfqFfMacScheduler* ns3::TdTbfqSchedulerMemberSchedSapProvider::m_scheduler

private

Definition at line 132 of file tdtbfq-ff-mac-scheduler.cc.

Referenced by SchedDlCqiInfoReq(), SchedDlMacBufferReq(), SchedDlPagingBufferReq(), SchedDlRachInfoReq(), SchedDlRlcBufferReq(), SchedDlTriggerReq(), SchedUlCqiInfoReq(), SchedUlMacCtrlInfoReq(), SchedUlNoiseInterferenceReq(), SchedUlSrInfoReq(), and SchedUlTriggerReq().

---

The documentation for this class was generated from the following file:

• src/lte/model/tdtbfq-ff-mac-scheduler.cc
