ns3::UanAddress Class Reference

#include <uan-address.h>

Public Member Functions
	UanAddress ()
	UanAddress (uint8_t addr)
	Create UanAddress object with address addr.
virtual	~UanAddress ()
void	CopyFrom (const uint8_t *pBuffer)
	Sets address to address stored in parameter.
void	CopyTo (uint8_t *pBuffer)
	Writes address to buffer parameter.
uint8_t	GetAsInt (void) const
	operator Address () const
	Create UanAddress object with broadcast address.

Static Public Member Functions
static UanAddress	Allocate ()
	Allocates UanAddress from 0-254 (will wrap back to 0 if more than 255 are allocated)
static UanAddress	ConvertFrom (const Address &address)
static UanAddress	GetBroadcast (void)
static bool	IsMatchingType (const Address &address)

Private Member Functions
Address	ConvertTo (void) const

Static Private Member Functions
static uint8_t	GetType (void)

Private Attributes
uint8_t	m_address

Friends
bool	operator!= (const UanAddress &a, const UanAddress &b)
	Returns true if byte address a is unequal to byte address b.
std::ostream &	operator<< (std::ostream &os, const UanAddress &address)
	Writes param address to stream os as 8 bit integer.
bool	operator== (const UanAddress &a, const UanAddress &b)
	Returns true if byte address a is equal to byte address b.
std::istream &	operator>> (std::istream &is, UanAddress &address)
	Inputs param address from stream is as 8 bit integer.

Detailed Description

A class used for addressing UAN MAC's. This implementation uses a simple 8 bit flat addressing scheme. It is unlikely that perceived underwater networks will soon exceed 200 nodes (or the overlapping of two underwater networks - the ocean is big), so this should provide adequate addressing for most applications.

Definition at line 37 of file uan-address.h.

Constructor & Destructor Documentation

ns3::UanAddress::UanAddress

(

)

Definition at line 26 of file uan-address.cc.

References m_address.

Referenced by Allocate(), and GetBroadcast().

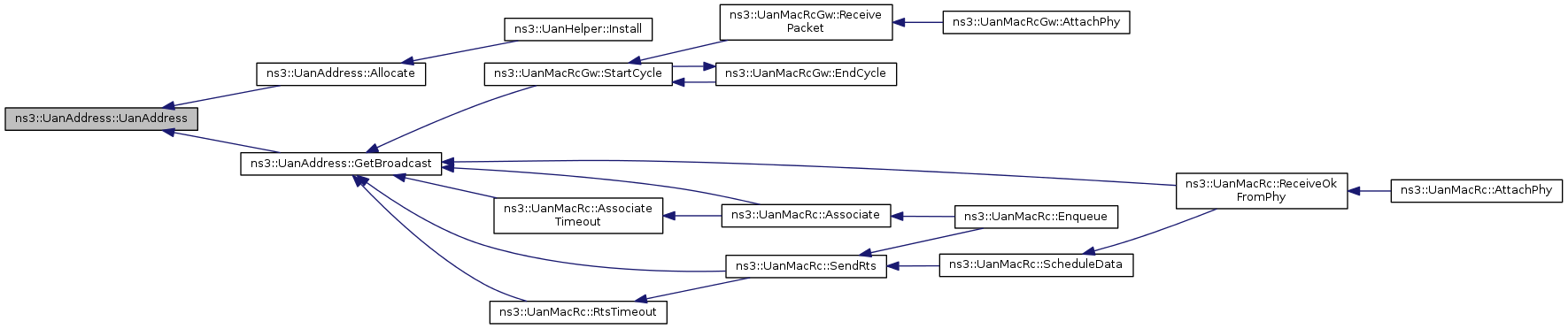

Here is the caller graph for this function:

ns3::UanAddress::UanAddress

(

uint8_t

addr

)

Create UanAddress object with address addr.

Parameters

addr	byte address to assign to this address

Definition at line 31 of file uan-address.cc.

ns3::UanAddress::~UanAddress ( )

virtual

Definition at line 36 of file uan-address.cc.

Member Function Documentation

UanAddress ns3::UanAddress::Allocate ( void  )

static

Allocates UanAddress from 0-254 (will wrap back to 0 if more than 255 are allocated)

Definition at line 97 of file uan-address.cc.

References first::address, and UanAddress().

Referenced by ns3::UanHelper::Install().

Here is the call graph for this function:

Here is the caller graph for this function:

UanAddress ns3::UanAddress::ConvertFrom ( const Address &  address )

static

Parameters

address

Address to convert to UAN address

Returns

UanAddress from Address

Definition at line 54 of file uan-address.cc.

References ns3::Address::CopyTo(), IsMatchingType(), m_address, and NS_ASSERT.

Referenced by ns3::UanMacAloha::Enqueue(), ns3::UanMacCw::Enqueue(), ns3::UanMacRc::Enqueue(), ns3::UanMacAloha::RxPacketError(), and ns3::UanNetDevice::SetAddress().

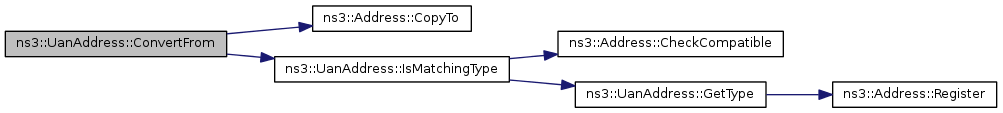

Here is the call graph for this function:

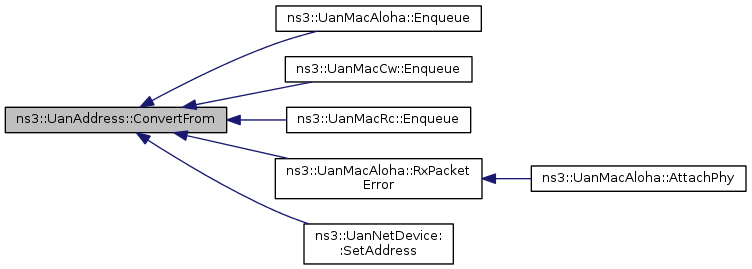

Here is the caller graph for this function:

Address ns3::UanAddress::ConvertTo ( void  ) const

private

Definition at line 48 of file uan-address.cc.

References GetType(), and m_address.

Here is the call graph for this function:

void ns3::UanAddress::CopyFrom

(

const uint8_t *

pBuffer

)

Sets address to address stored in parameter.

Parameters

pBuffer

Buffer to extract address from

Definition at line 79 of file uan-address.cc.

References m_address.

void ns3::UanAddress::CopyTo

(

uint8_t *

pBuffer

)

Writes address to buffer parameter.

Parameters

pBuffer

Definition at line 85 of file uan-address.cc.

References m_address.

uint8_t ns3::UanAddress::GetAsInt

(

void

)

const

Returns

8 bit integer version of address

Definition at line 63 of file uan-address.cc.

References m_address.

Referenced by ns3::operator<(), ns3::UanHeaderCommon::Serialize(), and ns3::UanHeaderRcCts::Serialize().

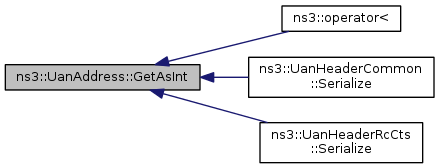

Here is the caller graph for this function:

UanAddress ns3::UanAddress::GetBroadcast ( void  )

static

Returns

Broadcast address: 255

Definition at line 92 of file uan-address.cc.

References UanAddress().

Referenced by ns3::UanMacRc::Associate(), ns3::UanMacRc::AssociateTimeout(), ns3::UanMacRc::ReceiveOkFromPhy(), ns3::UanMacRc::RtsTimeout(), ns3::UanMacRc::SendRts(), and ns3::UanMacRcGw::StartCycle().

Here is the call graph for this function:

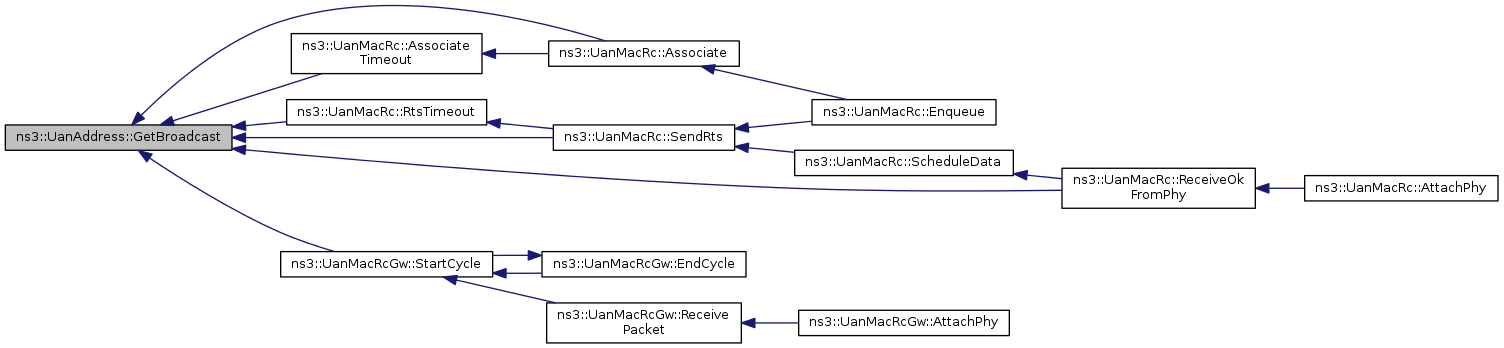

Here is the caller graph for this function:

uint8_t ns3::UanAddress::GetType ( void  )

staticprivate

Definition at line 41 of file uan-address.cc.

References ns3::Address::Register().

Referenced by ConvertTo(), and IsMatchingType().

Here is the call graph for this function:

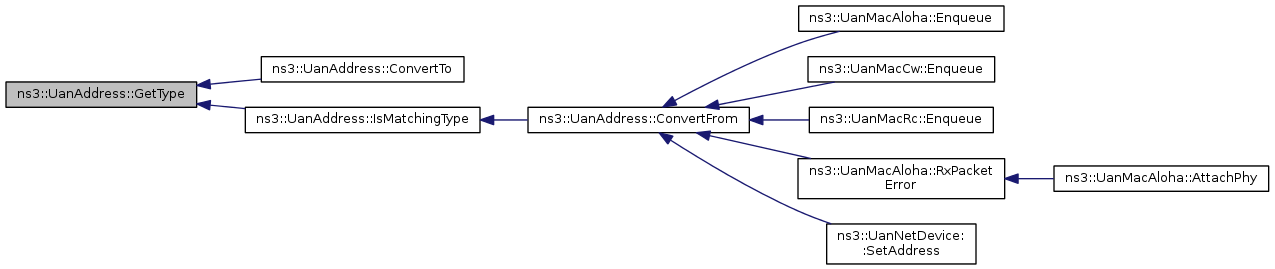

Here is the caller graph for this function:

bool ns3::UanAddress::IsMatchingType ( const Address &  address )

static

Parameters

address

Address to test

Returns

True if address given is consistant with UanAddress

Definition at line 68 of file uan-address.cc.

References ns3::Address::CheckCompatible(), and GetType().

Referenced by ConvertFrom().

Here is the call graph for this function:

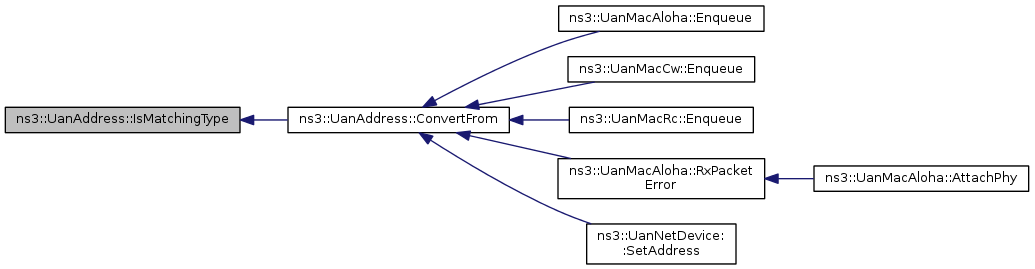

Here is the caller graph for this function:

ns3::UanAddress::operator Address

(

)

const

Create UanAddress object with broadcast address.

Definition at line 73 of file uan-address.cc.

Friends And Related Function Documentation

bool operator!= ( const UanAddress &  a, const UanAddress &  b  )

friend

Returns true if byte address a is unequal to byte address b.

Definition at line 117 of file uan-address.cc.

std::ostream& operator<< ( std::ostream &  os, const UanAddress &  address  )

friend

Writes param address to stream os as 8 bit integer.

Definition at line 123 of file uan-address.cc.

bool operator== ( const UanAddress &  a, const UanAddress &  b  )

friend

Returns true if byte address a is equal to byte address b.

Definition at line 111 of file uan-address.cc.

std::istream& operator>> ( std::istream &  is, UanAddress &  address  )

friend

Inputs param address from stream is as 8 bit integer.

Definition at line 129 of file uan-address.cc.

Member Data Documentation

uint8_t ns3::UanAddress::m_address

private

Definition at line 94 of file uan-address.h.

Referenced by ConvertFrom(), ConvertTo(), CopyFrom(), CopyTo(), GetAsInt(), ns3::operator<<(), ns3::operator==(), ns3::operator>>(), and UanAddress().

---

The documentation for this class was generated from the following files:

• src/uan/model/uan-address.h
• src/uan/model/uan-address.cc
