#include <uan-prop-model.h>

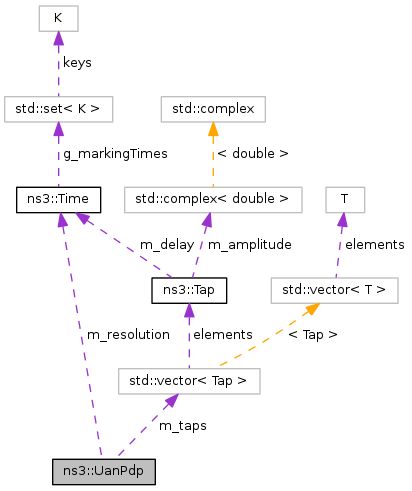

Collaboration diagram for ns3::UanPdp:

Public Types
typedef std::vector< Tap > ::const_iterator	Iterator
	Iterator is a standard template library constant interator.

Public Member Functions
	UanPdp ()
	Create empty PDP object.
	UanPdp (std::vector< Tap > taps, Time resolution)
	Create PDP object from a vector of Tap objects.
	UanPdp (std::vector< std::complex< double > > arrivals, Time resolution)
	Create PDP object from vector of arrival amplitudes.
	UanPdp (std::vector< double > arrivals, Time resolution)
	Create PDP object from real valued arrival amplitudes.
	~UanPdp ()
Iterator	GetBegin (void) const
Iterator	GetEnd (void) const
uint32_t	GetNTaps (void) const
Time	GetResolution (void) const
const Tap &	GetTap (uint32_t i) const
void	SetNTaps (uint32_t nTaps)
void	SetResolution (Time resolution)
void	SetTap (std::complex< double > arrival, uint32_t index)
std::complex< double >	SumTapsC (Time begin, Time end) const
std::complex< double >	SumTapsFromMaxC (Time delay, Time duration) const
double	SumTapsFromMaxNc (Time delay, Time duration) const
double	SumTapsNc (Time begin, Time end) const

Static Public Member Functions
static UanPdp	CreateImpulsePdp (void)

Private Attributes
Time	m_resolution
std::vector< Tap >	m_taps

Friends
std::ostream &	operator<< (std::ostream &os, UanPdp &pdp)
	Writes PDP to stream as list of arrivals.
std::istream &	operator>> (std::istream &is, UanPdp &pdp)

Detailed Description

Container class to describe power delay profile returned from UAN propagation models using tapped delay line model. This should model a channel impulse response as a set of equally spaced signal arrivals.

Generally, the profile should be normalized, such that the sum of all taps should equal 1. The received signal power on any interval (t1, t2) can then be found from summing the taps on the interval and multiplying by the total received power at the receiver.

Definition at line 83 of file uan-prop-model.h.

Member Typedef Documentation

typedef std::vector<Tap>::const_iterator ns3::UanPdp::Iterator

Iterator is a standard template library constant interator.

Definition at line 89 of file uan-prop-model.h.

Constructor & Destructor Documentation

ns3::UanPdp::UanPdp ( )

Create empty PDP object.

Definition at line 108 of file uan-prop-model.cc.

ns3::UanPdp::UanPdp	(	std::vector< Tap >	taps,
		Time	resolution
	)

Create PDP object from a vector of Tap objects.

Parameters

taps	Taps to include in this PDP
resolution	Resolution of PDP object

Definition at line 113 of file uan-prop-model.cc.

ns3::UanPdp::UanPdp	(	std::vector< std::complex< double > >	arrivals,
		Time	resolution
	)

Create PDP object from vector of arrival amplitudes.

Parameters

arrivals	Vector of complex amplitude arrivals
resolution	Time duration between arrivals in vector

Definition at line 119 of file uan-prop-model.cc.

References m_resolution, and m_taps.

ns3::UanPdp::UanPdp	(	std::vector< double >	arrivals,
		Time	resolution
	)

Create PDP object from real valued arrival amplitudes.

Parameters

arrivals	vector of real valued arrivals
resolution	Time duration between arrivals in vector

Definition at line 131 of file uan-prop-model.cc.

References m_resolution, and m_taps.

ns3::UanPdp::~UanPdp ( )

Definition at line 143 of file uan-prop-model.cc.

References m_taps.

Member Function Documentation

UanPdp ns3::UanPdp::CreateImpulsePdp ( void )

static

Returns: A PDP with a singlue unit impulse arrival at time 0

Definition at line 331 of file uan-prop-model.cc.

References SetResolution(), and SetTap().

Referenced by ns3::UanPropModelThorp::GetPdp(), and ns3::UanPropModelIdeal::GetPdp().

Here is the call graph for this function:

Here is the caller graph for this function:

UanPdp::Iterator ns3::UanPdp::GetBegin ( void ) const

Returns: Iterator positioned at first arrival

Definition at line 176 of file uan-prop-model.cc.

References m_taps.

Referenced by ns3::UanPhyCalcSinrFhFsk::CalcSinrDb().

Here is the caller graph for this function:

UanPdp::Iterator ns3::UanPdp::GetEnd ( void ) const

Returns: Iterator positioned after last arrival

Definition at line 182 of file uan-prop-model.cc.

References m_taps.

Referenced by ns3::UanPhyCalcSinrFhFsk::CalcSinrDb().

Here is the caller graph for this function:

uint32_t ns3::UanPdp::GetNTaps ( void ) const

Returns: Number of taps in PDP

Definition at line 188 of file uan-prop-model.cc.

References m_taps.

Referenced by GetTap(), ns3::operator<<(), SumTapsC(), SumTapsFromMaxC(), SumTapsFromMaxNc(), and SumTapsNc().

Here is the caller graph for this function:

Time ns3::UanPdp::GetResolution ( void ) const

Returns: Resolution of PDP (time duration between arrivals)

Definition at line 194 of file uan-prop-model.cc.

References m_resolution.

Referenced by ns3::operator<<().

Here is the caller graph for this function:

const Tap & ns3::UanPdp::GetTap ( uint32_t i ) const

Returns: Tap object at index i

Parameters

i	Index number of tap to return (0 based)

Definition at line 160 of file uan-prop-model.cc.

References GetNTaps(), m_taps, and NS_ASSERT_MSG.

Here is the call graph for this function:

void ns3::UanPdp::SetNTaps ( uint32_t nTaps )

Parameters

nTaps number of taps in this PDP

Definition at line 166 of file uan-prop-model.cc.

References m_taps.

void ns3::UanPdp::SetResolution ( Time resolution )

Parameters

resolution Resolution of PDP (time between arrivals)

Definition at line 171 of file uan-prop-model.cc.

References m_resolution.

Referenced by CreateImpulsePdp().

Here is the caller graph for this function:

void ns3::UanPdp::SetTap	(	std::complex< double >	arrival,
		uint32_t	index
	)

Parameters

arrival	complex arrival value
index	index of arrival

Definition at line 149 of file uan-prop-model.cc.

References ns3::Time::GetSeconds(), m_resolution, and m_taps.

Referenced by CreateImpulsePdp().

Here is the call graph for this function:

Here is the caller graph for this function:

std::complex< double > ns3::UanPdp::SumTapsC	(	Time	begin,
		Time	end
	)		const

Parameters

begin	Time value to begin summing arrivals
end	Time value to end summing arrivals

Returns: Returns coherent sum of arrivals between two time values

Assuming that Tap at index 0 arrives at time 0, this function sums coherently (sums amplitude of arrivals considering phase difference) all arrivals between a start and end time.

Definition at line 300 of file uan-prop-model.cc.

References GetNTaps(), ns3::Time::GetSeconds(), m_resolution, m_taps, and NS_ASSERT_MSG.

Here is the call graph for this function:

std::complex< double > ns3::UanPdp::SumTapsFromMaxC	(	Time	delay,
		Time	duration
	)		const

Parameters

delay	Time duratation after max to begin summing arrivals
duration	Time duration to sum arrivals for

Returns: coherent sum of arrivals after max in given window

this function sums coherently (sums amplitude of arrivals considering phase difference) all arrivals in a given duration starting the given time after the maximum amplitude arrival received

Definition at line 200 of file uan-prop-model.cc.

References GetNTaps(), ns3::Time::GetSeconds(), m_resolution, m_taps, NS_ASSERT_MSG, and visualizer.core::start().

Here is the call graph for this function:

double ns3::UanPdp::SumTapsFromMaxNc	(	Time	delay,
		Time	duration
	)		const

Parameters

delay	Time duratation after max to begin summing arrivals
duration	Time duration to sum arrivals for

Returns: non-coherent sum of arrivals after max in given window

this function sums non-coherently (sums amplitude of arrivals ignoring phase difference) all arrivals in a given duration starting the given time after the maximum amplitude arrival received

Definition at line 232 of file uan-prop-model.cc.

References GetNTaps(), ns3::Time::GetSeconds(), m_resolution, m_taps, NS_ASSERT_MSG, and visualizer.core::start().

Referenced by ns3::UanPhyCalcSinrFhFsk::CalcSinrDb().

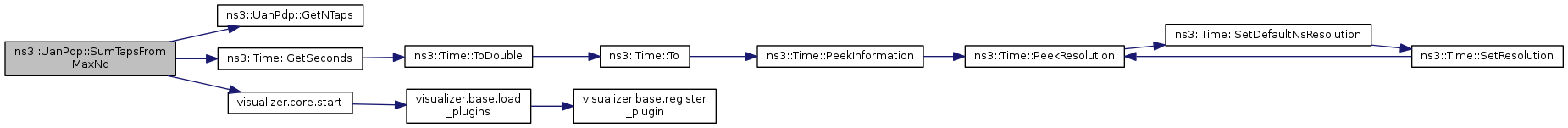

Here is the call graph for this function:

Here is the caller graph for this function:

double ns3::UanPdp::SumTapsNc	(	Time	begin,
		Time	end
	)		const

Parameters

begin	Time value to begin summing arrivals
end	Time value to end summing arrivals

Returns: Returns Non-coherent sum of arrivals between two time values

Assuming that Tap at index 0 arrives at time 0, this function sums non-coherently (sums amplitude of arrivals ignoring phase difference) all arrivals between a start and end time.

Definition at line 267 of file uan-prop-model.cc.

References GetNTaps(), ns3::Time::GetSeconds(), m_resolution, m_taps, and NS_ASSERT_MSG.

Referenced by ns3::UanPhyCalcSinrFhFsk::CalcSinrDb().

Here is the call graph for this function:
