ns3::UdpSocketFactory Class Reference

API to create UDP socket instances. More...

#include <udp-socket-factory.h>

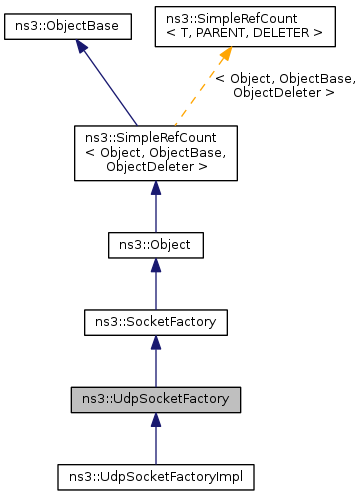

Inheritance diagram for ns3::UdpSocketFactory:

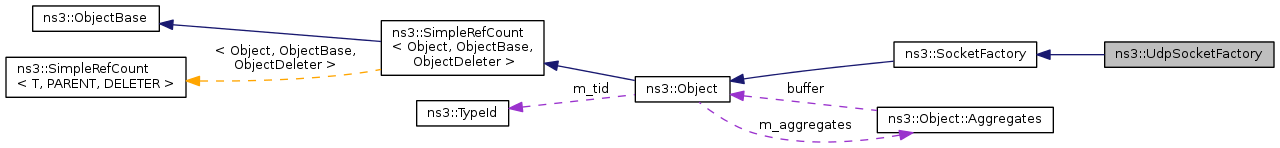

Collaboration diagram for ns3::UdpSocketFactory:

Static Public Member Functions
static TypeId	GetTypeId (void)

Additional Inherited Members
Public Member Functions inherited from ns3::SocketFactory
	SocketFactory ()
virtual Ptr< Socket >	CreateSocket (void)=0
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoDispose (void)
virtual void	DoInitialize (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

API to create UDP socket instances.

This abstract class defines the API for UDP socket factory. All UDP implementations must provide an implementation of CreateSocket below.

See Also

UdpSocketFactoryImpl

Config Paths

ns3::UdpSocketFactory is accessible through the following paths with Config::Set and Config::Connect:

• /NodeList/[i]/$ns3::UdpSocketFactory

No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 40 of file udp-socket-factory.h.

Member Function Documentation

TypeId ns3::UdpSocketFactory::GetTypeId ( void  )

static

Get the type ID.

Reimplemented from ns3::SocketFactory.

Definition at line 27 of file udp-socket-factory.cc.

References ns3::TypeId::SetParent().

Referenced by ns3::olsr::RoutingProtocol::DoInitialize(), ns3::PacketSink::GetTypeId(), ns3::OnOffApplication::GetTypeId(), ns3::aodv::RoutingProtocol::NotifyAddAddress(), ns3::dsdv::RoutingProtocol::NotifyAddAddress(), ns3::aodv::RoutingProtocol::NotifyInterfaceUp(), ns3::dsdv::RoutingProtocol::NotifyInterfaceUp(), ns3::aodv::RoutingProtocol::NotifyRemoveAddress(), ns3::dsdv::RoutingProtocol::NotifyRemoveAddress(), and Sender::StartApplication().

Here is the call graph for this function:

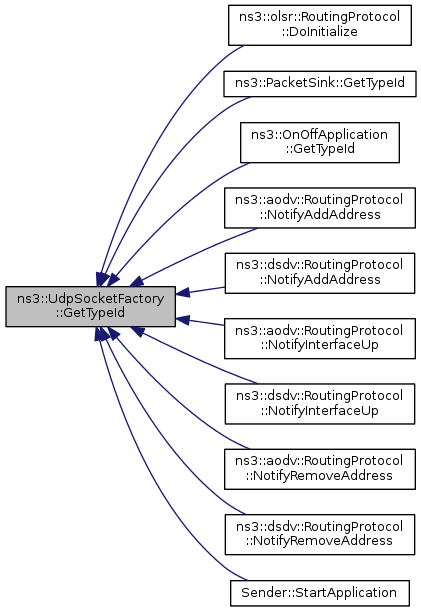

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• src/internet/model/udp-socket-factory.h
• src/internet/model/udp-socket-factory.cc
