Routing table entry. More...

#include <aodv-rtable.h>

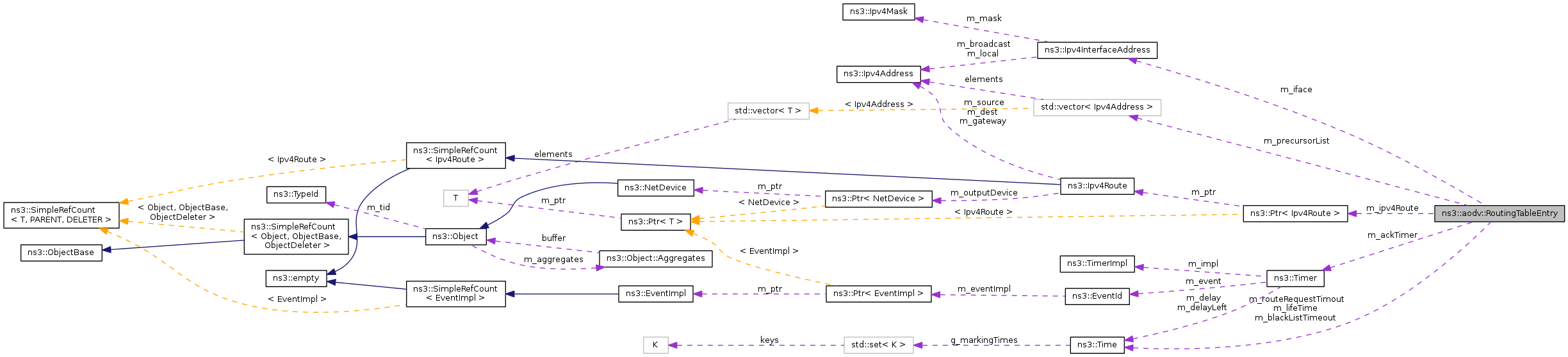

Collaboration diagram for ns3::aodv::RoutingTableEntry:

Public Member Functions
	RoutingTableEntry (Ptr< NetDevice > dev=0, Ipv4Address dst=Ipv4Address(), bool vSeqNo=false, uint32_t m_seqNo=0, Ipv4InterfaceAddress iface=Ipv4InterfaceAddress(), uint16_t hops=0, Ipv4Address nextHop=Ipv4Address(), Time lifetime=Simulator::Now())
	c-to
	~RoutingTableEntry ()
void	Invalidate (Time badLinkLifetime)
	Mark entry as "down" (i.e. disable it)
bool	operator== (Ipv4Address const dst) const
	Compare destination address.
void	Print (Ptr< OutputStreamWrapper > stream) const
Precursors management
bool	InsertPrecursor (Ipv4Address id)
bool	LookupPrecursor (Ipv4Address id)
bool	DeletePrecursor (Ipv4Address id)
	Delete precursor.
void	DeleteAllPrecursors ()
	Delete all precursors.
bool	IsPrecursorListEmpty () const
void	GetPrecursors (std::vector< Ipv4Address > &prec) const

Private Attributes
bool	m_blackListState
	Indicate if this entry is in "blacklist".
Time	m_blackListTimeout
	Time for which the node is put into the blacklist.
RouteFlags	m_flag
	Routing flags: valid, invalid or in search.
uint16_t	m_hops
	Hop Count (number of hops needed to reach destination)
Ipv4InterfaceAddress	m_iface
	Output interface address.
Ptr< Ipv4Route >	m_ipv4Route
Time	m_lifeTime
	Expiration or deletion time of the route Lifetime field in the routing table plays dual role – for an active route it is the expiration time, and for an invalid route it is the deletion time.
std::vector< Ipv4Address >	m_precursorList
	List of precursors.
uint8_t	m_reqCount
	Number of route requests.
Time	m_routeRequestTimout
	When I can send another request.
uint32_t	m_seqNo
	Destination Sequence Number, if m_validSeqNo = true.
bool	m_validSeqNo
	Valid Destination Sequence Number flag.

Fields
Timer	m_ackTimer
	RREP_ACK timer.
Ipv4Address	GetDestination () const
	RREP_ACK timer.
Ptr< Ipv4Route >	GetRoute () const
	RREP_ACK timer.
void	SetRoute (Ptr< Ipv4Route > r)
	RREP_ACK timer.
void	SetNextHop (Ipv4Address nextHop)
	RREP_ACK timer.
Ipv4Address	GetNextHop () const
	RREP_ACK timer.
void	SetOutputDevice (Ptr< NetDevice > dev)
	RREP_ACK timer.
Ptr< NetDevice >	GetOutputDevice () const
	RREP_ACK timer.
Ipv4InterfaceAddress	GetInterface () const
	RREP_ACK timer.
void	SetInterface (Ipv4InterfaceAddress iface)
	RREP_ACK timer.
void	SetValidSeqNo (bool s)
	RREP_ACK timer.
bool	GetValidSeqNo () const
	RREP_ACK timer.
void	SetSeqNo (uint32_t sn)
	RREP_ACK timer.
uint32_t	GetSeqNo () const
	RREP_ACK timer.
void	SetHop (uint16_t hop)
	RREP_ACK timer.
uint16_t	GetHop () const
	RREP_ACK timer.
void	SetLifeTime (Time lt)
	RREP_ACK timer.
Time	GetLifeTime () const
	RREP_ACK timer.
void	SetFlag (RouteFlags flag)
	RREP_ACK timer.
RouteFlags	GetFlag () const
	RREP_ACK timer.
void	SetRreqCnt (uint8_t n)
	RREP_ACK timer.
uint8_t	GetRreqCnt () const
	RREP_ACK timer.
void	IncrementRreqCnt ()
	RREP_ACK timer.
void	SetUnidirectional (bool u)
	RREP_ACK timer.
bool	IsUnidirectional () const
	RREP_ACK timer.
void	SetBalcklistTimeout (Time t)
	RREP_ACK timer.
Time	GetBlacklistTimeout () const
	RREP_ACK timer.

Detailed Description

Routing table entry.

Definition at line 59 of file aodv-rtable.h.

Constructor & Destructor Documentation

ns3::aodv::RoutingTableEntry::RoutingTableEntry	(	Ptr< NetDevice >	dev = `0`,
		Ipv4Address	dst = `Ipv4Address ()`,
		bool	vSeqNo = `false`,
		uint32_t	m_seqNo = `0`,
		Ipv4InterfaceAddress	iface = `Ipv4InterfaceAddress ()`,
		uint16_t	hops = `0`,
		Ipv4Address	nextHop = `Ipv4Address ()`,
		Time	lifetime = `Simulator::Now ()`
	)

c-to

Definition at line 46 of file aodv-rtable.cc.

References ns3::Ipv4InterfaceAddress::GetLocal(), m_iface, m_ipv4Route, ns3::Ipv4Route::SetDestination(), ns3::Ipv4Route::SetGateway(), ns3::Ipv4Route::SetOutputDevice(), and ns3::Ipv4Route::SetSource().

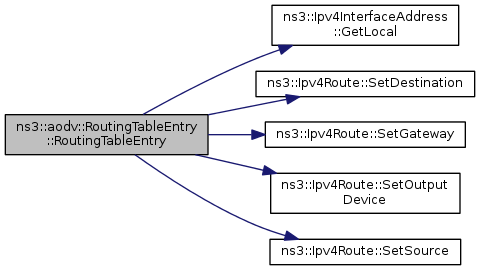

Here is the call graph for this function:

ns3::aodv::RoutingTableEntry::~RoutingTableEntry ( )

Definition at line 60 of file aodv-rtable.cc.

Member Function Documentation

void ns3::aodv::RoutingTableEntry::DeleteAllPrecursors ( )

Delete all precursors.

Definition at line 114 of file aodv-rtable.cc.

References m_precursorList, and NS_LOG_FUNCTION.

Referenced by ns3::aodv::AodvRtableEntryTest::DoRun().

Here is the caller graph for this function:

bool ns3::aodv::RoutingTableEntry::DeletePrecursor ( Ipv4Address id )

Delete precursor.

Parameters

id	precursor address

Returns: true on success

Definition at line 95 of file aodv-rtable.cc.

References m_precursorList, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Referenced by ns3::aodv::AodvRtableEntryTest::DoRun().

Here is the caller graph for this function:

Time ns3::aodv::RoutingTableEntry::GetBlacklistTimeout ( ) const

inline

RREP_ACK timer.

Definition at line 131 of file aodv-rtable.h.

References m_blackListTimeout.

Referenced by ns3::aodv::AodvRtableEntryTest::DoRun().

Here is the caller graph for this function:

Ipv4Address ns3::aodv::RoutingTableEntry::GetDestination ( ) const

inline

RREP_ACK timer.

Definition at line 106 of file aodv-rtable.h.

References ns3::Ipv4Route::GetDestination(), and m_ipv4Route.

Referenced by ns3::aodv::RoutingTable::AddRoute(), ns3::aodv::AodvRtableEntryTest::DoRun(), ns3::aodv::AodvRtableTest::DoRun(), ns3::aodv::RoutingProtocol::SendReply(), ns3::aodv::RoutingProtocol::SendReplyByIntermediateNode(), ns3::aodv::RoutingProtocol::SendRerrMessage(), and ns3::aodv::RoutingTable::Update().

Here is the call graph for this function:

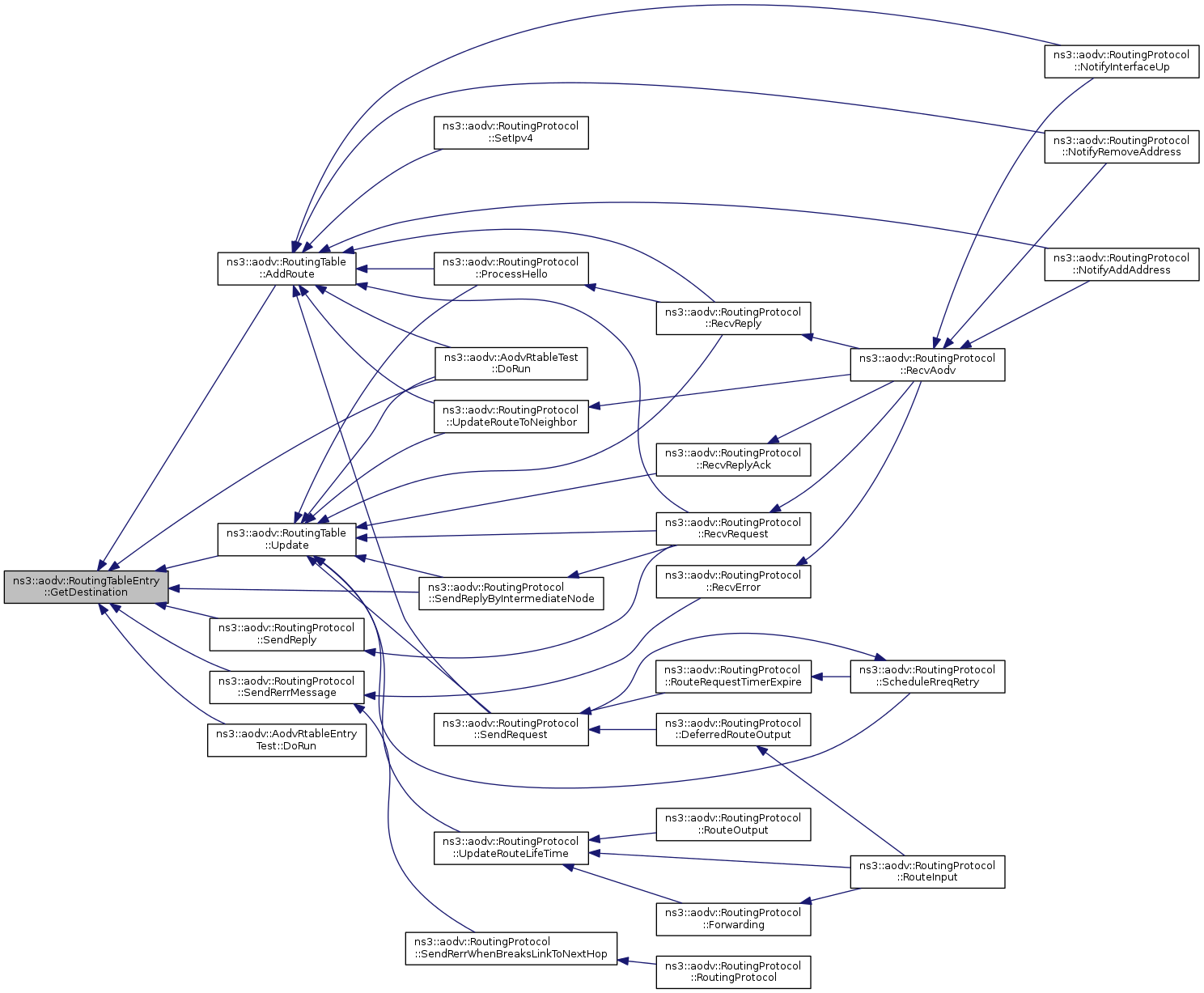

Here is the caller graph for this function:

RouteFlags ns3::aodv::RoutingTableEntry::GetFlag ( ) const

inline

RREP_ACK timer.

Definition at line 124 of file aodv-rtable.h.

References m_flag.

Referenced by ns3::aodv::RoutingTable::AddRoute(), ns3::aodv::AodvRtableEntryTest::DoRun(), ns3::aodv::AodvRtableTest::DoRun(), ns3::aodv::RoutingProtocol::Forwarding(), ns3::aodv::RoutingTable::LookupValidRoute(), ns3::aodv::RoutingProtocol::RecvReply(), ns3::aodv::RoutingProtocol::RecvRequest(), ns3::aodv::RoutingProtocol::RouteRequestTimerExpire(), and ns3::aodv::RoutingProtocol::UpdateRouteLifeTime().

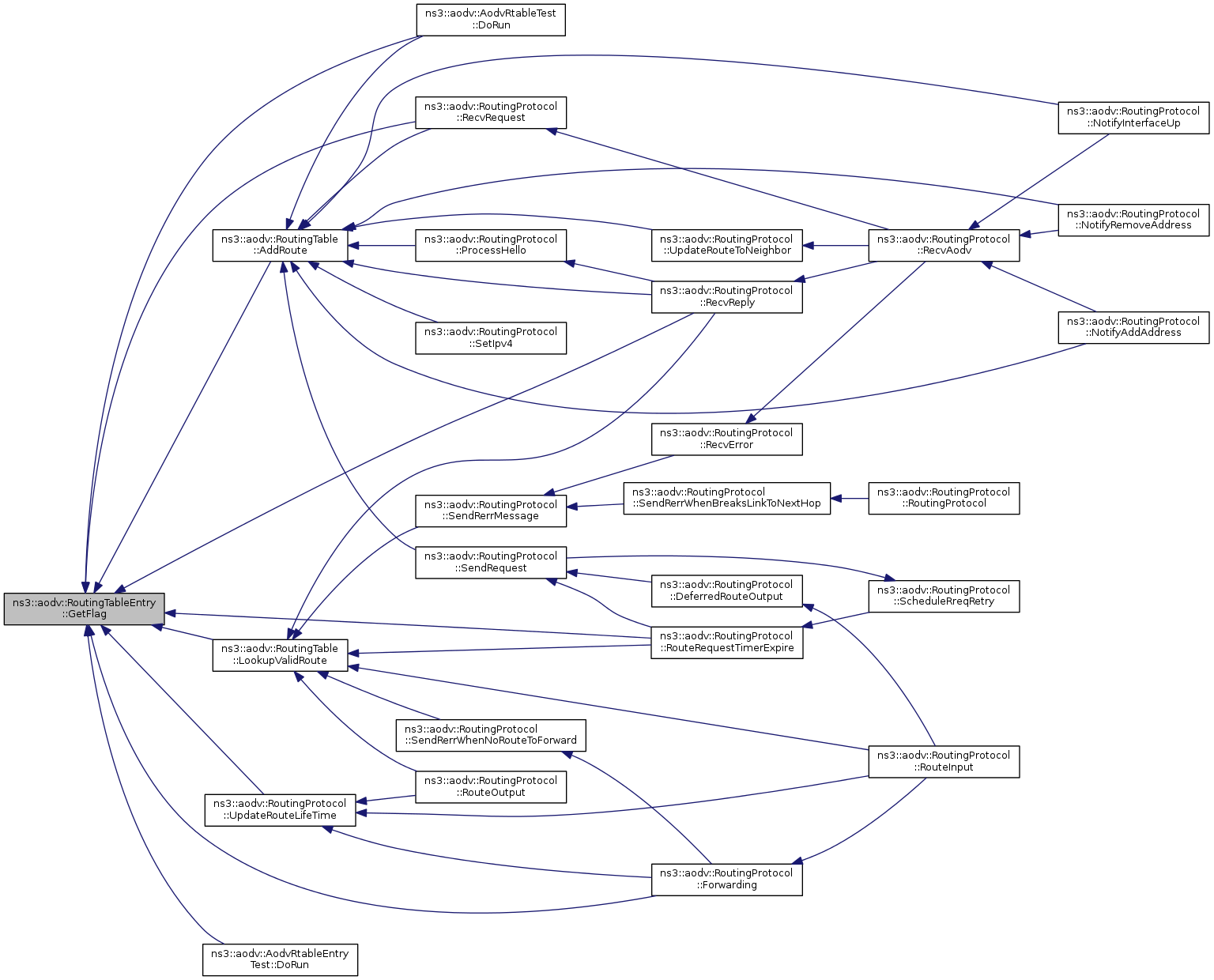

Here is the caller graph for this function:

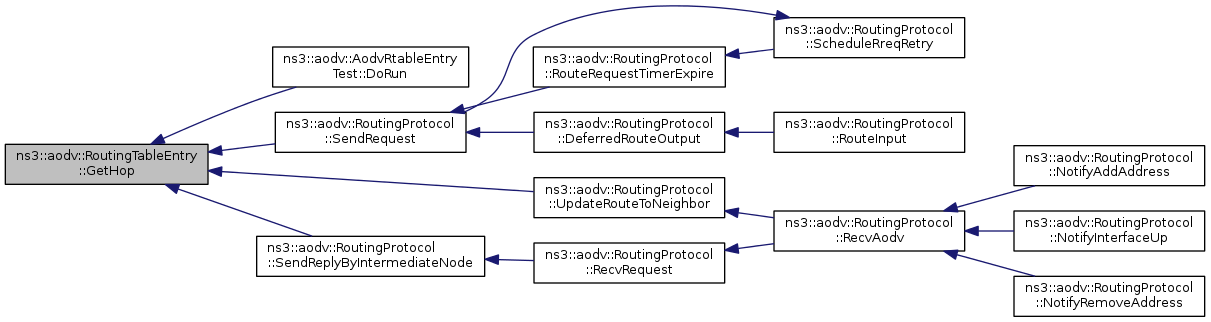

uint16_t ns3::aodv::RoutingTableEntry::GetHop ( ) const

inline

RREP_ACK timer.

Definition at line 120 of file aodv-rtable.h.

References m_hops.

Referenced by ns3::aodv::AodvRtableEntryTest::DoRun(), ns3::aodv::RoutingProtocol::SendReplyByIntermediateNode(), ns3::aodv::RoutingProtocol::SendRequest(), and ns3::aodv::RoutingProtocol::UpdateRouteToNeighbor().

Here is the caller graph for this function:

Ipv4InterfaceAddress ns3::aodv::RoutingTableEntry::GetInterface ( ) const

inline

RREP_ACK timer.

Definition at line 113 of file aodv-rtable.h.

References m_iface.

Referenced by ns3::aodv::AodvRtableEntryTest::DoRun(), ns3::aodv::RoutingProtocol::RecvReply(), ns3::aodv::RoutingProtocol::SendReply(), ns3::aodv::RoutingProtocol::SendReplyAck(), ns3::aodv::RoutingProtocol::SendReplyByIntermediateNode(), ns3::aodv::RoutingProtocol::SendRerrMessage(), and ns3::aodv::RoutingProtocol::SendRerrWhenNoRouteToForward().

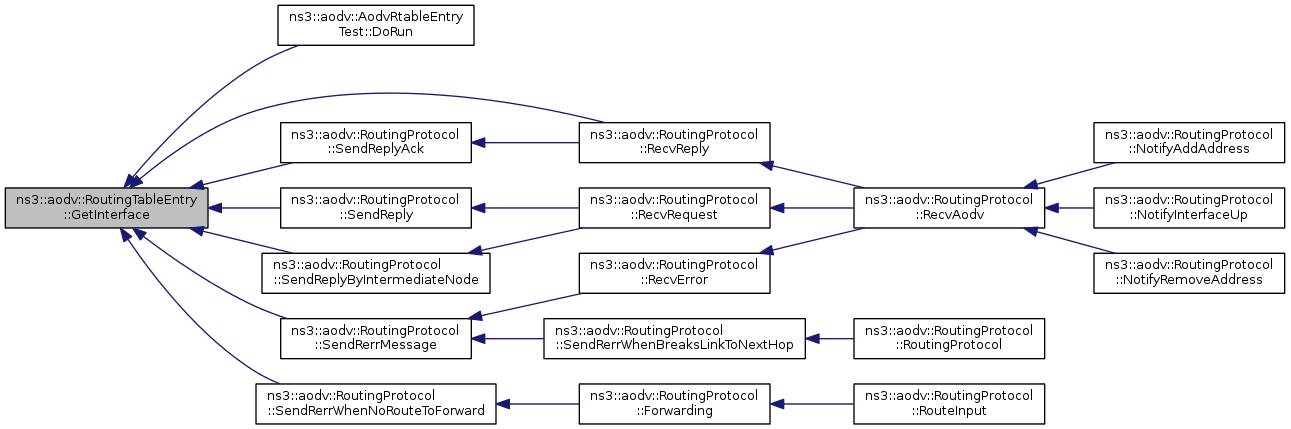

Here is the caller graph for this function:

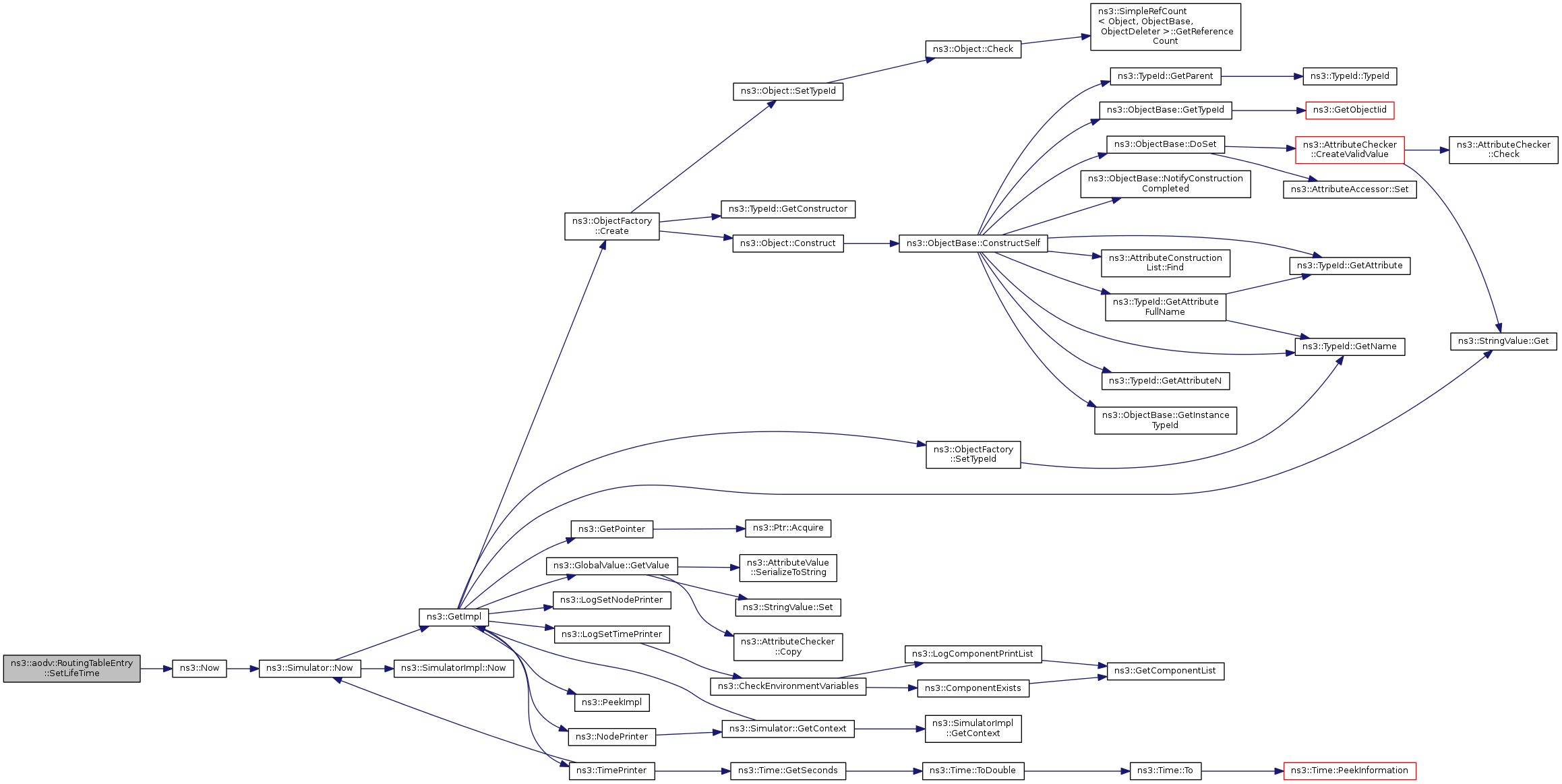

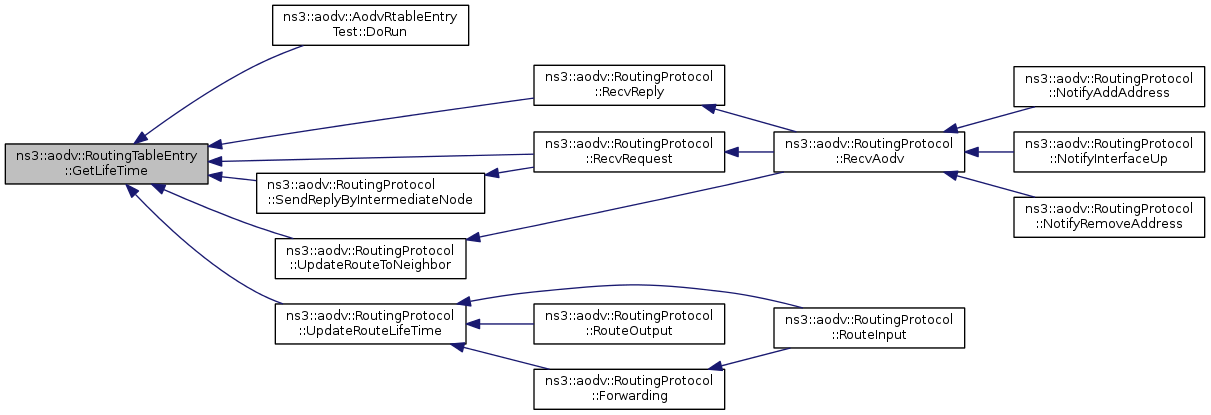

Time ns3::aodv::RoutingTableEntry::GetLifeTime ( ) const

inline

RREP_ACK timer.

Definition at line 122 of file aodv-rtable.h.

References m_lifeTime, and ns3::Now().

Referenced by ns3::aodv::AodvRtableEntryTest::DoRun(), ns3::aodv::RoutingProtocol::RecvReply(), ns3::aodv::RoutingProtocol::RecvRequest(), ns3::aodv::RoutingProtocol::SendReplyByIntermediateNode(), ns3::aodv::RoutingProtocol::UpdateRouteLifeTime(), and ns3::aodv::RoutingProtocol::UpdateRouteToNeighbor().

Here is the call graph for this function:

Here is the caller graph for this function:

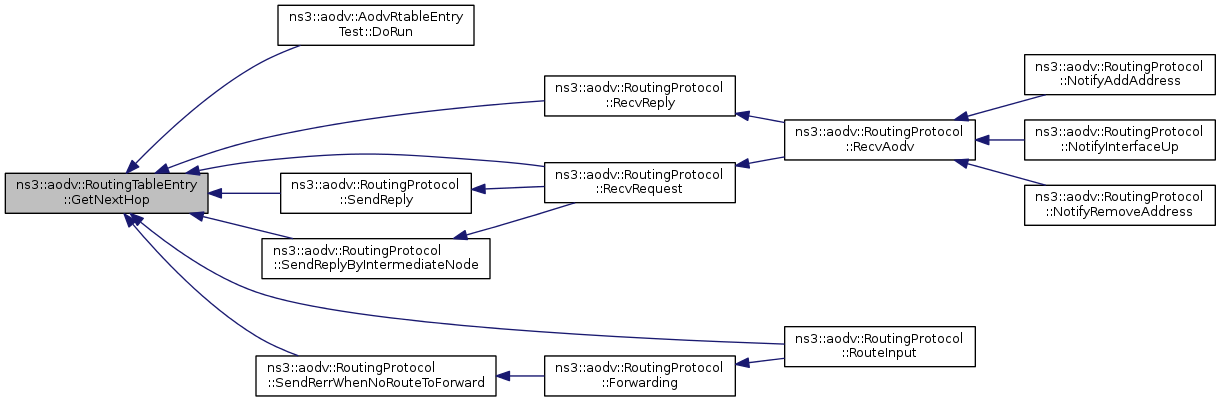

Ipv4Address ns3::aodv::RoutingTableEntry::GetNextHop ( ) const

inline

RREP_ACK timer.

Definition at line 110 of file aodv-rtable.h.

References ns3::Ipv4Route::GetGateway(), and m_ipv4Route.

Referenced by ns3::aodv::AodvRtableEntryTest::DoRun(), ns3::aodv::RoutingProtocol::RecvReply(), ns3::aodv::RoutingProtocol::RecvRequest(), ns3::aodv::RoutingProtocol::RouteInput(), ns3::aodv::RoutingProtocol::SendReply(), ns3::aodv::RoutingProtocol::SendReplyByIntermediateNode(), and ns3::aodv::RoutingProtocol::SendRerrWhenNoRouteToForward().

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr<NetDevice> ns3::aodv::RoutingTableEntry::GetOutputDevice ( ) const

inline

RREP_ACK timer.

Definition at line 112 of file aodv-rtable.h.

References ns3::Ipv4Route::GetOutputDevice(), and m_ipv4Route.

Referenced by ns3::aodv::AodvRtableEntryTest::DoRun(), and ns3::aodv::RoutingProtocol::UpdateRouteToNeighbor().

Here is the call graph for this function:

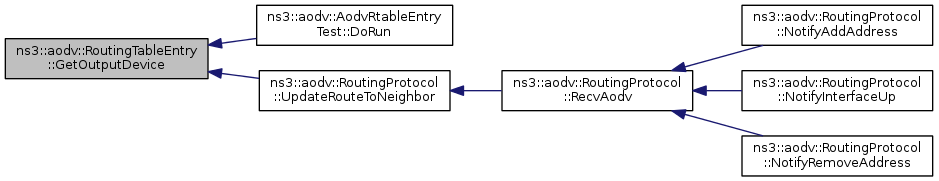

Here is the caller graph for this function:

void ns3::aodv::RoutingTableEntry::GetPrecursors ( std::vector< Ipv4Address > & prec ) const

Inserts precursors in vector prec if they does not yet exist in vector

Definition at line 127 of file aodv-rtable.cc.

References IsPrecursorListEmpty(), m_precursorList, and NS_LOG_FUNCTION.

Referenced by ns3::aodv::AodvRtableEntryTest::DoRun(), ns3::aodv::RoutingProtocol::RecvError(), and ns3::aodv::RoutingProtocol::SendRerrWhenBreaksLinkToNextHop().

Here is the call graph for this function:

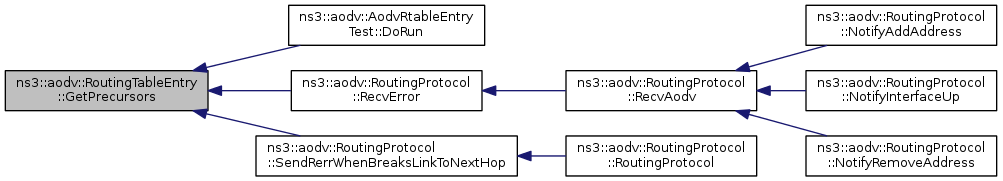

Here is the caller graph for this function:

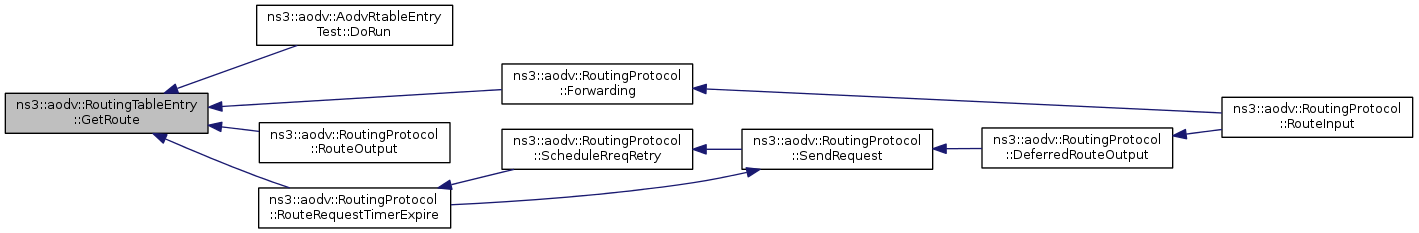

Ptr<Ipv4Route> ns3::aodv::RoutingTableEntry::GetRoute ( ) const

inline

RREP_ACK timer.

Definition at line 107 of file aodv-rtable.h.

References m_ipv4Route.

Referenced by ns3::aodv::AodvRtableEntryTest::DoRun(), ns3::aodv::RoutingProtocol::Forwarding(), ns3::aodv::RoutingProtocol::RouteOutput(), and ns3::aodv::RoutingProtocol::RouteRequestTimerExpire().

Here is the caller graph for this function:

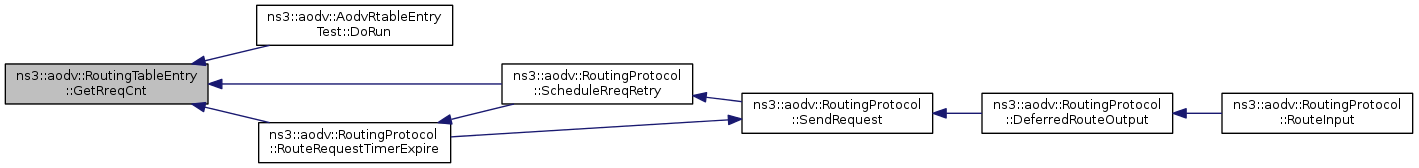

uint8_t ns3::aodv::RoutingTableEntry::GetRreqCnt ( ) const

inline

RREP_ACK timer.

Definition at line 126 of file aodv-rtable.h.

References m_reqCount.

Referenced by ns3::aodv::AodvRtableEntryTest::DoRun(), ns3::aodv::RoutingProtocol::RouteRequestTimerExpire(), and ns3::aodv::RoutingProtocol::ScheduleRreqRetry().

Here is the caller graph for this function:

uint32_t ns3::aodv::RoutingTableEntry::GetSeqNo ( ) const

inline

RREP_ACK timer.

Definition at line 118 of file aodv-rtable.h.

References m_seqNo.

Referenced by ns3::aodv::AodvRtableEntryTest::DoRun(), ns3::aodv::RoutingProtocol::Forwarding(), ns3::aodv::RoutingProtocol::RecvRequest(), ns3::aodv::RoutingProtocol::SendReplyByIntermediateNode(), ns3::aodv::RoutingProtocol::SendRequest(), and ns3::aodv::RoutingProtocol::SendRerrWhenBreaksLinkToNextHop().

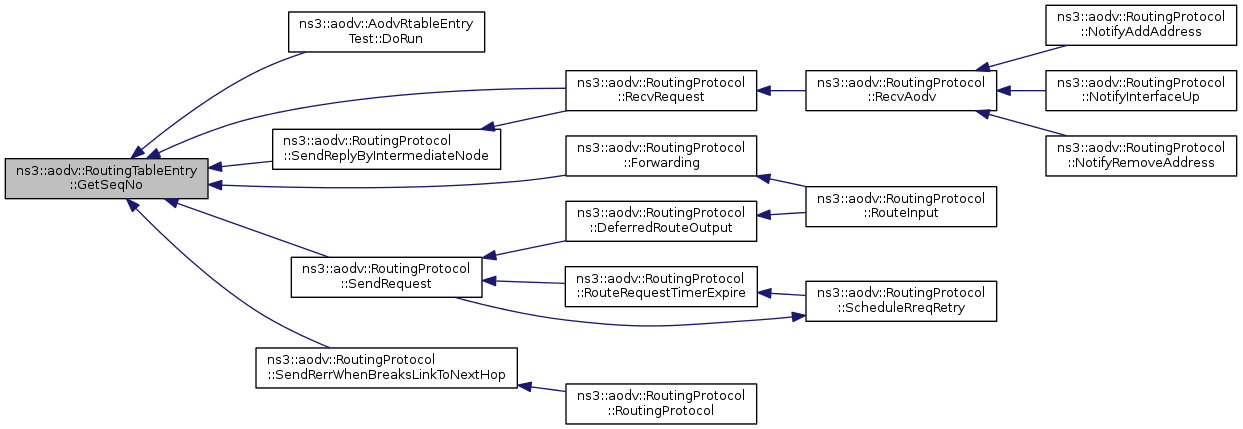

Here is the caller graph for this function:

bool ns3::aodv::RoutingTableEntry::GetValidSeqNo ( ) const

inline

RREP_ACK timer.

Definition at line 116 of file aodv-rtable.h.

References m_validSeqNo.

Referenced by ns3::aodv::AodvRtableEntryTest::DoRun(), ns3::aodv::RoutingProtocol::Forwarding(), ns3::aodv::RoutingProtocol::RecvRequest(), ns3::aodv::RoutingProtocol::SendRequest(), and ns3::aodv::RoutingProtocol::UpdateRouteToNeighbor().

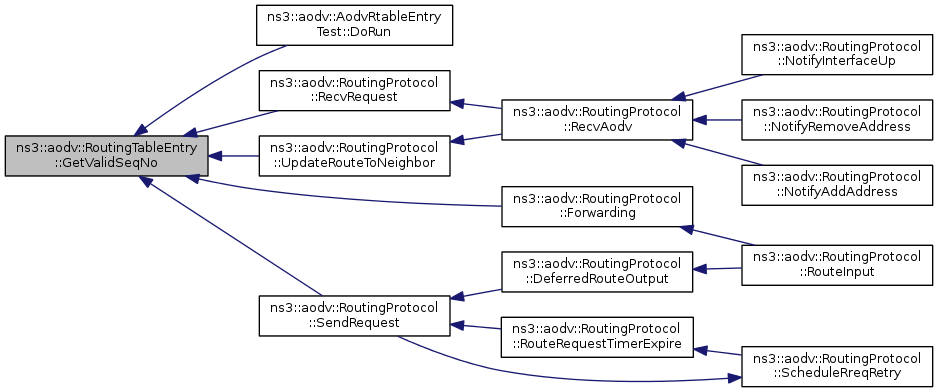

Here is the caller graph for this function:

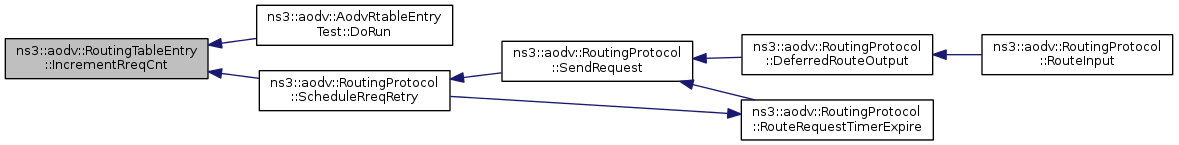

void ns3::aodv::RoutingTableEntry::IncrementRreqCnt ( )

inline

RREP_ACK timer.

Definition at line 127 of file aodv-rtable.h.

References m_reqCount.

Referenced by ns3::aodv::AodvRtableEntryTest::DoRun(), and ns3::aodv::RoutingProtocol::ScheduleRreqRetry().

Here is the caller graph for this function:

bool ns3::aodv::RoutingTableEntry::InsertPrecursor ( Ipv4Address id )

Insert precursor in precursor list if it doesn't yet exist in the list

Parameters

id	precursor address

Returns: true on success

Definition at line 65 of file aodv-rtable.cc.

References LookupPrecursor(), m_precursorList, and NS_LOG_FUNCTION.

Referenced by ns3::aodv::AodvRtableEntryTest::DoRun(), ns3::aodv::AodvRtableTest::DoRun(), ns3::aodv::RoutingProtocol::RecvReply(), and ns3::aodv::RoutingProtocol::SendReplyByIntermediateNode().

Here is the call graph for this function:

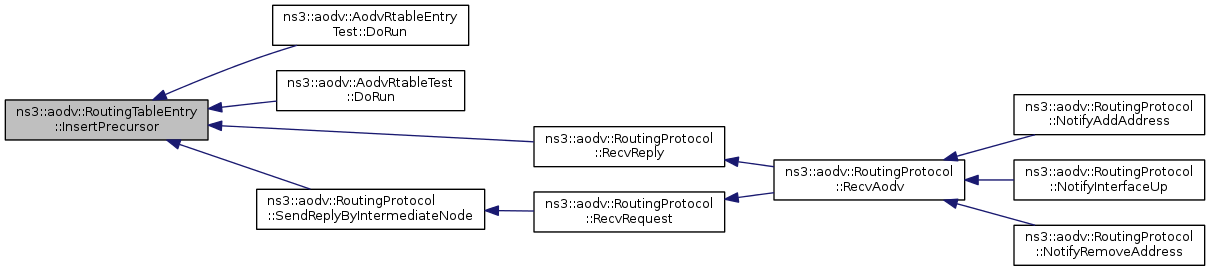

Here is the caller graph for this function:

void ns3::aodv::RoutingTableEntry::Invalidate ( Time badLinkLifetime )

Mark entry as "down" (i.e. disable it)

Definition at line 148 of file aodv-rtable.cc.

References ns3::Time::GetSeconds(), ns3::aodv::INVALID, m_flag, m_lifeTime, m_reqCount, ns3::Now(), and NS_LOG_FUNCTION.

Referenced by ns3::aodv::AodvRtableEntryTest::DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

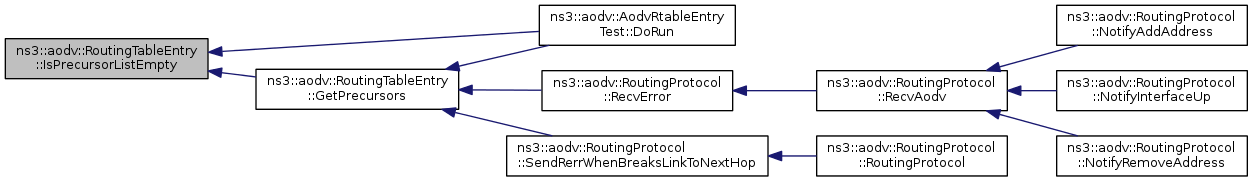

bool ns3::aodv::RoutingTableEntry::IsPrecursorListEmpty ( ) const

Check that precursor list empty

Returns: true if precursor list empty

Definition at line 121 of file aodv-rtable.cc.

References m_precursorList.

Referenced by ns3::aodv::AodvRtableEntryTest::DoRun(), and GetPrecursors().

Here is the caller graph for this function:

bool ns3::aodv::RoutingTableEntry::IsUnidirectional ( ) const

inline

RREP_ACK timer.

Definition at line 129 of file aodv-rtable.h.

References m_blackListState.

Referenced by ns3::aodv::AodvRtableEntryTest::DoRun(), ns3::aodv::AodvRtableTest::DoRun(), and ns3::aodv::RoutingProtocol::RecvRequest().

Here is the caller graph for this function:

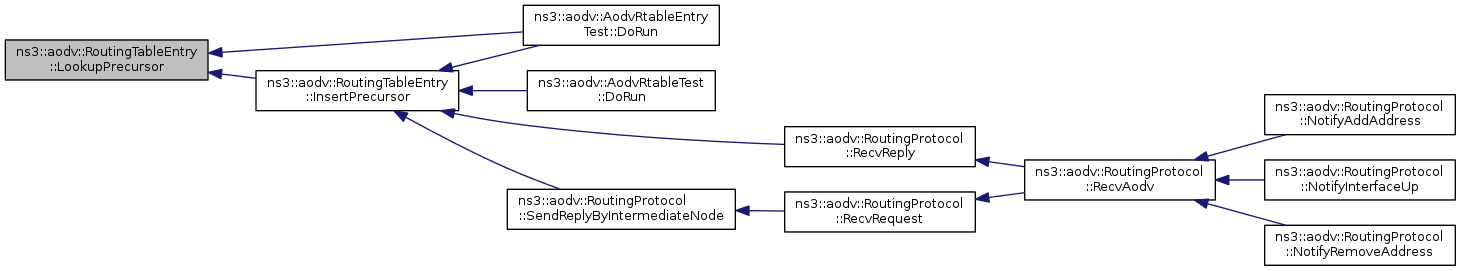

bool ns3::aodv::RoutingTableEntry::LookupPrecursor ( Ipv4Address id )

Lookup precursor by address

Parameters

id	precursor address

Returns: true on success

Definition at line 78 of file aodv-rtable.cc.

References m_precursorList, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Referenced by ns3::aodv::AodvRtableEntryTest::DoRun(), and InsertPrecursor().

Here is the caller graph for this function:

bool ns3::aodv::RoutingTableEntry::operator== ( Ipv4Address const dst ) const

inline

Compare destination address.

Returns: true if equal

Definition at line 140 of file aodv-rtable.h.

References ns3::Ipv4Route::GetDestination(), and m_ipv4Route.

Here is the call graph for this function:

void ns3::aodv::RoutingTableEntry::Print ( Ptr< OutputStreamWrapper > stream ) const

Definition at line 159 of file aodv-rtable.cc.

References ns3::Ipv4Route::GetDestination(), ns3::Ipv4Route::GetGateway(), ns3::Ipv4InterfaceAddress::GetLocal(), ns3::OutputStreamWrapper::GetStream(), ns3::aodv::IN_SEARCH, ns3::aodv::INVALID, m_flag, m_hops, m_iface, m_ipv4Route, m_lifeTime, ns3::Now(), and ns3::aodv::VALID.

Here is the call graph for this function:

void ns3::aodv::RoutingTableEntry::SetBalcklistTimeout ( Time t )

inline

RREP_ACK timer.

Definition at line 130 of file aodv-rtable.h.

References m_blackListTimeout.

Referenced by ns3::aodv::AodvRtableEntryTest::DoRun().

Here is the caller graph for this function:

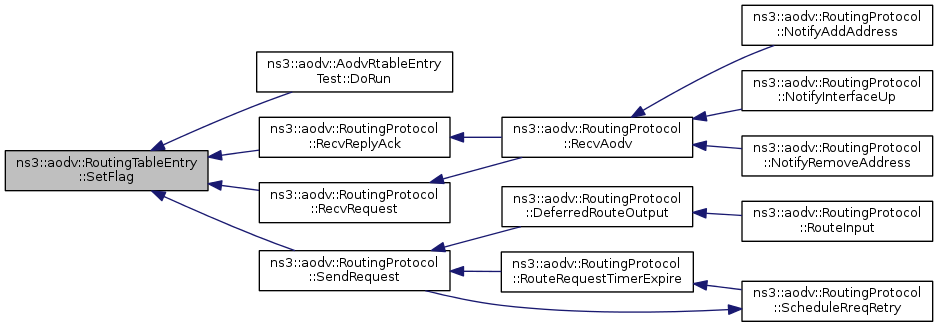

void ns3::aodv::RoutingTableEntry::SetFlag ( RouteFlags flag )

inline

RREP_ACK timer.

Definition at line 123 of file aodv-rtable.h.

References m_flag.

Referenced by ns3::aodv::AodvRtableEntryTest::DoRun(), ns3::aodv::RoutingProtocol::RecvReplyAck(), ns3::aodv::RoutingProtocol::RecvRequest(), and ns3::aodv::RoutingProtocol::SendRequest().

Here is the caller graph for this function:

void ns3::aodv::RoutingTableEntry::SetHop ( uint16_t hop )

inline

RREP_ACK timer.

Definition at line 119 of file aodv-rtable.h.

References m_hops.

Referenced by ns3::aodv::AodvRtableEntryTest::DoRun(), ns3::aodv::AodvRtableTest::DoRun(), and ns3::aodv::RoutingProtocol::RecvRequest().

Here is the caller graph for this function:

void ns3::aodv::RoutingTableEntry::SetInterface ( Ipv4InterfaceAddress iface )

inline

RREP_ACK timer.

Definition at line 114 of file aodv-rtable.h.

References m_iface.

Referenced by ns3::aodv::AodvRtableEntryTest::DoRun(), and ns3::aodv::RoutingProtocol::RecvRequest().

Here is the caller graph for this function:

void ns3::aodv::RoutingTableEntry::SetLifeTime ( Time lt )

inline

RREP_ACK timer.

Definition at line 121 of file aodv-rtable.h.

References m_lifeTime, and ns3::Now().

Referenced by ns3::aodv::AodvRtableEntryTest::DoRun(), ns3::aodv::AodvRtableTest::DoRun(), ns3::aodv::RoutingProtocol::RecvReply(), ns3::aodv::RoutingProtocol::RecvRequest(), ns3::aodv::RoutingProtocol::UpdateRouteLifeTime(), and ns3::aodv::RoutingProtocol::UpdateRouteToNeighbor().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::aodv::RoutingTableEntry::SetNextHop ( Ipv4Address nextHop )

inline

RREP_ACK timer.

Definition at line 109 of file aodv-rtable.h.

References m_ipv4Route, and ns3::Ipv4Route::SetGateway().

Referenced by ns3::aodv::AodvRtableEntryTest::DoRun(), and ns3::aodv::RoutingProtocol::RecvRequest().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::aodv::RoutingTableEntry::SetOutputDevice ( Ptr< NetDevice > dev )

inline

RREP_ACK timer.

Definition at line 111 of file aodv-rtable.h.

References m_ipv4Route, and ns3::Ipv4Route::SetOutputDevice().

Referenced by ns3::aodv::AodvRtableEntryTest::DoRun(), and ns3::aodv::RoutingProtocol::RecvRequest().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::aodv::RoutingTableEntry::SetRoute ( Ptr< Ipv4Route > r )

inline

RREP_ACK timer.

Definition at line 108 of file aodv-rtable.h.

References m_ipv4Route.

void ns3::aodv::RoutingTableEntry::SetRreqCnt ( uint8_t n )

inline

RREP_ACK timer.

Definition at line 125 of file aodv-rtable.h.

References m_reqCount.

Referenced by ns3::aodv::RoutingTable::AddRoute(), ns3::aodv::AodvRtableEntryTest::DoRun(), and ns3::aodv::RoutingProtocol::UpdateRouteLifeTime().

Here is the caller graph for this function:

void ns3::aodv::RoutingTableEntry::SetSeqNo ( uint32_t sn )

inline

RREP_ACK timer.

Definition at line 117 of file aodv-rtable.h.

References m_seqNo.

Referenced by ns3::aodv::RoutingProtocol::RecvRequest().

Here is the caller graph for this function:

void ns3::aodv::RoutingTableEntry::SetUnidirectional ( bool u )

inline

RREP_ACK timer.

Definition at line 128 of file aodv-rtable.h.

References m_blackListState.

Referenced by ns3::aodv::AodvRtableEntryTest::DoRun().

Here is the caller graph for this function:

void ns3::aodv::RoutingTableEntry::SetValidSeqNo ( bool s )

inline

RREP_ACK timer.

Definition at line 115 of file aodv-rtable.h.

References m_validSeqNo, and s.

Referenced by ns3::aodv::AodvRtableEntryTest::DoRun(), and ns3::aodv::RoutingProtocol::RecvRequest().

Here is the caller graph for this function:

Member Data Documentation

Timer ns3::aodv::RoutingTableEntry::m_ackTimer

RREP_ACK timer.

Definition at line 133 of file aodv-rtable.h.

Referenced by ns3::aodv::RoutingProtocol::RecvReplyAck(), and ns3::aodv::RoutingProtocol::SendReplyByIntermediateNode().

bool ns3::aodv::RoutingTableEntry::m_blackListState

private

Indicate if this entry is in "blacklist".

Definition at line 179 of file aodv-rtable.h.

Referenced by IsUnidirectional(), and SetUnidirectional().

Time ns3::aodv::RoutingTableEntry::m_blackListTimeout

private

Time for which the node is put into the blacklist.

Definition at line 181 of file aodv-rtable.h.

Referenced by GetBlacklistTimeout(), and SetBalcklistTimeout().

RouteFlags ns3::aodv::RoutingTableEntry::m_flag

private

Routing flags: valid, invalid or in search.

Definition at line 170 of file aodv-rtable.h.

Referenced by GetFlag(), Invalidate(), Print(), and SetFlag().

uint16_t ns3::aodv::RoutingTableEntry::m_hops

private

Hop Count (number of hops needed to reach destination)

Definition at line 152 of file aodv-rtable.h.

Referenced by GetHop(), Print(), and SetHop().

Ipv4InterfaceAddress ns3::aodv::RoutingTableEntry::m_iface

private

Output interface address.

Definition at line 168 of file aodv-rtable.h.

Referenced by GetInterface(), Print(), RoutingTableEntry(), and SetInterface().

Ptr<Ipv4Route> ns3::aodv::RoutingTableEntry::m_ipv4Route

private

Ip route, include

destination address
source address
next hop address (gateway)
output device

Definition at line 166 of file aodv-rtable.h.

Referenced by GetDestination(), GetNextHop(), GetOutputDevice(), GetRoute(), operator==(), Print(), RoutingTableEntry(), SetNextHop(), SetOutputDevice(), and SetRoute().

Time ns3::aodv::RoutingTableEntry::m_lifeTime

private

Expiration or deletion time of the route Lifetime field in the routing table plays dual role – for an active route it is the expiration time, and for an invalid route it is the deletion time.

Definition at line 159 of file aodv-rtable.h.

Referenced by GetLifeTime(), Invalidate(), Print(), and SetLifeTime().

std::vector<Ipv4Address> ns3::aodv::RoutingTableEntry::m_precursorList

private

List of precursors.

Definition at line 173 of file aodv-rtable.h.

Referenced by DeleteAllPrecursors(), DeletePrecursor(), GetPrecursors(), InsertPrecursor(), IsPrecursorListEmpty(), and LookupPrecursor().

uint8_t ns3::aodv::RoutingTableEntry::m_reqCount

private

Number of route requests.

Definition at line 177 of file aodv-rtable.h.

Referenced by GetRreqCnt(), IncrementRreqCnt(), Invalidate(), and SetRreqCnt().

Time ns3::aodv::RoutingTableEntry::m_routeRequestTimout

private

When I can send another request.

Definition at line 175 of file aodv-rtable.h.

uint32_t ns3::aodv::RoutingTableEntry::m_seqNo

private

Destination Sequence Number, if m_validSeqNo = true.

Definition at line 150 of file aodv-rtable.h.

Referenced by GetSeqNo(), and SetSeqNo().

bool ns3::aodv::RoutingTableEntry::m_validSeqNo

private

Valid Destination Sequence Number flag.

Definition at line 148 of file aodv-rtable.h.

Referenced by GetValidSeqNo(), and SetValidSeqNo().

The documentation for this class was generated from the following files:

src/aodv/model/aodv-rtable.h
src/aodv/model/aodv-rtable.cc

Public Member Functions

Private Attributes

Fields

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
