ns3::WifiRemoteStation Struct Reference

hold per-remote-station state. More...

#include <wifi-remote-station-manager.h>

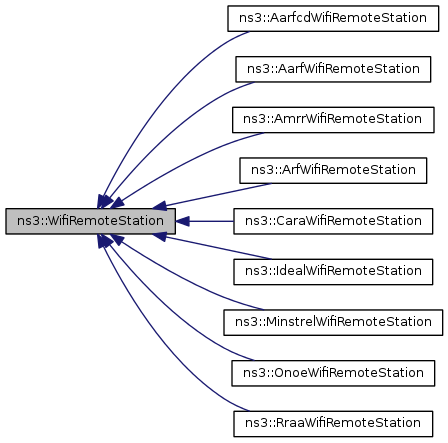

Inheritance diagram for ns3::WifiRemoteStation:

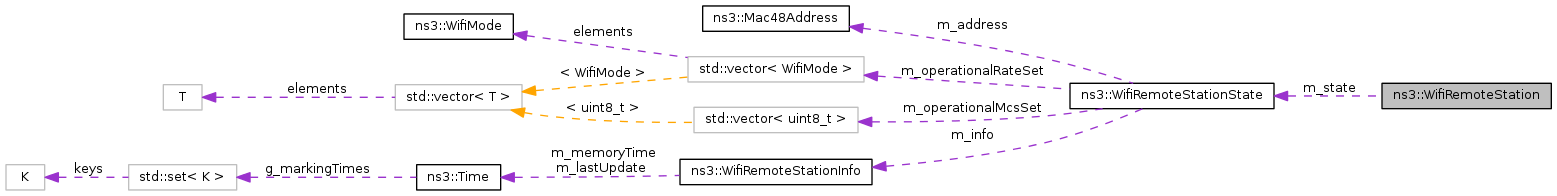

Collaboration diagram for ns3::WifiRemoteStation:

Public Attributes
uint32_t	m_slrc
uint32_t	m_ssrc
WifiRemoteStationState *	m_state
uint8_t	m_tid

Detailed Description

hold per-remote-station state.

The state in this class is used to keep track of association status if we are in an infrastructure network and to perform the selection of tx parameters on a per-packet basis.

Definition at line 595 of file wifi-remote-station-manager.h.

Member Data Documentation

uint32_t ns3::WifiRemoteStation::m_slrc

Definition at line 599 of file wifi-remote-station-manager.h.

Referenced by ns3::WifiRemoteStationManager::GetLongRetryCount(), and ns3::WifiRemoteStationManager::Lookup().

uint32_t ns3::WifiRemoteStation::m_ssrc

Definition at line 598 of file wifi-remote-station-manager.h.

Referenced by ns3::WifiRemoteStationManager::GetShortRetryCount(), and ns3::WifiRemoteStationManager::Lookup().

WifiRemoteStationState* ns3::WifiRemoteStation::m_state

Definition at line 597 of file wifi-remote-station-manager.h.

Referenced by ns3::ArfWifiManager::DoReportDataOk(), ns3::WifiRemoteStationManager::GetGreenfield(), ns3::WifiRemoteStationManager::GetMcsSupported(), ns3::WifiRemoteStationManager::GetNMcsSupported(), ns3::WifiRemoteStationManager::GetNSupported(), ns3::WifiRemoteStationManager::GetNumberOfReceiveAntennas(), ns3::WifiRemoteStationManager::GetNumberOfTransmitAntennas(), ns3::WifiRemoteStationManager::GetShortGuardInterval(), ns3::WifiRemoteStationManager::GetStbc(), ns3::WifiRemoteStationManager::GetSupported(), and ns3::WifiRemoteStationManager::Lookup().

uint8_t ns3::WifiRemoteStation::m_tid

Definition at line 600 of file wifi-remote-station-manager.h.

Referenced by ns3::WifiRemoteStationManager::Lookup().

---

The documentation for this struct was generated from the following file:

• src/wifi/model/wifi-remote-station-manager.h
