ns3::Ipv4 Class Reference

Access to the Ipv4 forwarding table, interfaces, and configuration. More...

#include <ipv4.h>

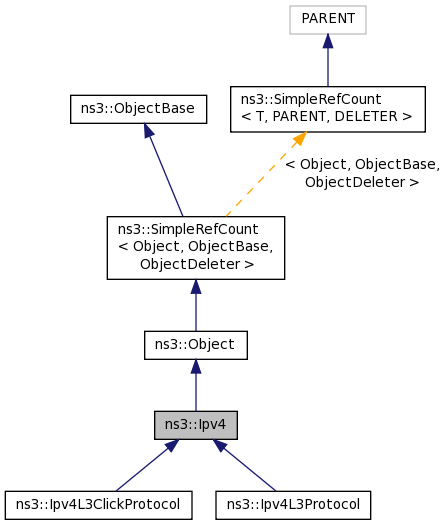

Inheritance diagram for ns3::Ipv4:

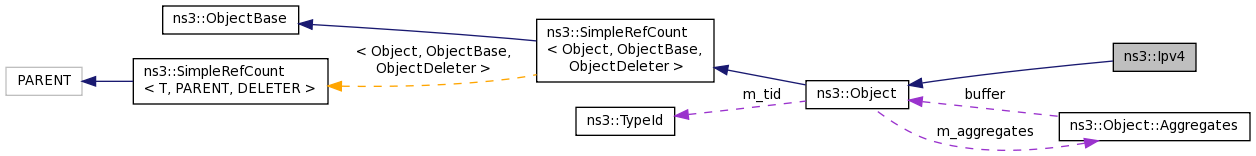

Collaboration diagram for ns3::Ipv4:

Public Member Functions
	Ipv4 ()
virtual	~Ipv4 ()
virtual bool	AddAddress (uint32_t interface, Ipv4InterfaceAddress address)=0
virtual uint32_t	AddInterface (Ptr< NetDevice > device)=0
virtual Ptr< Socket >	CreateRawSocket (void)=0
	Creates a raw socket. More...
virtual void	DeleteRawSocket (Ptr< Socket > socket)=0
	Deletes a particular raw socket. More...
virtual Ipv4InterfaceAddress	GetAddress (uint32_t interface, uint32_t addressIndex) const =0
virtual int32_t	GetInterfaceForAddress (Ipv4Address address) const =0
	Return the interface number of the interface that has been assigned the specified IP address. More...
virtual int32_t	GetInterfaceForDevice (Ptr< const NetDevice > device) const =0
virtual int32_t	GetInterfaceForPrefix (Ipv4Address address, Ipv4Mask mask) const =0
	Return the interface number of first interface found that has an Ipv4 address within the prefix specified by the input address and mask parameters. More...
virtual uint16_t	GetMetric (uint32_t interface) const =0
virtual uint16_t	GetMtu (uint32_t interface) const =0
virtual uint32_t	GetNAddresses (uint32_t interface) const =0
virtual Ptr< NetDevice >	GetNetDevice (uint32_t interface)=0
virtual uint32_t	GetNInterfaces (void) const =0
virtual Ptr< IpL4Protocol >	GetProtocol (int protocolNumber) const =0
virtual Ptr< Ipv4RoutingProtocol >	GetRoutingProtocol (void) const =0
	Get the routing protocol to be used by this Ipv4 stack. More...
virtual void	Insert (Ptr< IpL4Protocol > protocol)=0
virtual bool	IsDestinationAddress (Ipv4Address address, uint32_t iif) const =0
	Determine whether address and interface corresponding to received packet can be accepted for local delivery. More...
virtual bool	IsForwarding (uint32_t interface) const =0
virtual bool	IsUp (uint32_t interface) const =0
virtual bool	RemoveAddress (uint32_t interface, uint32_t addressIndex)=0
virtual bool	RemoveAddress (uint32_t interface, Ipv4Address address)=0
	Remove the given address on named Ipv4 interface. More...
virtual Ipv4Address	SelectSourceAddress (Ptr< const NetDevice > device, Ipv4Address dst, Ipv4InterfaceAddress::InterfaceAddressScope_e scope)=0
	Return the first primary source address with scope less than or equal to the requested scope, to use in sending a packet to destination dst out of the specified device. More...
virtual void	Send (Ptr< Packet > packet, Ipv4Address source, Ipv4Address destination, uint8_t protocol, Ptr< Ipv4Route > route)=0
virtual void	SendWithHeader (Ptr< Packet > packet, Ipv4Header ipHeader, Ptr< Ipv4Route > route)=0
virtual void	SetDown (uint32_t interface)=0
virtual void	SetForwarding (uint32_t interface, bool val)=0
virtual void	SetMetric (uint32_t interface, uint16_t metric)=0
virtual void	SetRoutingProtocol (Ptr< Ipv4RoutingProtocol > routingProtocol)=0
	Register a new routing protocol to be used by this Ipv4 stack. More...
virtual void	SetUp (uint32_t interface)=0
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Initialize (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)

Static Public Attributes
static const uint32_t	IF_ANY = 0xffffffff

Private Member Functions
virtual bool	GetIpForward (void) const =0
virtual bool	GetWeakEsModel (void) const =0
virtual void	SetIpForward (bool forward)=0
virtual void	SetWeakEsModel (bool model)=0

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoDispose (void)
virtual void	DoInitialize (void)
virtual void	NotifyNewAggregate (void)
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
virtual void	NotifyConstructionCompleted (void)

Detailed Description

Access to the Ipv4 forwarding table, interfaces, and configuration.

This class defines the API to manipulate the following aspects of the Ipv4 implementation:

1. set/get an Ipv4RoutingProtocol
2. register a NetDevice for use by the Ipv4 layer (basically, to create Ipv4-related state such as addressing and neighbor cache that is associated with a NetDevice)
3. manipulate the status of the NetDevice from the Ipv4 perspective, such as marking it as Up or Down,
4. adding, deleting, and getting addresses associated to the Ipv4 interfaces.
5. exporting Ipv4 configuration attributes

Each NetDevice has conceptually a single Ipv4 interface associated with it (the corresponding structure in the Linux Ipv4 implementation is struct in_device). Each interface may have one or more Ipv4 addresses associated with it. Each Ipv4 address may have different subnet mask, scope, etc., so all of this per-address information is stored in an Ipv4InterfaceAddress class (the corresponding structure in Linux is struct in_ifaddr)

Ipv4 attributes such as whether IP forwarding is enabled and disabled are also stored in this class

TO DO: Add API to allow access to the Ipv4 neighbor table

See Also

Ipv4RoutingProtocol

Ipv4InterfaceAddress

Doxygen introspection did not find any typical Config paths.

Attributes

• IpForward: Globally enable or disable IP forwarding for all current and future Ipv4 devices.
  • Set with class: BooleanValue
  • Underlying type: bool
  • Initial value: true
  • Flags: construct write read
• WeakEsModel: RFC1122 term for whether host accepts datagram with a dest. address on another interface
  • Set with class: BooleanValue
  • Underlying type: bool
  • Initial value: true
  • Flags: construct write read

No TraceSources are defined for this type.

Definition at line 75 of file ipv4.h.

Constructor & Destructor Documentation

ns3::Ipv4::Ipv4

(

)

Definition at line 60 of file ipv4.cc.

References NS_LOG_FUNCTION.

ns3::Ipv4::~Ipv4 ( )

virtual

Definition at line 65 of file ipv4.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

virtual bool ns3::Ipv4::AddAddress ( uint32_t  interface, Ipv4InterfaceAddress  address  )

pure virtual

Parameters

interface	Interface number of an Ipv4 interface
address	Ipv4InterfaceAddress address to associate with the underlying Ipv4 interface

Returns

true if the operation succeeded

Implemented in ns3::Ipv4L3Protocol.

Referenced by TcpTestCase::AddSimpleNetDevice(), AddSimpleNetDevice(), StaticRoutingSlash32TestCase::DoRun(), Ipv4ForwardingTest::DoRun(), Ipv4HeaderTest::DoRun(), Ipv4PacketInfoTagTest::DoRun(), Ipv4RawSocketImplTest::DoRun(), Ipv4FragmentationTest::DoRun(), UdpSocketImplTest::DoRun(), GlobalRoutingSlash32TestCase::DoRun(), main(), and Tunnel::Tunnel().

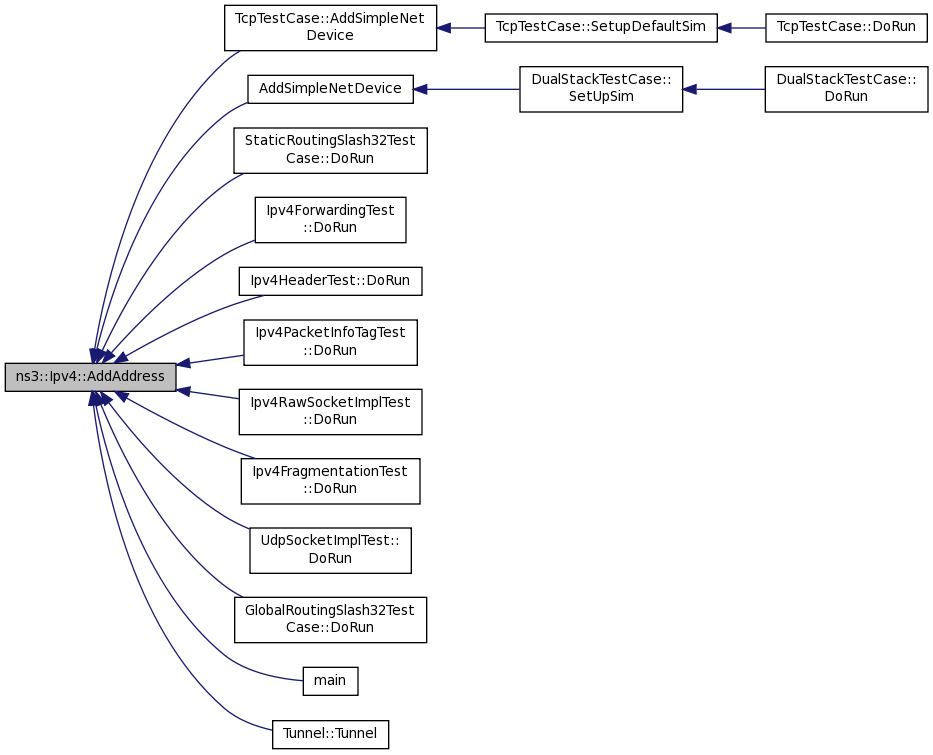

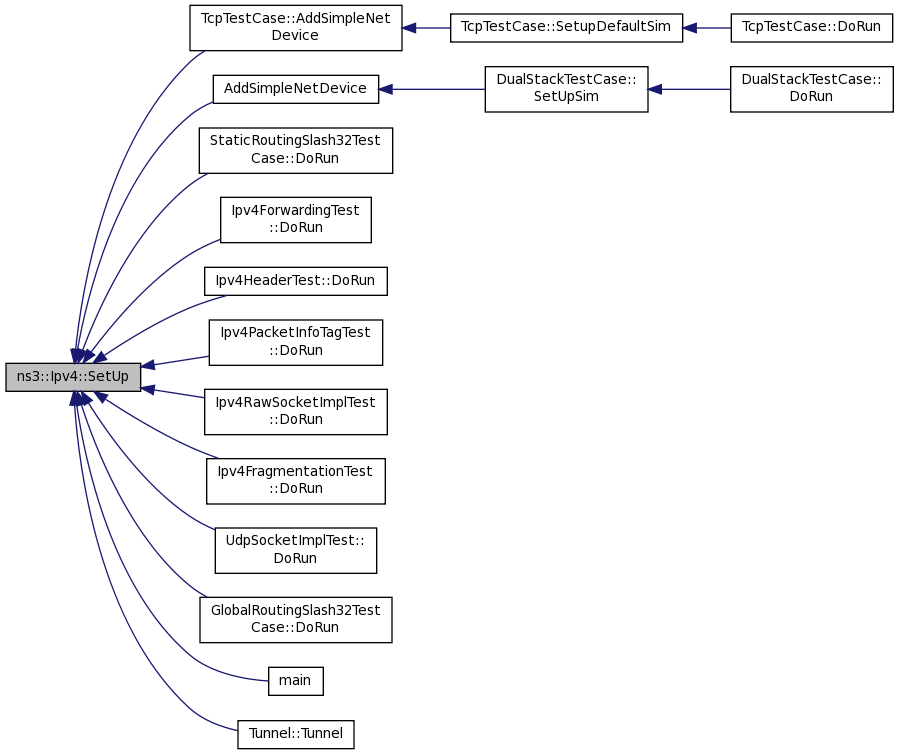

Here is the caller graph for this function:

virtual uint32_t ns3::Ipv4::AddInterface ( Ptr< NetDevice >  device )

pure virtual

Parameters

device

device to add to the list of Ipv4 interfaces which can be used as output interfaces during packet forwarding.

Returns

the index of the Ipv4 interface added.

Once a device has been added, it can never be removed: if you want to disable it, you can invoke Ipv4::SetDown which will make sure that it is never used during packet forwarding.

Implemented in ns3::Ipv4L3Protocol.

Referenced by TcpTestCase::AddSimpleNetDevice(), AddSimpleNetDevice(), StaticRoutingSlash32TestCase::DoRun(), Ipv4ForwardingTest::DoRun(), Ipv4HeaderTest::DoRun(), Ipv4PacketInfoTagTest::DoRun(), Ipv4RawSocketImplTest::DoRun(), Ipv4FragmentationTest::DoRun(), UdpSocketImplTest::DoRun(), GlobalRoutingSlash32TestCase::DoRun(), main(), and Tunnel::Tunnel().

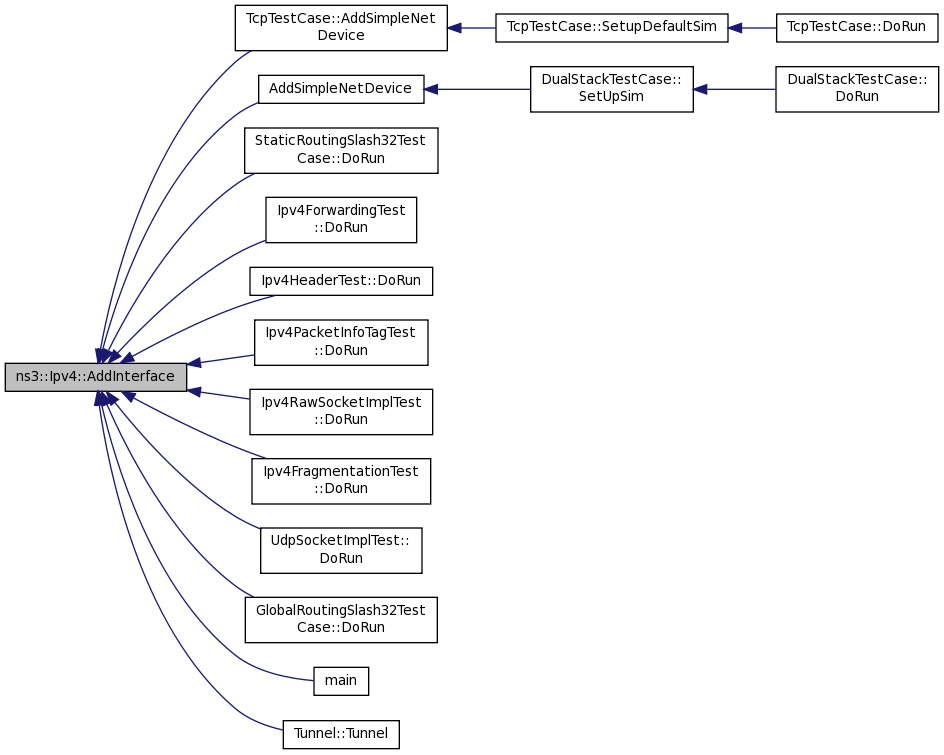

Here is the caller graph for this function:

virtual Ptr<Socket> ns3::Ipv4::CreateRawSocket ( void  )

pure virtual

Creates a raw socket.

Returns

a smart pointer to the instantiated raw socket

Implemented in ns3::Ipv4L3Protocol.

virtual void ns3::Ipv4::DeleteRawSocket ( Ptr< Socket >  socket )

pure virtual

Deletes a particular raw socket.

Parameters

socket

Smart pointer to the raw socket to be deleted

Implemented in ns3::Ipv4L3Protocol.

virtual Ipv4InterfaceAddress ns3::Ipv4::GetAddress ( uint32_t  interface, uint32_t  addressIndex  ) const

pure virtual

Because addresses can be removed, the addressIndex is not guaranteed to be static across calls to this method.

Parameters

interface	Interface number of an Ipv4 interface
addressIndex	index of Ipv4InterfaceAddress

Returns

the Ipv4InterfaceAddress associated to the interface and addressIndex

Implemented in ns3::Ipv4L3Protocol.

Referenced by Experiment::ApplicationSetup(), main(), and PrintPosition().

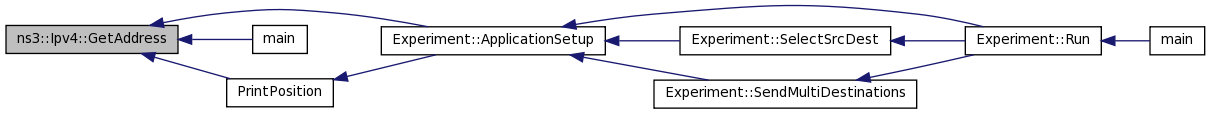

Here is the caller graph for this function:

virtual int32_t ns3::Ipv4::GetInterfaceForAddress ( Ipv4Address  address ) const

pure virtual

Return the interface number of the interface that has been assigned the specified IP address.

Parameters

address

The IP address being searched for

Returns

The interface number of the Ipv4 interface with the given address or -1 if not found.

Each IP interface has one or more IP addresses associated with it. This method searches the list of interfaces for one that holds a particular address. This call takes an IP address as a parameter and returns the interface number of the first interface that has been assigned that address, or -1 if not found. There must be an exact match; this method will not match broadcast or multicast addresses.

Implemented in ns3::Ipv4L3Protocol.

virtual int32_t ns3::Ipv4::GetInterfaceForDevice ( Ptr< const NetDevice >  device ) const

pure virtual

Parameters

device

The NetDevice for an Ipv4Interface

Returns

The interface number of an Ipv4 interface or -1 if not found.

Implemented in ns3::Ipv4L3Protocol.

virtual int32_t ns3::Ipv4::GetInterfaceForPrefix ( Ipv4Address  address, Ipv4Mask  mask  ) const

pure virtual

Return the interface number of first interface found that has an Ipv4 address within the prefix specified by the input address and mask parameters.

Parameters

address	The IP address assigned to the interface of interest.
mask	The IP prefix to use in the mask

Returns

The interface number of the Ipv4 interface with the given address or -1 if not found.

Each IP interface has one or more IP addresses associated with it. This method searches the list of interfaces for the first one found that holds an address that is included within the prefix formed by the input address and mask parameters. The value -1 is returned if no match is found.

Implemented in ns3::Ipv4L3Protocol.

virtual bool ns3::Ipv4::GetIpForward ( void  ) const

privatepure virtual

Implemented in ns3::Ipv4L3Protocol.

Referenced by GetTypeId().

Here is the caller graph for this function:

virtual uint16_t ns3::Ipv4::GetMetric ( uint32_t  interface ) const

pure virtual

Parameters

interface

The interface number of an Ipv4 interface

Returns

routing metric (cost) associated to the underlying Ipv4 interface

Implemented in ns3::Ipv4L3Protocol.

virtual uint16_t ns3::Ipv4::GetMtu ( uint32_t  interface ) const

pure virtual

Parameters

interface

Interface number of Ipv4 interface

Returns

the Maximum Transmission Unit (in bytes) associated to the underlying Ipv4 interface

Implemented in ns3::Ipv4L3Protocol.

virtual uint32_t ns3::Ipv4::GetNAddresses ( uint32_t  interface ) const

pure virtual

Parameters

interface

Interface number of an Ipv4 interface

Returns

the number of Ipv4InterfaceAddress entries for the interface.

Implemented in ns3::Ipv4L3Protocol.

virtual Ptr<NetDevice> ns3::Ipv4::GetNetDevice ( uint32_t  interface )

pure virtual

Parameters

interface

The interface number of an Ipv4 interface.

Returns

The NetDevice associated with the Ipv4 interface number.

Implemented in ns3::Ipv4L3Protocol.

virtual uint32_t ns3::Ipv4::GetNInterfaces ( void  ) const

pure virtual

Returns

the number of interfaces added by the user.

Implemented in ns3::Ipv4L3Protocol.

Referenced by ns3::EpcHelper::AddEnb(), ns3::EpcHelper::AddX2Interface(), and ns3::GlobalRouter::FindDesignatedRouterForLink().

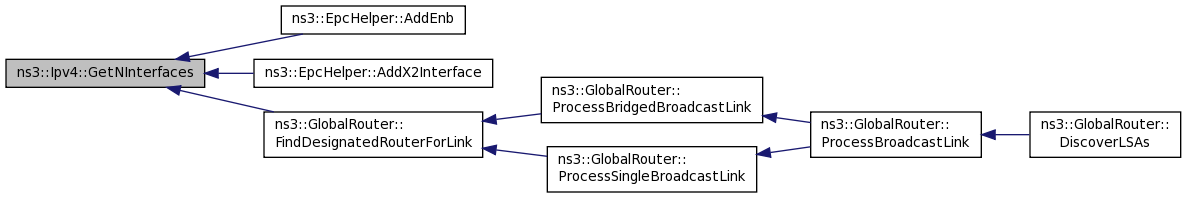

Here is the caller graph for this function:

virtual Ptr<IpL4Protocol> ns3::Ipv4::GetProtocol ( int  protocolNumber ) const

pure virtual

Parameters

protocolNumber

number of protocol to lookup in this L4 Demux

Returns

a matching L4 Protocol

This method is typically called by lower layers to forward packets up the stack to the right protocol.

Implemented in ns3::Ipv4L3Protocol.

virtual Ptr<Ipv4RoutingProtocol> ns3::Ipv4::GetRoutingProtocol ( void  ) const

pure virtual

Get the routing protocol to be used by this Ipv4 stack.

Returns

smart pointer to Ipv4RoutingProtocol object, or null pointer if none

Implemented in ns3::Ipv4L3Protocol.

Referenced by ns3::AnimationInterface::GetIpv4RoutingTable(), main(), ns3::AnimationInterface::RecursiveIpv4RoutePathSearch(), and ns3::AnimationInterface::TrackIpv4RoutePaths().

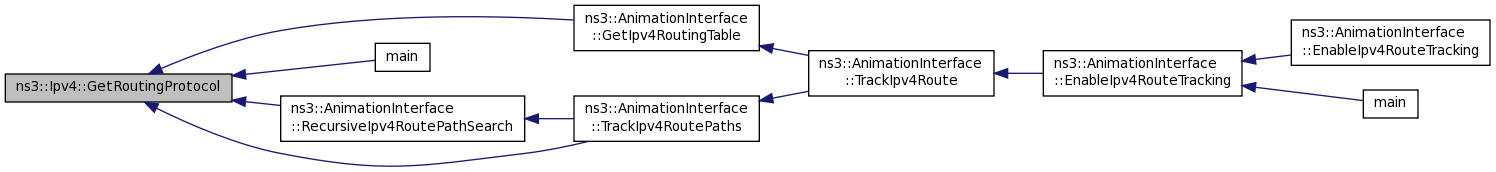

Here is the caller graph for this function:

TypeId ns3::Ipv4::GetTypeId ( void  )

static

Definition at line 34 of file ipv4.cc.

References GetIpForward(), ns3::UdpSocket::GetMtuDiscover(), GetWeakEsModel(), SetIpForward(), ns3::UdpSocket::SetMtuDiscover(), ns3::TypeId::SetParent(), and SetWeakEsModel().

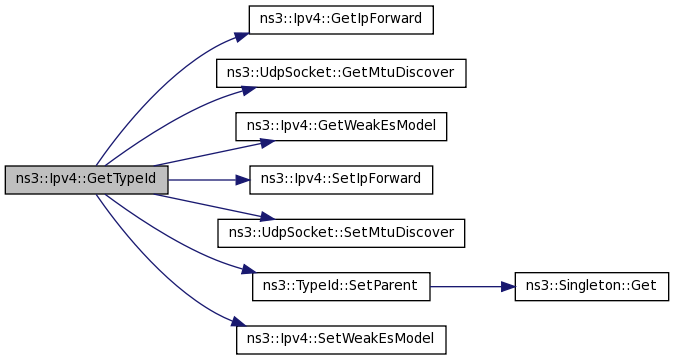

Here is the call graph for this function:

virtual bool ns3::Ipv4::GetWeakEsModel ( void  ) const

privatepure virtual

Implemented in ns3::Ipv4L3Protocol.

Referenced by GetTypeId().

Here is the caller graph for this function:

virtual void ns3::Ipv4::Insert ( Ptr< IpL4Protocol >  protocol )

pure virtual

Parameters

protocol

a pointer to the protocol to add to this L4 Demux.

Adds a protocol to an internal list of L4 protocols.

Implemented in ns3::Ipv4L3Protocol.

virtual bool ns3::Ipv4::IsDestinationAddress ( Ipv4Address  address, uint32_t  iif  ) const

pure virtual

Determine whether address and interface corresponding to received packet can be accepted for local delivery.

Parameters

address	The IP address being considered
iif	The incoming Ipv4 interface index

This method can be used to determine whether a received packet has an acceptable address for local delivery on the host. The address may be a unicast, multicast, or broadcast address. This method will return true if address is an exact match of a unicast address on one of the host's interfaces (see below), if address corresponds to a multicast group that the host has joined (and the incoming device is acceptable), or if address corresponds to a broadcast address.

If the Ipv4 attribute WeakEsModel is true, the unicast address may match any of the Ipv4 addresses on any interface. If the attribute is false, the address must match one assigned to the incoming device.

Implemented in ns3::Ipv4L3Protocol.

virtual bool ns3::Ipv4::IsForwarding ( uint32_t  interface ) const

pure virtual

Parameters

interface

Interface number of Ipv4 interface

Returns

true if IP forwarding enabled for input datagrams on this device

Implemented in ns3::Ipv4L3Protocol.

virtual bool ns3::Ipv4::IsUp ( uint32_t  interface ) const

pure virtual

Parameters

interface

Interface number of Ipv4 interface

Returns

true if the underlying interface is in the "up" state, false otherwise.

Implemented in ns3::Ipv4L3Protocol.

virtual bool ns3::Ipv4::RemoveAddress ( uint32_t  interface, uint32_t  addressIndex  )

pure virtual

Remove the address at addressIndex on named interface. The addressIndex for all higher indices will decrement by one after this method is called; so, for example, to remove 5 addresses from an interface i, one could call RemoveAddress (i, 0); 5 times.

Parameters

interface	Interface number of an Ipv4 interface
addressIndex	index of Ipv4InterfaceAddress to remove

Returns

true if the operation succeeded

Implemented in ns3::Ipv4L3Protocol.

virtual bool ns3::Ipv4::RemoveAddress ( uint32_t  interface, Ipv4Address  address  )

pure virtual

Remove the given address on named Ipv4 interface.

Parameters

interface	Interface number of an Ipv4 interface
address	The address to remove

Returns

true if the operation succeeded

Implemented in ns3::Ipv4L3Protocol.

virtual Ipv4Address ns3::Ipv4::SelectSourceAddress ( Ptr< const NetDevice >  device, Ipv4Address  dst, Ipv4InterfaceAddress::InterfaceAddressScope_e  scope  )

pure virtual

Return the first primary source address with scope less than or equal to the requested scope, to use in sending a packet to destination dst out of the specified device.

This method mirrors the behavior of Linux inet_select_addr() and is provided because interfaces may have multiple IP addresses configured on them with different scopes, and with a primary and secondary status. Secondary addresses are never returned.

See Also

Ipv4InterfaceAddress

If a non-zero device pointer is provided, the method first tries to return a primary address that is configured on that device, and whose subnet matches that of dst and whose scope is less than or equal to the requested scope. If a primary address does not match the subnet of dst but otherwise matches the scope, it is returned. If no such address on the device is found, the other devices are searched in order of their interface index, but not considering dst as a factor in the search. Because a loopback interface is typically the first one configured on a node, it will be the first alternate device to be tried. Addresses scoped at LINK scope are not returned in this phase.

If no device pointer is provided, the same logic as above applies, only that there is no preferred device that is consulted first. This means that if the device pointer is null, input parameter dst will be ignored.

If there are no possible addresses to return, a warning log message is issued and the all-zeroes address is returned.

Parameters

device	output NetDevice (optionally provided, only to constrain the search)
dst	Destination address to match, if device is provided
scope	Scope of returned address must be less than or equal to this

Returns

the first primary Ipv4Address that meets the search criteria

Implemented in ns3::Ipv4L3Protocol.

virtual void ns3::Ipv4::Send ( Ptr< Packet >  packet, Ipv4Address  source, Ipv4Address  destination, uint8_t  protocol, Ptr< Ipv4Route >  route  )

pure virtual

Parameters

packet	packet to send
source	source address of packet
destination	address of packet
protocol	number of packet
route	route entry

Higher-level layers call this method to send a packet down the stack to the MAC and PHY layers.

Implemented in ns3::Ipv4L3Protocol.

Referenced by ns3::Icmpv4L4Protocol::NotifyNewAggregate(), ns3::UdpL4Protocol::NotifyNewAggregate(), and ns3::TcpL4Protocol::NotifyNewAggregate().

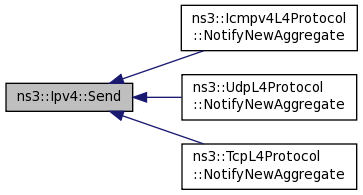

Here is the caller graph for this function:

virtual void ns3::Ipv4::SendWithHeader ( Ptr< Packet >  packet, Ipv4Header  ipHeader, Ptr< Ipv4Route >  route  )

pure virtual

Parameters

packet	packet to send
ipHeader	IP Header
route	route entry

Higher-level layers call this method to send a packet with IPv4 Header (Intend to be used with IpHeaderInclude attribute.)

Implemented in ns3::Ipv4L3Protocol.

virtual void ns3::Ipv4::SetDown ( uint32_t  interface )

pure virtual

Parameters

interface

Interface number of Ipv4 interface

Set the interface into the "down" state. In this state, it is ignored during Ipv4 forwarding.

Implemented in ns3::Ipv4L3Protocol.

Referenced by main().

Here is the caller graph for this function:

virtual void ns3::Ipv4::SetForwarding ( uint32_t  interface, bool  val  )

pure virtual

Parameters

interface	Interface number of Ipv4 interface
val	Value to set the forwarding flag

If set to true, IP forwarding is enabled for input datagrams on this device

Implemented in ns3::Ipv4L3Protocol.

virtual void ns3::Ipv4::SetIpForward ( bool  forward )

privatepure virtual

Implemented in ns3::Ipv4L3Protocol.

Referenced by GetTypeId().

Here is the caller graph for this function:

virtual void ns3::Ipv4::SetMetric ( uint32_t  interface, uint16_t  metric  )

pure virtual

Parameters

interface	The interface number of an Ipv4 interface
metric	routing metric (cost) associated to the underlying Ipv4 interface

Implemented in ns3::Ipv4L3Protocol.

Referenced by StaticRoutingSlash32TestCase::DoRun(), Ipv4PacketInfoTagTest::DoRun(), GlobalRoutingSlash32TestCase::DoRun(), and main().

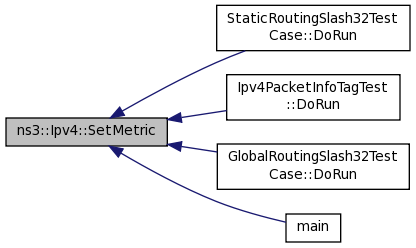

Here is the caller graph for this function:

virtual void ns3::Ipv4::SetRoutingProtocol ( Ptr< Ipv4RoutingProtocol >  routingProtocol )

pure virtual

Register a new routing protocol to be used by this Ipv4 stack.

This call will replace any routing protocol that has been previously registered. If you want to add multiple routing protocols, you must add them to a Ipv4ListRoutingProtocol directly.

Parameters

routingProtocol

smart pointer to Ipv4RoutingProtocol object

Implemented in ns3::Ipv4L3Protocol.

virtual void ns3::Ipv4::SetUp ( uint32_t  interface )

pure virtual

Parameters

interface

Interface number of Ipv4 interface

Set the interface into the "up" state. In this state, it is considered valid during Ipv4 forwarding.

Implemented in ns3::Ipv4L3Protocol.

Referenced by TcpTestCase::AddSimpleNetDevice(), AddSimpleNetDevice(), StaticRoutingSlash32TestCase::DoRun(), Ipv4ForwardingTest::DoRun(), Ipv4HeaderTest::DoRun(), Ipv4PacketInfoTagTest::DoRun(), Ipv4RawSocketImplTest::DoRun(), Ipv4FragmentationTest::DoRun(), UdpSocketImplTest::DoRun(), GlobalRoutingSlash32TestCase::DoRun(), main(), and Tunnel::Tunnel().

Here is the caller graph for this function:

virtual void ns3::Ipv4::SetWeakEsModel ( bool  model )

privatepure virtual

Implemented in ns3::Ipv4L3Protocol.

Referenced by GetTypeId().

Here is the caller graph for this function:

Member Data Documentation

const uint32_t ns3::Ipv4::IF_ANY = 0xffffffff

static

Definition at line 381 of file ipv4.h.

Referenced by ns3::Ipv4StaticRouting::LookupStatic().

---

The documentation for this class was generated from the following files:

• src/internet/model/ipv4.h
• src/internet/model/ipv4.cc
