ns3::Ipv6AddressGeneratorImpl Class Reference

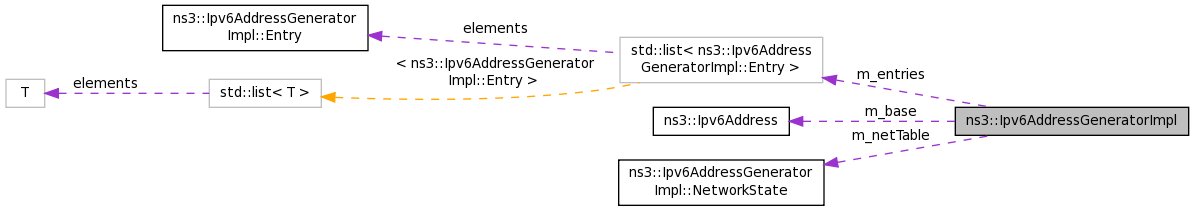

Collaboration diagram for ns3::Ipv6AddressGeneratorImpl:

Classes
class	Entry
class	NetworkState

Public Member Functions
	Ipv6AddressGeneratorImpl ()
virtual	~Ipv6AddressGeneratorImpl ()
bool	AddAllocated (const Ipv6Address addr)
Ipv6Address	GetAddress (const Ipv6Prefix prefix) const
Ipv6Address	GetNetwork (const Ipv6Prefix prefix) const
void	Init (const Ipv6Address net, const Ipv6Prefix prefix, const Ipv6Address interfaceId)
void	InitAddress (const Ipv6Address interfaceId, const Ipv6Prefix prefix)
Ipv6Address	NextAddress (const Ipv6Prefix prefix)
Ipv6Address	NextNetwork (const Ipv6Prefix prefix)
void	Reset (void)
void	TestMode (void)

Private Member Functions
uint32_t	PrefixToIndex (Ipv6Prefix prefix) const

Private Attributes
Ipv6Address	m_base
std::list< Entry >	m_entries
NetworkState	m_netTable [N_BITS]
bool	m_test

Static Private Attributes
static const uint32_t	MOST_SIGNIFICANT_BIT = 0x80
static const uint32_t	N_BITS = 128

Detailed Description

Definition at line 31 of file ipv6-address-generator.cc.

Constructor & Destructor Documentation

ns3::Ipv6AddressGeneratorImpl::Ipv6AddressGeneratorImpl

(

)

Definition at line 81 of file ipv6-address-generator.cc.

References NS_LOG_FUNCTION, and Reset().

Here is the call graph for this function:

ns3::Ipv6AddressGeneratorImpl::~Ipv6AddressGeneratorImpl ( )

virtual

Definition at line 130 of file ipv6-address-generator.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

bool ns3::Ipv6AddressGeneratorImpl::AddAllocated

(

const Ipv6Address

addr

)

Definition at line 364 of file ipv6-address-generator.cc.

References ns3::Ipv6AddressGeneratorImpl::Entry::addrHigh, ns3::Ipv6AddressGeneratorImpl::Entry::addrLow, ns3::Ipv6Address::GetBytes(), m_entries, m_test, NS_FATAL_ERROR, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Referenced by NextAddress().

Here is the call graph for this function:

Here is the caller graph for this function:

Ipv6Address ns3::Ipv6AddressGeneratorImpl::GetAddress

(

const Ipv6Prefix

prefix

)

const

Definition at line 281 of file ipv6-address-generator.cc.

References ns3::Ipv6AddressGeneratorImpl::NetworkState::addr, m_netTable, ns3::Ipv6AddressGeneratorImpl::NetworkState::network, NS_LOG_FUNCTION, PrefixToIndex(), and ns3::Ipv6AddressGeneratorImpl::NetworkState::shift.

Here is the call graph for this function:

Ipv6Address ns3::Ipv6AddressGeneratorImpl::GetNetwork

(

const Ipv6Prefix

prefix

)

const

Definition at line 187 of file ipv6-address-generator.cc.

References m_netTable, ns3::Ipv6AddressGeneratorImpl::NetworkState::network, NS_LOG_FUNCTION, PrefixToIndex(), and ns3::Ipv6AddressGeneratorImpl::NetworkState::shift.

Here is the call graph for this function:

void ns3::Ipv6AddressGeneratorImpl::Init	(	const Ipv6Address	net,
		const Ipv6Prefix	prefix,
		const Ipv6Address	interfaceId
	)

Definition at line 136 of file ipv6-address-generator.cc.

References ns3::Ipv6AddressGeneratorImpl::NetworkState::addr, ns3::Ipv6Address::GetBytes(), ns3::Ipv6Prefix::GetBytes(), m_base, m_netTable, ns3::Ipv6AddressGeneratorImpl::NetworkState::network, NS_LOG_DEBUG, NS_LOG_FUNCTION, PrefixToIndex(), and ns3::Ipv6AddressGeneratorImpl::NetworkState::shift.

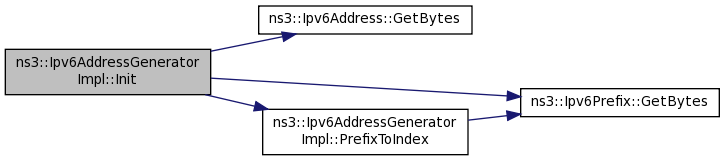

Here is the call graph for this function:

void ns3::Ipv6AddressGeneratorImpl::InitAddress	(	const Ipv6Address	interfaceId,
		const Ipv6Prefix	prefix
	)

Definition at line 264 of file ipv6-address-generator.cc.

References ns3::Ipv6AddressGeneratorImpl::NetworkState::addr, ns3::Ipv6Address::GetBytes(), m_netTable, NS_LOG_FUNCTION, and PrefixToIndex().

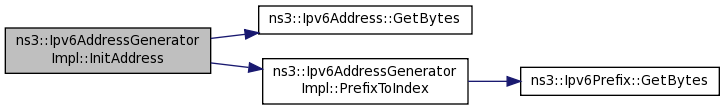

Here is the call graph for this function:

Ipv6Address ns3::Ipv6AddressGeneratorImpl::NextAddress

(

const Ipv6Prefix

prefix

)

Definition at line 313 of file ipv6-address-generator.cc.

References AddAllocated(), ns3::Ipv6AddressGeneratorImpl::NetworkState::addr, m_netTable, ns3::Ipv6AddressGeneratorImpl::NetworkState::network, NS_LOG_FUNCTION, PrefixToIndex(), and ns3::Ipv6AddressGeneratorImpl::NetworkState::shift.

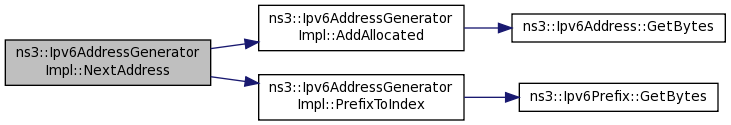

Here is the call graph for this function:

Ipv6Address ns3::Ipv6AddressGeneratorImpl::NextNetwork

(

const Ipv6Prefix

prefix

)

Definition at line 214 of file ipv6-address-generator.cc.

References ns3::Ipv6AddressGeneratorImpl::NetworkState::addr, ns3::Ipv6Address::GetBytes(), m_base, m_netTable, ns3::Ipv6AddressGeneratorImpl::NetworkState::network, NS_LOG_FUNCTION, PrefixToIndex(), and ns3::Ipv6AddressGeneratorImpl::NetworkState::shift.

Here is the call graph for this function:

uint32_t ns3::Ipv6AddressGeneratorImpl::PrefixToIndex ( Ipv6Prefix  prefix ) const

private

Definition at line 485 of file ipv6-address-generator.cc.

References ns3::Ipv6Prefix::GetBytes(), N_BITS, NS_ABORT_MSG_UNLESS, and NS_ASSERT_MSG.

Referenced by GetAddress(), GetNetwork(), Init(), InitAddress(), NextAddress(), and NextNetwork().

Here is the call graph for this function:

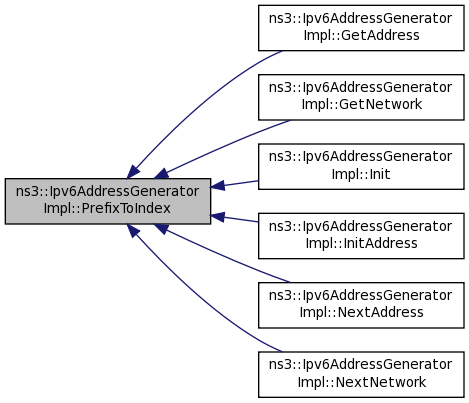

Here is the caller graph for this function:

void ns3::Ipv6AddressGeneratorImpl::Reset

(

void

)

Definition at line 91 of file ipv6-address-generator.cc.

References ns3::Ipv6AddressGeneratorImpl::NetworkState::addr, ns3::Ipv6AddressGeneratorImpl::NetworkState::addrMax, m_base, m_entries, m_netTable, m_test, MOST_SIGNIFICANT_BIT, N_BITS, ns3::Ipv6AddressGeneratorImpl::NetworkState::network, NS_LOG_FUNCTION, ns3::Ipv6AddressGeneratorImpl::NetworkState::prefix, and ns3::Ipv6AddressGeneratorImpl::NetworkState::shift.

Referenced by Ipv6AddressGeneratorImpl().

Here is the caller graph for this function:

void ns3::Ipv6AddressGeneratorImpl::TestMode

(

void

)

Definition at line 478 of file ipv6-address-generator.cc.

References m_test, and NS_LOG_FUNCTION.

Member Data Documentation

Ipv6Address ns3::Ipv6AddressGeneratorImpl::m_base

private

Definition at line 77 of file ipv6-address-generator.cc.

Referenced by Init(), NextNetwork(), and Reset().

std::list<Entry> ns3::Ipv6AddressGeneratorImpl::m_entries

private

Definition at line 76 of file ipv6-address-generator.cc.

Referenced by AddAllocated(), and Reset().

NetworkState ns3::Ipv6AddressGeneratorImpl::m_netTable[N_BITS]

private

Definition at line 67 of file ipv6-address-generator.cc.

Referenced by GetAddress(), GetNetwork(), Init(), InitAddress(), NextAddress(), NextNetwork(), and Reset().

bool ns3::Ipv6AddressGeneratorImpl::m_test

private

Definition at line 78 of file ipv6-address-generator.cc.

Referenced by AddAllocated(), Reset(), and TestMode().

const uint32_t ns3::Ipv6AddressGeneratorImpl::MOST_SIGNIFICANT_BIT = 0x80

staticprivate

Definition at line 53 of file ipv6-address-generator.cc.

Referenced by Reset().

const uint32_t ns3::Ipv6AddressGeneratorImpl::N_BITS = 128

staticprivate

Definition at line 52 of file ipv6-address-generator.cc.

Referenced by PrefixToIndex(), and Reset().

---

The documentation for this class was generated from the following file:

• src/internet/model/ipv6-address-generator.cc
