ns3::TcpTxBuffer Class Reference

class for keeping the data sent by the application to the TCP socket, i.e. the sending buffer. More...

#include <tcp-tx-buffer.h>

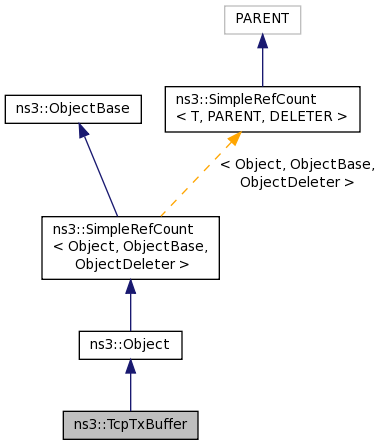

Inheritance diagram for ns3::TcpTxBuffer:

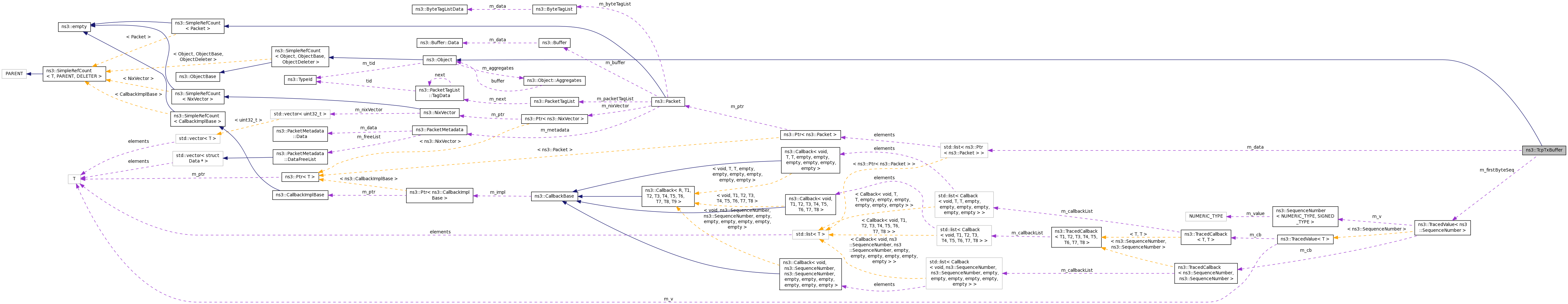

Collaboration diagram for ns3::TcpTxBuffer:

Public Member Functions
	TcpTxBuffer (uint32_t n=0)
virtual	~TcpTxBuffer (void)
bool	Add (Ptr< Packet > p)
uint32_t	Available (void) const
Ptr< Packet >	CopyFromSequence (uint32_t numBytes, const SequenceNumber32 &seq)
void	DiscardUpTo (const SequenceNumber32 &seq)
SequenceNumber32	HeadSequence (void) const
uint32_t	MaxBufferSize (void) const
void	SetHeadSequence (const SequenceNumber32 &seq)
void	SetMaxBufferSize (uint32_t n)
uint32_t	Size (void) const
uint32_t	SizeFromSequence (const SequenceNumber32 &seq) const
SequenceNumber32	TailSequence (void) const
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Initialize (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)

Private Types
typedef std::list< Ptr< Packet > >::iterator	BufIterator

Private Attributes
std::list< Ptr< Packet > >	m_data
TracedValue< SequenceNumber32 >	m_firstByteSeq
uint32_t	m_maxBuffer
uint32_t	m_size

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoDispose (void)
virtual void	DoInitialize (void)
virtual void	NotifyNewAggregate (void)
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
virtual void	NotifyConstructionCompleted (void)

Detailed Description

class for keeping the data sent by the application to the TCP socket, i.e. the sending buffer.

Definition at line 40 of file tcp-tx-buffer.h.

Member Typedef Documentation

typedef std::list<Ptr<Packet> >::iterator ns3::TcpTxBuffer::BufIterator

private

Definition at line 111 of file tcp-tx-buffer.h.

Constructor & Destructor Documentation

ns3::TcpTxBuffer::TcpTxBuffer

(

uint32_t

n = 0

)

Definition at line 55 of file tcp-tx-buffer.cc.

ns3::TcpTxBuffer::~TcpTxBuffer ( void  )

virtual

Definition at line 60 of file tcp-tx-buffer.cc.

Member Function Documentation

bool ns3::TcpTxBuffer::Add

(

Ptr< Packet >

p

)

Append a data packet to the end of the buffer

Parameters

p	The packet to be appended to the Tx buffer

Returns

Boolean to indicate success

Definition at line 101 of file tcp-tx-buffer.cc.

References Available(), ns3::Packet::GetSize(), m_data, m_firstByteSeq, m_size, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Referenced by ns3::TcpSocketBase::Send().

Here is the call graph for this function:

Here is the caller graph for this function:

uint32_t ns3::TcpTxBuffer::Available

(

void

)

const

Returns the available capacity in this Tx window

Definition at line 95 of file tcp-tx-buffer.cc.

References m_maxBuffer, and m_size.

Referenced by Add(), and ns3::TcpSocketBase::GetTxAvailable().

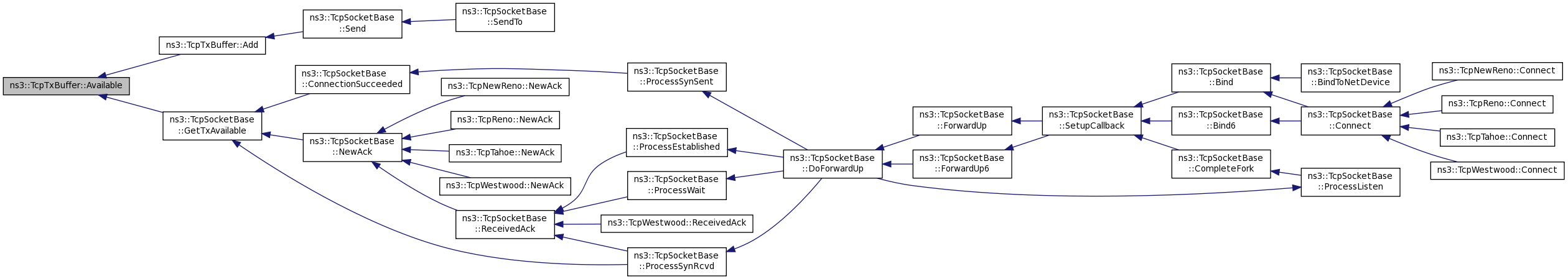

Here is the caller graph for this function:

Ptr< Packet > ns3::TcpTxBuffer::CopyFromSequence	(	uint32_t	numBytes,
		const SequenceNumber32 &	seq
	)

Copy data of size numBytes into a packet, data from the range [seq, seq+numBytes)

Definition at line 133 of file tcp-tx-buffer.cc.

References ns3::Packet::AddAtEnd(), ns3::Packet::CreateFragment(), ns3::TracedValue< T >::Get(), ns3::Packet::GetSize(), m_data, m_firstByteSeq, NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_LOGIC, s, and SizeFromSequence().

Referenced by ns3::TcpSocketBase::PersistTimeout(), and ns3::TcpSocketBase::SendDataPacket().

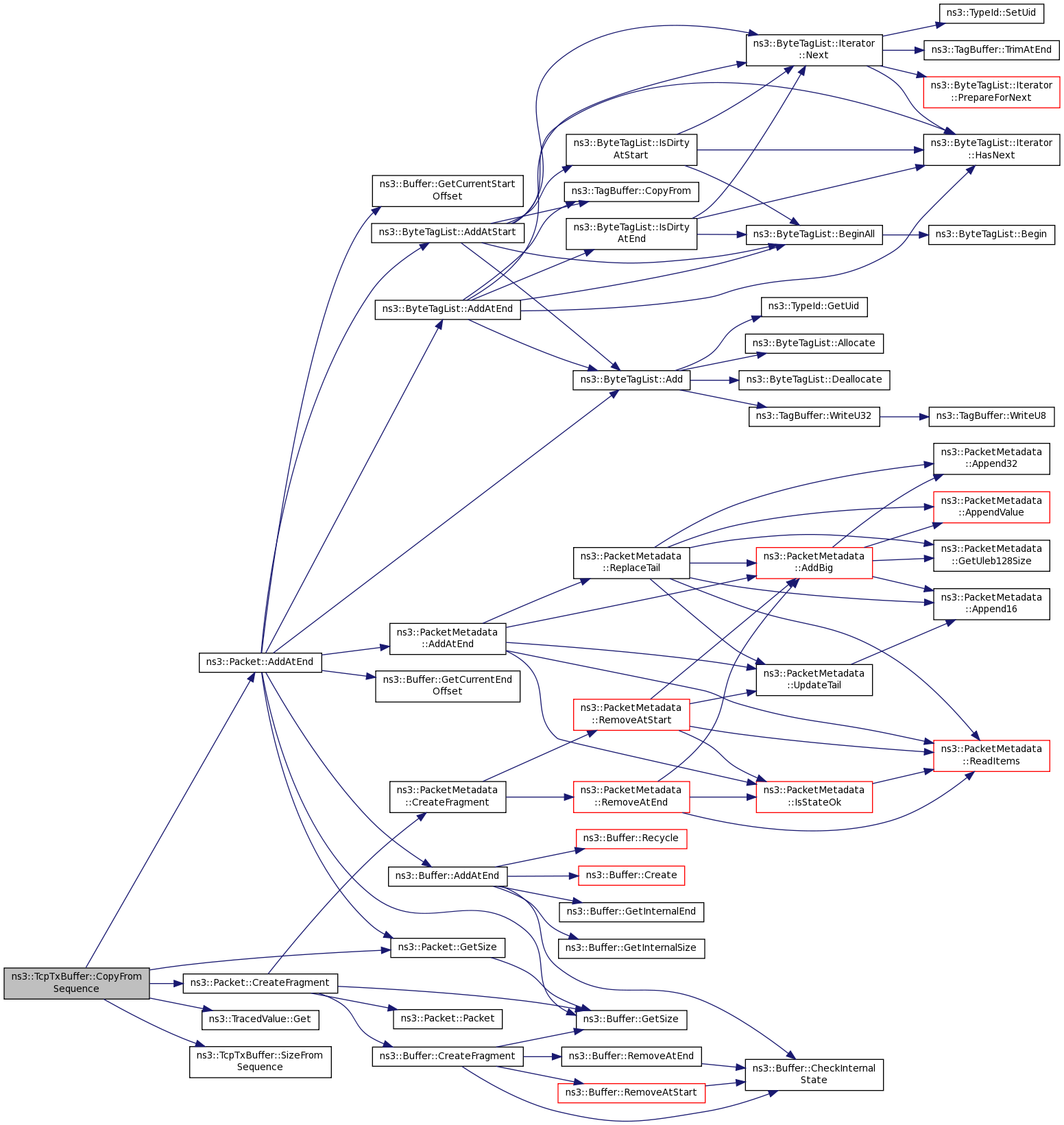

Here is the call graph for this function:

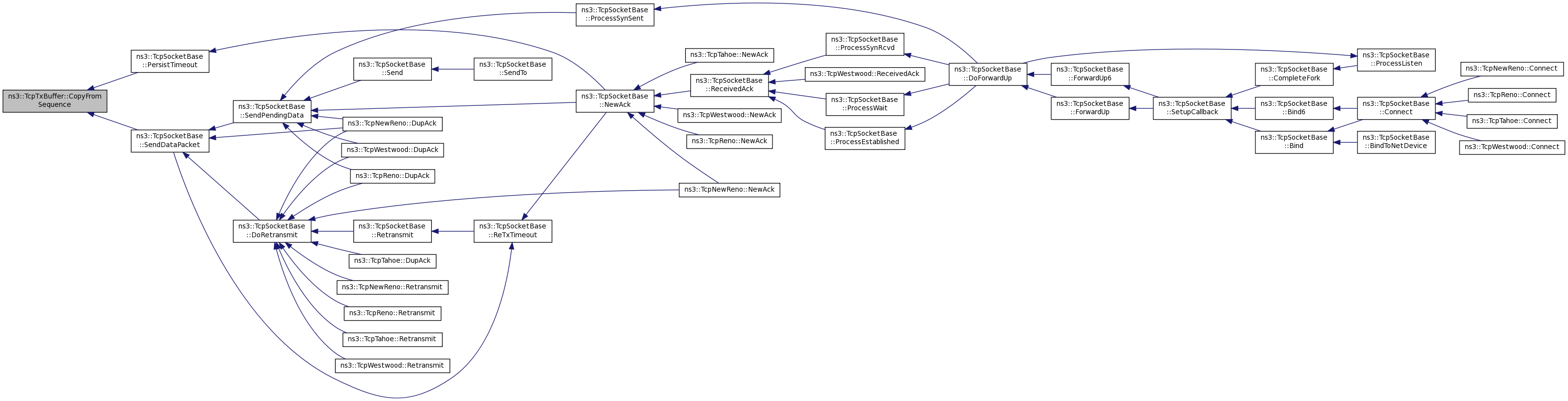

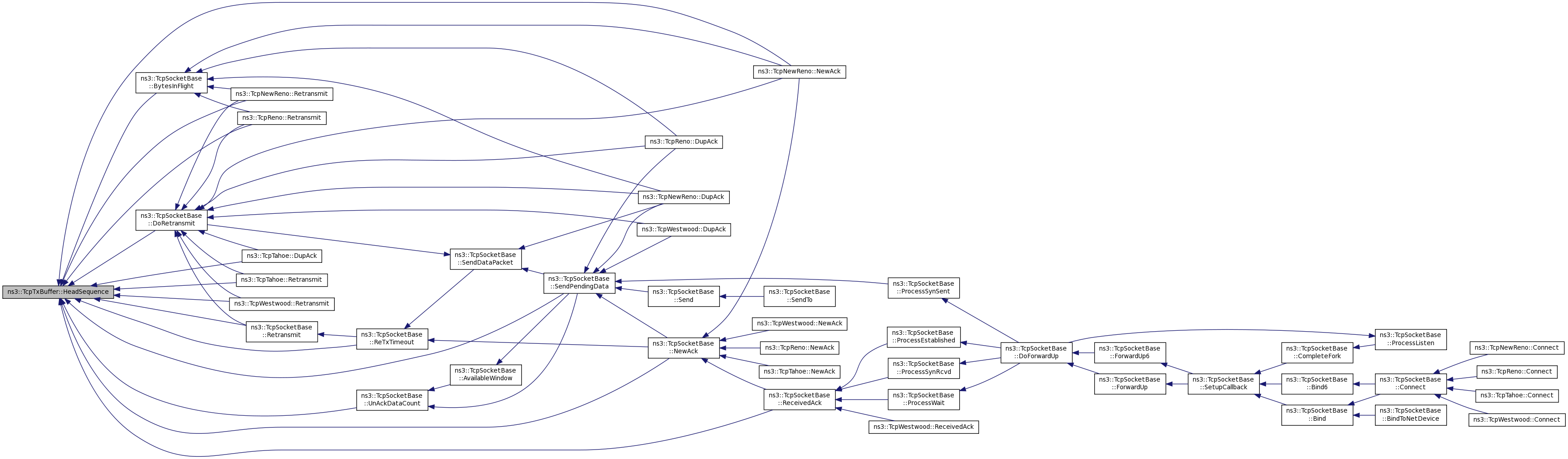

Here is the caller graph for this function:

void ns3::TcpTxBuffer::DiscardUpTo

(

const SequenceNumber32 &

seq

)

Discard data up to but not including this sequence number.

Parameters

seq	The sequence number of the head byte

Definition at line 208 of file tcp-tx-buffer.cc.

References ns3::TracedValue< T >::Get(), m_data, m_firstByteSeq, m_maxBuffer, m_size, NS_ASSERT, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Referenced by ns3::TcpSocketBase::NewAck().

Here is the call graph for this function:

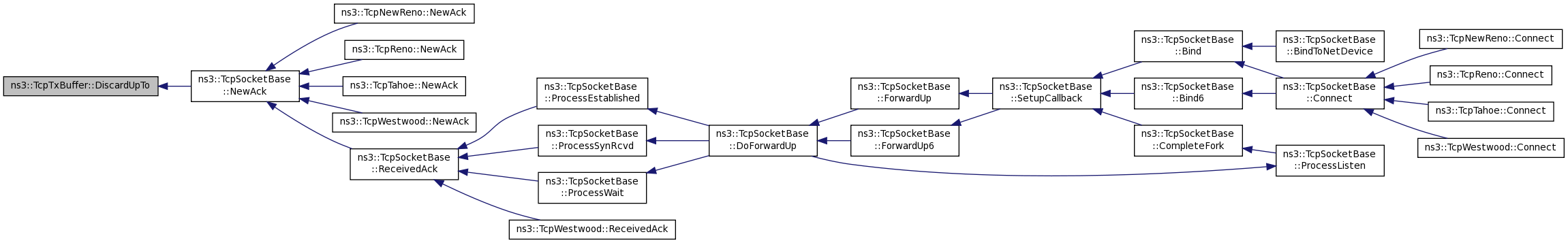

Here is the caller graph for this function:

TypeId ns3::TcpTxBuffer::GetTypeId ( void  )

static

Definition at line 36 of file tcp-tx-buffer.cc.

References m_firstByteSeq, ns3::MakeTraceSourceAccessor(), and ns3::TypeId::SetParent().

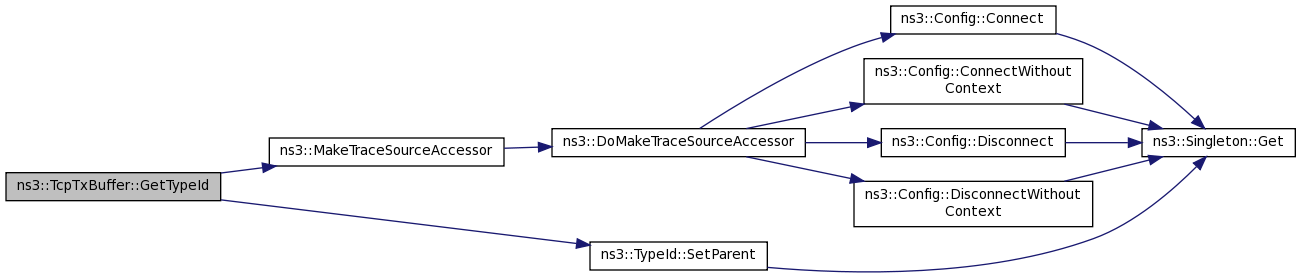

Here is the call graph for this function:

SequenceNumber32 ns3::TcpTxBuffer::HeadSequence

(

void

)

const

Returns the first byte's sequence number

Definition at line 65 of file tcp-tx-buffer.cc.

References m_firstByteSeq.

Referenced by ns3::TcpSocketBase::BytesInFlight(), ns3::TcpSocketBase::DoRetransmit(), ns3::TcpTahoe::DupAck(), ns3::TcpNewReno::NewAck(), ns3::TcpSocketBase::NewAck(), ns3::TcpSocketBase::ReceivedAck(), ns3::TcpNewReno::Retransmit(), ns3::TcpReno::Retransmit(), ns3::TcpTahoe::Retransmit(), ns3::TcpWestwood::Retransmit(), ns3::TcpSocketBase::Retransmit(), ns3::TcpSocketBase::ReTxTimeout(), ns3::TcpSocketBase::SendPendingData(), and ns3::TcpSocketBase::UnAckDataCount().

Here is the caller graph for this function:

uint32_t ns3::TcpTxBuffer::MaxBufferSize

(

void

)

const

Returns the Tx window size

Definition at line 83 of file tcp-tx-buffer.cc.

References m_maxBuffer.

Referenced by ns3::TcpSocketBase::GetSndBufSize().

Here is the caller graph for this function:

void ns3::TcpTxBuffer::SetHeadSequence

(

const SequenceNumber32 &

seq

)

Set the m_firstByteSeq to seq. Supposed to be called only when the connection is just set up and we did not send any data out yet.

Definition at line 201 of file tcp-tx-buffer.cc.

References m_firstByteSeq, and NS_LOG_FUNCTION.

Referenced by ns3::TcpSocketBase::ProcessSynRcvd(), and ns3::TcpSocketBase::ProcessSynSent().

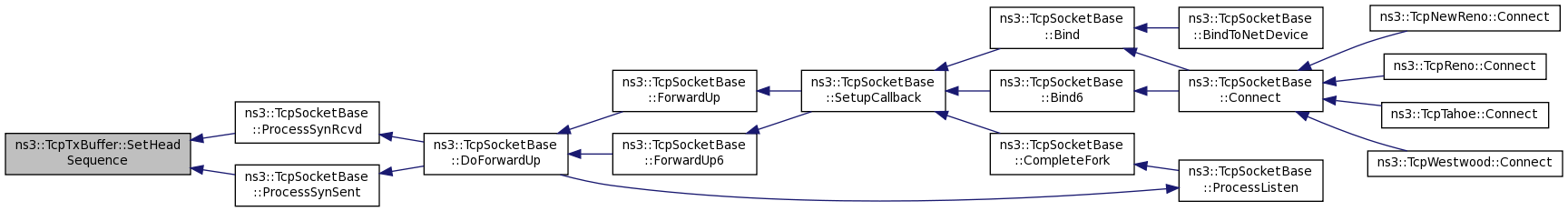

Here is the caller graph for this function:

void ns3::TcpTxBuffer::SetMaxBufferSize

(

uint32_t

n

)

Set the Tx window size

Definition at line 89 of file tcp-tx-buffer.cc.

References m_maxBuffer.

Referenced by ns3::TcpSocketBase::SetSndBufSize().

Here is the caller graph for this function:

uint32_t ns3::TcpTxBuffer::Size

(

void

)

const

Returns total number of bytes in this Tx buffer

Definition at line 77 of file tcp-tx-buffer.cc.

References m_size.

Referenced by ns3::TcpSocketBase::DoRetransmit(), ns3::TcpSocketBase::NewAck(), ns3::TcpSocketBase::ProcessWait(), ns3::TcpSocketBase::Send(), ns3::TcpSocketBase::SendPendingData(), and ns3::TcpSocketBase::ShutdownSend().

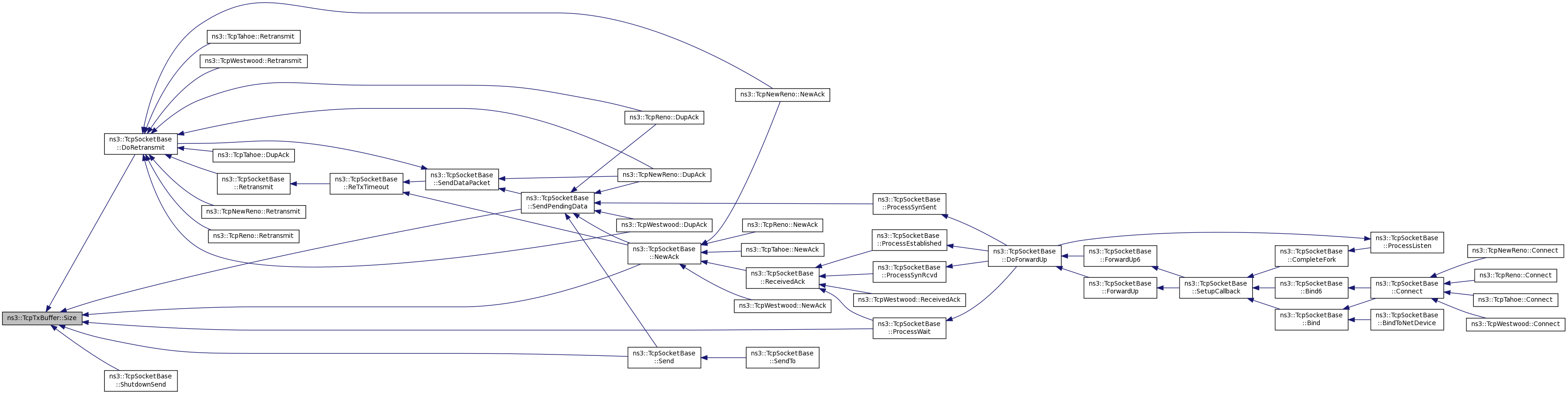

Here is the caller graph for this function:

uint32_t ns3::TcpTxBuffer::SizeFromSequence

(

const SequenceNumber32 &

seq

)

const

Returns the number of bytes from the buffer in the range [seq, tailSequence)

Definition at line 121 of file tcp-tx-buffer.cc.

References m_firstByteSeq, m_size, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Referenced by ns3::TcpSocketBase::Close(), CopyFromSequence(), ns3::TcpNewReno::DupAck(), ns3::TcpSocketBase::SendDataPacket(), and ns3::TcpSocketBase::SendPendingData().

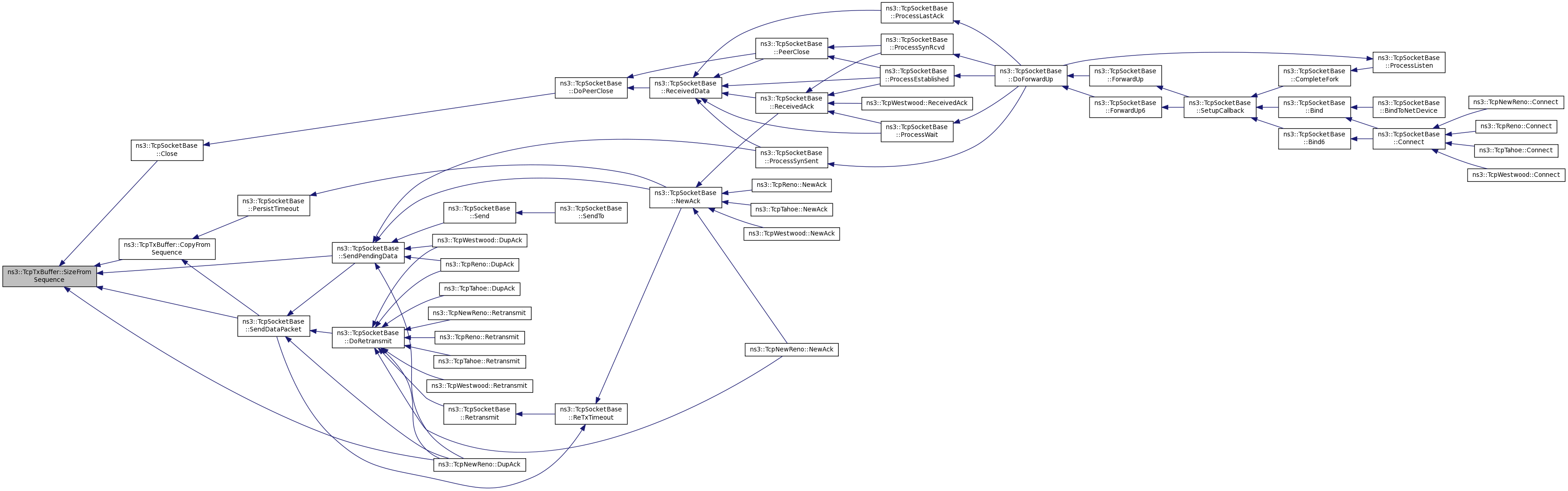

Here is the caller graph for this function:

SequenceNumber32 ns3::TcpTxBuffer::TailSequence

(

void

)

const

Returns the last byte's sequence number + 1

Definition at line 71 of file tcp-tx-buffer.cc.

References m_firstByteSeq, and m_size.

Member Data Documentation

std::list<Ptr<Packet> > ns3::TcpTxBuffer::m_data

private

Definition at line 116 of file tcp-tx-buffer.h.

Referenced by Add(), CopyFromSequence(), and DiscardUpTo().

TracedValue<SequenceNumber32> ns3::TcpTxBuffer::m_firstByteSeq

private

Definition at line 113 of file tcp-tx-buffer.h.

Referenced by Add(), CopyFromSequence(), DiscardUpTo(), GetTypeId(), HeadSequence(), SetHeadSequence(), SizeFromSequence(), and TailSequence().

uint32_t ns3::TcpTxBuffer::m_maxBuffer

private

Definition at line 115 of file tcp-tx-buffer.h.

Referenced by Available(), DiscardUpTo(), MaxBufferSize(), and SetMaxBufferSize().

uint32_t ns3::TcpTxBuffer::m_size

private

Definition at line 114 of file tcp-tx-buffer.h.

Referenced by Add(), Available(), DiscardUpTo(), Size(), SizeFromSequence(), and TailSequence().

---

The documentation for this class was generated from the following files:

• src/internet/model/tcp-tx-buffer.h
• src/internet/model/tcp-tx-buffer.cc
