ns3::UanPacketArrival Class Reference

Class consisting of packet arrival information (Time, RxPower, mode, PDP) More...

#include <uan-transducer.h>

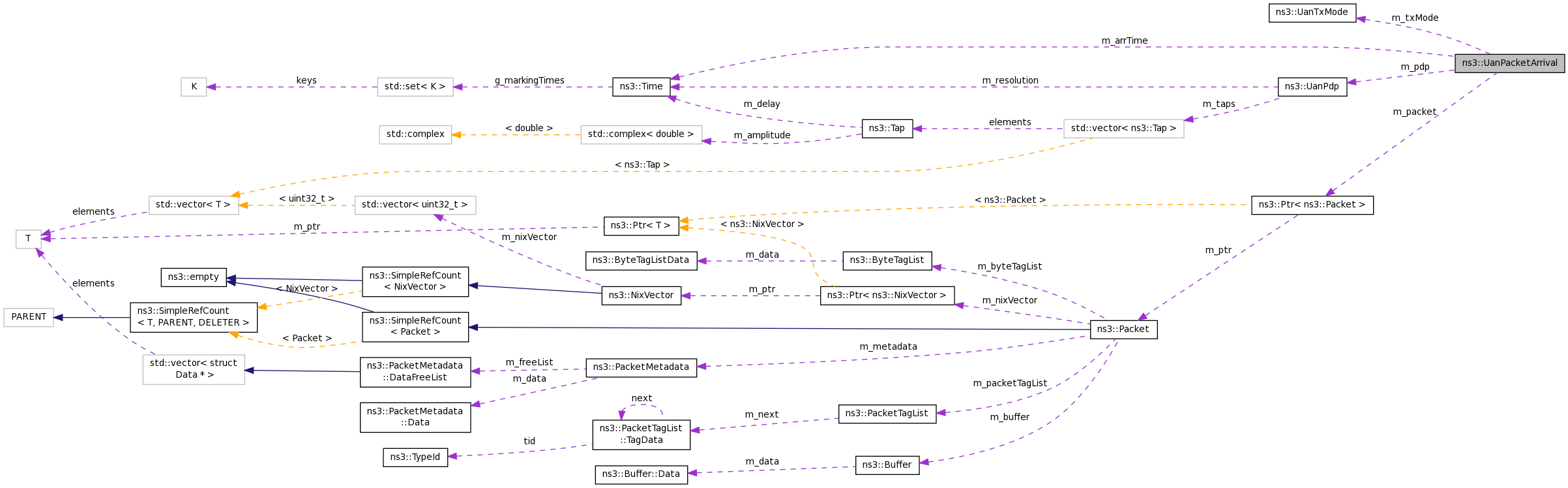

Collaboration diagram for ns3::UanPacketArrival:

Public Member Functions
	UanPacketArrival ()
	UanPacketArrival (Ptr< Packet > packet, double rxPowerDb, UanTxMode txMode, UanPdp pdp, Time arrTime)
	~UanPacketArrival ()
Time	GetArrivalTime (void) const
Ptr< Packet >	GetPacket (void) const
UanPdp	GetPdp (void) const
double	GetRxPowerDb (void) const
const UanTxMode &	GetTxMode (void) const

Private Attributes
Time	m_arrTime
Ptr< Packet >	m_packet
UanPdp	m_pdp
double	m_rxPowerDb
UanTxMode	m_txMode

Detailed Description

Class consisting of packet arrival information (Time, RxPower, mode, PDP)

Definition at line 42 of file uan-transducer.h.

Constructor & Destructor Documentation

ns3::UanPacketArrival::UanPacketArrival ( )

inline

Definition at line 47 of file uan-transducer.h.

ns3::UanPacketArrival::UanPacketArrival ( Ptr< Packet >  packet, double  rxPowerDb, UanTxMode  txMode, UanPdp  pdp, Time  arrTime  )

inline

Parameters

packet	Packet arriving
rxPowerDb	RX signal power in dB of arriving packet
txMode	TX mode of arriving packet
pdp	Power delay profile of arriving packet
arrTime	Arrival time of packet

Definition at line 58 of file uan-transducer.h.

ns3::UanPacketArrival::~UanPacketArrival ( )

inline

Definition at line 67 of file uan-transducer.h.

References m_packet.

Member Function Documentation

Time ns3::UanPacketArrival::GetArrivalTime ( void  ) const

inline

Returns

Arrival time of packet

Definition at line 96 of file uan-transducer.h.

References m_arrTime.

Ptr<Packet> ns3::UanPacketArrival::GetPacket ( void  ) const

inline

Returns

Pointer to packet that arrived

Definition at line 75 of file uan-transducer.h.

References m_packet.

Referenced by ns3::UanTransducerHd::RemoveArrival().

Here is the caller graph for this function:

UanPdp ns3::UanPacketArrival::GetPdp ( void  ) const

inline

Returns

PDP of arriving signal

Definition at line 103 of file uan-transducer.h.

References m_pdp.

double ns3::UanPacketArrival::GetRxPowerDb ( void  ) const

inline

Returns

Received signal strength in dB re 1uPa

Definition at line 82 of file uan-transducer.h.

References m_rxPowerDb.

const UanTxMode& ns3::UanPacketArrival::GetTxMode ( void  ) const

inline

Returns

UanTxMode used to transmit packet

Definition at line 89 of file uan-transducer.h.

References m_txMode.

Member Data Documentation

Time ns3::UanPacketArrival::m_arrTime

private

Definition at line 112 of file uan-transducer.h.

Referenced by GetArrivalTime().

Ptr<Packet> ns3::UanPacketArrival::m_packet

private

Definition at line 108 of file uan-transducer.h.

Referenced by GetPacket(), and ~UanPacketArrival().

UanPdp ns3::UanPacketArrival::m_pdp

private

Definition at line 111 of file uan-transducer.h.

Referenced by GetPdp().

double ns3::UanPacketArrival::m_rxPowerDb

private

Definition at line 109 of file uan-transducer.h.

Referenced by GetRxPowerDb().

UanTxMode ns3::UanPacketArrival::m_txMode

private

Definition at line 110 of file uan-transducer.h.

Referenced by GetTxMode().

---

The documentation for this class was generated from the following file:

• src/uan/model/uan-transducer.h
