ns3::WifiSpectrumValue5MhzFactory Class Reference

#include <wifi-spectrum-value-helper.h>

Public Member Functions
virtual	~WifiSpectrumValue5MhzFactory ()
virtual Ptr< SpectrumValue >	CreateConstant (double psd)
virtual Ptr< SpectrumValue >	CreateRfFilter (uint32_t channel)
virtual Ptr< SpectrumValue >	CreateTxPowerSpectralDensity (double txPower, uint32_t channel)

Detailed Description

Implements WifiSpectrumValue for the 2.4 GHz ISM band only, with a 5 MHz spectrum resolution.

Definition at line 82 of file wifi-spectrum-value-helper.h.

Constructor & Destructor Documentation

ns3::WifiSpectrumValue5MhzFactory::~WifiSpectrumValue5MhzFactory ( )

virtual

Definition at line 33 of file wifi-spectrum-value-helper.cc.

Member Function Documentation

Ptr< SpectrumValue > ns3::WifiSpectrumValue5MhzFactory::CreateConstant ( double  psd )

virtual

Definition at line 58 of file wifi-spectrum-value-helper.cc.

References ns3::g_WifiSpectrumModel5Mhz.

Referenced by ns3::SpectrumIdealPhyTestCase::DoRun(), and main().

Here is the caller graph for this function:

Ptr< SpectrumValue > ns3::WifiSpectrumValue5MhzFactory::CreateRfFilter ( uint32_t  channel )

virtual

Definition at line 101 of file wifi-spectrum-value-helper.cc.

References ns3::g_WifiSpectrumModel5Mhz, and NS_ASSERT.

Ptr< SpectrumValue > ns3::WifiSpectrumValue5MhzFactory::CreateTxPowerSpectralDensity ( double  txPower, uint32_t  channel  )

virtual

Definition at line 67 of file wifi-spectrum-value-helper.cc.

References ns3::g_WifiSpectrumModel5Mhz, and NS_ASSERT.

Referenced by ns3::SpectrumIdealPhyTestCase::DoRun(), and main().

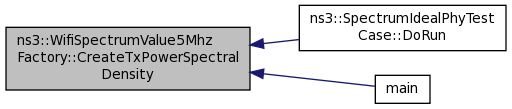

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• src/spectrum/model/wifi-spectrum-value-helper.h
• src/spectrum/model/wifi-spectrum-value-helper.cc
