802.11s Peer link management frame More...

#include <peer-link-frame.h>

Inheritance diagram for ns3::dot11s::PeerLinkFrameStart:

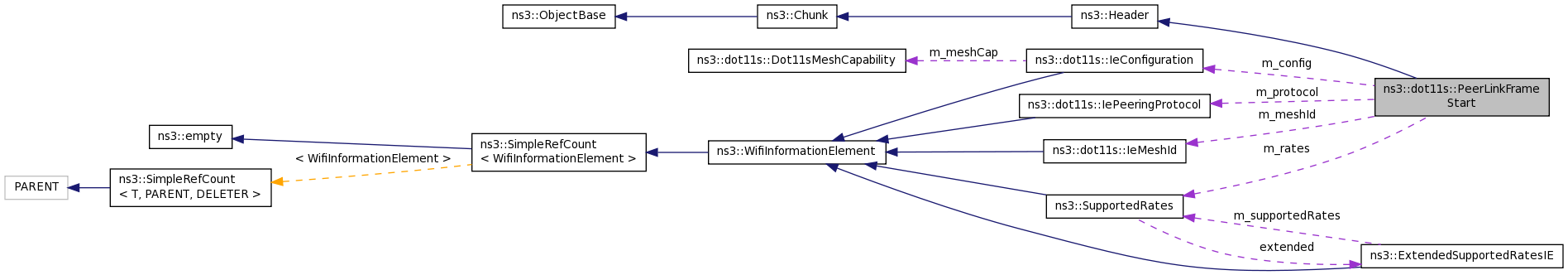

Collaboration diagram for ns3::dot11s::PeerLinkFrameStart:

Classes
struct	PlinkFrameStartFields
	fields: More...

Public Member Functions
	PeerLinkFrameStart ()

PlinkFrameStartFields	GetFields () const

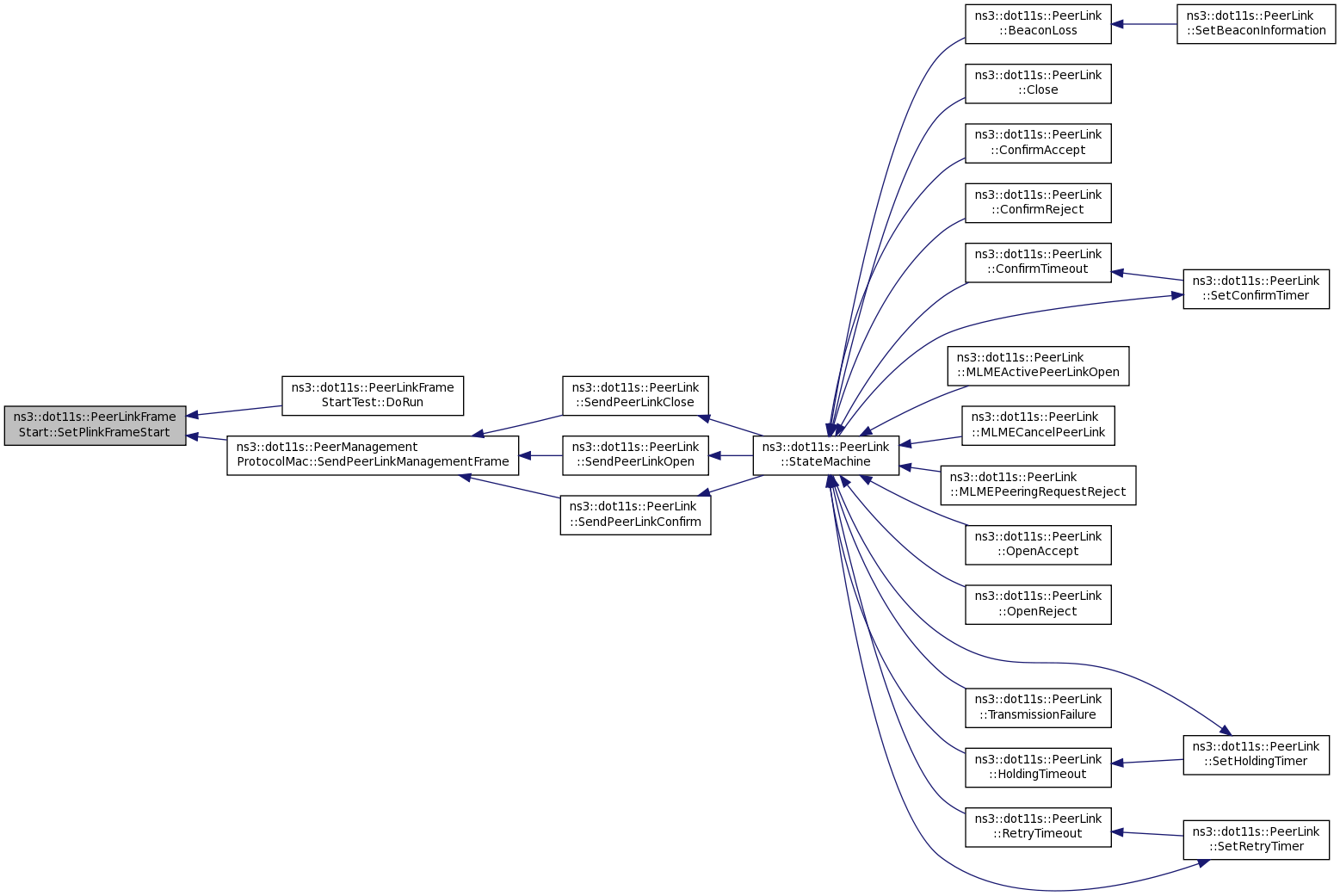

void	SetPlinkFrameStart (PlinkFrameStartFields)

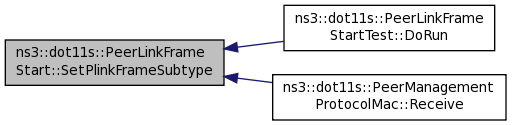

void	SetPlinkFrameSubtype (uint8_t subtype)

Public Member Functions inherited from ns3::Header
virtual	~Header ()

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Private Member Functions
	PeerLinkFrameStart (const PeerLinkFrameStart &)

PeerLinkFrameStart &	operator= (const PeerLinkFrameStart &)

Private Attributes
uint16_t	m_aid

uint16_t	m_capability

IeConfiguration	m_config

IeMeshId	m_meshId

IePeeringProtocol	m_protocol

SupportedRates	m_rates

uint16_t	m_reasonCode

uint8_t	m_subtype

Friends
bool	operator== (const PeerLinkFrameStart &a, const PeerLinkFrameStart &b)

Inherited from header:
virtual TypeId	GetInstanceTypeId () const

virtual void	Print (std::ostream &os) const

virtual uint32_t	GetSerializedSize () const

virtual void	Serialize (Buffer::Iterator start) const

virtual uint32_t	Deserialize (Buffer::Iterator start)

static TypeId	GetTypeId ()

Additional Inherited Members
Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)

Detailed Description

802.11s Peer link management frame

Peer link management frame included the following (see chapters 7.4.12.1-7.4.12.3 of 802.11s):

Subtype field
Association ID field
Supported rates
Mesh ID of mesh

Doxygen introspection did not find any typical Config paths.
No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 45 of file peer-link-frame.h.

Constructor & Destructor Documentation

ns3::dot11s::PeerLinkFrameStart::PeerLinkFrameStart ( )

Definition at line 31 of file peer-link-frame.cc.

ns3::dot11s::PeerLinkFrameStart::PeerLinkFrameStart ( const PeerLinkFrameStart & )

private

Member Function Documentation

uint32_t ns3::dot11s::PeerLinkFrameStart::Deserialize ( Buffer::Iterator start )

virtual

Parameters

start an iterator which points to where the header should written.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Implements ns3::Header.

Definition at line 172 of file peer-link-frame.cc.

References ns3::WifiInformationElement::Deserialize(), ns3::WifiInformationElement::DeserializeIfPresent(), ns3::dot11s::IePeeringProtocol::DeserializeInformationField(), ns3::dot11s::IeMeshId::DeserializeInformationField(), ns3::dot11s::IeConfiguration::DeserializeInformationField(), ns3::dot11s::IePeeringProtocol::ElementId(), ns3::dot11s::IeMeshId::ElementId(), ns3::dot11s::IeConfiguration::ElementId(), ns3::SupportedRates::extended, ns3::Buffer::Iterator::GetDistanceFrom(), ns3::dot11s::IePeeringProtocol::GetInformationFieldSize(), ns3::dot11s::IeMeshId::GetInformationFieldSize(), ns3::dot11s::IeConfiguration::GetInformationFieldSize(), m_aid, m_capability, m_config, m_meshId, m_protocol, m_rates, m_reasonCode, m_subtype, ns3::Buffer::Iterator::Next(), NS_ASSERT, NS_FATAL_ERROR, ns3::WifiActionHeader::PEER_LINK_CLOSE, ns3::WifiActionHeader::PEER_LINK_CONFIRM, ns3::Buffer::Iterator::ReadLsbtohU16(), ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

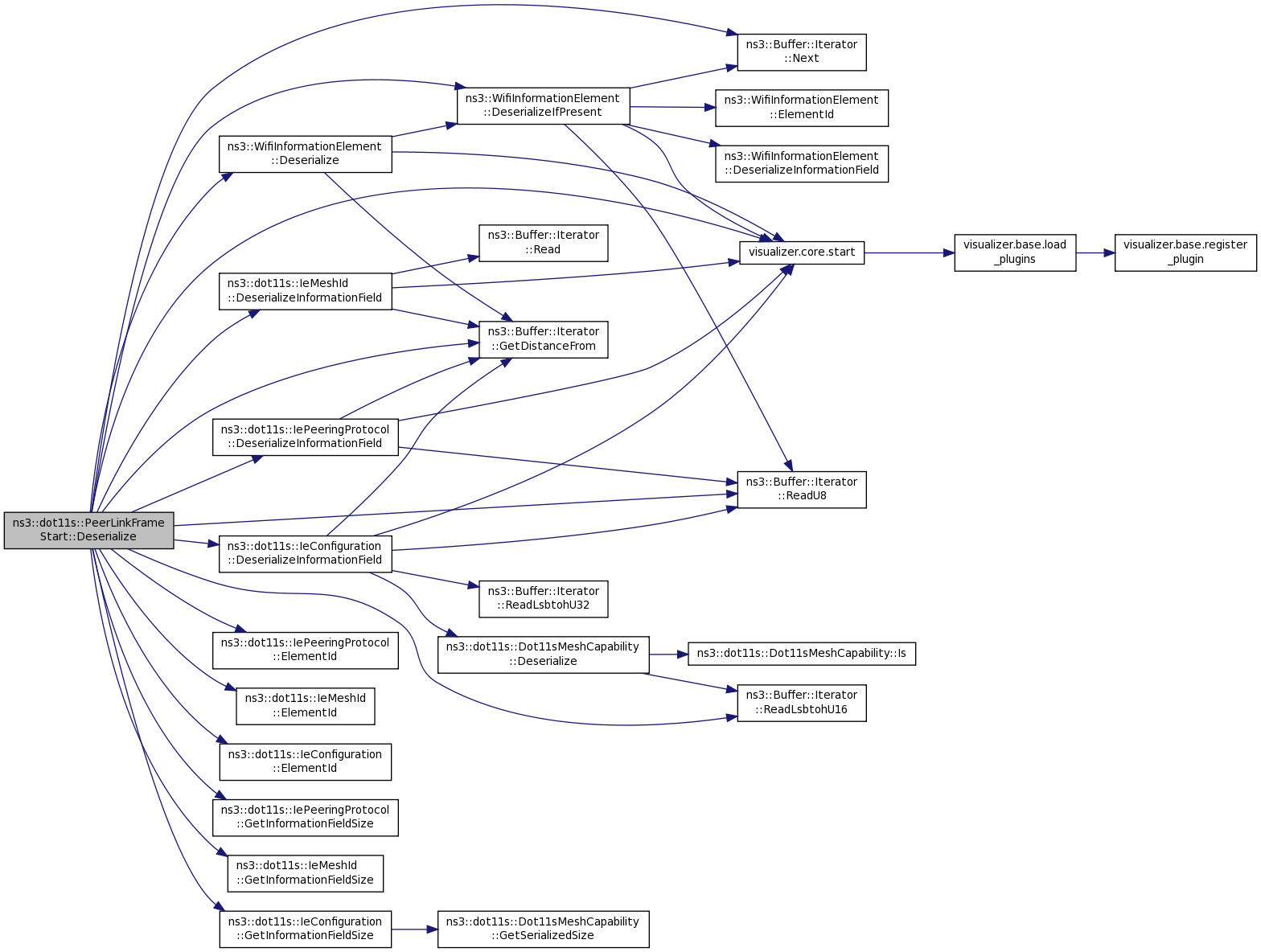

Here is the call graph for this function:

PeerLinkFrameStart::PlinkFrameStartFields ns3::dot11s::PeerLinkFrameStart::GetFields ( ) const

Todo:: protocol version:

Definition at line 72 of file peer-link-frame.cc.

References ns3::dot11s::PeerLinkFrameStart::PlinkFrameStartFields::aid, ns3::dot11s::PeerLinkFrameStart::PlinkFrameStartFields::capability, ns3::dot11s::PeerLinkFrameStart::PlinkFrameStartFields::config, m_aid, m_capability, m_config, m_meshId, m_rates, m_reasonCode, m_subtype, ns3::dot11s::PeerLinkFrameStart::PlinkFrameStartFields::meshId, ns3::dot11s::PeerLinkFrameStart::PlinkFrameStartFields::rates, ns3::dot11s::PeerLinkFrameStart::PlinkFrameStartFields::reasonCode, and ns3::dot11s::PeerLinkFrameStart::PlinkFrameStartFields::subtype.

Referenced by ns3::dot11s::PeerManagementProtocolMac::Receive().

Here is the caller graph for this function:

TypeId ns3::dot11s::PeerLinkFrameStart::GetInstanceTypeId ( ) const

virtual

Returns: the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Implements ns3::ObjectBase.

Definition at line 93 of file peer-link-frame.cc.

References GetTypeId().

Here is the call graph for this function:

uint32_t ns3::dot11s::PeerLinkFrameStart::GetSerializedSize ( ) const

virtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 108 of file peer-link-frame.cc.

References ns3::SupportedRates::extended, ns3::dot11s::IeMeshId::GetInformationFieldSize(), ns3::dot11s::IeConfiguration::GetInformationFieldSize(), ns3::ExtendedSupportedRatesIE::GetSerializedSize(), ns3::WifiInformationElement::GetSerializedSize(), m_config, m_meshId, m_rates, m_subtype, NS_ASSERT, ns3::WifiActionHeader::PEER_LINK_CLOSE, and ns3::WifiActionHeader::PEER_LINK_CONFIRM.

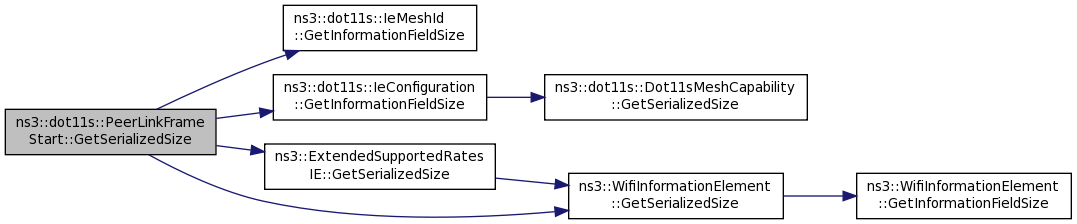

Here is the call graph for this function:

TypeId ns3::dot11s::PeerLinkFrameStart::GetTypeId ( void )

static

Definition at line 86 of file peer-link-frame.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

PeerLinkFrameStart& ns3::dot11s::PeerLinkFrameStart::operator= ( const PeerLinkFrameStart & )

private

void ns3::dot11s::PeerLinkFrameStart::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a trailer as ascii data to a c++ output stream. Although the trailer is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 98 of file peer-link-frame.cc.

References m_aid, m_capability, m_config, m_meshId, m_rates, m_reasonCode, m_subtype, ns3::dot11s::IeMeshId::Print(), and ns3::dot11s::IeConfiguration::Print().

Here is the call graph for this function:

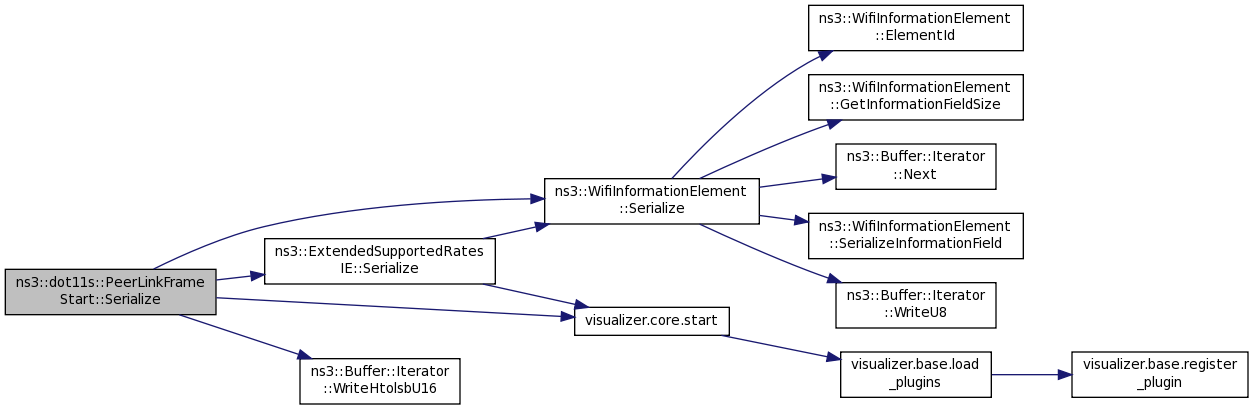

void ns3::dot11s::PeerLinkFrameStart::Serialize ( Buffer::Iterator start ) const

virtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 140 of file peer-link-frame.cc.

References ns3::SupportedRates::extended, m_aid, m_capability, m_config, m_meshId, m_protocol, m_rates, m_reasonCode, m_subtype, NS_ASSERT, ns3::WifiActionHeader::PEER_LINK_CLOSE, ns3::WifiActionHeader::PEER_LINK_CONFIRM, ns3::ExtendedSupportedRatesIE::Serialize(), ns3::WifiInformationElement::Serialize(), visualizer.core::start(), and ns3::Buffer::Iterator::WriteHtolsbU16().
