ns3::OnoeWifiRemoteStation Struct Reference

Inheritance diagram for ns3::OnoeWifiRemoteStation:

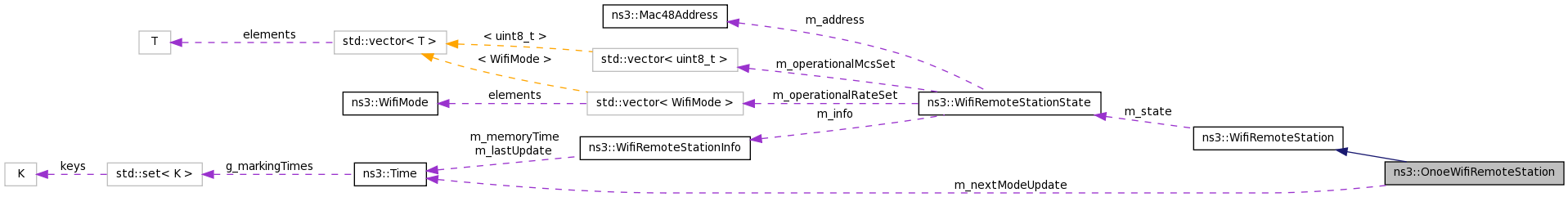

Collaboration diagram for ns3::OnoeWifiRemoteStation:

Public Attributes
uint32_t	m_longRetry
Time	m_nextModeUpdate
uint32_t	m_shortRetry
uint32_t	m_tx_err
uint32_t	m_tx_ok
uint32_t	m_tx_retr
uint32_t	m_tx_upper
uint32_t	m_txrate
Public Attributes inherited from ns3::WifiRemoteStation
uint32_t	m_slrc
uint32_t	m_ssrc
WifiRemoteStationState *	m_state
uint8_t	m_tid

Detailed Description

Definition at line 32 of file onoe-wifi-manager.cc.

Member Data Documentation

uint32_t ns3::OnoeWifiRemoteStation::m_longRetry

Definition at line 36 of file onoe-wifi-manager.cc.

Referenced by ns3::OnoeWifiManager::DoCreateStation(), ns3::OnoeWifiManager::DoGetDataTxVector(), ns3::OnoeWifiManager::DoReportDataFailed(), and ns3::OnoeWifiManager::UpdateRetry().

Time ns3::OnoeWifiRemoteStation::m_nextModeUpdate

Definition at line 34 of file onoe-wifi-manager.cc.

Referenced by ns3::OnoeWifiManager::DoCreateStation(), and ns3::OnoeWifiManager::UpdateMode().

uint32_t ns3::OnoeWifiRemoteStation::m_shortRetry

Definition at line 35 of file onoe-wifi-manager.cc.

Referenced by ns3::OnoeWifiManager::DoCreateStation(), ns3::OnoeWifiManager::DoReportRtsFailed(), and ns3::OnoeWifiManager::UpdateRetry().

uint32_t ns3::OnoeWifiRemoteStation::m_tx_err

Definition at line 38 of file onoe-wifi-manager.cc.

Referenced by ns3::OnoeWifiManager::DoCreateStation(), ns3::OnoeWifiManager::DoReportFinalDataFailed(), ns3::OnoeWifiManager::DoReportFinalRtsFailed(), and ns3::OnoeWifiManager::UpdateMode().

uint32_t ns3::OnoeWifiRemoteStation::m_tx_ok

Definition at line 37 of file onoe-wifi-manager.cc.

Referenced by ns3::OnoeWifiManager::DoCreateStation(), ns3::OnoeWifiManager::DoReportDataOk(), and ns3::OnoeWifiManager::UpdateMode().

uint32_t ns3::OnoeWifiRemoteStation::m_tx_retr

Definition at line 39 of file onoe-wifi-manager.cc.

Referenced by ns3::OnoeWifiManager::DoCreateStation(), ns3::OnoeWifiManager::UpdateMode(), and ns3::OnoeWifiManager::UpdateRetry().

uint32_t ns3::OnoeWifiRemoteStation::m_tx_upper

Definition at line 40 of file onoe-wifi-manager.cc.

Referenced by ns3::OnoeWifiManager::DoCreateStation(), and ns3::OnoeWifiManager::UpdateMode().

uint32_t ns3::OnoeWifiRemoteStation::m_txrate

Definition at line 41 of file onoe-wifi-manager.cc.

Referenced by ns3::OnoeWifiManager::DoCreateStation(), ns3::OnoeWifiManager::DoGetDataTxVector(), and ns3::OnoeWifiManager::UpdateMode().

---

The documentation for this struct was generated from the following file:

• src/wifi/model/onoe-wifi-manager.cc
