Determine which bursts of packets are errored corresponding to an underlying distribution, burst rate, and burst size. More...

#include <error-model.h>

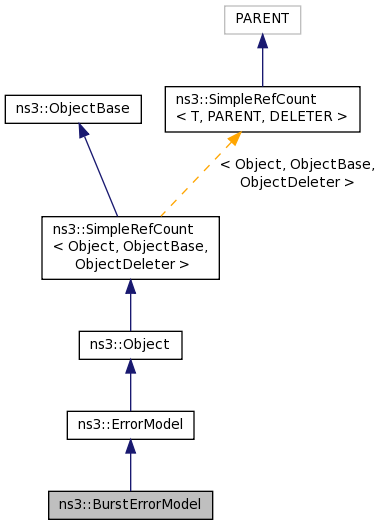

Inheritance diagram for ns3::BurstErrorModel:

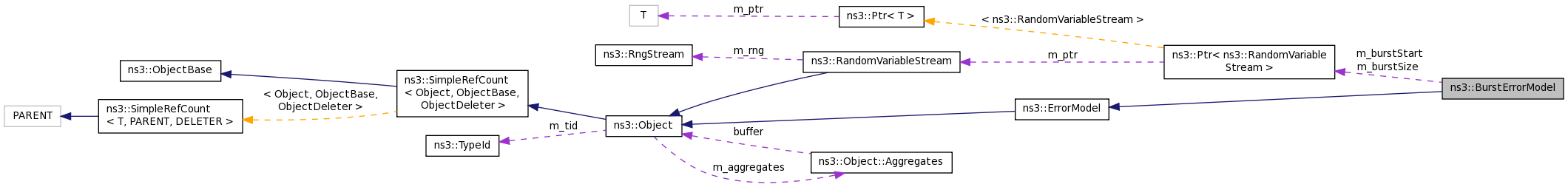

Collaboration diagram for ns3::BurstErrorModel:

Public Member Functions
	BurstErrorModel ()

virtual	~BurstErrorModel ()

int64_t	AssignStreams (int64_t stream)

double	GetBurstRate (void) const

void	SetBurstRate (double rate)

void	SetRandomBurstSize (Ptr< RandomVariableStream >)

void	SetRandomVariable (Ptr< RandomVariableStream >)

Public Member Functions inherited from ns3::ErrorModel
	ErrorModel ()

virtual	~ErrorModel ()

void	Disable (void)

void	Enable (void)

bool	IsCorrupt (Ptr< Packet > pkt)

bool	IsEnabled (void) const

void	Reset (void)

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()

	SimpleRefCount (const SimpleRefCount &o)

uint32_t	GetReferenceCount (void) const

SimpleRefCount &	operator= (const SimpleRefCount &o)

void	Ref (void) const

void	Unref (void) const

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::ErrorModel
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)

Private Member Functions
virtual bool	DoCorrupt (Ptr< Packet > p)

virtual void	DoReset (void)

Private Attributes
double	m_burstRate

Ptr< RandomVariableStream >	m_burstSize

Ptr< RandomVariableStream >	m_burstStart

uint32_t	m_counter

uint32_t	m_currentBurstSz

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoDispose (void)

virtual void	DoInitialize (void)

virtual void	NotifyNewAggregate (void)

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)

Detailed Description

Determine which bursts of packets are errored corresponding to an underlying distribution, burst rate, and burst size.

This object is used to flag packets as being lost/errored or not. The two parameters that govern the behavior are the burst rate (or equivalently, the mean duration/spacing between between error events), and the burst size (or equivalently, the number of packets being flagged as errored at each error event).

Users can optionally provide RandomVariableStream objects; the default for the decision variable is to use a Uniform(0,1) distribution; the default for the burst size (number of packets) is to use a discrete Uniform[1,4] distribution.

For every packet, the model generates a random number based on the decision variable, and compares it with the burst error rate to determine if a burst error event should occur. If a new error event occurs, the model to will generate a new burst size to determine how many packets should be dropped in this particular burst error event in addition to the current packet.

When a second packet arrives, the model again determines if a new error event should occur based on a newly generated decision variable and the burst error rate. If a new error event is determined to occur, the model will restart with a new burst size. Otherwise, the model will resume the last error event and drop the packet provided that the total number of packets that has been dropped does not exceed the burst size.

IsCorrupt() will not modify the packet data buffer

Config Paths

ns3::BurstErrorModel is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::CsmaNetDevice/ReceiveErrorModel/$ns3::BurstErrorModel
/NodeList/[i]/DeviceList/[i]/$ns3::PointToPointNetDevice/ReceiveErrorModel/$ns3::BurstErrorModel
/NodeList/[i]/DeviceList/[i]/$ns3::SimpleNetDevice/ReceiveErrorModel/$ns3::BurstErrorModel

Attributes

ErrorRate: The burst error event.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0
- Flags: construct write read
BurstStart: The decision variable attached to this error model.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::RandomVariableStream >
- Initial value: ns3::UniformRandomVariable[Min=0.0|Max=1.0]
- Flags: construct write read
BurstSize: The number of packets being corrupted at one drop.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::RandomVariableStream >
- Initial value: ns3::UniformRandomVariable[Min=1|Max=4]
- Flags: construct write read

Attributes defined in parent class ns3::ErrorModel

IsEnabled: Whether this ErrorModel is enabled or not.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: true
- Flags: construct write read

No TraceSources are defined for this type.

Definition at line 267 of file error-model.h.

Constructor & Destructor Documentation

ns3::BurstErrorModel::BurstErrorModel ( )

Definition at line 311 of file error-model.cc.

ns3::BurstErrorModel::~BurstErrorModel ( )

virtual

Definition at line 316 of file error-model.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

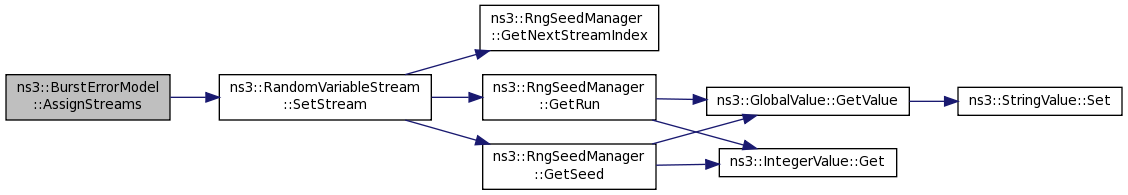

int64_t ns3::BurstErrorModel::AssignStreams ( int64_t stream )

Assign a fixed random variable stream number to the random variables used by this model. Return the number of streams (possibly zero) that have been assigned.

Parameters

stream first stream index to use
