ns3::CallbackValue Class Reference

#include <callback.h>

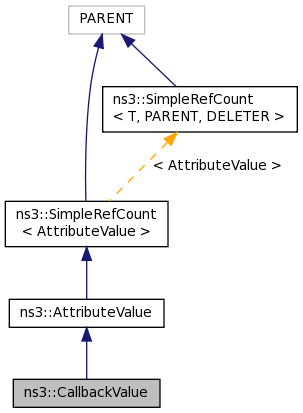

Inheritance diagram for ns3::CallbackValue:

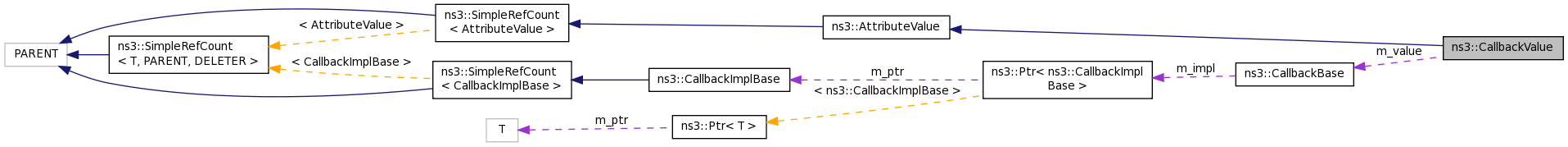

Collaboration diagram for ns3::CallbackValue:

Public Member Functions
	CallbackValue ()
	CallbackValue (const CallbackBase &base)
virtual	~CallbackValue ()
virtual Ptr< AttributeValue >	Copy (void) const
virtual bool	DeserializeFromString (std::string value, Ptr< const AttributeChecker > checker)
template<typename T >
bool	GetAccessor (T &value) const
virtual std::string	SerializeToString (Ptr< const AttributeChecker > checker) const
void	Set (CallbackBase base)
Public Member Functions inherited from ns3::AttributeValue
	AttributeValue ()
virtual	~AttributeValue ()
Public Member Functions inherited from ns3::SimpleRefCount< AttributeValue >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const

Private Attributes
CallbackBase	m_value
	the CallbackBase More...

Additional Inherited Members
Static Public Member Functions inherited from ns3::SimpleRefCount< AttributeValue >
static void	Cleanup (void)

Detailed Description

AttributeValue form of a Callback

Definition at line 1658 of file callback.h.

Constructor & Destructor Documentation

ns3::CallbackValue::CallbackValue

(

)

Definition at line 8 of file callback.cc.

References NS_LOG_FUNCTION.

ns3::CallbackValue::CallbackValue

(

const CallbackBase &

base

)

Copy constructor

Parameters

base	Callback to copy

Definition at line 13 of file callback.cc.

ns3::CallbackValue::~CallbackValue ( )

virtual

Definition at line 17 of file callback.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

Ptr< AttributeValue > ns3::CallbackValue::Copy ( void  ) const

virtual

Returns

a copy of this CallBack

Implements ns3::AttributeValue.

Definition at line 29 of file callback.cc.

References m_value, and NS_LOG_FUNCTION.

bool ns3::CallbackValue::DeserializeFromString ( std::string  value, Ptr< const AttributeChecker >  checker  )

virtual

Deserialize from string (not implemented)

Parameters

value	source string
checker	checker to validate with

Returns

true if successful

Implements ns3::AttributeValue.

Definition at line 43 of file callback.cc.

References NS_LOG_FUNCTION.

template<typename T >

bool ns3::CallbackValue::GetAccessor

(

T &

value

)

const

Give value my callback, if type compatible

Parameters

value

destination callback

Returns

true if successful

Definition at line 1708 of file callback.h.

References m_value.

std::string ns3::CallbackValue::SerializeToString ( Ptr< const AttributeChecker >  checker ) const

virtual

Serialize to string

Parameters

checker

the checker to validate with

Returns

serialize this pimpl

Implements ns3::AttributeValue.

Definition at line 35 of file callback.cc.

References ns3::CallbackBase::GetImpl(), m_value, NS_LOG_FUNCTION, and ns3::PeekPointer().

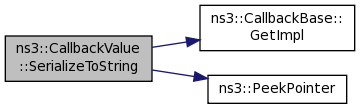

Here is the call graph for this function:

void ns3::CallbackValue::Set

(

CallbackBase

base

)

Parameters

base	the Callbackbase to use

Definition at line 22 of file callback.cc.

References m_value, and NS_LOG_FUNCTION.

Member Data Documentation

CallbackBase ns3::CallbackValue::m_value

private

the CallbackBase

Definition at line 1695 of file callback.h.

Referenced by Copy(), GetAccessor(), SerializeToString(), and Set().

---

The documentation for this class was generated from the following files:

• src/core/model/callback.h
• src/core/model/callback.cc
